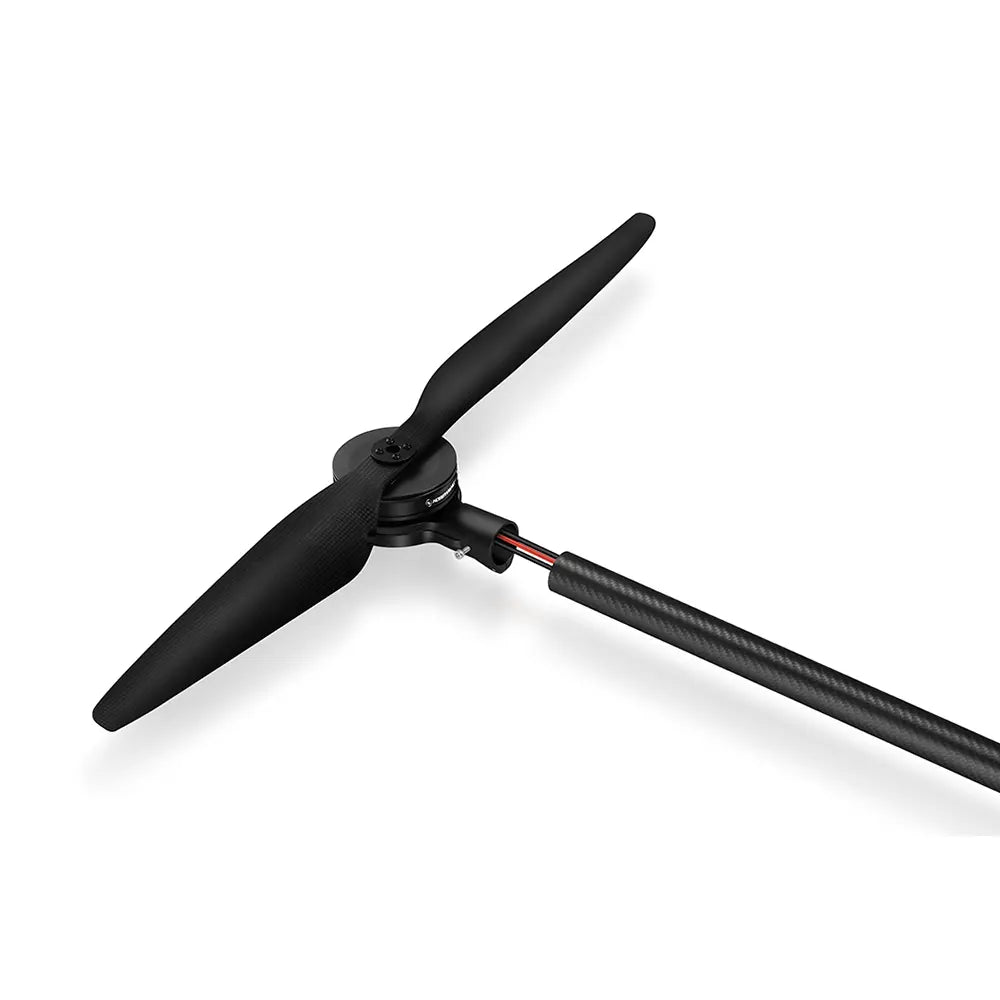

The H8M drone motor delivers reliable, high-efficiency propulsion for industrial drones. Integrated ESC & motor, CAN control, fault storage, IP45 waterproof, and advanced cooling ensure stable, precise flight. Ideal for aerial photography, inspection, mapping, and public safety. Optimized design with high-temp materials and robust bearings enhances performance, durability, and safety.

| Product Name | |
|---|---|
| H8M | |
| Specifications | |
| Max Thrust | 7.5kg |
| Recommended Battery | 12S |
| Thrust/rotor | 2.5-3.5kg/Rotor |
| Total Weight(without propellers) | 458g |
| Powertrain Arm Tube Outer Diameter | φ30mm |
| Operating Temperature | -20℃~65℃ |
| Ingress Protection | IP45 |
| Rated power input | 260W |
| Rated power output | 229W |
| Motor | |
| Stator Size | Φ81*8 mm |
| KV | 85KV |
| Motor Size | Φ87*32.2mm |
| ESC | |
| ESC | 60A-FOC |
| PWM Input Signal Level | 3.3V/5V |
| Throttle Pulse Width | 1100-1940μs |
| Signal frequency | 50-500HZ |
| Max Allowable Voltage | 63V |
| Continuous Current( Non-hermetic Ambient Temperature ≤60℃) | 20A |
| Maximum Current( Non-hermetic Ambient Temperature ≤60℃) | 60A |
| Communication Port | CAN |
| Firmware Upgrade | Support |
| Digital Communication Throttle | CAN |
| Propeller(Inch) | |
| Diameter X Thread Pitch | 30x9.8" |
| Total weight(inc. adapter) | 71g |
