Repair teams do not usually lose time because they forgot the word "front shell." They lose time because the person at the aircraft, the person ordering parts, and the person checking the product page are not all looking at the same evidence. The purpose of this DJI AGRAS T50 parts planning guide is to make that handoff cleaner.

The commercial target for this article is the DJI Agras T50 Parts - Front Shell product page. For broader model-level browsing, use the DJI AGRAS T50 parts collection. The product record should be treated as the ordering anchor, while the aircraft photo, damaged area, and field description are supporting evidence.

DJI's official AGRAS T50 specifications provide the model context behind the planning habit: the T50 is a large agricultural platform, with folded and unfolded dimensions, a 40 L spray tank configuration, and multiple aircraft systems that can make a short part name too vague for purchasing decisions. That does not mean this front shell product page proves every T50 compatibility case. It means a repair team should keep the model context in mind and then narrow the order back to the exact UNITED UAV product record and material numbers.

Start With The Product Record, Not The Nickname

Front shell, front cover, lower shell, light module, cable, screw, and buckle are all useful words, but they are not enough by themselves. A buyer may send a phone photo and call every gray molded panel a "front shell." A technician may call the same area a lower cover. A farm owner may only say the front plastic was cracked after transport. All three descriptions can point toward the right family, but none of them should become the purchase decision alone.

Use this order of evidence:

• Confirm the aircraft model is DJI AGRAS T50.
• Open the exact product page for DJI Agras T50 Parts - Front Shell.
• Match the visible area against the product image and the material-number list.
• Record whether the needed item is the shell piece itself, the light module, a sealing ring, a buckle base, a signal cable, or a screw.
• Save one wide aircraft photo and one close detail photo before ordering.

That sequence sounds basic, but it prevents the most common parts-desk mistake: buying the large shell because the damage is visible there, when the actual failed item is a small sealing ring, buckle, cable, or light module that sits in the same area.

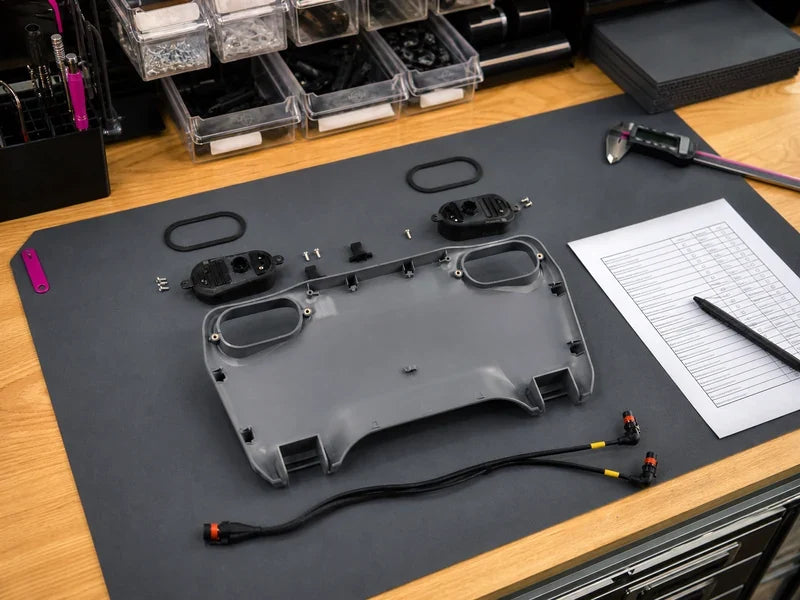

Current T50 Front Shell Material Numbers

At the time of this preparation, the linked UNITED UAV product page listed seven available variants for this product record:

• YC.JG.MY001043 - Auxiliary Bottom Light Sealing Ring
• BC.AG.SS000677 - Auxiliary Bottom Light Module
• YC.WJ.L00870 - Screw M30-HC060060-55-85
• YC.ST.LL000235 - T30-HC00800080-057030-5103-N
• YC.JG.ZS000998 - Buckle Base (Female)
• YC.JG.ZS003386 - Front Cover of Front Shell
• YC.XC.XX000999 - Auxiliary Bottom Light Signal Cable

Do not flatten that list into "front shell kit" in your internal notes. The list mixes molded plastic, a light module, sealing parts, a cable, a buckle base, and screws. Those are different replacement decisions. If the shell is cracked but the light module is fine, the order evidence should say that. If the aircraft arrived with a lighting issue but the shell is intact, the order should not automatically include the shell piece.

A Repair Lead's Practical Rule

An experienced repair lead would put it this way: "Before you order, make the part prove its name twice." First, it has to match the aircraft area in a real photo. Second, it has to match the product page and material number. If it only passes one of those checks, slow down.

That rule is useful because agricultural repair work often happens under time pressure. The aircraft may be needed before the next spray window. The operator may be sending photos from a field edge. The person ordering may not have the aircraft in front of them. Under pressure, teams start using shorthand. Shorthand is fast, but it is also how a front cover becomes a cable problem, or a sealing ring gets missed because the big molded panel attracted all the attention.

For T50 front shell planning, a clean note should read more like a repair ticket than a chat message. Include the model, product URL, selected material number, reason for replacement, and photo reference. A short note such as "T50 front shell broken" is not enough. A better note is: "DJI AGRAS T50, front shell area, product page checked, likely YC.JG.ZS003386 Front Cover of Front Shell, photos 1 and 2 attached, light module not confirmed." That is the kind of note a parts desk can act on without guessing.

Use The Collection For Planning, Then Narrow Down

The DJI AGRAS T50 parts collection is useful when the buyer is still organizing the repair. It lets a team compare neighboring assemblies and avoid treating the first matching word as final. The product page is where the decision narrows.

For front shell work, collection browsing is especially useful when the damage happened during transport, washing, or a maintenance teardown. A visible crack may sit near a cable, light, buckle, or mounting point. If the team only opens one product page and stops, they may miss an adjacent item. If they browse the whole collection forever, they may never make a purchase decision. The practical middle path is simple: use the collection to understand nearby product families, then use the exact product page to pick the material number.

Handoff Note Template

A useful T50 front shell handoff can stay short, but it needs the right fields. Write the aircraft model first, then paste the product URL, then name the selected material number. Add one sentence about the observed issue: cracked shell edge, loose light module, missing sealing ring, damaged cable, or broken buckle point. Finish with the photo names or phone-message references that support the decision.

This style helps when the buyer is not the same person who inspected the aircraft. It also helps when a manager approves the order later in the day. Nobody should have to reopen a long chat thread and guess which photo mattered. The note should make the order traceable without turning into a service manual.

For example, a clean internal note might say: "T50 front shell area, product page checked, YC.XC.XX000999 signal cable requested, damage visible in close photo 2, shell panel not requested." That is much safer than "front shell cable thing," because it gives the parts desk enough detail to challenge the order before money is spent.

What The Official T50 Context Supports

The official DJI AGRAS T50 specifications are useful background for scale and system context. They support the idea that T50 parts planning belongs inside a larger aircraft maintenance workflow. They do not prove that any third-party shop is authorized by DJI, and they do not replace the UNITED UAV product record for ordering.

This distinction matters. A blog article can safely say that the T50 is a large agricultural platform and link to official model information for context. It should not turn that context into unsupported claims about official dealer status, factory certification, warranty handling, torque values, or flight-readiness. The part page helps the buyer identify the commercial item. Official model context helps the buyer understand why the evidence should be specific.

Internal Links For This Batch

If your repair desk is planning multiple AGRAS models, compare this T50 guide with the related DJI AGRAS T40 parts planning guide and the DJI AGRAS T100 parts planning guide. The same discipline applies across all three: model first, exact product page second, material number third, photos before payment.

For already published part-specific examples, see the DJI AGRAS T40 M1 arm parts identification workflow and the DJI AGRAS T100 impeller pump assembly workflow.

Ordering Checklist

• Use the exact product page, not a saved screenshot, when selecting the material number.
• Keep the aircraft model in the note: DJI AGRAS T50.
• Name the selected material number and part description.
• Attach one wide aircraft photo and one close detail photo.
• Do not claim official DJI dealer status, genuine-part status, or compatibility beyond what the product record supports.
• Recheck the product page before payment if the aircraft has been disassembled since the first photo was taken.

For the same DJI AGRAS accessories publication set, compare these related ordering workflows:

• DJI AGRAS T40 Parts Planning Guide for Repair Teams
• DJI AGRAS T100 Parts Planning Guide for Repair Teams

FAQ

Is this a general DJI AGRAS T50 parts guide or a front shell ordering guide?

It is a model-level planning guide anchored to the T50 front shell product record. Use the collection for broader browsing, but use the linked product page when the order reaches material-number level.

Should I order the large shell whenever the front area is damaged?

No. First identify whether the failed item is the front cover, light module, sealing ring, buckle base, signal cable, or screw. The visible damaged area is a clue, not the final material number.

Can this article confirm official DJI authorization?

No. UNITED UAV is not presented here as a DJI authorized dealer, agent, or official partner. DJI and AGRAS names are used for product identification and model reference.

What is the safest buyer habit?

Make the part prove its name twice: once against the aircraft photo, and once against the current product page and material number.
