Quick answer: choose an emergency lighting drone by separating three jobs: illuminate the scene, communicate with people, and observe or document the scene. A light-only tethered platform may be the best fit when a team already has ground communications and cameras. A speaker-equipped model can support instructions across a defined area. A camera-equipped model can add an elevated live view. Combining functions can be valuable, but only when the operating plan, controls, data handling, power, working height, and environmental limits are specified together.

Emergency buyers often begin with a phrase such as “we need a drone light.” That phrase is too broad for a defensible quote. A collapsed structure, utility repair zone, flood staging area, temporary medical site, road incident, and planned event all create different visual and communication tasks. The correct starting point is an incident-function matrix, followed by a model shortlist from the UNITED UAV tethered lighting drone range.

Define the Three Functions Independently

Illumination

Describe the useful work area, surface, obstacles, target working height, and minimum work-plane illuminance if one is required. Do not use lumens as a substitute for lux. Lumens describe emitted light; usable illumination at the ground depends on height, beam direction, distance, shadowing, weather, and surface reflectance. The product pages publish lumen and coverage figures for screening, but they do not publish a complete photometric test method.

Public address

Write down who must hear the message, at what distance, against what background noise, and whether messages are live, prerecorded, or generated by another command system. The compact UG2LS page publishes a built-in speaker, sound coverage of at least 350 m, and 114 dB at 1 m. Larger speaker-equipped models publish different lighting and operating fields. Those headline figures do not remove the need for a site audio test, local noise controls, or a clear message protocol.

Live view and recording

Specify whether the team needs a live overview, recorded evidence, inspection detail, or merely confirmation that the illuminated zone remains clear. Camera-equipped product pages publish 1080p functions on selected models, but buyers should confirm video output, storage, controller display, latency, export, retention, and access control. A camera can create privacy and evidence-management responsibilities that a light-only system does not.

Match the Function Set to a Product Class

Operational need	Representative models	Published model-specific functions	Procurement caution
Compact light plus public address	UG2LS	150 W lamp, 20,000 lm, 12 m published working height, built-in speaker.	Confirm the selected package, power source, audio control, background-noise performance, and supplied tether.
Large-area light plus public address	UG6LS	1000 W lamp, 120,000 lm, 50 m published working height, built-in loudspeaker with voice, Bluetooth, and UART/serial control.	Confirm the interface used in the quoted unit and the power, transport, weather, and duration assumptions.

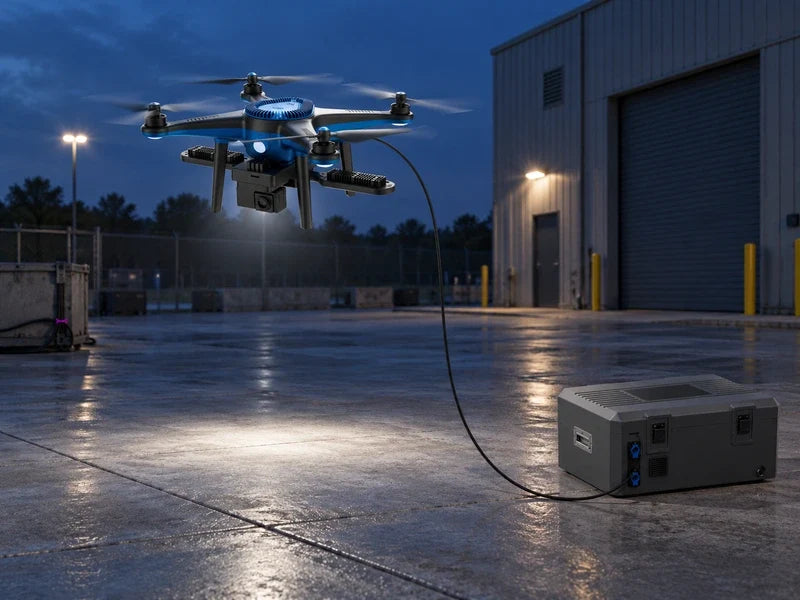

Light, public address, and live video	UG6LVS	600 W lamp, about 70,000 lm, 50 m published working height, 1080p real-time video and storage, plus speaker functions.	The page shows conflicting weight scopes. Obtain a configuration-controlled packing and weight list.
Light plus elevated live view	UG7LV, UGBI2021LV	Both pages publish 600 W lamps and 1080p camera functions. UG7LV publishes a 50 m working height and 8,000 m² coverage; UGBI2021LV also publishes operation up to 4,500 m altitude.	Do not infer equivalent weather, duration, speaker, weight, or altitude performance. Confirm each requirement for the exact model.

A model outside this table may be a better match when the mission is light only. The point is not to maximise features; it is to avoid paying for and operating functions that are not part of the incident plan. A separate ground radio or camera can be more appropriate when it is already integrated into the customer's command system.

Turn the Incident Concept Into Requirements

Start with a simple statement: “At this site, the airborne system must…” Then complete the sentence with observable outcomes. It might need to illuminate a 60 m by 30 m equipment zone, remain above a command perimeter, carry prerecorded bilingual instructions, or provide a live overview to one controller. Avoid broad words such as powerful, long-range, all-weather, or continuous unless they are paired with measurable acceptance conditions.

Next, map every outcome to an owner. The aviation lead owns the flight envelope and local authority checks. The safety lead owns exclusion zones, generator placement, cable routing, and emergency shutdown. The communications lead owns approved messages and radio or serial integration. The data owner controls video access, retention, and disclosure. The lighting lead defines the work-plane checks. A multifunction aircraft is not a substitute for these responsibilities.

Plan Placement Before the Vehicle Arrives

A tethered system joins an aircraft to ground equipment, so the ground location matters. Look for overhead wires, cranes, trees, unstable debris, traffic, crowds, water, fuel, exhaust, noise-sensitive areas, and trip hazards. Reserve an exclusion zone for the aircraft, tether, operator, generator or battery station, and emergency access. Working height must remain within the approved model and site envelope; it is not automatically equal to the physical tether length.

Generator exhaust and heat require ventilation and separation from people and combustible material. Cable paths should not cross vehicle lanes unless the site has a protected routing method. If the selected model uses a battery-equipped tether box for part of the operation, include charging, state-of-charge, spare-energy, and cold- or hot-weather assumptions in the shift plan.

Use a Two-Layer Lighting Test

First test whether light reaches the work area at the required level and without unacceptable shadow or glare. Second test whether the aircraft and its operating zone remain visible and compliant with the local night-operation plan. These are separate questions. The existing UNITED UAV article on worksite illumination and aircraft visibility tests explains that distinction in more detail.

For an acceptance trial, record height, light direction, measurement points, power source, ambient condition, weather, and obstructions. A photograph can support the record but cannot replace a calibrated illuminance measurement when the contract specifies lux. If the supplier's coverage figure is being used for design, ask what threshold and geometry produced it.

Test Audio as Communication, Not Entertainment

An emergency loudspeaker must deliver intelligible, approved information. Test it against realistic background noise and from the intended listener positions. Confirm live and prerecorded modes, volume control, connection method, message language, failure behaviour, and who is authorised to transmit. The page-published 114 dB at 1 m figure for UG2LS is a reference condition; it is not a promise that every message will be intelligible at every point in a noisy, obstructed site.

Prepare short messages in advance and avoid improvising technical or evacuation instructions. Where public warning is a regulated function, confirm the applicable rules and integrate the drone into the incident commander's established channel rather than creating a parallel message system.

Specify Video and Privacy Controls

Ask whether video is needed for situational awareness, inspection, evidence, or remote supervision. Then define who can view it, whether it is recorded, how long it is retained, where it is stored, how it is exported, and when it must be deleted. Confirm image resolution and gimbal capability for the exact product, but do not assume that a 1080p label guarantees identification, inspection detail, low-light quality, or evidentiary suitability at a given distance.

If live video is mission critical, include an acceptance test for link stability, latency, controller display, recording continuity, time reference, and failure recovery. If it is not mission critical, the simpler light or light-plus-speaker configuration may be easier to operate and govern.

Confirm Power and Duration for the Whole Package

Lamp wattage is not the complete input requirement. Obtain the voltage, frequency, continuous and peak load, grounding, connectors, conversion equipment, and generator or battery specification for the quoted system. Also ask what the published duration includes. Fuel capacity, refuelling, battery state, crew inspections, ambient temperature, wind, and maintenance intervals can all limit a shift even when the tether supports long operation.

Conduct a Scenario-Based Acceptance Trial

1. Inventory every delivered case and verify the exact model and options.
2. Set up the exclusion zone, power equipment, tether route, and controller under the approved plan.
3. Launch to a conservative height and verify stable control before testing functions.
4. Aim the light and measure the work plane at agreed points.
5. Test each approved audio mode from listener positions, if equipped.
6. Test live view, recording, access, export, and link-loss behaviour, if equipped.
7. Run the planned shutdown, emergency stop, landing, inspection, and packing sequence.

The trial should use a representative site without exceeding published conditions. Record deviations and resolve them before operational deployment. Do not convert one successful demonstration into a universal performance claim.

What to Include in a Quote Request

Send UNITED UAV the country, incident or worksite type, required illuminated area, target lux if known, working height, expected weather, shift duration, power available, required audio distance and control mode, video and recording needs, transport limit, delivery location, and quantity. For rescue-specific background, the existing UGBI2020-I emergency rescue lighting guide can help frame operational questions without replacing a site assessment.

Use the lighting drone collection to identify a preliminary class, then request a configuration review and quotation. A precise requirements list lets UNITED UAV distinguish light-only, light-and-speaker, and light-and-video options without turning a family-level capability into a claim about every model.
