The mass on a sensor datasheet is not the installed payload mass. A flight-ready stack can also include mounts, fasteners, vibration isolation, adapters, cables, connectors, power conversion, batteries, antennas, computers, enclosures, environmental protection, data media, restraint, and configuration-specific hardware. If buyers compare aircraft against the sensor alone, the selection can be undersized before integration begins.

Build a versioned mass register before committing to an airframe size. Every included item should have an identity, source, measured or verified value, applicability, status, and owner. Every exclusion should be explicit. This guide supports procurement discipline; it does not prescribe a mounting design, center-of-gravity limit, wiring method, structural margin, power architecture, or airworthiness conclusion.

Define the Mission Configuration First

State the payload outcome, operating environment, data product, duty cycle, field handling, and interface expectations. Name the sensor model and approved options, but do not treat the sensor as an isolated object. A payload used for mapping, communications, inspection, or research may need different processing, cooling, protection, cabling, and operator access even when the core instrument is identical.

Create a configuration identifier and revision. Link it to drawings, supplier correspondence, interface-control documents, software dependencies, and test evidence. If the mission has alternatives, maintain separate configurations rather than combining the lightest item from one option with the power and protection assumptions from another. The budget must describe something the integration team can actually build.

Set Clear Mass Boundaries

Define what the aircraft supplier calls payload, empty aircraft, fuel or energy system, mission equipment, and maximum take-off mass for the exact configuration. Terms differ across products and contexts. Do not assume that a headline payload value includes or excludes batteries, fuel, mounting structure, antennas, or payload power hardware. Ask the supplier to confirm the accounting boundary in writing.

Record whether each line belongs to the aircraft baseline, installed payload, removable mission kit, ground equipment, consumable, or reserve assumption. Ground laptops and transport cases matter to logistics but should not be added to airborne mass. Conversely, an airborne adapter should not disappear merely because it ships in the ground-equipment case.

Start With a Physical Item Register

List every physical item that will leave the ground, including small interfaces that teams tend to group as miscellaneous. Give each item a part reference, description, quantity, configuration applicability, source of mass, uncertainty status, and verification date. If the final part is not selected, use a controlled provisional entry with an honest range and an owner for closure.

A photograph of the laid-out stack can support reconciliation, but it cannot replace the register. Tiny fasteners and internal cables may not be visible, and a photograph does not prove mass. Use the image as a configuration aid linked to the same revision. Update it when the physical arrangement changes.

Measure What Can Be Measured

Use suitable, controlled equipment and a documented method for actual items. Record tare, quantity, units, date, operator, instrument identity, and any condition that affects the result. If a supplier value is used, preserve the source and exact configuration. Do not convert a rounded marketing figure into false precision or merge values measured under different inclusion boundaries.

Apply the organization's calibration and quality procedures where required. A bench reading alone does not authorize flight or prove structural suitability. It provides one input to the configuration decision. If the value conflicts with approved documentation, quarantine the discrepancy and seek clarification rather than selecting the more convenient number.

Account for Mounting Hardware

Include plates, brackets, rails, fasteners, inserts, adapters, vibration isolators, retention hardware, covers, and any secondary structure. Early concepts often count a bare plate while the final assembly adds stiffness, access, and retention features. Keep concept estimates separate from released hardware and revise the budget as drawings mature.

Mounting design must be confirmed by the responsible supplier or qualified engineering authority. The mass register should reference the approved assembly without declaring that a layout is structurally acceptable. Track design changes, manufacturing substitutions, and field modifications. An apparently small bracket revision can affect both mass and interfaces.

Count the Full Cable and Connector Set

List power, data, control, antenna, synchronization, and service cables that remain airborne. Include connectors, backshells, shielding, strain relief, clamps, protective sleeving, and service loops where the released design requires them. Cable drawings should provide length and termination identity; a generic line item hides both mass and compatibility risk.

Do not prescribe routing from the mass worksheet. Routing affects length, interference, maintenance access, flex, separation, and protection and belongs in the approved integration design. The register should show the mass of the released cable set and maintain traceability to its configuration, not invite an installer to trim or substitute it informally.

Include Payload Power Completely

Account for dedicated batteries, converters, regulators, distribution hardware, fuses or protective devices, housings, wiring, connectors, and monitoring equipment that fly with the payload. Record whether aircraft power is available only after supplier confirmation. Do not assume voltage, current, endurance effect, electrical protection, or electromagnetic compatibility from a connector photograph.

Separate average demand, peak demand, duty cycle, and stored-energy questions from mass. A light converter may be electrically unsuitable, while a heavier independent supply may create other integration constraints. The mass budget captures physical consequences; engineering analysis and test must resolve electrical suitability.

Capture Compute, Storage, and Communications

Onboard computers, storage devices, modems, radios, antennas, clocks, hubs, and interface adapters often enter late because teams regard them as support electronics. If they fly, they belong in the installed stack. Include housings, thermal interfaces, cables, mounting, and protection rather than counting only the circuit board.

Define which functions are provided by the aircraft, payload, or customer equipment. Require configuration-specific evidence for data rates, interfaces, timing, and exported records. Do not claim compatibility or automatic integration from matching connector names. An interface test should confirm both physical and data behavior.

Plan Environmental and Handling Protection

Include enclosures, windows, seals, desiccant holders, covers, guards, shock protection, thermal management hardware, and contamination controls required by the released design. Field transport protection that is removed before flight belongs in logistics, not airborne mass, but the team should still control it so the installation is not damaged during handling.

Do not infer an environmental rating or operating limit from the appearance of an enclosure. Ask for evidence and constraints applicable to the complete installation. A protective case can add mass, alter cooling, block a field of view, or change access. Those consequences must be reviewed together rather than optimized in separate spreadsheets.

Control Uncertainty and Margin

Classify values as measured, supplier-confirmed, drawing-derived, estimated, or unknown. Give estimates a basis and range. Maintain a separate configuration margin under an approved policy rather than hiding conservatism inside selected line items. When uncertainty closes, replace the estimate with evidence and retain the revision history.

Do not spend margin twice. A team may reduce an estimated cable value and then count the same reduction again as released reserve. Use subtotals for confirmed mass, estimated mass, uncertainty allowance, and approved margin. The responsible engineering and operational authorities determine whether the resulting configuration is acceptable.

Reconcile Balance and Other Constraints Separately

Total mass is necessary but not sufficient. Location, center of gravity, inertia, aerodynamic effects, structure, vibration, cooling, power, electromagnetic environment, control behavior, and operating limits can determine suitability. Keep these analyses linked to the configuration but do not collapse them into one payload number. A stack can fit the mass budget and still be unacceptable.

Require supplier confirmation and configuration-specific verification before procurement release and flight. Record open items with owners and due dates. The EASA specific-category information provides official regulatory context for certain civil drone operations, but neither a mass register nor a product page establishes authorization or airworthiness.

Use Stage Gates During Integration

Review the budget at concept selection, preliminary design, released design, first physical build, test configuration, and field release. At each gate, reconcile the physical stack to the register and list changes. Procurement should not lock an aircraft decision while major line items remain unknown unless the decision authority explicitly accepts the exposure.

Our practical field lesson is that late additions are rarely just one item: a new computer brings a mount, power conversion, cables, cooling, and protection. Rehearse a change request and follow its effects through mass, interfaces, documentation, test, logistics, and acceptance. The exercise reveals whether the register controls a system or merely totals parts.

Connect Mass to Data and Logistics

The installed stack affects more than aircraft sizing. Continue with Long-Endurance VTOL Data Offload Stops and Heavy-Lift VTOL Site Logistics. These workflows show how compute, storage, protection, and physical handling must remain aligned with the configuration record.

Make the Installed Stack a Buying Deliverable

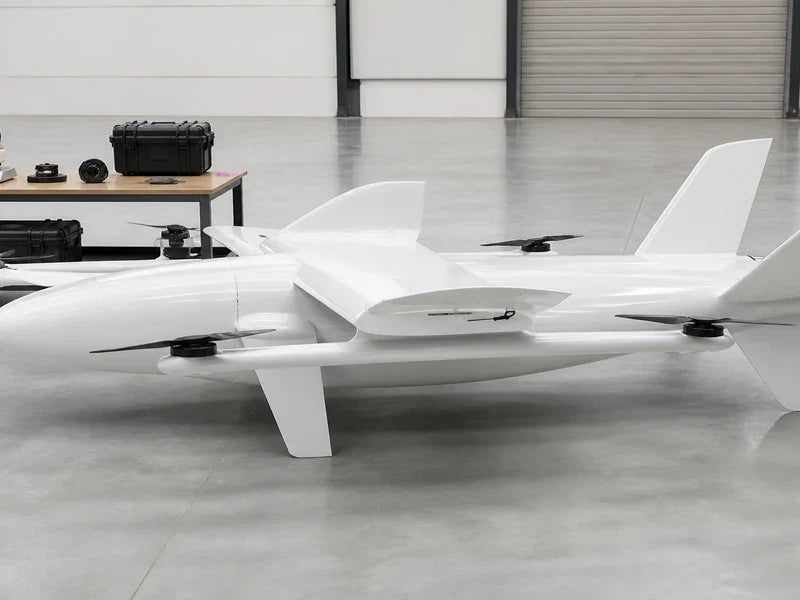

Review the UG35 heavy-payload VTOL UAV as one candidate for mission payload operations. Ask for configuration-specific mass boundaries, payload interfaces, limitations, supplier responsibilities, integration evidence, and acceptance tests. Do not assume that a headline payload can be combined with every other maximum or every desired sensor stack.

Compare relevant platforms in the UNITED UAV VTOL and fixed-wing drone collection. To discuss a payload configuration, contact UNITED UAV with the complete item register, mission outcome, environment, data path, power assumptions, open interfaces, and required evidence. A versioned installed-mass budget gives the supplier a concrete configuration to evaluate.
