A heavy-payload VTOL project rarely fails because someone forgot the sensor's catalog weight. It fails because the team counted the sensor and ignored everything required to operate it: mount, isolators, enclosure, computer, storage, cables, antennas, cooling, power conversion and installation tolerance. The aircraft may technically carry the package while the mission loses endurance, balance margin or field reliability.

The correct starting point is a payload budget tied to a defined deliverable. A lidar survey, communications relay, multisensor inspection package and emergency-response payload can occupy the same mass class while placing very different demands on power, cooling, vibration, center of gravity and data handling.

Build the Installed Payload List

Create a line item for every component that leaves the ground. Record mass, dimensions, mounting location, power demand, heat output, data interface and configuration status. Include brackets, fasteners and protective hardware. Add the cables at their real installed length rather than using a guess. The result should describe the flight article, not the marketing picture.

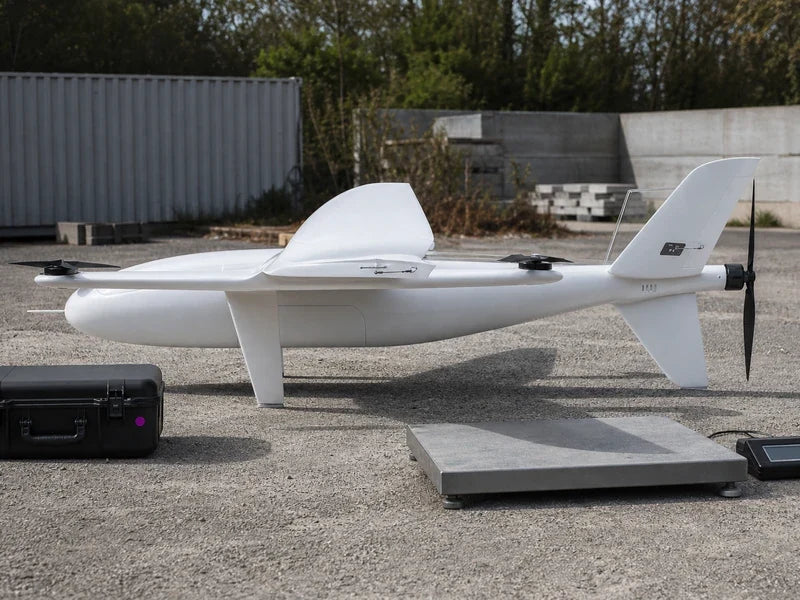

Experienced integration teams weigh the assembled package before detailed flight planning. They know how quickly “small” items accumulate. Their practical rule is simple: if it is attached to the aircraft, it belongs in the budget. This discipline also makes later changes visible because the new configuration can be compared with the accepted baseline.

Treat the Maximum as a Boundary

The UNITED UAV UG35 product page lists up to 10 kg maximum payload capacity. That is a screening boundary, not a recommendation to design every mission at the limit. The project still needs margin for integration tolerance, environmental conditions, transition performance and future payload changes.

The same approved data lists a 35 kg maximum takeoff weight. Procurement teams should distinguish payload capacity from aircraft-level takeoff limits and confirm the complete configured mass. The final aircraft includes the payload, energy source and every installed component. A valid payload budget therefore sits inside an aircraft mass budget, not beside it.

Center of Gravity Can Reject a Light Payload

A package can be below the payload limit and still be unsuitable if its position creates an unacceptable center of gravity or structural load. The mounting envelope matters. Ask where the approved integration area is, what moments are permitted and how the system should be balanced after installation.

Do not solve a poor mounting position by adding unnecessary counterweight without evaluating the mission consequence. Added mass reduces available margin and may create new structural or landing loads. The better answer may be a revised enclosure, different component placement or a distributed payload architecture.

Power and Heat Are Payload Requirements

Active sensors and onboard computers may draw significant power and reject heat into an enclosure. The buyer should define startup load, normal load, peak load, voltage quality, grounding, electromagnetic compatibility and shutdown behavior. Confirm whether payload power is isolated from flight-critical systems and how faults are recorded.

Cooling must be evaluated in the operating environment. A bench test in an air-conditioned room does not represent a sun-heated enclosure at a remote launch site. Procurement should require a thermal test or analysis appropriate to the package and should define what happens when temperature limits are approached.

Understand the Published Flight Data

The UG35 page lists 190 minutes of no-load endurance and a 21 m/s cruise speed. “No-load” is the controlling condition for the endurance figure. A heavy payload mission must be planned with configuration-specific evidence. It is not responsible to subtract weight from a headline number using an improvised formula and publish the result as expected flight time.

The platform also lists a maximum service ceiling of 4200 m. Service ceiling does not define useful payload performance at altitude. Density altitude, temperature, climb, transition, terrain, regulatory requirements and reserve strategy all matter. For endurance under a selected payload, power availability, mounting envelope, communication or another unverified configuration parameter, contact us for configuration details.

Define the Mission Margin

Mission margin should cover more than return energy. Include launch and transition, climb, transit, productive flight, turns, repositioning, recovery, go-around and a conservative reserve. Add a weather assumption and state what triggers a shortened route. The plan should remain understandable to the person who did not create the spreadsheet.

A good procurement model uses at least a nominal case and a demanding case. The demanding case might combine the approved payload configuration with a difficult temperature, elevation or wind assumption. The supplier and buyer can then agree what evidence is needed before the mission is accepted.

Test From Bench to Deliverable

Begin with mechanical inspection, mass properties, power behavior, data interfaces and failsafes. Progress through low-risk ground and flight checks before expanding the envelope. Every test should identify the exact hardware and software configuration. If a payload component changes, review which evidence remains valid.

The final acceptance flight should create a representative customer output. A payload that powers on and records data is not necessarily mission-ready. Verify coverage, data integrity, positioning, processing, report format and the time required for the crew to complete the workflow.

Qualify the Mounting System

The mount carries more responsibility than holding the sensor in place. It establishes alignment, transfers loads, controls vibration, protects connectors and determines how consistently the payload can be removed and reinstalled. Procurement should request drawings, material information, fastener control and an inspection method appropriate to the application.

After repeated installation, verify that the payload returns to the expected position and that cables cannot chafe or interfere with moving parts. If alignment is important to the deliverable, include a field check that confirms it. A beautifully machined mount is not enough if the crew cannot install it repeatably.

Protect Data During High-Workload Flights

Heavy payload missions often involve expensive sensors and complex data. Define what is recorded onboard, what is transmitted, how storage health is checked and what the operator sees when recording stops. A clear warning and conservative response are more valuable than a silent failure discovered after landing.

Plan the post-flight data check before the crew starts packing. Confirm file count, timestamps, representative quality and backup. Field experience shows that the pressure to leave a site can be strongest immediately after a successful recovery. A short, mandatory verification step protects the value of the entire sortie.

Include Transport and Handling

The payload package must survive the road to the launch site. Specify cases, environmental protection, lifting points, handling roles and any time needed for temperature stabilization. A system that performs well in a hangar may be impractical if it requires delicate assembly in dust, rain or strong wind.

Observe the intended crew moving the aircraft and payload through the actual transport sequence. This reveals pinch points, connector exposure and ergonomic risks that are invisible in a specification sheet. The logistics design should protect both equipment and people.

Review Failure Consequences

List credible payload failures and decide how each one affects the aircraft, mission and customer data. A sensor recording failure may allow a safe return but invalidate the deliverable. A power fault may require immediate isolation. A loose mount can threaten both flight safety and the equipment below.

The review should connect each failure to detection, operator response and post-flight inspection. Keep the language usable in the field. The objective is not an impressive risk document; it is a crew that recognizes the warning, takes the agreed action and preserves the evidence needed for engineering review.

Review the list again after flight testing. Real test evidence often changes which failure is most likely or most difficult to detect. Updating the controls is part of qualification, not an admission that the original plan was poor.

Assign every corrective action to a named owner and due point. An unresolved note should not disappear into the next test configuration.

Match Regulation to the Finished Aircraft

A heavy aircraft and complex industrial mission may fall outside simplified operating categories, depending on jurisdiction and concept of operations. The buyer should consult the relevant aviation authority and qualified compliance professionals. In Europe, the EASA specific category guidance describes a risk-based framework for applicable operations.

Compliance work needs the finished system description: aircraft mass, payload, operating area, command and control, contingency procedures and organizational capability. This is another reason to lock the configuration and maintain an evidence record throughout integration.

Compare Platforms by Mission Class

Buyers working with lighter corridor sensors should read the UG25 corridor payload-margin guide. Teams that want to control avionics and payload architecture can review PNP versus ready-to-fly ownership. For substantially larger route-inspection payloads, see the UG73 fuel-powered procurement discussion.

Where the UG35 Fits

UG35 is relevant to sensor integrators, mapping teams and inspection contractors evaluating a fixed-wing VTOL platform in the up-to-10 kg payload class. Its approved payload, aircraft mass, no-load endurance, cruise and ceiling data support initial screening. The buying decision still depends on the installed payload, operating environment and verified mission case.

Review the wider UNITED UAV VTOL and fixed-wing drone collection. Then send a payload list, mounting concept, operating altitude, deliverable and mission profile through the UNITED UAV inquiry page. A complete installed-package description is the fastest route to a useful configuration recommendation.
