Read a terrain map's slope unit before comparing its values. Degrees describe an angle; percent rise describes rise relative to horizontal run. A value of twenty in one convention does not mean twenty in the other. For a UG21 mapping inquiry, specify the receiving question, the required convention and the legend review before treating colored terrain classes as a useful deliverable.

Imagine two proposals for the same site-planning discussion. Each includes a sample map, each uses a familiar green-to-red palette, and each marks a class boundary at twenty. The buyer might reasonably assume the samples describe comparable terrain. That assumption is premature when one legend uses degrees and the other uses percent rise. The problem is not necessarily an incorrect survey. It may begin with an incomplete purchasing brief and end with two recipients reading the same-looking presentation differently.

Start with the question the terrain map should answer

A terrain deliverable might support a preliminary comparison of site areas, a request for specialist review, or the organization of a later field visit. Those are different receiving tasks. Write the intended task in ordinary language before discussing an aircraft configuration. A useful opening sentence could identify which project area needs a terrain overview and who will interpret it. Avoid an unqualified request for a slope map that leaves the analytical purpose to whoever happens to prepare the quotation.

Also state what the map is not being purchased to decide. An illustrative terrain layer is not automatically a geotechnical assessment, a design approval, a vehicle-access judgment or permission to operate an aircraft from a particular location. Those decisions need their own appropriate evidence and responsible professionals. Keeping that boundary explicit helps the supplier understand the requested information without turning a routine map request into an undocumented promise about site suitability.

What degrees and percent rise actually describe

Esri's explanation of slope units distinguishes angular slope from percent rise. Percent rise is vertical rise divided by horizontal run, multiplied by one hundred. Its example shows that a forty-five-degree angle corresponds to one hundred percent rise. These conventions are therefore not interchangeable labels attached to the same number. This is a general GIS distinction, not a statement about software supplied with the UG21.

The purchasing consequence is straightforward: put the unit next to the field name, legend and requested output description. Do not rely on a reviewer remembering which convention was mentioned during a meeting. When a report contains several panels, ask whether the convention appears on every panel that could reasonably be circulated alone. A detached screenshot should not require an unavailable conversation to explain what its most important values mean.

Agree the legend before judging the colors

Color classes are a presentation choice that the receiving team should review against its task. Ask the analyst to show the proposed class labels in a small example before producing a large set of final maps. The review should address the meaning of each class, the unit, treatment of boundaries and wording of the legend. A buyer does not need to dictate an unsupported technical method to ask for that explanation. The objective is shared interpretation, not control of every processing setting.

Keep the class specification separate from any project decision threshold. A map may divide terrain into convenient display bands without establishing which band is acceptable for construction, access or another activity. If a project specialist supplies a threshold, preserve its source and intended use in the brief. Ask that specialist to confirm how it should be represented. Do not let a color selected for readability become an apparently authoritative red line in a later presentation.

A small review exercise that exposes an ambiguous legend

Consider a hypothetical handover meeting in which a planner, a GIS analyst and the equipment buyer review one sample panel. Ask each recipient to explain a selected legend value without using its color name. The planner should be able to identify the convention and describe what the label means. The analyst should explain which delivered field contains that value. The buyer should identify where the same requirement appears in the agreed scope. Disagreement is a reason to clarify the handover, not evidence that somebody needs to fly the site again.

This is an editorial review exercise, not a reported customer case. Its practical lesson is that a simple interpretation check can reveal a missing requirement before attention shifts to expensive equipment decisions. Preserve the agreed wording after the exercise. Otherwise a correct verbal explanation may disappear when a different person produces the final report. The retained example should be small enough to understand but complete enough to include the unit, legend and relevant output identity.

Ask for a deliverable description with clear ownership

• Receiving purpose: identify the planning or review question, its audience and the decisions excluded from the map's scope.
• Unit declaration: name degrees or percent rise explicitly rather than using an unexplained slope column.
• Legend agreement: record the proposed class labels and the person responsible for approving their presentation.
• Dataset context: request a description of the source surface and processing record appropriate to the receiving task.
• Review artifact: retain one interpreted sample panel and the corresponding output field description.
• Exceptions: specify how an unresolved interpretation issue will be recorded and who will decide the next action.

These are suggested buyer questions, not a claim that a particular processing service is included in an aircraft purchase. A supplier may provide only the aircraft, while another organization provides capture planning, analysis or professional interpretation. Record those boundaries before comparing offers. Otherwise the buyer may prefer a proposal that looks inexpensive only because important work has not been assigned to anyone.

Keep adjacent handover problems separate

A correct slope legend will not repair an incorrectly matched site identifier. When slope results are delivered alongside parcel or asset records, the receiving team still needs to know how the records connect. The companion discussion of survey table identifiers and joining rules addresses that separate issue. It is useful when a technically readable map must also be associated with the right entry in a project register.

Likewise, a terrain panel along a linear project may need a route location. That requirement belongs in the corridor handover, not inside an assumed interpretation of the map's slope field. The guide to route measures and chainage explains the purchasing questions behind that location reference. Treating the two requirements independently makes it easier to identify whether a review problem concerns terrain meaning, record matching or where an observation belongs.

Where the UG21 fits in the purchasing conversation

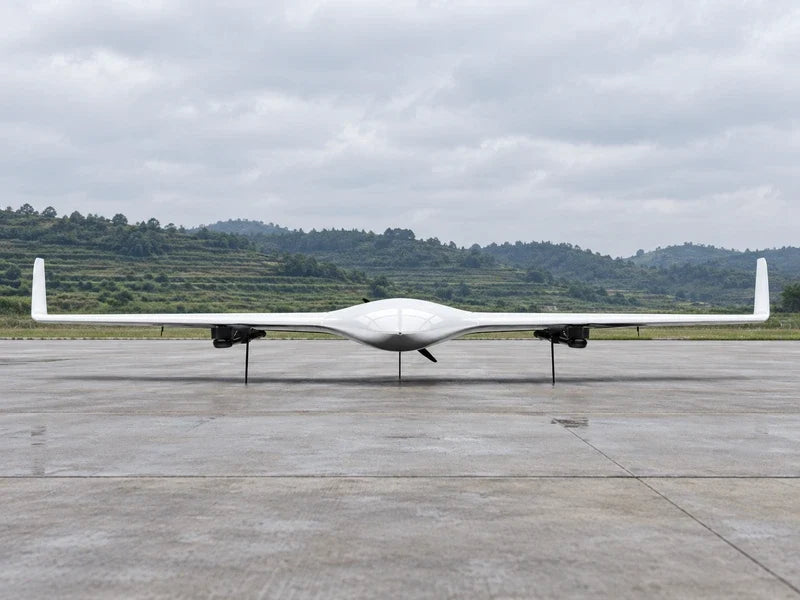

For an equipment inquiry about the UG21 VTOL fixed-wing drone, bring the terrain brief rather than assuming a complete mapping service. The product listing does not establish a particular elevation workflow, software license, slope-analysis service, deliverable accuracy or site approval. Ask UNITED UAV to confirm the proposed configuration and the evidence available for your actual requirement. Any capability that is not confirmed for that configuration should remain an open question rather than a sentence added to the project scope.

Compare equipment options in the VTOL and fixed-wing drone collection using the same receiving brief. A consistent question helps distinguish a relevant supplier response from an impressive but unrelated specification. For this topic, the useful outcome is clarity about what equipment and services would be required to produce and review the intended terrain information. It is not a promise that selecting one model automatically supplies an accepted analytical result.

Questions to resolve before accepting the scope

Can the recipient simply convert the values later?

Do not make an undocumented conversion part of acceptance. First ask the responsible analyst what the delivered values represent and how any requested conversion would be recorded. If the buyer needs a different presentation, include that request in the scope rather than expecting the receiving team to reinterpret an unexplained file after delivery.

Does the preferred convention change between the United States and Australia?

Do not infer the project's convention from its country. For English-language work in either market, ask the receiving organization which units and labels it actually requires. Local project documentation and professional responsibilities remain separate from this general map-reading discussion. This article does not offer jurisdiction-specific design or aviation advice.

Is an attractive sample enough to approve the complete package?

A sample can confirm that the proposed presentation is understandable. It does not establish that every future output will satisfy the complete requirement. State the role of the sample and the evidence expected at final review. Keep approval of a legend distinct from acceptance of the dataset and from any later professional decision based on it.

Bring an interpretable terrain brief to the supplier

Before requesting a configuration discussion, collect the intended terrain question, a proposed legend and the name of the receiving reviewer. Mark whether degrees or percent rise is required, and identify which decisions the map must not be presented as approving. Then contact UNITED UAV about a UG21 mapping configuration with those bounded requirements. A clear legend will not complete a survey by itself, but it gives the equipment conversation a more useful destination than a color map nobody has agreed how to read.
