A geometry checker can help determine whether a GIS polygon is technically valid, but it cannot approve the real-world boundary the buyer intended to commission. For a UG39 survey-deliverable brief, separate geometry validity, agreement with the requested scope, and authority to define the boundary. Give each question its own evidence and reviewer before accepting a single green validation result as complete approval.

The Green Check Answers a Limited Question

Imagine a corridor survey delivery that imports without an error and passes a geometry check. The client then discovers that the supplied polygon follows an earlier work boundary rather than the revised scope. Nothing about that situation requires the geometry itself to be invalid. The file can be well formed and still describe the wrong area. This is a hypothetical acceptance problem, not a reported incident involving a UNITED UAV customer.

Buyers can avoid this confusion by naming the questions in advance. Is the geometry usable under the agreed technical checks? Does the layer represent the requested feature or area? Who had authority to approve that definition? These questions may involve the same people in a small project, but combining the roles does not make the questions interchangeable. A useful scope keeps the evidence for each visible.

What the Software Documentation Actually Supports

The QGIS 3.44 documentation for Check validity, reviewed on September 22, 2026, describes checks on vector geometries and separate valid, invalid, and error outputs. Its scope is geometry validation. Citing that function does not establish that QGIS is included with a UG39 purchase, that a particular contractor uses it, or that it approves the meaning of a boundary.

UNITED UAV's procurement interpretation is straightforward: name the software check and retain its result, but do not give it an authority it does not have. A project can use another suitable tool or process if agreed by the responsible reviewer. The important commercial distinction is between a technical test and a decision about what the data is supposed to represent.

This applies to US and UK teams without making a claim about local land law or survey licensing. If the assignment involves a legal boundary, an easement, a regulated submission, or another controlled determination, obtain current advice from the appropriate qualified party. An aerial image or a valid polygon should not be presented as legal authority merely because it is delivered in a professional-looking GIS file.

Define the Layer's Meaning in a Short Data Dictionary

Write a plain-language description of the layer before discussing its format. A proposed corridor polygon might mean the agreed capture extent, an analyst's observed feature boundary, an access planning area, or an area supplied by the client. Each meaning leads to different review questions. State which meaning applies and identify the source from which the geometry is created or interpreted.

Add the boundary version, source date, responsible organization, and intended use. Do not invent missing provenance to make the record complete. If the source is provisional, label it provisional and say who can resolve it. A buyer may choose to proceed with a limited-use layer while keeping a specific decision open, but that choice should be documented rather than hidden in an ambiguous filename.

Consider attributes as part of the meaning. An otherwise acceptable shape may be linked to the wrong segment identifier or work package. Ask the receiving team which identifiers it relies on, how uniqueness is checked, and what happens when a segment is split or merged. The acceptance sample should test the connection between geometry and attributes, not just whether a layer appears on screen.

Specify Three Review Records

The technical record should identify the submitted file, the agreed checks, the tool or method used, the check date, and any exceptions. The scope record should show how the delivery was compared with the authorized brief and reference boundary. The approval record should identify the person authorized to accept the result and any limitations on that acceptance. Keep these records connected to the actual delivered version.

These need not become three elaborate documents. A small project might use one review table with distinct columns and signatures. The purpose is clarity, not paperwork volume. However, a single field labeled passed is inadequate when nobody can explain which review was performed. Ask what evidence a replacement project manager would need to understand the decision after the original team has moved on.

Where the map is used to help a follow-up crew locate observations, also define the supporting location evidence. The companion guide to pixel size and positional accuracy explains why a detailed-looking map does not answer every spatial quality question. A validity check and an accuracy assessment address different parts of a usable deliverable.

Use Boundary Examples That Reveal Disagreement

Before full production, ask for a representative example containing a boundary revision, an excluded area, and a feature that crosses a segment division. These can be clearly labeled hypothetical examples when no project data is available. Ask the supplier and recipient to explain how each case should appear in the final layer and its attributes. Differences in their answers reveal scope issues that no geometry repair command can resolve.

The example should include a record of what is intentionally outside the deliverable. An access boundary is not necessarily a capture boundary, and neither is automatically the reporting area for every analysis. Where several boundaries coexist, give them distinct names and purposes. Avoid one anonymous polygon being reused for unrelated decisions simply because it is the easiest file to find.

For land-cover work, the surface-inventory and runoff-model handoff is a useful related example. The mapping boundary, classification extent, and downstream study area may need separate approval. A recipient should be able to determine which version supports a particular area summary without asking the author to reconstruct it from memory.

Treat Repairs as Changes That Need Review

If a supplier repairs geometry, ask for the original submission, the revised file, and a description of the change to remain distinguishable. The buyer does not need to prescribe a particular repair algorithm to require that discipline. A successful technical repair should not silently become permission to change the intended boundary, remove a feature, or alter the commercial scope.

Agree who reviews the revised delivery and whether the earlier scope approval still applies. Some changes may be narrow; others may require the responsible boundary owner to look again. The decision should follow the actual effect of the change. Retaining a versioned review record makes it possible to explain why a revision was accepted instead of relying on a general statement that the file was cleaned up.

Also distinguish rejection from a request for clarification. A technically valid file with uncertain scope meaning may need an answer from the client, not more processing by the supplier. Assign the question to the party able to resolve it. Otherwise, a contractor may spend time revising geometry while the real blocker is an unapproved project boundary.

A Field Lesson About Sign-Off

Our editorial field lesson is not to substitute a green software summary for the signature of the person authorized to approve the mapped boundary. In the handover review, ask that person to identify the source version and explain one deliberate exclusion. This simple conversation tests whether the approval concerns the actual meaning of the delivery rather than only its appearance.

The lesson does not claim that every project needs the same approval hierarchy. It asks the buyer to make its own hierarchy explicit. A contractor can then price the review effort and know where to send unresolved questions. That is more efficient than discovering at final delivery that the person who approved the sample could not approve the boundary.

Connect the Requirement to a UG39 Inquiry

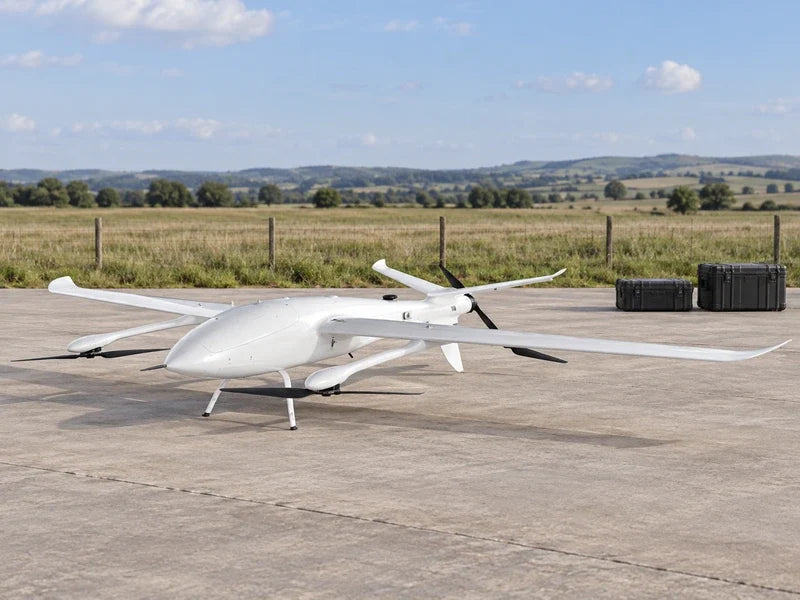

The approved UG39 extended-route UAV fixed-wing drone product page provides the product identity used here. It does not establish a GIS service, legal survey authority, included processing software, or a promised boundary accuracy. Discuss the intended capture and delivery workflow with the supplier and identify which responsibilities require a separate operator, processor, or specialist. Where the proposed equipment or service scope remains uncertain, contact us for configuration details.

Use the VTOL and fixed-wing drone collection to consider alternatives only against a clearly bounded requirement. The product discussion should explain what evidence a proposed system and service arrangement can support, not imply that selecting an aircraft automatically resolves the client's data-governance obligations.

Preserve the Reason for an Exception

An exception record should explain whether the issue concerns geometry, interpretation, or approval. Add the affected feature identifier and the evidence needed to close it. This prevents a processor from repeatedly repairing a file when the unresolved question actually belongs to the client. It also lets the buyer distinguish a technically incomplete delivery from work awaiting an authorized scope decision. Agree on that distinction before using exception counts to judge supplier performance or release a milestone payment.

Send the Boundary Authority With the Brief

Through the UNITED UAV configuration inquiry page, provide the intended layer meaning, authorized reference boundary, required identifiers, and named review roles. Include two difficult boundary examples and ask how the proposed delivery will document exceptions and revisions. The objective is a handover that is technically usable, correctly scoped, and explicitly approved, with no single validation badge being asked to stand in for all three.
