Two area figures can describe the same polygon yet come from different calculation methods. For a UG73 mapping proposal, specify whether the required result is planar or geodesic, identify the relevant coordinate system, and state the output unit. Converting both figures to hectares does not, by itself, make their methods equivalent. The acceptance record should preserve the polygon, method and unit together.

The immediate procurement question is not which number looks more plausible. It is whether the supplier and recipient have agreed on the same deliverable. A GIS team may need a repeatable calculation record; a project manager may need a summary for a defined work area. Neither requirement is satisfied by an area field with no explanation of how it was produced.

Ask about the calculation before requesting agreement

Consider a hypothetical review in which a supplier's area table differs from a recipient's recalculation. The boundary appears identical on screen, so the first response is to ask the supplier to correct the number. That may be premature. Before deciding there is an error, establish the input geometry, method, coordinate-system setting and output unit on each side. This is an illustrative review scenario, not a report of a UG73 customer dispute.

A number should not be changed simply to match an unexplained reference value. Doing so can conceal the very difference the review needs to resolve. Ask the reviewer who supplied the comparison figure to identify its calculation record. The objective is a reasoned explanation that can be reproduced, not a negotiated compromise between two totals.

Keep the intended use visible during that discussion. A quantity needed for an internal planning summary may have different acceptance requirements from a deliverable governed by a specific project contract. The responsible specialist should identify the applicable method and review standard. A purchasing team can insist on clarity without pretending to choose a technical method solely from a product brochure.

What the official software documentation distinguishes

Esri's ArcGIS Pro 3.6 Calculate Geometry Attributes documentation distinguishes an Area property from Area (geodesic). Unless otherwise noted, its area and length properties use planar, two-dimensional Cartesian calculations. The geodesic area option uses a shape-preserving algorithm. The documentation also identifies coordinate-system and unit settings relevant to the calculation.

That distinction supports a narrow but important buyer question: which property and settings produced this delivered field? It does not prove that ArcGIS is included with UG73, that a supplier uses this software, or that one method is the correct contractual choice for every project. If another application is proposed, request the equivalent official documentation and a method record for that application.

Do not reduce the review to a preference for the more technical-sounding term. A supplier should be able to explain why its proposed method fits the deliverable requirement. A recipient should be able to state what it will accept. Where those expectations differ, resolve them before the report is issued, with the qualified GIS or survey professional responsible for the work.

Separate the boundary from the measurement method

The polygon answers which area is included. The calculation method answers how the area value is obtained from that geometry. Keep both in the handover. A screenshot of an outline is useful context, but it is not an adequate substitute for the agreed digital geometry and its associated record. Ask how the recipient will identify the exact released version.

Also distinguish the review of geometry from questions of ownership or legal boundaries. This article concerns calculation-method disclosure, not cadastral authority. A mapping deliverable should not imply that its area figure settles a property-rights question. Where a project depends on legally defined boundaries, the buyer needs the applicable qualified advice and records separately.

When a boundary revision is requested, assign it a new version rather than silently replacing the earlier input. Record why it changed and which calculation outputs were regenerated. A recipient comparing an old table with a revised polygon needs a clear explanation of that mismatch. Otherwise, a valid revision can look like unexplained numerical inconsistency.

Write a small method record

A practical proposed record includes the polygon identifier, revision, source coordinate-system description, calculation application and version, method option, calculation coordinate system where applicable, output unit, and date of issue. Include the person responsible for the calculation and the person responsible for acceptance. These are suggested review fields, not a claim that one universal form is required.

Give fields meaningful names. A column named Area can be too ambiguous when several calculations exist in the same dataset. Ask whether the supplier can use names and supporting notes that distinguish the agreed outputs. Retain precision appropriate to the task, but do not let a long string of digits substitute for a documented method or an assessment of the source data.

Define what happens when the recipient recalculates the value. Is that recalculation an independent check, a new deliverable, or an informal convenience? If it is part of acceptance, agree on the method and allowable comparison process in advance. If it uses a different method intentionally, label it as such rather than treating a difference as automatic evidence of a failed survey.

Use a controlled comparison to resolve differences

For a demonstration, ask the supplier to work from a released copy of a small agreed polygon. Have both parties record their settings before comparing outputs. If a difference appears, change one relevant setting at a time under the specialist's direction and retain the comparison notes. This is a proposed review exercise, not a software operating procedure or a substitute for validation of the whole workflow.

Include the export step in the exercise. The value used by the recipient may come from a spreadsheet or report rather than the original GIS field. Ask whether labels, units and method notes survive that export. A technically sound internal calculation does not help the commercial reader if the exported table removes the context needed to interpret it.

The field lesson is to ask how the number was calculated before asking someone to make it agree. This is editorial analysis for buyers, not attributed professional testimony. It changes the conversation from defending a total to identifying a reproducible method. The resulting record can then support a more useful review when personnel or software versions change.

Make area reporting a distinct line in the scope

For a multi-area report, ask how the supplier handles identifiers and totals. Each row should point to the intended released polygon, and the summary should state which rows it includes. If two areas overlap, the reviewer needs an explicit rule for the requested summary; adding row values and calculating the area of a combined geometry answer different questions. Treat that rule as a deliverable decision for the responsible specialist.

Finally, agree on a correction notice. A later change to the method, polygon or unit should identify the affected outputs and the replacement revision. Do not leave recipients to discover that an apparently familiar table now represents a different calculation. Clear revision ownership is particularly useful when several contractors exchange reports through separate document systems and no single person sees every intermediate file.

US and India-based buyers can use the same disclosure questions without assuming identical local project requirements. State the intended use and ask the responsible local professional to identify any applicable obligations. This guide does not prescribe a jurisdiction-specific surveying practice. It provides a way to make a supplier's proposed calculation visible to the people who must accept it.

In a quotation, distinguish data acquisition, geometry preparation, calculation, report formatting and review. Ask which party supplies each part and which parts are excluded. A supplier offering the aircraft may not be offering GIS processing or professional review. That is not inherently a problem, provided the buyer knows which separate services and responsibilities remain to be arranged.

For projects that also compare elevation surfaces, the UG21 cut-and-fill sign-convention guide addresses a related interpretation issue. For separately specified measurement equipment, the UIV2200 calibration-interval guide addresses maintenance evidence rather than area mathematics. Keeping these decisions separate prevents one accepted part of a project from being treated as approval of everything else.

Frame a useful UG73 configuration request

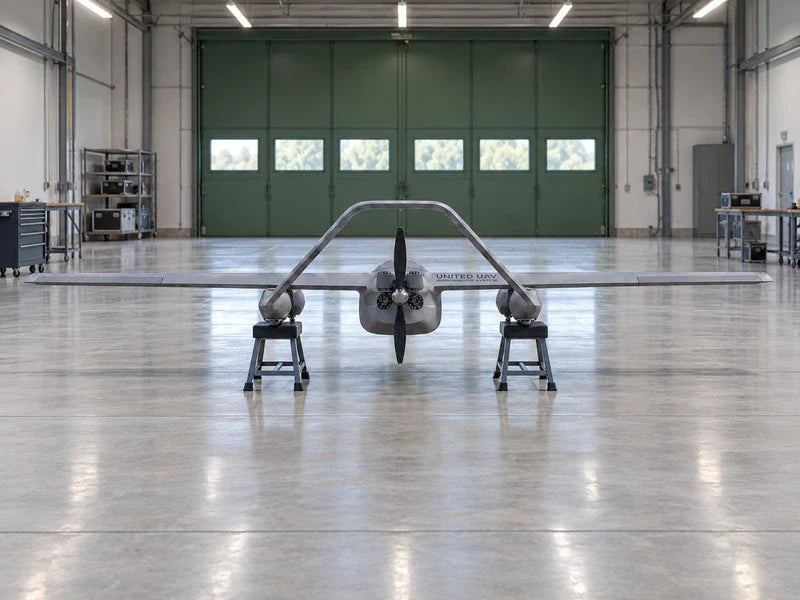

The UG73 fixed-wing VTOL drone provides the product context for this mapping discussion. The product listing alone does not establish that a particular camera, GIS license, survey service or professional sign-off is included. Ask UNITED UAV to identify the offered configuration and the supporting work, if any, that is separately scoped. Unknown details should remain questions until confirmed.

Send a sample area record rather than asking only whether the platform is suitable for mapping. Describe the intended deliverable, who will receive it, which calculation method has been specified if known, and what evidence the reviewer needs. Where the method has not yet been chosen, identify the person who will make that decision rather than leaving an implicit choice to a default software setting.

Use the VTOL and fixed-wing drone collection to compare product options, then request configuration details from UNITED UAV. Ask for confirmed inclusions, exclusions and responsibility for the mapping handover. A strong response should help you connect the aircraft proposal to a defined deliverable while keeping area-method acceptance with the appropriate technical reviewer.
