Before comparing values in a survey raster, distinguish the stored sample, any scale-and-offset transformation and the color shown on screen. These are different representations. For a UVH1 deliverable discussion, ask the processing provider to document what each band means and demonstrate the expected numeric result in the receiving software rather than assuming a matching picture proves a matching interpretation.

In an illustrative handover, a supplier points to one value while the recipient's software reports another at the same sample. The team initially suspects a changed site or corrupted file. An earlier question is whether both applications are displaying the same representation. One might expose the stored number while the other reports a transformed value. Neither observation should be interpreted before the data meaning is established.

This article concerns the specification of numeric data handovers. It is not a claim that every UVH1 configuration produces a particular raster or measures a particular physical quantity. Examples are original editorial illustrations, not reported field tests. Sensor choice, processing scope, data quality and the intended use all require their own evidence.

Read the band description before calculating

The official GDAL Raster Data Model describes optional band information including scale, offset, a unit name, nodata and color interpretation. A raster is therefore more than a rectangular array displayed as a picture. The accompanying metadata can affect what a number is intended to represent. That general model does not establish the contents of a specific supplier's output.

Ask the provider to identify the band, its purpose and the representation in which it is delivered. Is the number a stored encoding, an already transformed measurement, an index or a category identifier? Do not infer the answer from a filename or a color ramp. A brief data dictionary should state the intended interpretation and explain where the relevant metadata is stored.

Keep missing or unknown information visible. If the provider cannot establish the unit or the transformation history, a receiver should not assign a plausible meaning simply because the values resemble a familiar dataset. The purchasing question is what evidence will accompany the deliverable. It is better to identify an interpretation gap before the data feeds a report than to correct an unsupported conclusion afterward.

Confirm whether the transformation has happened

The GDALRasterBand interface documentation describes the transformation as stored value multiplied by scale, then adjusted by offset. It also states that methods such as RasterIO and ReadBlock do not perform that transformation automatically. Those statements concern those interfaces; they do not establish how every desktop application or downstream tool handles a delivered file.

For a deliberately simple arithmetic illustration, a stored value of one hundred, a scale of one half and an offset of ten would yield sixty. These are invented teaching numbers, not measurements, aircraft specifications or a suggested survey configuration. Their purpose is to show why the raw sample and interpreted value need not be identical. The actual transformation must come from the dataset's documented meaning.

Ask the receiving analyst to establish whether the relevant software has already applied the transformation. Applying it again would answer a different question from applying it once. Conversely, a workflow expecting interpreted values should not quietly compare raw samples as though they had that meaning. Record the verified behavior for the actual software and operation, rather than relying on a general belief that metadata is always honored.

Keep numeric meaning separate from display styling

A colored map helps people inspect spatial patterns, but its appearance alone is not the numeric handover. In the illustrative review, request both the visual display and the documented numeric readout for the selected sample. If those are delivered through different tools, identify each tool. A recipient who sees a familiar color should still be able to explain the corresponding value and unit.

Ask whether an exported picture is intended only for presentation or whether the recipient is expected to perform analysis on the supplied numeric raster. Those are different deliverables. A screenshot may be entirely appropriate for a report illustration while being insufficient for a later calculation. The issue is not that one format is universally better, but that the quoted scope should match the receiving task.

Do not fix an unexplained numeric discrepancy by adjusting the color style until the two views look similar. That may conceal the disagreement rather than resolve it. The provider and receiver should first establish which representation each is using and whether the data dictionary supports it. Presentation can then be reviewed on its own merits without becoming a substitute for data interpretation.

Request a small receiving-software example

A practical procurement request is a redacted or synthetic sample that the recipient can open before committing to the full workflow. Ask the provider to identify a specific band and sample location, the stored representation and the expected interpreted result. The sample should be small enough for a focused discussion, with its limitations stated. It is a communication check, not a substitute for assessing production data quality.

The receiving analyst should describe which operation produced the readout. A display inspector, an export function and a calculation script may be different parts of a workflow. Rather than assuming they behave alike, ask the analyst to document the operation relevant to the intended use. That makes a disagreement reproducible without requiring the supplier to guess what happened inside the recipient's system.

Include the associated metadata and any necessary supporting files in the sample handover. Ask the provider which files are required and how they should remain associated. Do not strip the package down to a single image merely because it opens successfully. Successful opening proves much less than correct interpretation, and the delivery process should preserve what the recipient needs to understand the data.

Separate value interpretation from other quality questions

Resolving scale and offset does not establish positional accuracy, calibration quality or suitability for a particular engineering decision. Those are separate questions. A correctly interpreted value can still belong to a dataset whose fitness for the intended use has not been demonstrated. Keep the scope of the receiving check narrow enough that passing it does not become an unsupported general quality claim.

Similarly, confirm missing-data treatment separately. A marker indicating an absent or invalid sample should not silently become an ordinary observation in a recipient's analysis. This article does not prescribe a universal nodata workflow. It recommends asking the provider and receiving analyst how their actual package and operation distinguish such records, then retaining that explanation with the rest of the handover.

When comparing deliveries from different dates, first confirm that their definitions and processing histories support the intended comparison. Do not assume that similarly named bands or matching file extensions establish comparability. If the definitions differ, ask the qualified analyst what can legitimately be compared. The appropriate response may be clarification or a revised deliverable, not a conclusion that conditions changed on the ground.

Make responsibility for interpretation explicit

The proposal should state who supplies the data dictionary, who checks the receiving workflow and who resolves an unexplained discrepancy. These may be different roles. A hardware supplier, processing provider and internal GIS team should not each assume that another party has accepted the numeric interpretation. One named review owner can coordinate questions without taking over technical responsibilities outside that person's competence.

• Identify the band and the kind of quantity it represents.
• Record the stored representation, scale, offset and units where applicable.
• State whether delivered values are raw or already transformed.
• Keep display styling distinct from the numeric output.
• Retain a reproducible receiving-software example and its limitations.

The practical lesson is to ask whether a transformation has been applied before treating different numbers as different site conditions. This is an editorial deduction from the distinction between representations, not a personal field anecdote. It gives the team a concrete diagnostic question while avoiding the unsupported claim that every discrepancy has the same cause.

Put the UVH1 inquiry around the deliverable

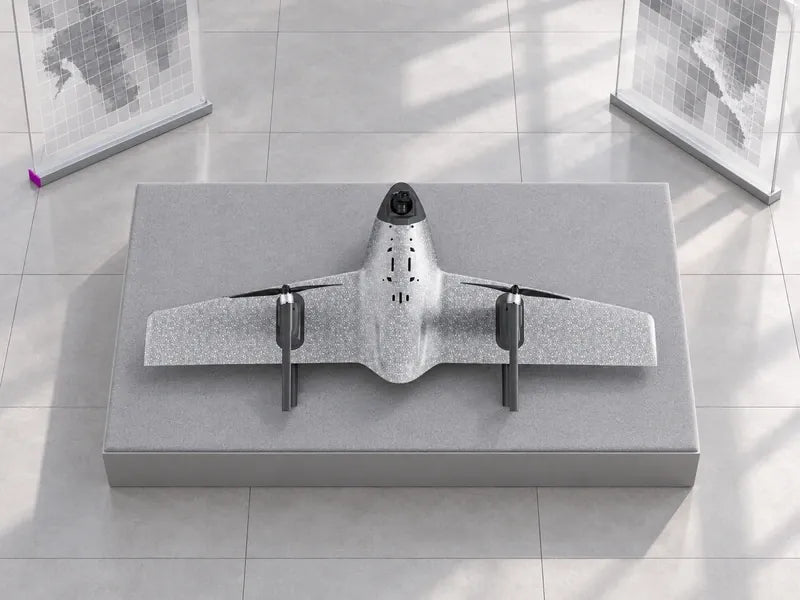

The approved UVH1 product page identifies the fixed-wing VTOL product for surveying discussions. It does not establish that a proposed package supplies the numeric raster, processing tool or measurement type described in this article. Ask for configuration details and a written separation of aircraft supply, capture, processing and deliverable review. Do not infer those inclusions from the product category.

The broader VTOL and fixed-wing collection can support a product discussion once the information requirement is clear. US and UAE buyers can ask the same data-meaning questions without assuming identical local reference systems, operational approvals or support arrangements. This guide makes no regional demand claim and provides no flight procedure.

Bring one example that exposes the question

Send a small redacted sample, the provider's stated interpretation and the receiving software's numeric readout through the UNITED UAV contact page. Ask what the proposed scope could establish and which questions belong with the processing provider or your GIS specialist. An exact example is more actionable than saying only that the maps look different.

For related analysis boundaries, see the meaning of a site-map buffer distance and shared-boundary asset assignment. Together they illustrate a broader purchasing discipline: specify the decision, identify the transformation and retain the evidence needed to interpret the output. A useful UVH1 discussion starts with that information requirement, not an assumed promise hidden inside a raster file.
