Buying a VTOL drone with both RGB and thermal capability sounds straightforward: select two sensors, fly one route and collect two useful datasets. In practice, the difficult part is not carrying the cameras. It is designing a workflow that produces repeatable, interpretable and contract-ready outputs from each sensor without letting one compromise the other.

An RGB mapping mission depends on geometry, overlap, exposure and position. A thermal inspection depends on calibration discipline, environmental conditions, target behavior and careful interpretation. The airframe connects those workflows, but it does not make them identical. Procurement teams should therefore evaluate the complete operating system: aircraft, payload, data link, mission design, calibration, processing, reporting and field support.

Define Two Deliverables Before Choosing One Platform

Start by writing separate acceptance statements. For RGB, the buyer may need an orthomosaic, surface model, asset inventory or visual condition record. For thermal, the buyer may need a qualified anomaly screen, temperature comparison or maintenance-priority layer. Each deliverable should specify coverage, resolution, positional expectation, reporting format and who is authorized to interpret the result.

This step prevents a common procurement mistake: treating “dual sensor” as the deliverable. It is only a capability description. A system can carry both sensors and still produce an inefficient workflow if the field team must repeat flights, manually reconcile timestamps or discover after the mission that the thermal conditions were unsuitable.

Ask How the Sensors Affect Mission Geometry

RGB and thermal sensors can have different fields of view, resolutions and exposure needs. A route optimized for one may not give the other the ground sampling or target dwell that the customer expects. The buyer should ask whether both datasets are captured in one pass, whether separate route settings are recommended and how the system records time and position for each payload stream.

Experienced survey leads put it plainly: the slowest requirement writes the flight plan. If the thermal deliverable requires a different speed, angle or time of day, do not assume the RGB plan remains the master. Build the mission around the most restrictive acceptance condition, then confirm that the other dataset still meets its purpose.

Make Calibration a Field Procedure

Thermal work is especially sensitive to operating context. Surface material, solar loading, wind, moisture, viewing angle and the time between observations can affect what an image means. Procurement should include a field procedure for reference targets, sensor warm-up, environmental observations and consistent naming. That procedure is part of the system, even though it is not bolted to the aircraft.

RGB work also benefits from disciplined calibration and quality control. A check target, known control, exposure review and sample processing can catch a problem before the crew leaves the site. The best operators do not wait until the entire route has been flown to discover that a setting was wrong. They inspect a small representative sample early and record the decision to continue.

Separate Transmission Range From Productive Mapping Range

The UNITED UAV UVH2 product page lists up to 15 km video transmission range and up to 60 minutes of flight time. Both are configuration and condition-dependent planning inputs. Neither figure alone defines how far a legal, reliable or commercially useful mapping mission should extend.

A data link may support situational awareness while the primary imagery is recorded onboard. Alternatively, the operator may need a live stream for inspection decisions. The buyer should state which data must be seen in real time, what happens after link degradation and how the mission continues or terminates safely. For configuration-specific link, payload or environmental information that is not in the approved product data, contact us for configuration details.

Use Accuracy Standards as a Contract Language

When the RGB deliverable is geospatial, the procurement file should identify how positional quality will be tested and reported. The ASPRS Positional Accuracy Standards are an authoritative reference for accuracy assessment and reporting. They do not guarantee that a particular aircraft, camera or processing package will meet a project requirement. They help the buyer define evidence instead of relying on vague words such as “survey grade.”

A disciplined acceptance plan names the coordinate reference, control method, independent checkpoints, reporting statistic and deliverable format. That clarity makes supplier comparisons more useful. It also protects the operator from being judged against an unstated accuracy expectation after the work is complete.

Plan the Human Review, Not Only the Flight

Thermal imagery is not an automatic diagnosis. The person reviewing it needs to understand the target, operating conditions and limits of interpretation. Procurement should identify who reviews anomalies, how false positives are handled and when another inspection method is required. The workflow should preserve original files, mission records and review notes so that a decision can be traced.

One lesson from experienced inspection teams is worth repeating: a colorful thermal image can look convincing long before it is conclusive. The report should distinguish observation from diagnosis. That is particularly important for electrical, building-envelope, solar, emergency-response and environmental applications where the cost of a wrong conclusion can exceed the cost of another flight.

Test the Entire Field Cycle

A useful acceptance exercise starts before launch and ends after delivery. Have the intended crew unpack the system, assemble it, load the route, confirm sensors, perform checks, fly a representative area, retrieve both datasets, process a sample and create the expected report. Record every manual transfer and every point where an expert decision is needed.

This exposes the true operational burden. A dual-sensor system may save an aircraft deployment but add data-handling work. That can still be a good trade, but it should be visible. Buyers should compare total crew time, repeatability and deliverable quality, not simply the number of cameras carried.

Specify the Data Chain

The procurement checklist should identify where every file is created, stored, transferred, processed and approved. Confirm original formats, metadata, time synchronization, storage capacity, backup method and the software required to open the data. If the two sensors use different coordinate or timestamp conventions, define how they will be reconciled before delivery.

Security and customer ownership also matter. State who can access raw imagery, how removable media is controlled, where cloud processing is permitted and when temporary copies are deleted. A strong aircraft and sensor package can still be rejected by an enterprise customer if the data path does not meet its governance requirements.

Prepare Environmental Go or No-Go Rules

The crew needs a decision rule that is more specific than “weather looks good.” For each deliverable, identify environmental conditions that could make collection misleading or inefficient. Thermal work may require attention to solar loading, wind, moisture and target operating state. RGB mapping may be affected by illumination, shadow and motion. The rule should tell the supervisor when to proceed, adjust the plan or return later.

Capture the actual conditions in the mission record. That context helps reviewers interpret an anomaly and helps managers compare repeat visits. It also prevents a later argument in which the data is judged without knowing the environment in which it was collected.

Make Change Control Part of Acceptance

A payload firmware update, processing change or replacement sensor can alter results. The buyer should define which changes require a short regression check and which require a broader acceptance exercise. Keep a known dataset that can be processed again after software changes. This provides a practical way to detect a shift before it reaches a customer project.

Support agreements should identify who notifies the buyer about updates and how a previous version can be restored if needed. Dual-sensor operations depend on several technical layers, so configuration records are essential to repeatability.

Finally, ask the processing and field teams to review the same sample output together. The field crew can explain environmental and flight conditions, while the analyst can identify gaps that are invisible at launch. This short review closes the loop between collection and customer use. It also gives procurement a realistic training requirement rather than assuming that the aircraft operator alone owns data quality.

Map Product Choice to the Customer

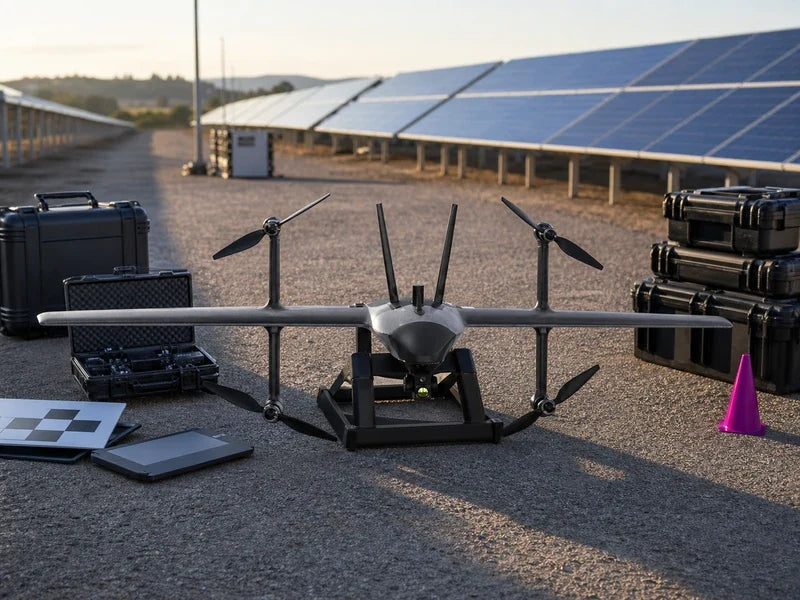

The UVH2 is positioned for survey companies, thermal inspection teams and integrators that want a fixed-wing VTOL workflow covering mapping, land surveying and industrial monitoring. Its published flight-time and video-transmission figures give buyers initial screening data. The final selection should be based on payload configuration, local operating rules, acceptance criteria and the field procedure described above.

For a broader route-planning discussion, read why corridor inspection needs payload margin. Buyers integrating their own flight system can compare the decisions in our PNP versus ready-to-fly checklist, while teams with heavier sensors should review how to size a heavier VTOL payload.

Prepare a Better Request for Quotation

Send suppliers a short mission brief containing both deliverables, sensor expectations, terrain, operating environment, data-link needs, processing outputs, acceptance tests and crew capability. Ask them to identify assumptions and unverified configuration details. This produces a much better response than asking for “a drone with RGB and thermal.”

Explore the UNITED UAV VTOL and fixed-wing drone collection, review the UVH2 product page, and use the UNITED UAV inquiry page to share your target, deliverable and operating scenario. The objective is not merely to carry two sensors. It is to build one field process that creates two dependable business outputs.
