A route patrol team should manage planned work, field activity, evidence review, and customer release on one controlled mission board. The board must show more than whether an aircraft flew. Give every route segment a stable identity and separate planned, ready, captured, transferred, quality-checked, released, rejected, and reflight-required states. Then name who may move a segment into each state. This prevents a completed sortie from being reported as an accepted inspection result.

The mission board is a coordination method, not a flight-control procedure or customer acceptance standard. The buyer should define its columns, thresholds, and decision rights from the contract, operator procedures, quality plan, and local requirements. The board helps the field lead, data team, project manager, and customer representative share the same operating picture while keeping their authorities distinct.

Design the Board Around Segment Identity

Begin with a route register that assigns a stable identifier to every segment. Record the route revision, start and end references, expected deliverable, access or release dependencies, and the source document that defines the boundaries. Avoid using a visual line on a map as the only identity. A map can be revised, cropped, or displayed at another scale while the underlying work package remains the same.

Each board card or record should carry the segment identifier, current status, responsible owner, last transition time, evidence location, open exception, next action, and due date. If one sortie covers several segments, link the sortie record to each segment rather than merging them into one vague complete card. If a segment needs several capture events, preserve all of them and identify which evidence set is under review.

Define Status Semantics in Plain Language

A column name is useful only when the team knows the entry and exit criteria. Planned may mean the segment exists in the approved work list. Ready may require access, authorization, crew, configuration, and operational conditions to be confirmed. Captured may mean the field event occurred and the crew closed its inventory. Transferred may mean the required files reached controlled storage and passed an integrity or readability check.

Quality-checked should identify the applicable review and reviewer. Released should name the authority who accepted the evidence for its intended next use. Rejected should cite a documented defect. Reflight-required should show that a qualified decision owner has approved another attempt, not merely that someone would prefer more data. Publish these definitions beside the board and version them when the workflow changes.

Give Every Transition an Owner

Define who proposes, validates, and approves each transition. The field lead may confirm that capture ended, but the data custodian may control transfer completion. A technical reviewer may validate evidence, while a customer-quality representative or project authority controls release. The remote-pilot authority controls whether a reflight can be conducted under current conditions. Those roles can be combined in a small organization, but their decisions should remain identifiable.

Use permissions and audit history when the board is digital. If it is physical, photograph or transcribe the controlled state at agreed checkpoints and preserve the change record. Avoid shared editable cells with no author or time. When someone moves a card, the record should show why, what evidence supports the move, and what becomes authorized next.

Build the Daily Operating Rhythm

At the start of the day, reconcile the board with the approved route revision, access release, aircraft and payload configuration, crew plan, and open exceptions. Confirm which segments are ready and which are blocked. Do not hide blocked segments in a backlog that field teams cannot see. A visible dependency is more useful than a green schedule built on an unstated assumption.

During operations, update only the states supported by current evidence. Use a brief check-in that reports segment, state, exception, owner, and next decision time. At data transfer, compare the field inventory with controlled storage. At quality review, add the result without erasing the capture history. At closeout, reconcile the board with the mission log, evidence manifest, exception register, and customer release list.

Make Reflight Ownership Explicit

A rejected segment does not automatically authorize another sortie. The board should show the defect, evidence required to close it, whether recapture is a candidate disposition, and who can approve the new work. Before a reflight is scheduled, confirm route access, operational authorization, current conditions, configuration, crew, recovery plan, customer priority, and the specific evidence objective.

State what will be different in the next attempt. If nothing changes, record why repetition is still justified. Preserve the first result and link the new capture event rather than replacing it. The final release should identify which evidence set was accepted and what happened to the earlier set. This history supports learning and prevents a successful repeat from hiding the process weakness that caused the exception.

Use UG32 Facts Without Inventing Coverage

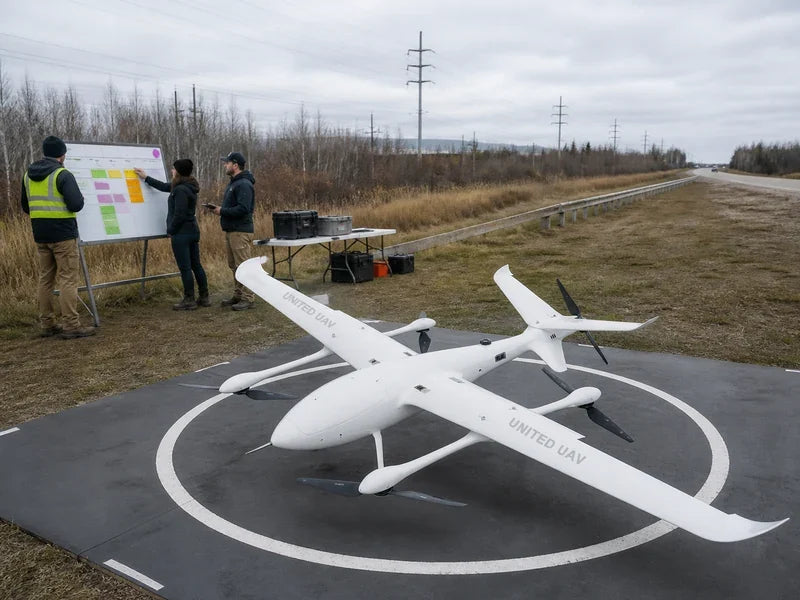

The current UG32 product page identifies a fixed-wing VTOL UAV for mapping, inspection, and patrol. The approved product record lists a 5 kg maximum payload, up to 240 minutes of no-load flight time, a 21 m/s cruise speed, and a 30 kg maximum takeoff weight. Keep maximum, up-to, and no-load conditions visible.

These values do not establish route coverage, loaded endurance, communications, data quality, acceptance, reflight capacity, or authorization for a proposed patrol. A mission board should record the actual configuration and observed evidence used by the buyer. The product facts help frame questions; they never move a segment into released status.

Control Exceptions Without Creating a Second Truth

The board should summarize open exceptions, not duplicate their detailed evidence. Link each affected segment to a controlled exception record that contains the defect, files, review, disposition, owner, and closure evidence. If an issue affects several segments, identify the relationship without copying slightly different explanations into every card. One controlled exception and clear links reduce conflicting stories.

Use the same-day UG39 corridor exception register as a model for recapture and escalation fields. Connect payload-sensitive decisions to the same-day UG82 payload release record when the actual load identity and mission authorization need a separate controlled sign-off.

Review What the Board Is Hiding

A tidy board can conceal weak evidence. Sample released segments and verify the source files, review record, customer criteria, signatory, and revision. Review cards that remain in one state too long. Check whether teams use side channels, personal spreadsheets, or unrecorded color meanings. Ask whether blocked items have owners and whether due dates trigger escalation.

• Can every segment be traced to the route definition?
• Can every status be explained in one sentence?
• Is the evidence location current and accessible?
• Does every exception have one disposition owner?
• Does every reflight have a defined evidence objective?
• Can a second reviewer reproduce the release decision?
• Are superseded cards and files preserved?
• Are unknowns visible rather than guessed?

Close the Route With a Reconciled Record

The route closes when the board, segment register, flight record, evidence manifest, exception register, and customer release list agree. Record any segments accepted with limitations, deferred, removed from scope, or still awaiting decision. Preserve the route revision and sign-off authority. A completion percentage without this reconciliation is a schedule indicator, not an evidence statement.

Reopen the board when route boundaries, customer deliverables, aircraft or payload configuration, review criteria, permissions, or release authority change. Buyers can use the VTOL and fixed-wing drone collection to compare current public product paths only when the documented requirement calls for another platform. For UG32 configuration questions or an evidence-based procurement discussion, use the UNITED UAV contact page and ask the response to distinguish product facts, configuration proposals, test needs, and remaining unknowns.

Use a Shift Handoff That Exposes Uncertainty

At shift change, walk the board from blocked and reflight-required items toward released items, not only from the beginning of the route. State the last verified update, evidence location, next owner, decision deadline, and condition that would change the state. The incoming team should repeat back the critical items. This makes uncertainty visible before activity resumes.

Keep a short handoff record with outgoing and incoming reviewers. Do not use the handoff to transfer authority that the receiving person does not hold. If the correct owner is unavailable, the segment remains in its supported state and the escalation rule applies. A delayed decision is preferable to an unsupported state change that later contaminates customer reporting.

Test the Board With a Deliberate Discrepancy

Before the campaign, run a tabletop exercise in which one segment has a missing transfer, another has an unresolved quality finding, and a third has a proposed reflight without current access. Have each role update only what it can authorize. Compare the final board with the evidence register. The exercise should reveal ambiguous columns, hidden side lists, and escalation gaps while they are still easy to correct.

Keep Customer Reporting Downstream of Release

Generate customer progress summaries from controlled board states, but do not allow a presentation deadline to change those states. If a segment is captured but awaiting review, report that honestly. If a reflight is proposed but not authorized, keep it separate from scheduled work. This protects the customer from an inflated completion picture and protects the operating team from pressure created by a premature percentage.
