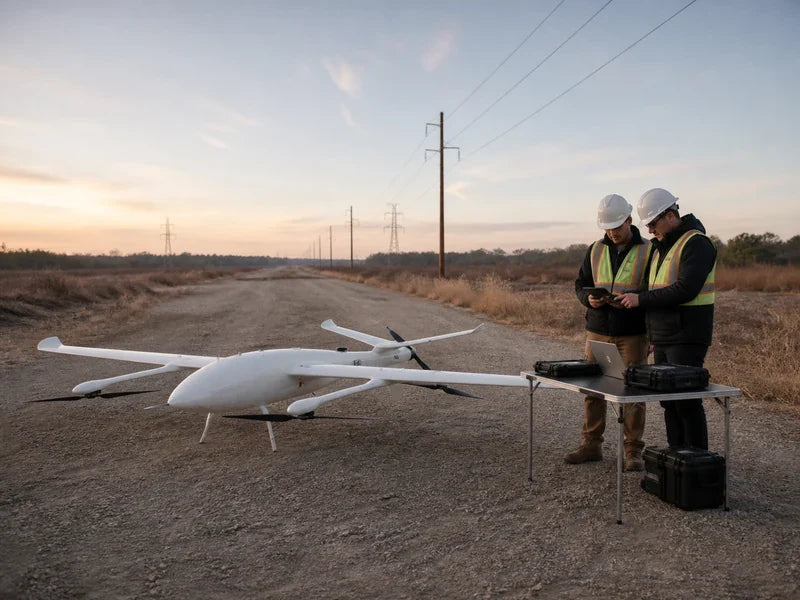

UG39 fixed-wing UAV at a corridor inspection planning station with an exception register workflow

UG39 Corridor Inspection Exception Register: Define Recapture and Escalation Authority Before Mobilization

A corridor inspection exception register should exist before mobilization, not after the first questionable dataset reaches the office. Give every planned segment a stable identity, define the evidence conditions that can create an exception, and name the person who may decide whether the segment is accepted, recaptured, deferred, or escalated. The register is a coordination control. It prevents a completed sortie from being mistaken for accepted evidence and prevents a field crew from making a customer-quality decision that belongs to someone else.

The central problem is timing. A weak image set, incomplete log, uncertain coordinate reference, missing segment, or unexplained interruption may be noticed while the aircraft is still available, after the crew has moved to the next section, or only after demobilization. The later the finding appears, the more expensive and uncertain the response can become. A good register preserves what was observed, where it applies, who owns the disposition, what evidence would close it, and which event forces escalation.

Separate Flight Progress From Evidence Status

Use different fields for planned, mobilized, captured, transferred, quality-checked, released, rejected, and recapture-required. These words should describe the buyer's workflow rather than imply a universal industry standard. A captured segment says that a flight or data-collection activity occurred. It does not say that the required files arrived, the evidence is complete, the customer accepted it, or the segment may be removed from the work list.

The project manager should publish the permitted status transitions before field work. For example, a crew may be allowed to move a segment from planned to captured, while a qualified reviewer moves it from quality-checked to released. A recapture instruction may require both a documented defect and approval from the named operational authority. This division keeps field speed from overriding contractual acceptance and keeps an office reviewer from directing an unsafe or unauthorized flight.

Give Every Exception a Stable Identity

An exception identifier should link the route, segment, capture event, source files, configuration, review finding, and current owner. Avoid relying on a screenshot, chat message, or filename that only the original operator understands. Record the route revision and the segment boundaries used at the time. If the corridor definition later changes, preserve the original reference and create an explicit relationship to the new one rather than silently renaming the record.

Minimum fields can include the segment identifier, date observed, evidence type, defect description, source-file location, reviewer, severity or decision class, current state, disposition owner, due date, recapture trigger, escalation trigger, and closure evidence. Add a short uncertainty field. It is often more useful to say what is not known than to fill the register with a confident theory that later proves wrong.

Write Defects as Observable Conditions

Describe the evidence problem in terms another reviewer can verify. Examples include a missing file, an unreadable timestamp, an incomplete transfer, a gap between expected and received segment references, or a required declaration that was not supplied. Avoid writing that the aircraft failed, the operator caused the problem, or the weather invalidated the work unless the available evidence supports that conclusion. Observation, cause, and disposition are separate fields.

This discipline makes supplier support and internal review more effective. A reproducible packet can show the aircraft configuration, mission-plan revision, relevant logs, data inventory, review method, first observed deviation, and actions already taken. A vague statement such as poor data does not tell the next person what to examine. A concise, evidence-linked description does.

Define Recapture Triggers Before the Field Day

A recapture trigger should state the minimum evidence defect that justifies considering another sortie and the approvals needed before that sortie is planned. It should not guarantee that recapture is possible. Access, weather, aircraft configuration, crew availability, operational authorization, route release, customer priorities, and recovery conditions can all change after the original capture. The register therefore records a recapture candidate first and an authorized recapture only after the responsible owners approve it.

Define what can close an exception without recapture. A customer may accept a documented limitation, a reviewer may locate the missing file, or a corrected declaration may resolve the record without another flight. Conversely, a seemingly small defect may force escalation if it affects a critical segment or breaks the evidence chain. The threshold should come from the contract, quality plan, operator procedures, and local requirements, not from improvised pressure to finish the route.

UG39 fixed-wing UAV beside a team reviewing corridor segment exceptions and recapture ownership

Assign Decision Rights, Not Just Tasks

The register should name the person who detects the issue, the person who validates it, the person who owns the customer disposition, and the person who controls the next flight decision. Those roles may be held by the same individual in a small team, but the record should still show which authority was being exercised. A generic assigned to operations label is too weak when timing, safety, contract scope, and customer acceptance point in different directions.

Include a deadline and a consequence for no decision. If a disposition is required before the field team leaves a region, state the cutoff and escalation path. If the issue can remain open until office review, protect it from being lost in the daily task list. A register works only when open items stay visible and an overdue item reaches someone who can act.

Use UG39 Facts as Boundaries, Not Answers

The current UG39 product page identifies the aircraft as an extended-route fixed-wing UAV for survey, inspection, and sensor missions. Its approved record lists a 5 kg maximum payload, up to 240 minutes of no-load flight time, a 21 m/s fixed-wing cruise speed, and wind-resistance references of Level 6 in multirotor mode and Level 7 in fixed-wing mode. Keep every qualifier attached to the value.

None of those facts establishes loaded endurance, inspectable route length, communications availability, sensor suitability, data quality, customer acceptance, or recapture capacity for a proposed job. They help a buyer frame configuration questions and decide what evidence to request. They do not determine whether a particular exception can be closed. The register should link to the actual configuration and field evidence rather than treating a product-page maximum as mission approval.

Build a Compact Pre-Mobilization Review

  • Confirm route, segment, and file-naming identities.
  • Publish capture and acceptance states.
  • Name defect validators and disposition owners.
  • Define recapture and escalation triggers.
  • Confirm access, authorization, and communication channels.
  • Prepare the evidence packet location.
  • Set the last decision time before demobilization.
  • Explain how limitations and unknowns will be recorded.

Walk through one fictional exception with the field lead, data reviewer, customer representative, and flight authority. Ask each person what they receive, what they add, and what they can authorize. This short rehearsal usually reveals missing identities, unclear handoffs, and assumptions about who will be online. Repair the workflow while the cost is still a meeting, not a return trip.

Protect the Handoff From Field to Office

The closeout package should show which segments are released, which remain under review, which have candidate recapture needs, and which are blocked by authority or access. Attach or reference the authoritative inventory rather than emailing separate lists. Reconcile the register against storage, mission logs, and the customer's segment list. If the counts do not agree, open an exception for the discrepancy instead of editing the totals until they look aligned.

Use the same-day mapping deliverables guide to define what must arrive from a subcontractor, and connect the register to the same-day route patrol mission board so teams see the difference between work status and exception disposition. The tools should share stable segment identities without duplicating competing truth.

Close With Evidence and Review Triggers

An exception closes when the authorized reviewer can identify the defect, disposition, supporting evidence, decision owner, date, and any continuing limitation. Preserve the first finding and the actions taken; do not overwrite an imperfect result with the final successful attempt. That history supports learning and prevents the next project from repeating the same ambiguity.

Reopen the workflow when the route changes, the deliverable definition changes, the aircraft or payload configuration changes, a new customer acceptance rule appears, or a repeated exception suggests the planning method needs review. Buyers comparing aircraft can browse the VTOL and fixed-wing drone collection. For configuration-specific questions, evidence requests, or a controlled procurement discussion, use the UNITED UAV contact page. Ask for a response that clearly separates published facts, configuration statements, proposed tests, and unresolved questions.

Measure the Process Without Inventing Performance

Track process indicators that the organization can verify: open exceptions by state, time awaiting an owner, records closed with evidence, recapture candidates awaiting authority, repeated defect categories, and segments that reached demobilization with no disposition. These measures describe the workflow, not aircraft reliability or customer satisfaction. A pattern can justify a review, but it does not by itself prove a technical cause.

Review a sample of closed records with someone outside the original field team. Ask whether the segment identity is clear, the evidence can be opened, the decision matches the stated authority, and the next crew could understand the limitation. Feed process lessons into future route planning, contract language, and briefing templates. Keep product-performance conclusions separate until appropriate evidence and qualified review support them.
