This UNITED UAV listing is for DJI Agras T100 Front Frame (1) replacement parts. Each variant keeps the original No., material number, and English material name so customers can search by exact component code and match the item to the numbered parts diagram.

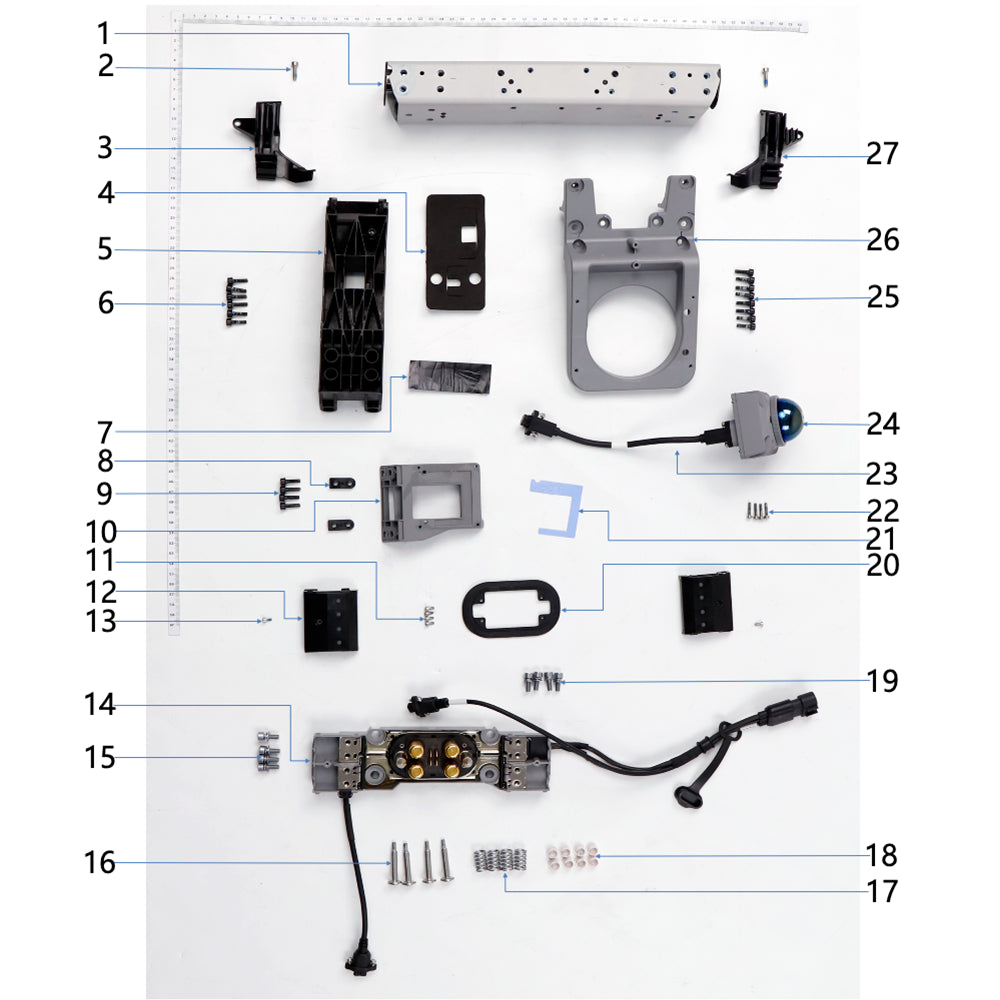

DJI Agras T100 Front Frame (1) Material Numbers and Variants
- 1. BC.AG.SS001103 - Front Frame Aluminum Tube
- 2. YC.ST.LL000013 - Screw M40-HC01400140-070039-0003-Y
- 3. YC.JG.ZS006714 - Power Cable Clamp B0
- 4. YC.JG.MQ003801 - FPV Sealing Foam
- 5. YC.JG.ZS006589 - FPV Bracket
- 6. YC.ST.LL000730 - Screw (M40-HC01400115-085047-4203-Y)
- 7. YC.JG.MQ003860 - Wear-Resistant Foam (77×30)
- 8. YC.JG.ZS006590 - Laser Radar Insulation Spacer
- 9. YC.ST.LL000730 - Screw (M40-HC01400115-085047-4203-Y)
- 10. YC.JG.YZ001068 - Laser Radar Bracket
- 11. YC.ST.LL000726 - Screw (M25-HC00580058-050025-5103-Y)
- 12. YC.JG.ZS006649 - Power Distribution Board Protective Cover
- 13. YC.ST.LL000726 - Screw (M25-HC00580058-050025-5103-Y)
- 14. BC.AG.SS001090 - Power Distribution Board Module
- 15. YC.ST.LL000699 - Screw (M50-HC01300107-087050-5103-N)
- 16. YC.ST.LL000697 - Screw (M40-HC03800090-135020-5103-Y)
- 17. YC.JG.TT000282 - Power Distribution Module Spring
- 18. YC.JG.ZS006775 - Power Distribution Module Spring Pad
- 19. YC.ST.LL000699 - Screw (M50-HC01300107-087050-5103-N)
- 20. YC.JG.ZS004560 - Power Distribution Board Dustproof Cover
- 21. YC.JG.MQ003697 - Thermal Conductive Pad (49.6×35.6 mm)
- 22. YC.ST.LL000551 - Screw (M20-PC01200100-040010-0323-Y)
- 23. YC.XC.XX001498 - Laser Radar Signal Cable
- 24. BC.AG.SS001166 - Laser Radar Module (Overseas)
- 25. YC.ST.LL000730 - Screw (M40-HC01400115-085047-4203-Y)
- 26. YC.JG.YZ001069 - Front Radar Bracket
- 27. YC.JG.ZS006715 - Power Cable Clamp B1
1. BC.AG.SS001103 - Front Frame Aluminum Tube
Front Frame Aluminum Tube is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number BC.AG.SS001103 should be verified against the aircraft parts diagram and the component being replaced.
2. YC.ST.LL000013 - Screw M40-HC01400140-070039-0003-Y
Screw M40-HC01400140-070039-0003-Y is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.ST.LL000013 should be verified against the aircraft parts diagram and the component being replaced.
3. YC.JG.ZS006714 - Power Cable Clamp B0
Power Cable Clamp B0 is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.ZS006714 should be verified against the aircraft parts diagram and the component being replaced.
4. YC.JG.MQ003801 - FPV Sealing Foam
FPV Sealing Foam is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.MQ003801 should be verified against the aircraft parts diagram and the component being replaced.
5. YC.JG.ZS006589 - FPV Bracket
FPV Bracket is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.ZS006589 should be verified against the aircraft parts diagram and the component being replaced.
6. YC.ST.LL000730 - Screw (M40-HC01400115-085047-4203-Y)
Screw (M40-HC01400115-085047-4203-Y) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.ST.LL000730 should be verified against the aircraft parts diagram and the component being replaced.
7. YC.JG.MQ003860 - Wear-Resistant Foam (77×30)
Wear-Resistant Foam (77×30) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.MQ003860 should be verified against the aircraft parts diagram and the component being replaced.
8. YC.JG.ZS006590 - Laser Radar Insulation Spacer
Laser Radar Insulation Spacer is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.ZS006590 should be verified against the aircraft parts diagram and the component being replaced.
9. YC.ST.LL000730 - Screw (M40-HC01400115-085047-4203-Y)
Screw (M40-HC01400115-085047-4203-Y) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.ST.LL000730 should be verified against the aircraft parts diagram and the component being replaced.
10. YC.JG.YZ001068 - Laser Radar Bracket
Laser Radar Bracket is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.YZ001068 should be verified against the aircraft parts diagram and the component being replaced.
11. YC.ST.LL000726 - Screw (M25-HC00580058-050025-5103-Y)
Screw (M25-HC00580058-050025-5103-Y) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.ST.LL000726 should be verified against the aircraft parts diagram and the component being replaced.
12. YC.JG.ZS006649 - Power Distribution Board Protective Cover
Power Distribution Board Protective Cover is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.ZS006649 should be verified against the aircraft parts diagram and the component being replaced.
13. YC.ST.LL000726 - Screw (M25-HC00580058-050025-5103-Y)
Screw (M25-HC00580058-050025-5103-Y) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.ST.LL000726 should be verified against the aircraft parts diagram and the component being replaced.
14. BC.AG.SS001090 - Power Distribution Board Module
Power Distribution Board Module is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number BC.AG.SS001090 should be verified against the aircraft parts diagram and the component being replaced.
15. YC.ST.LL000699 - Screw (M50-HC01300107-087050-5103-N)
Screw (M50-HC01300107-087050-5103-N) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.ST.LL000699 should be verified against the aircraft parts diagram and the component being replaced.
16. YC.ST.LL000697 - Screw (M40-HC03800090-135020-5103-Y)
Screw (M40-HC03800090-135020-5103-Y) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.ST.LL000697 should be verified against the aircraft parts diagram and the component being replaced.
17. YC.JG.TT000282 - Power Distribution Module Spring
Power Distribution Module Spring is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.TT000282 should be verified against the aircraft parts diagram and the component being replaced.
18. YC.JG.ZS006775 - Power Distribution Module Spring Pad
Power Distribution Module Spring Pad is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.ZS006775 should be verified against the aircraft parts diagram and the component being replaced.
19. YC.ST.LL000699 - Screw (M50-HC01300107-087050-5103-N)
Screw (M50-HC01300107-087050-5103-N) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.ST.LL000699 should be verified against the aircraft parts diagram and the component being replaced.
20. YC.JG.ZS004560 - Power Distribution Board Dustproof Cover
Power Distribution Board Dustproof Cover is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.ZS004560 should be verified against the aircraft parts diagram and the component being replaced.
21. YC.JG.MQ003697 - Thermal Conductive Pad (49.6×35.6 mm)
Thermal Conductive Pad (49.6×35.6 mm) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.MQ003697 should be verified against the aircraft parts diagram and the component being replaced.
22. YC.ST.LL000551 - Screw (M20-PC01200100-040010-0323-Y)
Screw (M20-PC01200100-040010-0323-Y) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.ST.LL000551 should be verified against the aircraft parts diagram and the component being replaced.
23. YC.XC.XX001498 - Laser Radar Signal Cable
Laser Radar Signal Cable is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.XC.XX001498 should be verified against the aircraft parts diagram and the component being replaced.
24. BC.AG.SS001166 - Laser Radar Module (Overseas)
Laser Radar Module (Overseas) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number BC.AG.SS001166 should be verified against the aircraft parts diagram and the component being replaced.
25. YC.ST.LL000730 - Screw (M40-HC01400115-085047-4203-Y)
Screw (M40-HC01400115-085047-4203-Y) is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.ST.LL000730 should be verified against the aircraft parts diagram and the component being replaced.
26. YC.JG.YZ001069 - Front Radar Bracket
Front Radar Bracket is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.YZ001069 should be verified against the aircraft parts diagram and the component being replaced.
27. YC.JG.ZS006715 - Power Cable Clamp B1
Power Cable Clamp B1 is a replacement front frame component for the DJI Agras T100 Front Frame (1). It supports frame structure, radar or FPV mounting, RTK antenna service, cable retention, cover fitment, or fastener service and should be matched by material number before ordering. Material number YC.JG.ZS006715 should be verified against the aircraft parts diagram and the component being replaced.
Front Frame (1) Service Notes
- Confirm the material number, material name, and diagram number before ordering.
- Power off the aircraft and remove the battery before inspection or replacement work.
- Inspect frame tubes, FPV brackets, radar brackets, power distribution covers, clamps, springs, pads, cables, and fasteners before reassembly.
- After installation, check frame alignment, cable clearance, module seating, bracket fitment, and screw torque before field use.
- Installation should be completed by a qualified technician familiar with DJI Agras T100 maintenance procedures.
Need DJI AGRAS T100 spare parts but do not know the exact component name? Send us photos, videos, part numbers, or a marked parts diagram. UNITED UAV helps identify the correct replacement parts, check availability, and provide worldwide shipping support for agricultural drone repair.
1. Where can I buy DJI AGRAS T100 spare parts?
You can buy DJI AGRAS T100 spare parts from UNITED UAV for agricultural drone repair and maintenance. We supply replacement components for T100 structural parts, aircraft arms, landing gear, spraying system parts, spreading system parts, cables, connectors, pumps, flow-related components, propellers, screws, seals, brackets, and other maintenance accessories.
2. My DJI AGRAS T100 crashed. Can you help me find the replacement parts?
Yes. If your DJI AGRAS T100 has crashed, send us photos of the damaged areas and we can help identify the possible replacement parts. Please include photos of the whole drone, damaged areas, connectors, and any visible part numbers to improve identification accuracy.
3. I do not know the name of the broken T100 part. Can I still buy it?
Yes. You do not need to know the exact part name. Many customers only know that a certain area is damaged. You can send a photo, video, parts diagram screenshot, or marked image, and we can help identify the correct DJI AGRAS T100 replacement part.
4. Can I send a photo of my damaged DJI AGRAS T100 part for identification?
Yes. Photo-based part identification is supported. Please provide:
- A clear photo of the damaged part
- A wider photo showing where the part is installed
- Connector or cable photos if applicable
- Any visible label or part number
This helps reduce incorrect part selection before ordering.
5. How can I find the correct DJI AGRAS T100 part if I only know the damaged location?
If you only know the damaged location, such as:
- front of the drone
- one aircraft arm
- landing gear
- spraying system
- cable area
- tank area
send us photos of that area. We can help determine which T100 component may need replacement.
6. What DJI AGRAS T100 spare parts are available?
DJI AGRAS T100 spare parts may include:
- Front and rear body components
- Frame components
- Aircraft arm parts
- Landing gear assemblies
- Propeller parts
- Spray tank parts
- Spray system components
- Spreading system components
- Cable assemblies
- Cable distribution board parts
- Pump-related parts
- Flow meter parts
- Connectors
- Seals
- Screws
- Brackets
- Mounting accessories
7. Do you supply DJI AGRAS T100 aircraft arm parts?
Yes. We supply DJI AGRAS T100 aircraft arm-related replacement parts, including arm assemblies, connectors, mounting components, and related accessories.
Because different arm positions may use different structures, please confirm the arm location or send photos before ordering.
8. My DJI T100 arm is broken after a crash. What information should I provide?
Please send:
- Full drone photo
- Damaged arm photo
- Motor-side photo
- Connector photo
- Part number if available
This helps confirm whether you need an arm assembly, connector, bracket, or another related component.
9. Do you supply DJI AGRAS T100 landing gear parts?
Yes. DJI AGRAS T100 landing gear replacement parts may include landing gear tubes, support components, brackets, fixing parts, screws, and related accessories.
If the drone landed hard or overturned, send photos of the damaged area so we can help identify the required parts.
10. Do you supply DJI AGRAS T100 propeller parts?
Yes. We supply DJI AGRAS T100 propeller-related replacement parts when available.
Before ordering, confirm whether you need:
- Propeller blade
- Complete propeller set
- Mounting hardware
- Related motor-side components
11. Where can I buy DJI AGRAS T100 spraying system parts?
UNITED UAV supplies DJI AGRAS T100 spraying system-related parts, including spray tank components, spray system accessories, pump-related parts, flow system parts, hoses, connectors, seals, and fittings.
12. My DJI T100 spraying system is not working. What parts might be damaged?
A spraying problem can have several causes, including:
- Pump issues
- Flow meter problems
- Blocked hoses
- Damaged connectors
- Tank fittings
- Spray components
- Electrical connection problems
Send photos or describe the symptom, and we can help identify possible replacement parts.
13. My DJI AGRAS T100 pump is not working. Can you provide replacement parts?
Yes. Pump-related parts may be available for DJI AGRAS T100 repair.
Please provide:
- Pump photo
- Installation location
- Problem description
- Any visible part number
This helps confirm the correct component.
14. Do you supply DJI AGRAS T100 flow meter parts?
Yes. Flow-related replacement components are available for T100 spraying system maintenance.
If your drone has unstable spraying output, incorrect flow, or system warnings, provide photos and operating details for checking.
15. Do you supply DJI AGRAS T100 cable and electronic parts?
Yes. We supply T100 cable-related and electronic replacement parts, including:
- Cable assemblies
- Connectors
- Wiring components
- Distribution board-related parts
- Electronic modules
Cable identification is important because different cables may look similar but have different connectors or functions.
16. My DJI T100 cable is damaged, but I do not know which cable it is. What should I do?
Send:
- Cable photos from both ends
- Connector close-up photos
- Installation location
- Drone model confirmation
We can help identify the correct cable assembly.
17. Are DJI AGRAS T100 spare parts in stock?
Stock availability depends on the specific part and quantity required.
Many commonly requested replacement parts can be prepared quickly. Contact us with the part name, photo, or reference image to confirm current availability.
18. How fast can DJI AGRAS T100 spare parts be shipped?
Shipping time depends on:
- Part availability
- Order quantity
- Destination country
- Shipping method
For urgent repairs, tell us your location and required parts so we can check the fastest available shipping option.
19. Do you ship DJI AGRAS T100 spare parts internationally?
Yes. UNITED UAV supports international shipping for DJI AGRAS T100 spare parts.
We supply parts for:
- Farmers
- Agricultural drone operators
- Repair centers
- Dealers
- Service companies
- B2B customers
20. Can I order DJI AGRAS T100 parts if I only need one component?
Yes. Single-part orders are possible depending on availability.
You can also combine multiple damaged parts into one order by sending a complete repair list or parts diagram.
21. Can I send a parts diagram and mark the parts I need?
Yes. This is one of the easiest ways to confirm T100 spare parts.
You can:
- Download the parts diagram
- Mark the required components
- Send the marked image to us
Our team can check the requested parts.
22. Can you provide DJI AGRAS T100 spare parts diagrams?
Yes. Reference images and parts diagrams help customers identify components before ordering.
They are especially useful for:
- Frame parts
- Arm parts
- Spray system parts
- Cable parts
- Electronic modules
- Small accessories
23. Are DJI AGRAS T100 parts suitable for repair centers and dealers?
Yes. UNITED UAV supports B2B customers including:
- Agricultural drone dealers
- Repair workshops
- Fleet operators
- Service companies
- Spare parts distributors
Bulk sourcing and multiple-part quotations are available.
24. Can I buy DJI AGRAS T100 spare parts in bulk?
Yes. For bulk requirements, provide:
- Required parts list
- Quantity
- Delivery country
- Expected purchasing frequency
We can help prepare a quotation for multiple T100 components.
25. How do I confirm compatibility before ordering DJI T100 parts?
Before ordering, confirm:
- Drone model
- Part name
- Part number
- Installation position
- Photos
- Connector type
Some components may look similar but are not interchangeable.
26. What if I only know “my T100 cover is broken”?
That is okay. Send:
- Photo of the broken cover
- Full drone photo
- Location of the cover
We can help determine whether it is a body cover, frame cover, protection component, or another replacement part.
27. What if my DJI AGRAS T100 crashed and several parts are damaged?
Send photos of all damaged areas.
For crash repairs, we recommend checking:
- Frame
- Arms
- Landing gear
- Propellers
- Motors
- Cables
- Spraying system
- Electronic connections
A complete inspection helps avoid missing hidden damage.
28. Do DJI AGRAS T100 spare parts require professional installation?
Some parts should be installed by experienced agricultural drone technicians, especially:
- Aircraft arm components
- Structural parts
- Electronic modules
- Cable systems
- Spraying system components
Proper installation and testing are important after replacement.
29. What should I prepare before contacting a T100 spare parts supplier?
Prepare:
- Drone model: DJI AGRAS T100
- Photos of damaged parts
- Parts diagram if available
- Quantity required
- Shipping country
- Urgency
This allows faster communication and quotation.
30. How can I request DJI AGRAS T100 spare parts quotation?
Send your:
- Part photos
- Part list
- Marked diagram
- Quantity
- Shipping location
UNITED UAV will help confirm the required parts, availability, and shipping options.
