DJI Mavic 3E Enterprise Mapping Drone

Q1: I survey construction sites and need clear overlapping photos. Would a compact mapping drone with a mechanical shutter work?

A1: DJI Mavic 3E fits mapping and site teams that need a portable 20MP 4/3 mechanical-shutter aircraft with short photo intervals and a separate tele camera. It does not include thermal imaging.

Q2: Can a mapping drone take RAW photos and still let me zoom in visually on a roof detail?

A2: DJI Mavic 3E uses a 20MP 4/3 wide camera with mechanical shutter, adjustable f/2.8–f/11 aperture, and JPEG or DNG RAW. A 12MP 162mm-equivalent tele camera provides up to 56× hybrid zoom.

Q3: Would the screen controller that comes with a survey drone let me plan grids in the field?

A3: DJI Mavic 3E includes RC Pro Enterprise with a 5.5-inch 1,000-nit display and uses O3 Enterprise. Pilot 2 manages mission planning, payload settings, and enterprise accessories.

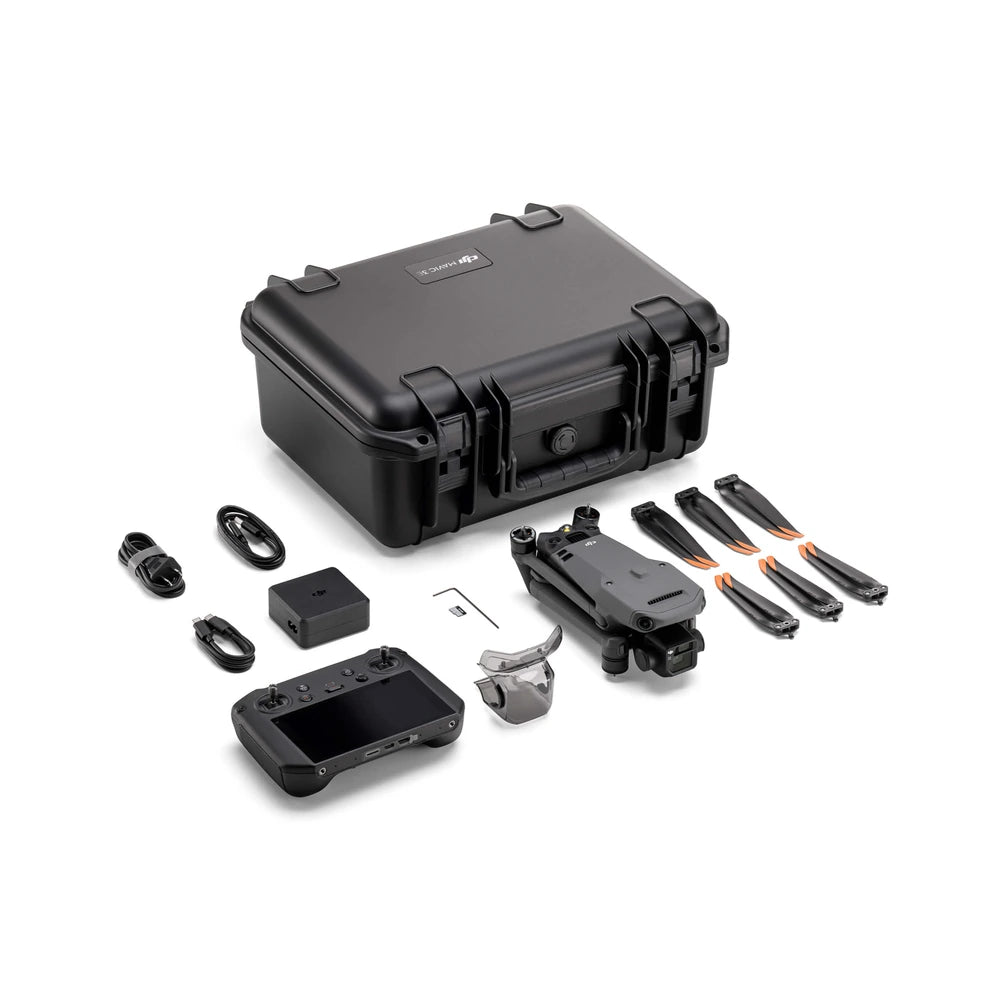

Q4: If I choose the basic mapping drone package, do I get RTK and enough batteries for a workday?

A4: DJI Mavic 3E Worry-Free Basic includes one battery, while Plus adds an RTK Module and Battery Kit with three extra batteries and a 100W hub. Both include controller, card, adapter, props, case, and protection.

Q5: How many mapping drone batteries would I need for a 200-hectare job with high overlap?

A5: DJI Mavic 3E field endurance depends on grid speed, overlap, wind, altitude, turns, reserve policy, and battery condition. Size battery count from hectares, ground sampling distance, and re-flight allowance rather than an ideal maximum.

Q6: The survey area has a steep ridge. Can I rely on the mapping drone's published radio range?

A6: DJI Mavic 3E uses O3 Enterprise with RC Pro Enterprise. Buildings, terrain, interference, legal line of sight, antenna orientation, and mission geometry determine real control-link performance.

Q7: For repeated mapping drone jobs, what's the difference between the one-battery and four-battery kits?

A7: DJI Mavic 3E Basic has one battery, while Plus includes four in total and a 100W hub. Plan a suitable 100W power source, cooling, battery rotation, and reserve for repeatable survey work.

Q8: Could a mapping drone avoid cables and cranes automatically while flying a preplanned grid?

A8: DJI Mavic 3E has omnidirectional binocular vision and downward infrared sensing. Detection depends on light, texture, and target properties, and mapping routes still need wire, crane, tree, and terrain clearance.

Q9: Can the survey drone fly a grid with RTK without us first checking the coordinate system and terrain?

A9: DJI Mavic 3E uses Pilot 2 for mapping and enterprise missions, with optional RTK for precise positioning. Automated grids require boundary, altitude, overlap, terrain, return path, and lost-link review.

Q10: Will a mapping drone produce survey-grade accuracy just because its camera has a mechanical shutter?

A10: DJI Mavic 3E is optimized for mapping capture and visual documentation rather than cinema codecs. Survey accuracy depends on flight planning, overlap, shutter settings, speed, RTK or control, and processing.

Q11: We deliver orthomosaics to clients. How should we transfer and back up the mapping drone's photos and control points?

A11: DJI Mavic 3E packages include a 64GB microSD card. Mapping teams should also plan card speed and capacity, redundant transfer, project folder structure, logs, control-point records, processing storage, and backups.

Q12: Would light rain or haze spoil a mapping drone job even if the aircraft can take off?

A12: DJI Mavic 3E operates from -10°C to 40°C and is not waterproof. Wind changes ground speed and image overlap, while rain, haze, low light, and reflective surfaces can reduce data quality.

Q13: Can a surveyor carry a complete mapping drone kit to remote sites without a vehicle?

A13: DJI Mavic 3E is a compact foldable enterprise kit, but a productive survey case includes controller, multiple batteries, 100W power, hub, RTK module where used, cards, targets or control equipment, and laptop workflow.

Q14: Besides flight permission, what survey standards and site permissions matter for a commercial mapping drone job?

A14: DJI Mavic 3E survey work can require registration, remote ID, pilot competency, airspace authorization, site permission, privacy compliance, surveyor oversight, coordinate-system controls, insurance, and safe ground operations.

Q15: We already own the mapping drone. Which RTK and battery accessories make it practical for repeat surveys?

A15: DJI Mavic 3E buyers should consider the RTK Module, extra batteries and hub, props, guard where appropriate, speaker only if needed, cards, control points or D-RTK equipment, and processing software.

Q16: Can one pilot deliver an accurate map, or does a mapping drone job also need ground-control and data checks?

A16: DJI Mavic 3E mapping requires a pilot or survey operator, ground-control or RTK plan, data-quality checks, processing, coordinate-system control, deliverable review, and client documentation. One person may fill several roles on low-risk sites.

Q17: I only need photos and terrain maps. Would a compact mapping drone be more sensible than a thermal platform?

A17: DJI Mavic 3E is strongest for portable photogrammetry and visible inspection. It is not thermal; choose a thermal enterprise model for heat data or a larger Matrice platform for interchangeable LiDAR or camera payloads.

Q18: Does the basic mapping drone kit include the RTK module, and can I use it in rain?

A18: DJI Mavic 3E is not waterproof, the Basic package lacks the RTK Module and large battery kit, speaker and RTK module cannot be used simultaneously, and mapping accuracy is not created by RTK alone.

Q19: Our mapping drone photos aren't aligning in software. What samples and flight settings should support see?

A19: DJI Mavic 3E support should preserve aircraft, controller, battery and RTK serials, firmware, logs, sample images, mission plan, processing symptoms, invoice, and photos. Basic and Plus service terms differ.

Q20: What area, accuracy and processing requirements should I share before choosing a mapping drone package?

A20: DJI Mavic 3E recommendations need country, site area, terrain, required ground sampling distance and accuracy, RTK or control plan, daily hectares, weather, processing software, batteries, and deliverable format.
