Q1: I manage a mining safety team inspecting unstable slopes and conveyor systems. Is an industrial drone controller a sensible fit for this work?
A1: H16 PRO is positioned as Seven-inch industrial controller package emphasizing SDK support, 1080p integrated links, rugged construction and selectable camera systems. It can fit this scenario when its aircraft, software, radio, payload and support boundaries match the mission; it should not be selected from the headline range alone.
Q2: Our mission is rugged HD inspection with custom software and a dedicated gimbal joystick. Which published range condition should we use for a professional drone controller?
A2: H16 PRO currently lists an ultra-long-range claim without a numeric distance in the current description or leading controller specifications. Those are published conditions, not a guaranteed operating radius. Antenna orientation, height, terrain, obstructions, interference, aircraft installation and local power limits determine the tested working range.
Q3: Before we follow open-pit walls, processing plants and long conveyor corridors, what can shorten the published range of a UAV remote controller?
A3: H16 PRO should be range-tested on the real route before operational release. Hills, trees, buildings, radio congestion, antenna placement, air-unit power, video bitrate and return-to-home reserve can all reduce the published result.
Q4: At a mine with dust, metal structures and heavy radio traffic, how should we test a long-range drone controller for interference and frequency switching?
A4: H16 PRO uses 2.400–2.483 GHz with frequency hopping. Frequency behavior still depends on the ordered regional version, antennas, firmware and legal RF limits. Survey interference at the site and record an approved fallback or abort point instead of assuming automatic switching solves every link problem.
Q5: When pilots work near reflective rock faces in bright midday sun, is a 7-inch high-brightness IPS display practical on a drone remote controller?
A5: H16 PRO lists 7-inch high-brightness IPS display. That supports outdoor work, but glare, viewing angle, gloves, brightness settings, map design and heat can affect usability. Test the actual screen with the selected video feed before approving long field shifts.
Q6: For rugged HD inspection with custom software and a dedicated gimbal joystick, how should we assign 16 channels on an industrial drone controller?
A6: H16 PRO lists 16 channels. Count flight modes, gimbal axes, camera commands, payload releases, safety switches and future expansion separately, then confirm signal type and channel mapping with the receiver and flight controller.
Q7: We've standardized on the listed ground-station app plus a mine-safety application built with the SDK. Can a professional drone controller support that workflow, and what should we test?
A7: H16 PRO uses an Android embedded platform; the current leading Specifications do not identify its exact Android version and lists the listed ground-station app, waypoint functions and custom development resources. Confirm the exact application version, licensing, map source, video codec, USB permissions, update policy and flight-controller protocol on a bench before field deployment.
Q8: A client wants 1080p telemetry and video with low-latency inspection feedback. What video capability should we verify in a UAV remote controller?
A8: H16 PRO is described with integrated 1080p video, telemetry and data transmission using SDR-based link technology. Verify the selected camera, codec, stream count, resolution, recording location, latency, network load and connector path because the controller alone cannot guarantee the complete video workflow.
Q9: For a rugged mine-inspection multirotor with a 12S aircraft pack feeding an R16 receiver listed for 7.2–72V, what receiver voltage should a long-range drone controller use?
A9: H16 PRO air-side power information states 7.2–72V for the listed R16 receiver. Use fully charged pack voltage, transient limits and the exact receiver or power module—not only the nominal battery label—and obtain the pinout before connection.
Q10: For a rugged airframe near vibration and high-current motor cables, we need PPM, RJ45, Type-C, OTG, TF, SBUS and serial connections. Which interfaces should we confirm on a drone remote controller?
A10: H16 PRO lists PPM, RJ45, Type-C, OTG, TF, SBUS and serial connections in the product material. The quotation should identify which ports exist on the chosen variant, their signal level, connector, cable, pinout and simultaneous-use limitations before the integration harness is built.
Q11: Before purchasing an industrial drone controller, how do we confirm the package includes one specifically named camera combo rather than a controller-only assumption?

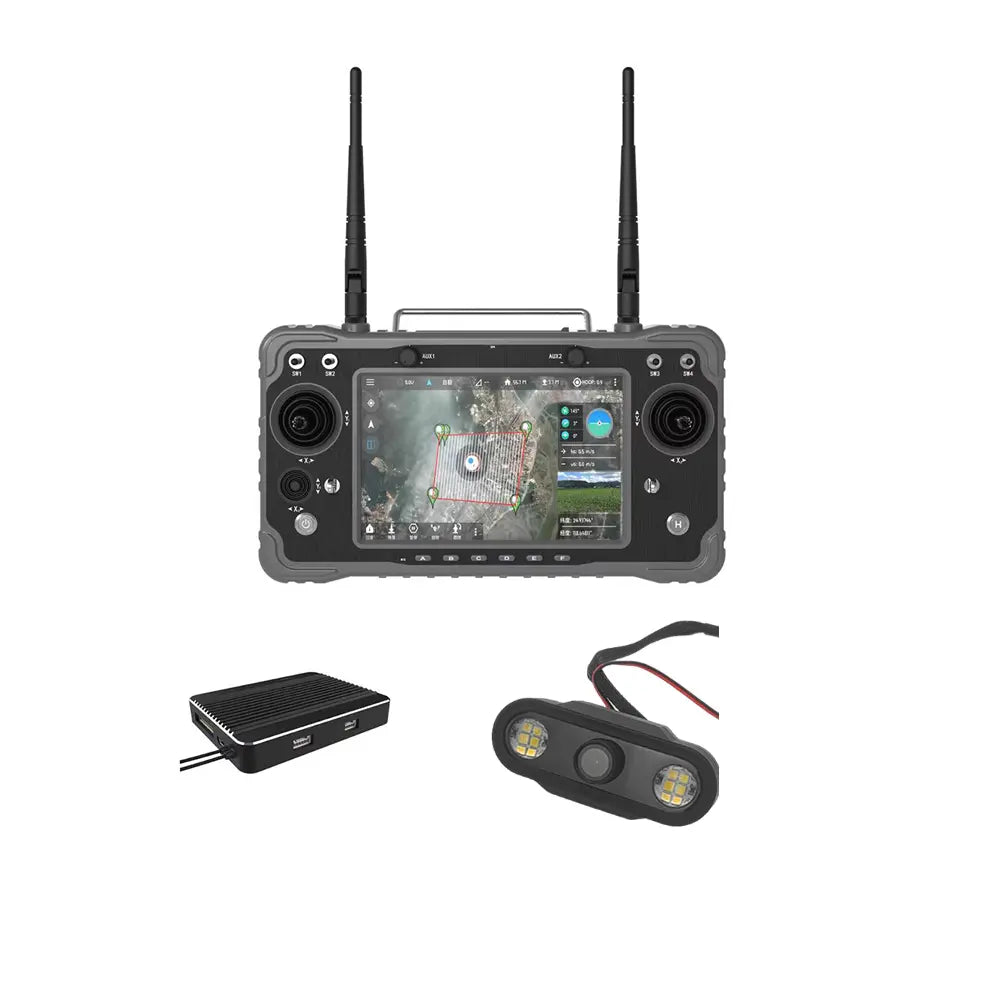

A11: H16 PRO is offered as 3-in-1, C10PRO, C12, C13 and C20 camera combinations. All visible variants include a named camera, so the quotation must identify that camera, receiver, antennas, cables and storage.
Q12: We may add a thermal camera with later laser-ranging or zoom requirements later. Does a professional drone controller require a specific camera bundle or interface?
A12: H16 PRO camera planning should follow the selected package. The listed combinations span basic FPV, zoom and thermal-capable payloads with different power, storage and video requirements. Confirm power, protocol, codec, gimbal control, storage, mounting and firmware before treating a later camera as plug-and-play.
Q13: For a slope inspection where a geotechnical engineer directs camera movements beside the pilot, can two people share flight and payload work through the same UAV remote controller system?
A13: H16 PRO does not list a two-ground-unit control mode, so a payload specialist working beside the pilot is not automatically a second controller. Define who holds flight authority, how payload control is handed over, what each operator sees and how the system behaves after link or ground-unit loss.
Q14: During a ten-hour safety-inspection shift with limited clean charging space, how long can the long-range drone controller run before charging becomes the bottleneck?
A14: H16 PRO lists a 20,000mAh ground battery in the Specifications tab and 10–15 hours in the description versus 6–20 hours in the Specifications tab. Screen brightness, radio activity, video decoding, temperature, battery age and network use change real runtime, so schedule charging from measured shift consumption.
Q15: During a ten-hour safety-inspection shift with limited clean charging space, how should we charge a drone remote controller from a 36W charger inside a dust-controlled field office?
A15: H16 PRO lists 36W fast charging and a two-hour charge cycle in the description, while the Specifications only name Type-C. Confirm the supplied charger, cable, input voltage, vehicle-inverter rating, charge temperature and whether the controller can operate while charging before planning field turnaround.
Q16: On jobs with cold pre-dawn starts and hot processing areas, what temperature limits should we apply to the industrial drone controller and air unit?
A16: H16 PRO currently states no complete ground-controller temperature range is stated in the leading Specifications; attached camera modules list their own ranges. Apply the narrowest confirmed limit across the ground unit, receiver, battery, display, camera and aircraft, and test cold-start and heat-soak behavior before release.
Q17: At a mine with dust, metal structures and heavy radio traffic, crews face fine dust, drops and rough transport. Which protection limits matter for a professional drone controller?
A17: H16 PRO is described as waterproof, dustproof and drop-resistant, but no controller IP rating is published in the current Specifications tab. Keep caps, connectors and cable entries protected, inspect seals after impact and follow an order-specific cleaning procedure; a controller rating never certifies the complete installed system.
Q18: Suppose a UAV remote controller must work with multirotors, unmanned ground vehicles and inspection boats at a mine with dust, metal structures and heavy radio traffic. Are those platforms supported?
A18: H16 PRO lists helicopters, fixed-wing aircraft, multirotors, unmanned vehicles and boats. Each platform still needs the correct mixer, flight controller, failsafes, receiver output, video path and operating procedure, so one saved model must never be reused blindly.
Q19: We need RJ45 video, local recording and transfer to the mine network. Can a long-range drone controller provide the required SIM, network or video connections?
A19: H16 PRO includes RJ45, Type-C, OTG and storage interfaces for supported local and network workflows. Confirm carrier bands, SIM provisioning, IP addressing, bandwidth, encryption, data ownership, server compatibility and what functions remain available when the external network disappears.
Q20: Our software team wants a geofenced mine-inspection checklist using the supplied development resources. What SDK or protocol access should we request for a drone remote controller?
A20: H16 PRO explicitly describes SDK, development kits and technical support, which should be itemized with version and licensing terms. Require versioned documentation, sample code, supported operating systems, API limits, update compatibility and technical-support ownership before committing custom software.
Q21: Inside a rugged airframe near vibration and high-current motor cables, what mounting space, input power and cooling should the industrial drone controller receiver get?
A21: H16 PRO uses an R16 receiver around 76×59×11mm and 90g, with camera-side modules adding their own power and space requirements. Add antenna clearance, connector access, cable bend radius, cooling, vibration isolation and separation from GNSS, ESC and high-current wiring when sizing the installation.
Q22: I've configured consumer transmitters, but this project has camera-combo selection, receiver power and application-version control. Which professional drone controller commissioning tests come before flight?
A22: H16 PRO commissioning should include correct model selection, wiring and power checks, stick and switch mapping, firmware control, receiver binding, video and telemetry tests, failsafes, geofence or return behavior, restrained propulsion tests and staged short-range flights.
Q23: For operations in industrial sites with private-spectrum and worker-safety requirements, how do we verify a UAV remote controller frequency, RF power and network features?
A23: H16 PRO must be checked against the exact country and operation. Confirm permitted bands, RF power, antennas, cellular approvals, encryption, aviation rules and any beyond-visual-line-of-sight authorization; a published range is not a legal operating approval.
Q24: After months of rugged HD inspection with custom software and a dedicated gimbal joystick, which parts and connections should we inspect on the long-range drone controller?
A24: H16 PRO maintenance should cover sticks, switches, antennas, brackets, batteries, charging ports, screens, seals, receiver connectors, harness strain relief and firmware records. Stock spares only after the ordered revision and connector set are documented.
Q25: Which written details should procurement compare when choosing a drone remote controller for rugged HD inspection with custom software and a dedicated gimbal joystick instead of buying on range alone?
A25: H16 PRO should be compared on explicit SDK positioning, rugged materials, a 2D gimbal joystick and a wide camera-combo range. Procurement should also record the exact variant, ground and air units, interfaces, voltage, regional radio version, cameras, cables, software, documentation, warranty, lead time, training and after-sales responsibility.
