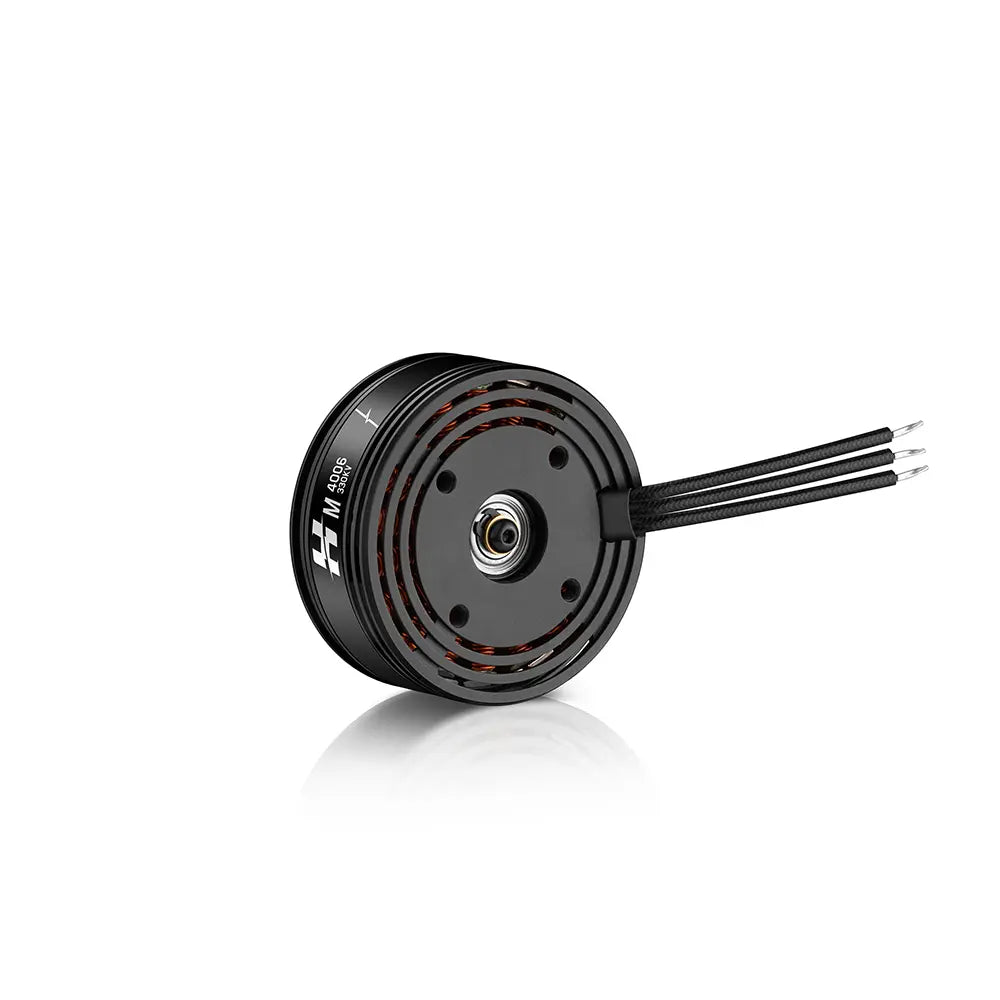

The HOBBYWING M4006 HP 330KV is a professional-grade drone brushless motor designed for industrial multirotor UAVs. Built with high-strength materials and precision engineering, it delivers exceptional efficiency, long endurance, and stable flight performance.
Featuring an advanced magnetic circuit design, optimized airflow, and centrifugal fan cooling, the motor maintains low temperature even under continuous operation. Its knurled shaft and snap-ring structure enhance reliability, while waterproof bearings and corrosion-resistant components ensure extended service life.
With 1kg of recommended thrust per motor and a 4kg total takeoff weight for quadcopters, the M4006 HP 330KV is an ideal drone electric motor for aerial photography, mapping, inspection, and industrial applications.
Model
M4006 330KV HP
Motor Size
Φ44.4*H19.7mm
Stator Size
Φ39mm
Stator process
High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
Enamelled wire
220℃
Magnet
180℃
Isolation test
500V AC high voltage resistance test
Protection level
IP45
Slot & Pole
18N 24P
Dynamic balance
≤5mg
Bearing
Water proof bearing
Motor axle diameter
Φ4mm
Props mounting dimensions
4×M3@D12
Motor mounting dimensions
4×M3@D25
KV
330
Battery(LiPo)
6S LiPo
No-load current
0.58A
Maximum current
15.8A
Max power
363W
Max thrust
2.3kg
Resistance
218.5mΩ
Wire Size & Length
Enamelled wire outlet, 50mm
Weight (With wire)
72g
Rated power input
93W
Rated power output
79W
Recommended Combinations
Motor: M4006 HP
Propeller: MP16x5.4"/MP17x5.8"
ESC: XRotor Pro H40A 6S / XRotor Pro H60A 6S
Battery: 6S LiPo
Thrust/rotor: 0.6~1.0kg
Takeoff weight of quadrotor: 2.4~4.0kg
