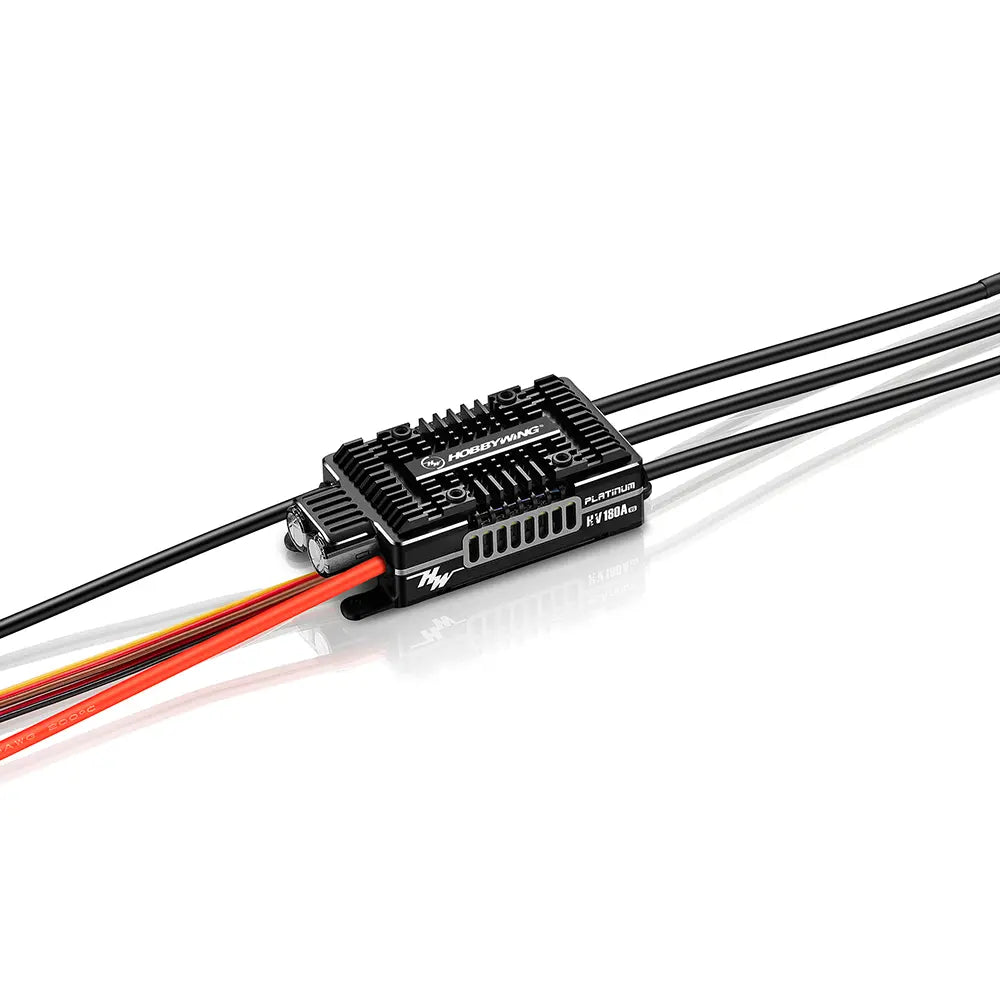

Platinum HV 180A SBEC V5 ESC 6-14S | HOBBYWING Compact, High-Power, Dual Protection

Q1: I work with a large electric-aircraft workshop on fixed-wing endurance flights. Would this type of fixed-wing drone ESC suit that work?

A1: Platinum HV 180A SBEC V5: The official application scope is 550-to-700-class electric helicopters or fixed-wing aircraft. It is not presented as an industrial multirotor ESC.

Q2: At the electric-aircraft test hangar, a large electric helicopter or fixed wing uses a 6S-to-14S LiPo pack. What must we verify before selecting this kind of high-voltage aircraft ESC?

A2: Platinum HV 180A SBEC V5: It must match a 6S-to-14S LiPo pack. Verify voltage range, battery chemistry, full-charge voltage, polarity, insulation and the complete power train against the delivered label and current manual.

Q3: For the electric-aircraft test hangar, the propulsion study predicts high sustained current with short maneuver peaks. How should we compare that demand with this UAV ESC's ratings?

A3: Platinum HV 180A SBEC V5: It is rated 180A continuous and 260A peak on 6S-to-14S LiPo. Real use still depends on cooling, motor, propeller and duty cycle.

Q4: Cooling airflow may be limited at the electric-aircraft test hangar. How does that affect the published current rating of this large-aircraft ESC?

A4: Platinum HV 180A SBEC V5: The double-sided heat sink, internal air duct and fan-oriented design need unobstructed airflow; the published size and weight exclude the fan.

Q5: Before the electric-aircraft test hangar mission, what motor and propeller compatibility checks should our team complete for this professional drone ESC?

A5: Platinum HV 180A SBEC V5: Use only a motor, propeller or rotor and gearing combination whose current and RPM remain within the aircraft and ESC manuals, including governor setup.

Q6: We use a VBar or Futaba-equipped aircraft control system at the electric-aircraft test hangar. Which control and communication connections must this fixed-wing drone ESC support?

A6: Platinum HV 180A SBEC V5: It supports Mikado VBar and Futaba S.BUS2 telemetry among listed protocols, but compatibility and adjustable parameters depend on the receiver and firmware.

Q7: If one control path fails during work at the electric-aircraft test hangar, what redundancy or isolation does this high-voltage aircraft ESC provide?

A7: Platinum HV 180A SBEC V5: The page lists multiple protections and BEC anti-reverse support with an external 2S battery, not a redundant flight-throttle bus.

Q8: During maintenance at the electric-aircraft test hangar, how are firmware and parameters handled on this UAV ESC, and which tool is required?

A8: Platinum HV 180A SBEC V5: Programming is supported through an LCD Program Box or OTA Programmer, not by transmitter, LED card or LED Program Box; firmware upgrades are supported.

Q9: On a large electric helicopter or fixed wing at the electric-aircraft test hangar, which power, motor and signal connections must we provide for this large-aircraft ESC?

A9: Platinum HV 180A SBEC V5: It has 10AWG input and three 10AWG output leads, with no input or output connectors installed. Connector selection and soldering are the integrator's responsibility.

Q10: Space is tight around the electric-aircraft test hangar installation. What dimensions and installed weight should we allow for this professional drone ESC?

A10: Platinum HV 180A SBEC V5: The listed size is 100.6 x 45.5 x 26.1mm and 250.6g without the fan. Add the fan, connectors and cable bends to the installation envelope.

Q11: Rain and dust are normal at a hot composite fuselage. What protection rating is published for this fixed-wing drone ESC?

A11: Platinum HV 180A SBEC V5: No IP rating is published. Protect the ESC from moisture and debris while preserving the designed cooling airflow.

Q12: Winter starts and hot landings occur around the electric-aircraft test hangar. What temperature range applies to this high-voltage aircraft ESC?

A12: Platinum HV 180A SBEC V5: The page does not state a universal operating-temperature range. Use telemetry, cooling tests and the current manual to establish limits in the real aircraft.

Q13: Our team at the electric-aircraft test hangar needs live data from a large electric helicopter or fixed wing. Which telemetry can this UAV ESC provide?

A13: Platinum HV 180A SBEC V5: Published telemetry includes Mikado VBar and Futaba S.BUS2 support, allowing compatible systems to display working status and, in some cases, adjust parameters.

Q14: After an intermittent fault at the electric-aircraft test hangar, can this large-aircraft ESC retain operating data for diagnosis?

A14: Platinum HV 180A SBEC V5: The page does not advertise the 2-to-48-hour industrial ESC black-box function. Use supported telemetry and controller logs for diagnosis.

Q15: Our electric-aircraft test hangar project may need propeller positioning. Is that available on this professional drone ESC, and is it standard?

A15: Platinum HV 180A SBEC V5: It provides constant-speed governor control, not the IPC propeller-positioning function used by some VTOL ESCs.

Q16: For a large electric helicopter or fixed wing at the electric-aircraft test hangar, does this fixed-wing drone ESC include regulated avionics power?

A16: Platinum HV 180A SBEC V5: The switch-mode BEC is adjustable from 5V to 12V and rated 10A continuous, 30A peak. Set the voltage for every connected device before energizing avionics.

Q17: For work at the electric-aircraft test hangar, what is included with this high-voltage aircraft ESC, and what still needs ordering?

A17: Platinum HV 180A SBEC V5: No power or motor connectors are installed, and programming accessories or fan inclusion must be confirmed in the final package list.

Q18: We are retrofitting a large electric helicopter or fixed wing for the electric-aircraft test hangar. What installation details should we check before mounting this UAV ESC?

A18: Platinum HV 180A SBEC V5: Provide the specified airflow, safe fan clearance, secure 10AWG wiring and access to the separate program port; keep high-current and signal wiring appropriately separated.

Q19: Before the first powered test at the electric-aircraft test hangar, how should technicians commission this large-aircraft ESC safely?

A19: Platinum HV 180A SBEC V5: Set the BEC voltage before connecting avionics, verify governor and protection parameters with the supported tool, then test without rotor or propeller before restrained operation.

Q20: When this professional drone ESC reports a fault at the electric-aircraft test hangar, what should the maintenance team check first?

A20: Platinum HV 180A SBEC V5: The page lists startup, current, temperature, overload, throttle-loss, capacitor-temperature and input-voltage protections. Identify the recorded condition before resetting the system.

Q21: Between deployments at the electric-aircraft test hangar, what inspection and cleaning routine should we use for this fixed-wing drone ESC?

A21: Platinum HV 180A SBEC V5: Inspect the housing, coating, cooling surfaces, capacitors, cables, solder joints, connectors and signal shielding; keep records of faults and retire damaged power electronics from flight service.

Q22: The fleet serving the electric-aircraft test hangar cannot wait weeks for repairs. Which spares should we stock for this high-voltage aircraft ESC?

A22: Platinum HV 180A SBEC V5: Stock order-matched ESCs, signal leads, power connectors, capacitors and the approved programming tool according to fleet size and supplier lead time; do not mix firmware or hardware revisions casually.

Q23: A procurement team for the electric-aircraft test hangar is comparing suppliers. Which documents should a UAV ESC quotation confirm?

A23: Platinum HV 180A SBEC V5: The quotation should freeze the exact hardware revision, voltage and current limits, cooling condition, protocol, firmware, pinout, dimensions, weight, protection rating, included cables, warranty and documentation.

Q24: I integrate propulsion systems used at the electric-aircraft test hangar. What technical support should accompany this large-aircraft ESC?

A24: Platinum HV 180A SBEC V5: Require the current manual, CAD drawing, pinout, firmware route, compatible DataLink version, fault-code guide and an escalation path for motor matching or warranty analysis.

Q25: Compared with an industrial multirotor ESC with CAN telemetry, when would this professional drone ESC be the better choice?

A25: Platinum HV 180A SBEC V5: Choose the Platinum unit for its aircraft governor, adjustable SBEC and supported VBar or S.BUS2 ecosystem; choose an XRotor industrial ESC when multirotor protocols, isolation or IPC features are required.
