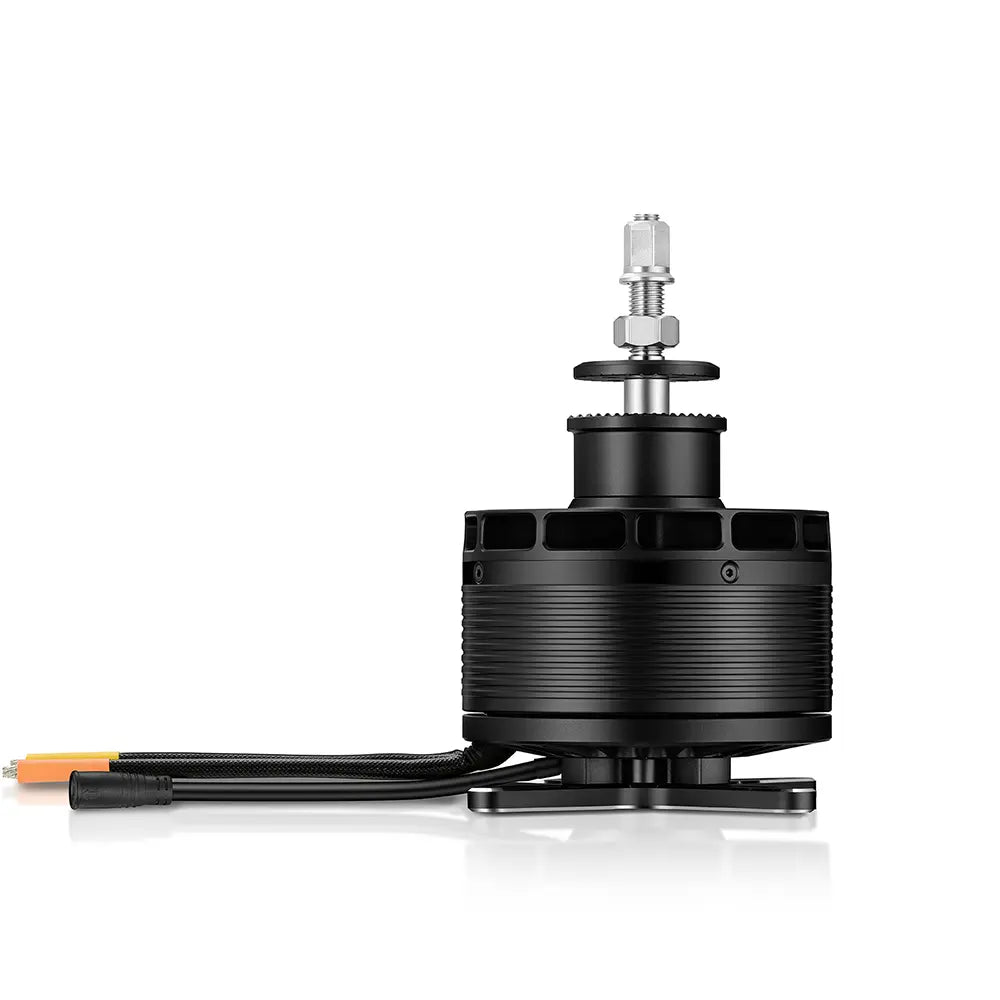

The HOBBYWING T7225 190KV is a high-performance VTOL drone brushless motor, designed for fixed-wing UAV cruise. Exceptional thrust, efficient heat dissipation, triple-bearing system, and premium materials ensure reliable, long-lasting performance for demanding flights. Perfect for VTOL drone applications with up to 21.7kg thrust at 48V, compatible with standard propellers and IPC ESCs.
Product Name
T7225 160KV
Specifications
Model
T7225
Protection level
IPX5
Motor size
Φ80.9*H62mm
Slot & Pole
24N22P
Stator size
Φ72.0mm
Dynamic balance
≤15mg
Stator process
High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
Bearing
Waterproof bearing
Enamelled wire
220℃
Motor axle diameter
Φ10mm
Magnet
180℃
Props mounting dimensions
4×M3@D20mm & 4×M4@D23mm
Isolation test
500V AC high voltage resistance test
Motor mounting dimensions
4×M4@D36mm
KV
160
Battery (LiPo)
LiPo-12S (48V)
No-load current
4.36A
Maximum current
132.7A
Max power
6377W
Max thrust
21.7kg
Resistance
18.4mΩ
Wire size
Enamelled wire outlet
Wire length
100mm
Weight (With wire)
755g
Recommended combinations
Motor: T7225-160KV Propeller: 24x12" ESC: XRotor Pro-H200A-14S / XRotor Pro-H130A-14S Battery: 12S LiPo Takeoff weight of single motor: 30~35kg
Product Name
T7225 190KV
Specifications
Model
T7225
Protection level
IPX5
Motor size
Φ80.9*H62mm
Slot & Pole
24N22P
Stator size
Φ72.0mm
Dynamic balance
≤15mg
Stator process
High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
Bearing
Waterproof bearing
Enamelled wire
220℃
Motor axle diameter
Φ10mm
Magnet
180℃
Props mounting dimensions
4×M3@D20mm & 4×M4@D23mm
Isolation test
500V AC high voltage resistance test
Motor mounting dimensions
4×M4@D36mm
KV
190
Battery (LiPo)
LiPo-12S (48V)
No-load current
5.76A
Maximum current
137.6A
Max power
6611W
Max thrust
19.7kg
Resistance
17.1mΩ
Wire size
Enamelled wire outlet
Wire length
100mm
Weight (With wire)
755g
Recommended combinations
Motor: T7225-190KV Propeller: 22x12" ESC: XRotor Pro-H200A-14S / XRotor Pro-H130A-14S Battery: 12S LiPo Takeoff weight of single motor: 30~35kg
