Description

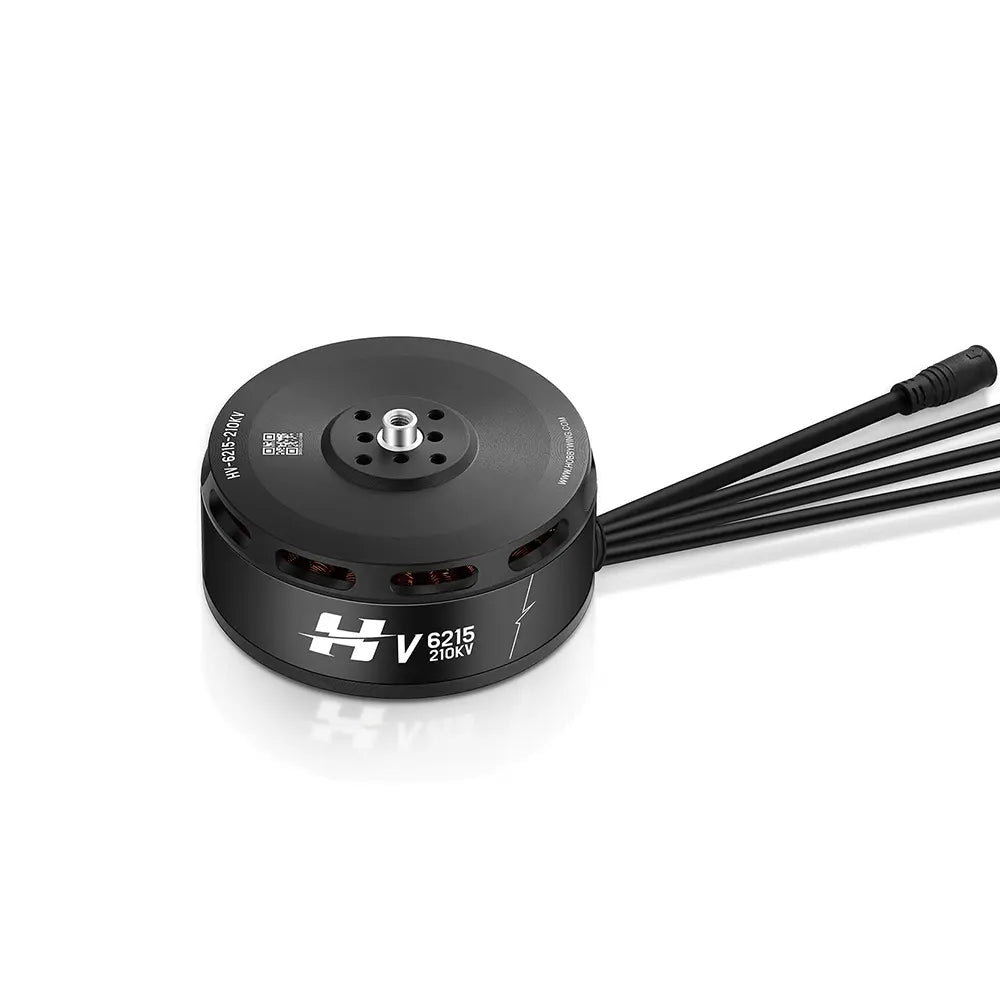

The V6215-210KV V-Series motor is engineered for VTOL drones, delivering lightweight high-thrust performance and reliable stability. Optimized magnetic design ensures strong torque and reduced weight by 10%, ideal for 12S LiPo setups. Compatible with XRotor Pro H60A/H80A ESCs, it supports intelligent propeller control for extended flight time. Recommended propellers: MV22x7.4”/ML22x7.8”, supporting quadrotor take-off weights of 20–25kg. Perfect VTOL drone motor for professional drone builds.
| Model | V6215 210KV |
|---|---|
| Motor Size | Φ68.7*H39.3mm |
| Stator Size | Φ61.5mm |
| Stator process | High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat |
| Enamelled wire | 200℃ |
| Magnet | 150℃ |
| Isolation test | 500V AC high voltage resistance test |
| Protection level | IPX5 |
| Slot & Pole | 24N28P |
| Dynamic balance | ≤10mg |
| Bearing | High-quality waterproof bearing |
| Motor axle diameter | Φ6mm |
| Props mounting dimensions | 4×M3@D12 + 4×M3@D18mm |
| Motor mounting dimensions | 4×M4@D25mm |
| Rated power input | 740W |
| Rated power output | 629W |
| KV | 210 |
| Battery (LiPo) | 12S |
| No-load current | 2.6A |
| Maximum current | 81A |
| Max power | 3733W |
| Max thrust | 13.8kg |
| Resistance | 48.2mΩ |
| Wire Size | 14AWG |
| Wire length | 600mm |
| Weight (With wire) | 354g |
| Recommended Motor | V6215 210KV |
| Propeller | MV22x7.4"/ML22x7.8" |
| ESC | XRotor Pro H60A 14S / H80A 14S IPC |
| Battery | 12S LiPo |
| Thrust / rotor | 5~6kg |
| Takeoff weight of quadrotor | 20~25kg |
