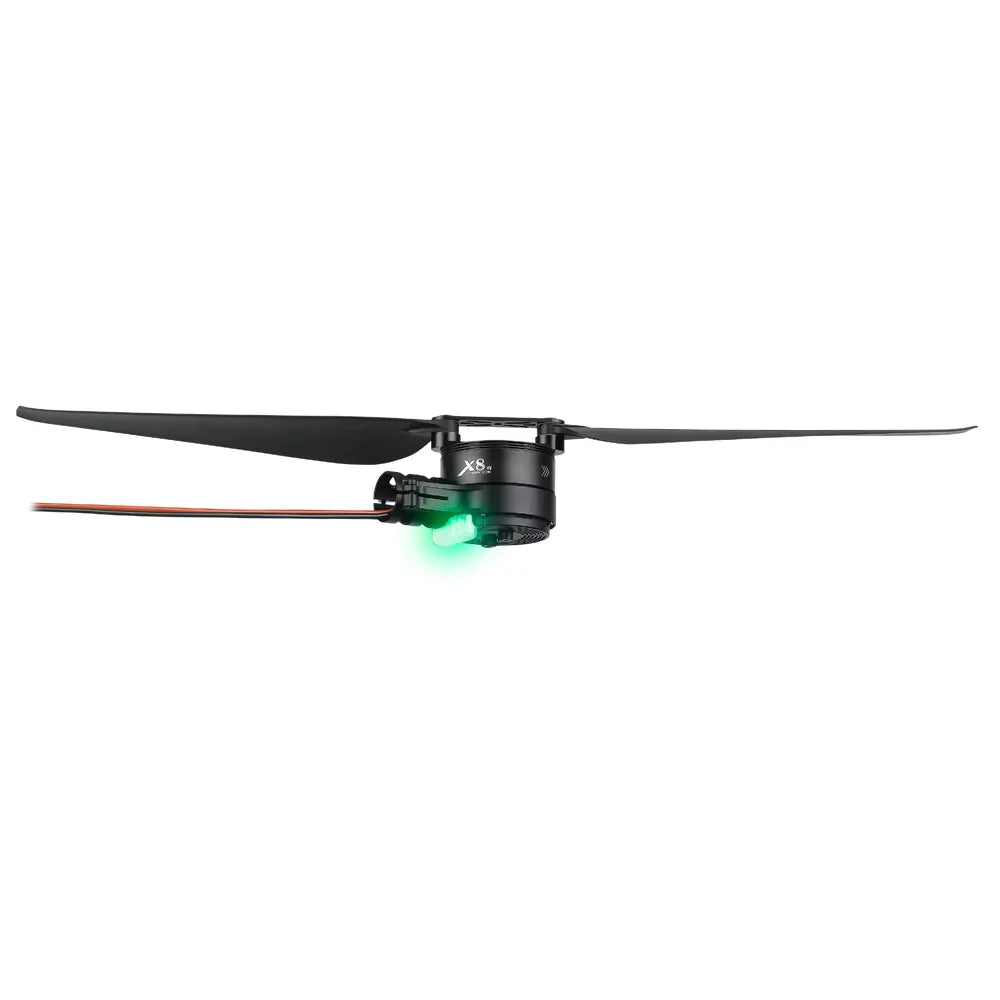

The HOBBYWING X8 is an integrated brushless motor for drone use, combining motor, ESC, propeller, and holder for quick installation. Designed for heavy lift drone motors, it delivers up to 15kg thrust per axis and supports 5–7kg single-axis loads.
Optimized with PMSM and FOC technology, it ensures precise throttle control, low noise, and balanced performance. With IPX6 waterproofing, real-time telemetry, multiple protections, and robust aluminum construction, this drone motor is reliable in harsh environments and high-demand UAV operations.
The HOBBYWING XRotor X8 is a high-performance brushless motor for drone applications, delivering up to 15kg thrust per axis. Perfect for heavy lift drone motors, it supports 5–7kg single-axis loads, with IPX6 waterproofing, high efficiency, and reliable UAV performance.
XRotor X8 Specifications – Brushless Drone Motor
Product Name
XRotor X8
Specifications
Max Thrust
15kg
Recommended Takeoff Weight per Axis
5–7kg
Efficiency of Recommended Takeoff Weight
9.5–8.6g/W
Input Voltage
18–54V
Rated Voltage
12S–46V
Lithium Compatible
12S (LiPo)
Tube Outer Diameter
35/40mm
Weight (with Cable and Props)
1150g
Cable Specification
Power cord: 12AWG*905±10mm, Signal line: 915±10mm
Operating Temperature
-20~50℃
Ingress Protection
IPX6
Rated Power Input
950W
Rated Power Output
810W
Size
143.1×90.2×78.5mm
Pinout
Black White-PWM, GND; Black Red White-GND, 5V, P
ESC
Model
XRotor 80A-FOC
Communication Protocol
UART
Peak Current (30s)
80A
Continuous Current
20A
Throttle Travel Calibration
Nonsupport
Double Throttle Signal
Nonsupport
Operating Pulse Width
1100–1940μs
BEC
No
Motor
Model
8120-100KV
Slot & Pole
36N40P
Motor Diameter
Φ88.6mm
Propeller
Model
30×11"
Total Weight
191±5g
Material of Props
