Description

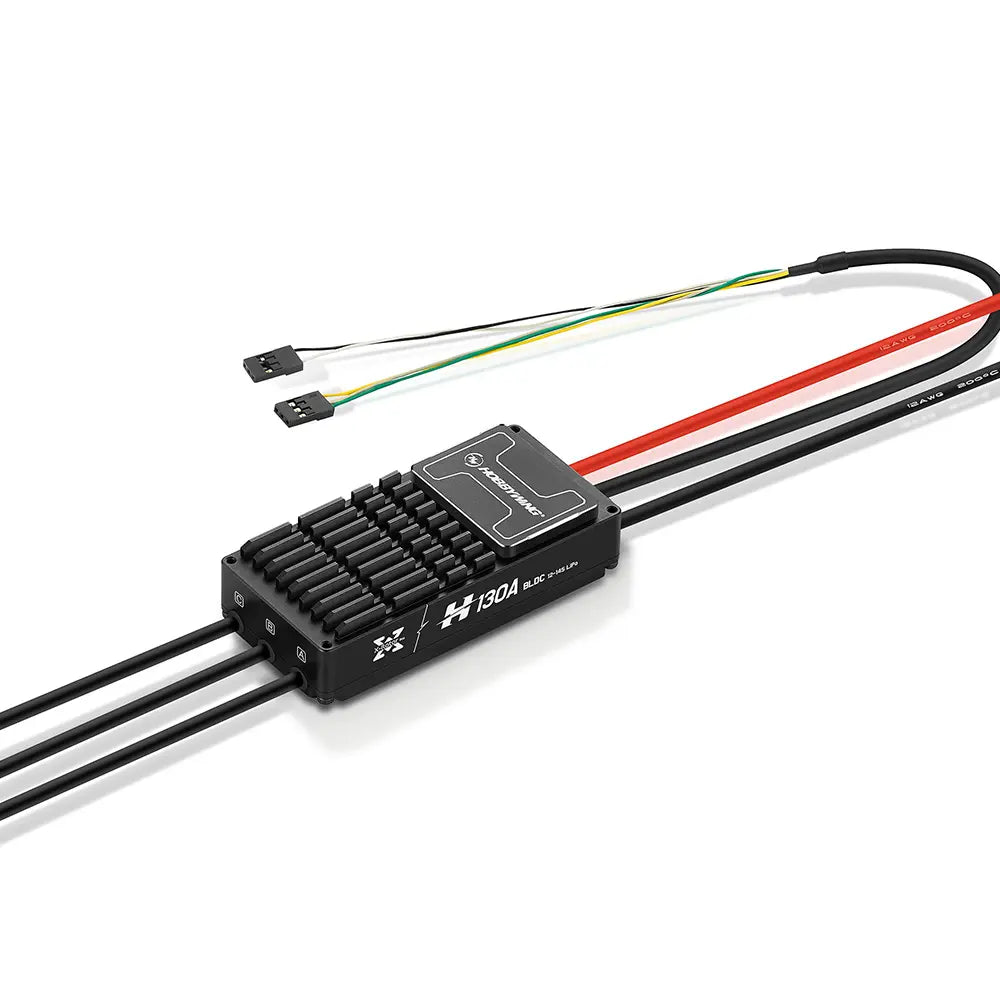

The HOBBYWING XRotor Pro H130A 14S BLDC ESC is built for professional multi-rotor and VTOL drone systems, featuring upgraded hardware, dual-bus communication, and advanced intelligent protection.
With a high TG copper PCB, 30% improved current resistance, and independent power supply design, it delivers superior heat dissipation and stable performance.
The CAN + RS485 dual-bus throttle system enhances anti-interference ability and flight safety, while Intelligent Propeller Control (IPC) ensures optimized efficiency for different propellers and motors.
Compatible with real-time CAN 2.0 communication, the XRotor Pro H130A provides accurate system monitoring, data feedback, and millisecond fault analysis — offering reliable power for industrial UAV applications.
Perfect for VTOL drones, drone docks, and high-performance multirotors, this ESC is designed for stability, durability, and intelligent control.
| Product Name |
| XRotor Pro H130A 14S BLDC |
| Specifications |
| Input Voltage |
6-14S（18-63V） |
| Continuous Current |
60A（Good heat dissipation） |
| Peak Current |
150A（3s） |
| Operating Temperature |
-40℃~65℃ |
| Communication Protocol |
CAN+RS485 (Custom Serial port) |
| Isolation Mode |
Throttle and communication isolation |
| Firmware Update |
Support |
| Digital Throttle |
Support(CAN) |
| PWM Input Signal Level |
5V/3.3V |
| Throttle Signal Frequency |
50-500Hz |
| Operating Pulse Width |
1100-1940μS |
| Throttle Travel Calibration |
No |
| Double Throttle Signal |
Support(CAN and PWM) |
| Propeller Positioning |
Optional |
| Fault Storage |
2-48 hours real-time data and fault data, real-time up to ms level |
| Ingress Protection Rating |
IP55 (Custom IP67) |
| Weight (Without Cable) |
148g |
| Size |
96.5×46×23.5mm |
| Cable Specification |
Input: Silicone cable - 12AWG - 200mm × 2
Output: Silicone cable - 12AWG - 150mm × 3
Signal: Shielded cable - 5pin - 500mm × 1, JR-3Pin male connector × 2
|
Q1: How do I use and connect the ESC cable, and what are its definitions?
A1: For proper ESC cable connection and understanding each wire’s definition, always refer to the official technical documentation. Correct cable setup ensures safe operation and prevents ESC errors or motor issues.
Q2: How do I set the ESC ID?
A2: Setting the ESC ID is essential for synchronized multi-motor control. Follow the steps outlined in the technical documentation. Proper ESC ID configuration ensures accurate communication between the flight controller and all ESCs.
Q3: How do I update ESC firmware using DataLink?
A3: Firmware updates for Hobbywing ESCs using DataLink must follow the official guide. The documentation provides step-by-step instructions for safe ESC firmware updates to maintain motor performance and system stability.
Q4: What do the motor beep sounds and LED flashes mean?
A4: Motor beep patterns and ESC LED flashes indicate specific warnings or operational status. Always refer to the technical documentation for definitions. Understanding these signals helps with ESC troubleshooting and motor protection.
Q5: Can I use a different size or pitch propeller with FOC products?
A5: No. For FOC ESC systems, the motor, ESC, and propeller form a matched group. Only the recommended propeller with the corresponding firmware should be used. Using mismatched propellers can lead to motor overheating, ESC failure, or unstable drone flight.
