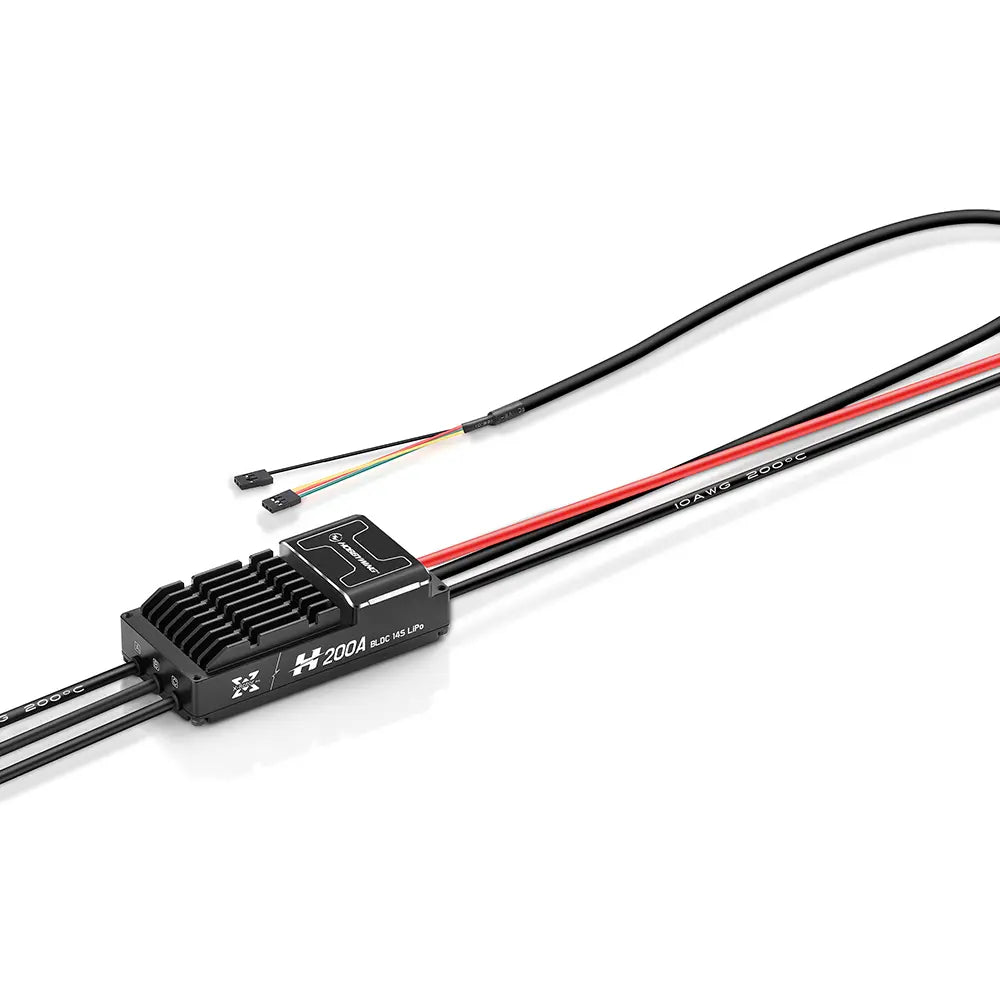

XRotor Pro H200A 14S BLDC ESC – High-Performance, HOBBYWING VTOL & Multi-Rotor Drones

Q1: I work with a drone-dock propulsion integration team on repeatable autonomous VTOL launches. Would this type of drone ESC suit that work?

A1: XRotor Pro H200A 14S BLDC / BLDC IPC: It is intended for high-current 14S multirotor and VTOL propulsion where isolated control, CAN integration and optional IPC match the aircraft architecture.

Q2: At the unattended coastal dock, a high-KV 14S VTOL aircraft uses a 6S-to-14S, 18-to-63V system. What must we verify before selecting this kind of UAV ESC?

A2: XRotor Pro H200A 14S BLDC / BLDC IPC: It must match a 6S-to-14S, 18-to-63V system. Verify voltage range, battery chemistry, full-charge voltage, polarity, insulation and the complete power train against the delivered label and current manual.

Q3: For the unattended coastal dock, the propulsion study predicts around 90 amps continuously during vertical lift. How should we compare that demand with this industrial drone ESC's ratings?

A3: XRotor Pro H200A 14S BLDC / BLDC IPC: The page lists 100A continuous with good cooling and 200A for three seconds. Verify the complete current-time profile during loaded VTOL operation.

Q4: Cooling airflow may be limited at the unattended coastal dock. How does that affect the published current rating of this drone-dock ESC?

A4: XRotor Pro H200A 14S BLDC / BLDC IPC: Thick copper, double-sided heat dissipation and the aluminum shell help, but dock enclosures must preserve the airflow assumed by the current rating.

Q5: Before the unattended coastal dock mission, what motor and propeller compatibility checks should our team complete for this VTOL drone ESC?

A5: XRotor Pro H200A 14S BLDC / BLDC IPC: Intelligent timing and DEO target stable high-KV motor drive; IPC parameter settings still require an approved motor and propeller combination.

Q6: We use a CAN-equipped autonomous VTOL controller at the unattended coastal dock. Which control and communication connections must this drone ESC support?

A6: XRotor Pro H200A 14S BLDC / BLDC IPC: It lists CAN, optional custom serial, 5V or 3.3V PWM, 50-to-500Hz signals and 1100-to-1940 microsecond pulse width.

Q7: If one control path fails during work at the unattended coastal dock, what redundancy or isolation does this UAV ESC provide?

A7: XRotor Pro H200A 14S BLDC / BLDC IPC: CAN plus PWM dual-throttle and isolated throttle and communication are published. Validate how the flight controller detects and switches a failed path.

Q8: During maintenance at the unattended coastal dock, how are firmware and parameters handled on this industrial drone ESC, and which tool is required?

A8: XRotor Pro H200A 14S BLDC / BLDC IPC: Firmware update is supported; use the approved DataLink hardware, exact firmware package and current BLDC or IPC manual.

Q9: On a high-KV 14S VTOL aircraft at the unattended coastal dock, which power, motor and signal connections must we provide for this drone-dock ESC?

A9: XRotor Pro H200A 14S BLDC / BLDC IPC: Published wiring is 10AWG 260mm input, 10AWG 200mm outputs and a 450mm shielded five-core signal lead with two JR-3P connectors.

Q10: Space is tight around the unattended coastal dock installation. What dimensions and installed weight should we allow for this VTOL drone ESC?

A10: XRotor Pro H200A 14S BLDC / BLDC IPC: The listed body is 116 x 56 x 31.5mm and 270g without cable. Add cable exits and service access to the dock design.

Q11: Rain and dust are normal at an unattended coastal drone dock. What protection rating is published for this drone ESC?

A11: XRotor Pro H200A 14S BLDC / BLDC IPC: Standard protection is IP55, with IP67 available only as a custom option. The complete dock installation may impose a lower limit.

Q12: Winter starts and hot landings occur around the unattended coastal dock. What temperature range applies to this UAV ESC?

A12: XRotor Pro H200A 14S BLDC / BLDC IPC: The published ESC range is -40°C to 65°C. Motor, propeller, battery and dock conditions can require a tighter operational range.

Q13: Our team at the unattended coastal dock needs live data from a high-KV 14S VTOL aircraft. Which telemetry can this industrial drone ESC provide?

A13: XRotor Pro H200A 14S BLDC / BLDC IPC: CAN provides digital throttle and operating feedback when integrated with a compatible controller and protocol implementation.

Q14: After an intermittent fault at the unattended coastal dock, can this drone-dock ESC retain operating data for diagnosis?

A14: XRotor Pro H200A 14S BLDC / BLDC IPC: The listing states 2-to-48 hours of operating data and fault-code storage for post-event analysis.

Q15: Our unattended coastal dock project may need propeller positioning. Is that available on this VTOL drone ESC, and is it standard?

A15: XRotor Pro H200A 14S BLDC / BLDC IPC: Propeller positioning is optional through the IPC version, with a configurable maximum positioning current. Confirm the ordered hardware.

Q16: For a high-KV 14S VTOL aircraft at the unattended coastal dock, does this drone ESC include regulated avionics power?

A16: XRotor Pro H200A 14S BLDC / BLDC IPC: No BEC output is listed, so avionics need a separately verified power supply unless the final manual states otherwise.

Q17: For work at the unattended coastal dock, what is included with this UAV ESC, and what still needs ordering?

A17: XRotor Pro H200A 14S BLDC / BLDC IPC: The storefront does not itemize a universal installation kit. The selected ESC, cables, connectors, programming device, mounting hardware and accessories must be confirmed in the written quotation.

Q18: We are retrofitting a high-KV 14S VTOL aircraft for the unattended coastal dock. What installation details should we check before mounting this industrial drone ESC?

A18: XRotor Pro H200A 14S BLDC / BLDC IPC: Match mounting, cooling airflow, cable bend radius, electrical isolation, center of gravity and service access to the current drawing before drilling or soldering.

Q19: Before the first powered test at the unattended coastal dock, how should technicians commission this drone-dock ESC safely?

A19: XRotor Pro H200A 14S BLDC / BLDC IPC: Commission with propellers removed, a controlled power source, verified polarity and current protection; confirm throttle failsafe and motor direction before a restrained low-power test.

Q20: When this VTOL drone ESC reports a fault at the unattended coastal dock, what should the maintenance team check first?

A20: XRotor Pro H200A 14S BLDC / BLDC IPC: Use the current beep and LED table, flight-controller telemetry and stored fault data where supported. Do not repeatedly re-arm an unexplained overcurrent, temperature or throttle-loss fault.

Q21: Between deployments at the unattended coastal dock, what inspection and cleaning routine should we use for this drone ESC?

A21: XRotor Pro H200A 14S BLDC / BLDC IPC: Inspect the housing, coating, cooling surfaces, capacitors, cables, solder joints, connectors and signal shielding; keep records of faults and retire damaged power electronics from flight service.

Q22: The fleet serving the unattended coastal dock cannot wait weeks for repairs. Which spares should we stock for this UAV ESC?

A22: XRotor Pro H200A 14S BLDC / BLDC IPC: Stock order-matched ESCs, signal leads, power connectors, capacitors and the approved programming tool according to fleet size and supplier lead time; do not mix firmware or hardware revisions casually.

Q23: A procurement team for the unattended coastal dock is comparing suppliers. Which documents should a industrial drone ESC quotation confirm?

A23: XRotor Pro H200A 14S BLDC / BLDC IPC: The quotation should freeze the exact hardware revision, voltage and current limits, cooling condition, protocol, firmware, pinout, dimensions, weight, protection rating, included cables, warranty and documentation.

Q24: I integrate propulsion systems used at the unattended coastal dock. What technical support should accompany this drone-dock ESC?

A24: XRotor Pro H200A 14S BLDC / BLDC IPC: Require the current manual, CAD drawing, pinout, firmware route, compatible DataLink version, fault-code guide and an escalation path for motor matching or warranty analysis.

Q25: Compared with a lighter 14S industrial ESC with a 60-amp continuous rating, when would this VTOL drone ESC be the better choice?

A25: XRotor Pro H200A 14S BLDC / BLDC IPC: Choose this model when loaded testing needs about 100A continuous or 200A short-peak capability; otherwise a smaller 14S ESC may reduce mass and cooling demand.
