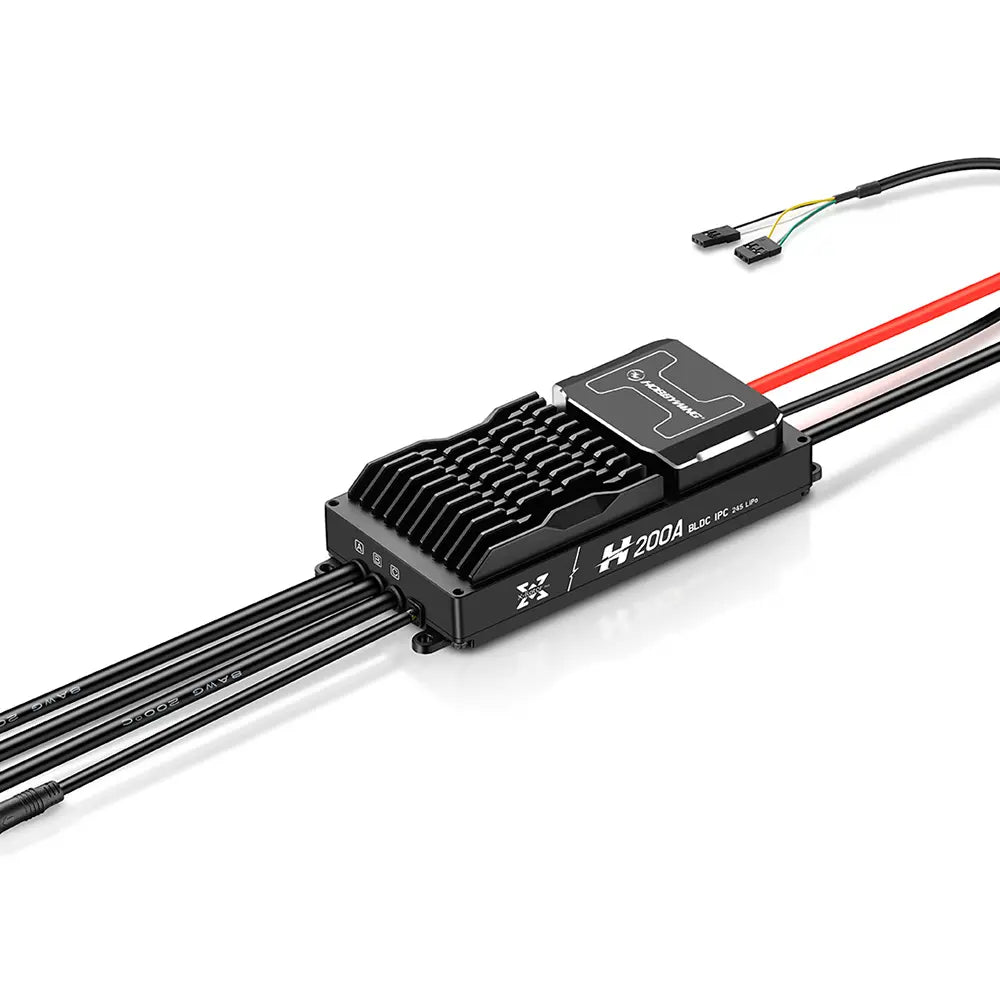

XRotor Pro H200A 24S BLDC IPC ESC – HOBBYWING High-Power, VTOL & Heavy-Load Industrial Drones

Q1: I work with a long-range cargo VTOL development team on heavy-load cruise and vertical transition. Would this type of drone ESC suit that work?

A1: XRotor Pro H200A 24S BLDC IPC: It targets heavy-load 24S multirotor, VTOL and cruise propulsion where IPC positioning and high-voltage isolation are required.

Q2: At the alpine delivery base, a 24S hybrid VTOL propulsion system uses a 36-to-108V battery bus. What must we verify before selecting this kind of UAV ESC?

A2: XRotor Pro H200A 24S BLDC IPC: It must match a 36-to-108V battery bus. Verify voltage range, battery chemistry, full-charge voltage, polarity, insulation and the complete power train against the delivered label and current manual.

Q3: For the alpine delivery base, the propulsion study predicts close to 95 amps continuously with transition peaks. How should we compare that demand with this industrial drone ESC's ratings?

A3: XRotor Pro H200A 24S BLDC IPC: The page lists 100A continuous with good cooling. Because peak-duration sources conflict, use the conservative current official value of 220A for three seconds until the delivered manual confirms otherwise.

Q4: Cooling airflow may be limited at the alpine delivery base. How does that affect the published current rating of this heavy-lift drone ESC?

A4: XRotor Pro H200A 24S BLDC IPC: Double-sided fins and coated construction support heat rejection, but altitude and enclosure airflow can reduce real continuous-current capability.

Q5: Before the alpine delivery base mission, what motor and propeller compatibility checks should our team complete for this VTOL drone ESC?

A5: XRotor Pro H200A 24S BLDC IPC: Sensorless square-wave drive supports a broad motor range, while IPC positioning requires a validated motor, propeller and maximum positioning current.

Q6: We use a CAN-and-PWM cargo VTOL controller at the alpine delivery base. Which control and communication connections must this drone ESC support?

A6: XRotor Pro H200A 24S BLDC IPC: It lists CAN and RS485 with optional custom serial, plus 5V or 3.3V PWM at 50-to-500Hz and 1100-to-1940 microsecond pulses.

Q7: If one control path fails during work at the alpine delivery base, what redundancy or isolation does this UAV ESC provide?

A7: XRotor Pro H200A 24S BLDC IPC: CAN plus PWM dual-throttle and full throttle and communication isolation are listed. Confirm the failure-detection logic in the integrated aircraft.

Q8: During maintenance at the alpine delivery base, how are firmware and parameters handled on this industrial drone ESC, and which tool is required?

A8: XRotor Pro H200A 24S BLDC IPC: Firmware updates are supported and the current official page lists DataLinkBox G3. Use only the IPC firmware for the exact hardware.

Q9: On a 24S hybrid VTOL propulsion system at the alpine delivery base, which power, motor and signal connections must we provide for this heavy-lift drone ESC?

A9: XRotor Pro H200A 24S BLDC IPC: Published leads are 8AWG 200mm inputs, 8AWG 180mm motor outputs and a 450mm shielded five-core signal cable with two JR-3P connectors.

Q10: Space is tight around the alpine delivery base installation. What dimensions and installed weight should we allow for this VTOL drone ESC?

A10: XRotor Pro H200A 24S BLDC IPC: The body is listed at 138 x 68 x 32.5mm and 420g without cable. Include high-voltage clearances, connectors and cooling space.

Q11: Rain and dust are normal at a high-altitude delivery base. What protection rating is published for this drone ESC?

A11: XRotor Pro H200A 24S BLDC IPC: Standard protection is IP55 and IP67 is a custom option. Confirm the delivered housing and connector sealing.

Q12: Winter starts and hot landings occur around the alpine delivery base. What temperature range applies to this UAV ESC?

A12: XRotor Pro H200A 24S BLDC IPC: The published range is -40°C to 65°C, with real current capability affected by altitude, cooling and the wider propulsion system.

Q13: Our team at the alpine delivery base needs live data from a 24S hybrid VTOL propulsion system. Which telemetry can this industrial drone ESC provide?

A13: XRotor Pro H200A 24S BLDC IPC: CAN provides digital throttle and operating feedback; obtain the current protocol and flight-controller compatibility before integration.

Q14: After an intermittent fault at the alpine delivery base, can this heavy-lift drone ESC retain operating data for diagnosis?

A14: XRotor Pro H200A 24S BLDC IPC: The page lists 2-to-48 hours of operating and fault data with millisecond-level records, depending on configuration.

Q15: Our alpine delivery base project may need propeller positioning. Is that available on this VTOL drone ESC, and is it standard?

A15: XRotor Pro H200A 24S BLDC IPC: Propeller positioning is supported on the listed IPC version. Configure its maximum current only from the approved motor-propeller data.

Q16: For a 24S hybrid VTOL propulsion system at the alpine delivery base, does this drone ESC include regulated avionics power?

A16: XRotor Pro H200A 24S BLDC IPC: No BEC output is listed, so avionics need a separately verified power supply unless the final manual states otherwise.

Q17: For work at the alpine delivery base, what is included with this UAV ESC, and what still needs ordering?

A17: XRotor Pro H200A 24S BLDC IPC: The storefront does not itemize a universal installation kit. The selected ESC, cables, connectors, programming device, mounting hardware and accessories must be confirmed in the written quotation.

Q18: We are retrofitting a 24S hybrid VTOL propulsion system for the alpine delivery base. What installation details should we check before mounting this industrial drone ESC?

A18: XRotor Pro H200A 24S BLDC IPC: Match mounting, cooling airflow, cable bend radius, electrical isolation, center of gravity and service access to the current drawing before drilling or soldering.

Q19: Before the first powered test at the alpine delivery base, how should technicians commission this heavy-lift drone ESC safely?

A19: XRotor Pro H200A 24S BLDC IPC: Commission with propellers removed, a controlled power source, verified polarity and current protection; confirm throttle failsafe and motor direction before a restrained low-power test.

Q20: When this VTOL drone ESC reports a fault at the alpine delivery base, what should the maintenance team check first?

A20: XRotor Pro H200A 24S BLDC IPC: Use the current beep and LED table, flight-controller telemetry and stored fault data where supported. Do not repeatedly re-arm an unexplained overcurrent, temperature or throttle-loss fault.

Q21: Between deployments at the alpine delivery base, what inspection and cleaning routine should we use for this drone ESC?

A21: XRotor Pro H200A 24S BLDC IPC: Inspect the housing, coating, cooling surfaces, capacitors, cables, solder joints, connectors and signal shielding; keep records of faults and retire damaged power electronics from flight service.

Q22: The fleet serving the alpine delivery base cannot wait weeks for repairs. Which spares should we stock for this UAV ESC?

A22: XRotor Pro H200A 24S BLDC IPC: Stock order-matched ESCs, signal leads, power connectors, capacitors and the approved programming tool according to fleet size and supplier lead time; do not mix firmware or hardware revisions casually.

Q23: A procurement team for the alpine delivery base is comparing suppliers. Which documents should a industrial drone ESC quotation confirm?

A23: XRotor Pro H200A 24S BLDC IPC: The quotation should freeze the exact hardware revision, voltage and current limits, cooling condition, protocol, firmware, pinout, dimensions, weight, protection rating, included cables, warranty and documentation.

Q24: I integrate propulsion systems used at the alpine delivery base. What technical support should accompany this heavy-lift drone ESC?

A24: XRotor Pro H200A 24S BLDC IPC: Require the current manual, CAD drawing, pinout, firmware route, compatible DataLink version, fault-code guide and an escalation path for motor matching or warranty analysis.

Q25: Compared with a 24S industrial ESC with a 150-amp continuous rating, when would this VTOL drone ESC be the better choice?

A25: XRotor Pro H200A 24S BLDC IPC: This H200A IPC suits systems within 100A continuous that need positioning and lower mass; step up to the H300A class when verified current margin requires it.
