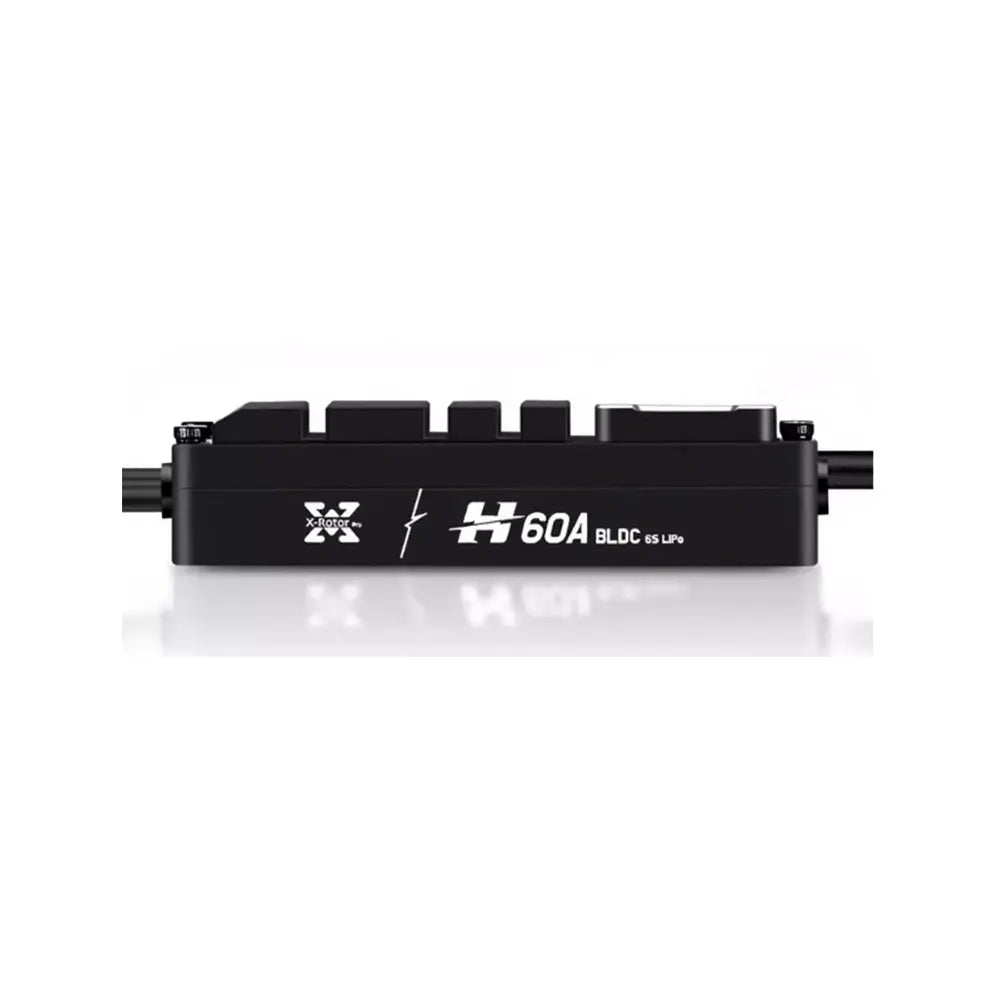

XRotor Pro H60A 6S/14S BLDC ESC for Drones HOBBYWING

Q1: I work with an agricultural-drone service company on daily spraying and training sorties. Would this type of drone ESC suit that work?

A1: XRotor Pro H60A 6S / 14S BLDC: The listing has separate 6S and 14S variants. They are not interchangeable merely because both carry the H60A family name.

Q2: At the sugarcane service depot, a smaller professional multirotor fleet uses either a 6S-class or 14S-class battery system. What must we verify before selecting this kind of UAV ESC?

A2: XRotor Pro H60A 6S / 14S BLDC: It must match either a 6S-class or 14S-class battery system. Verify voltage range, battery chemistry, full-charge voltage, polarity, insulation and the complete power train against the delivered label and current manual.

Q3: For the sugarcane service depot, the propulsion study predicts moderate continuous current with brief takeoff peaks. How should we compare that demand with this industrial drone ESC's ratings?

A3: XRotor Pro H60A 6S / 14S BLDC: Official data lists the 6S BLDC at 40A continuous on 4S-to-6S and the 14S BLDC at 25A continuous on 6S-to-14S; both list 60A for three seconds.

Q4: Cooling airflow may be limited at the sugarcane service depot. How does that affect the published current rating of this agricultural drone ESC?

A4: XRotor Pro H60A 6S / 14S BLDC: Large fins support heat dissipation, but each variant's continuous rating assumes good cooling and must be tested in the real arm or enclosure.

Q5: Before the sugarcane service depot mission, what motor and propeller compatibility checks should our team complete for this commercial drone ESC?

A5: XRotor Pro H60A 6S / 14S BLDC: The ESC is described for high-KV UAV motors, yet the motor, propeller, firmware and voltage variant still need approved matching.

Q6: We use a CAN-enabled agricultural flight controller at the sugarcane service depot. Which control and communication connections must this drone ESC support?

A6: XRotor Pro H60A 6S / 14S BLDC: CAN is listed with optional custom serial and PWM input. Confirm the exact protocol, pulse range and flight-controller support for the ordered revision.

Q7: If one control path fails during work at the sugarcane service depot, what redundancy or isolation does this UAV ESC provide?

A7: XRotor Pro H60A 6S / 14S BLDC: The storefront wording around CAN and PWM is not a complete failsafe specification. Obtain the current manual before claiming dual-throttle redundancy.

Q8: During maintenance at the sugarcane service depot, how are firmware and parameters handled on this industrial drone ESC, and which tool is required?

A8: XRotor Pro H60A 6S / 14S BLDC: Firmware updates and DataLink support are described. Select the exact 6S or 14S BLDC firmware and never flash a file merely because the family name matches.

Q9: On a smaller professional multirotor fleet at the sugarcane service depot, which power, motor and signal connections must we provide for this agricultural drone ESC?

A9: XRotor Pro H60A 6S / 14S BLDC: The 14S storefront table lists 14AWG input, 16AWG output and a 450mm shielded five-core signal lead; confirm wiring separately for the 6S variant.

Q10: Space is tight around the sugarcane service depot installation. What dimensions and installed weight should we allow for this commercial drone ESC?

A10: XRotor Pro H60A 6S / 14S BLDC: The store lists the 14S body at 78.5 x 32.5 x 18.4mm and 67g without wire, while newer official material shows slightly different figures. Use the delivered drawing.

Q11: Rain and dust are normal at a hot chemical-mixing field base. What protection rating is published for this drone ESC?

A11: XRotor Pro H60A 6S / 14S BLDC: The storefront lists IP55 with IP67 as a custom option. Chemical exposure can require additional connector and cable protection.

Q12: Winter starts and hot landings occur around the sugarcane service depot. What temperature range applies to this UAV ESC?

A12: XRotor Pro H60A 6S / 14S BLDC: The published operating range is -40°C to 65°C, while actual current and cooling remain mission-dependent.

Q13: Our team at the sugarcane service depot needs live data from a smaller professional multirotor fleet. Which telemetry can this industrial drone ESC provide?

A13: XRotor Pro H60A 6S / 14S BLDC: CAN enables real-time propulsion status monitoring when paired with a compatible flight controller and protocol implementation.

Q14: After an intermittent fault at the sugarcane service depot, can this agricultural drone ESC retain operating data for diagnosis?

A14: XRotor Pro H60A 6S / 14S BLDC: The storefront says 1-to-20 hours of fault storage, while the current official family page says 2-to-48 hours. Use the exact revision's manual for retention planning.

Q15: Our sugarcane service depot project may need propeller positioning. Is that available on this commercial drone ESC, and is it standard?

A15: XRotor Pro H60A 6S / 14S BLDC: The listed BLDC variant says propeller positioning is not supported. Do not infer IPC from other H-series products.

Q16: For a smaller professional multirotor fleet at the sugarcane service depot, does this drone ESC include regulated avionics power?

A16: XRotor Pro H60A 6S / 14S BLDC: No BEC output is listed, so avionics need a separately verified power supply unless the final manual states otherwise.

Q17: For work at the sugarcane service depot, what is included with this UAV ESC, and what still needs ordering?

A17: XRotor Pro H60A 6S / 14S BLDC: Select 6S BLDC or 14S BLDC explicitly. Confirm connectors, leads, DataLink hardware, firmware and mounting accessories in the final quotation.

Q18: We are retrofitting a smaller professional multirotor fleet for the sugarcane service depot. What installation details should we check before mounting this industrial drone ESC?

A18: XRotor Pro H60A 6S / 14S BLDC: Match mounting, cooling airflow, cable bend radius, electrical isolation, center of gravity and service access to the current drawing before drilling or soldering.

Q19: Before the first powered test at the sugarcane service depot, how should technicians commission this agricultural drone ESC safely?

A19: XRotor Pro H60A 6S / 14S BLDC: Commission with propellers removed, a controlled power source, verified polarity and current protection; confirm throttle failsafe and motor direction before a restrained low-power test.

Q20: When this commercial drone ESC reports a fault at the sugarcane service depot, what should the maintenance team check first?

A20: XRotor Pro H60A 6S / 14S BLDC: Use the current beep and LED table, flight-controller telemetry and stored fault data where supported. Do not repeatedly re-arm an unexplained overcurrent, temperature or throttle-loss fault.

Q21: Between deployments at the sugarcane service depot, what inspection and cleaning routine should we use for this drone ESC?

A21: XRotor Pro H60A 6S / 14S BLDC: Inspect the housing, coating, cooling surfaces, capacitors, cables, solder joints, connectors and signal shielding; keep records of faults and retire damaged power electronics from flight service.

Q22: The fleet serving the sugarcane service depot cannot wait weeks for repairs. Which spares should we stock for this UAV ESC?

A22: XRotor Pro H60A 6S / 14S BLDC: Stock order-matched ESCs, signal leads, power connectors, capacitors and the approved programming tool according to fleet size and supplier lead time; do not mix firmware or hardware revisions casually.

Q23: A procurement team for the sugarcane service depot is comparing suppliers. Which documents should a industrial drone ESC quotation confirm?

A23: XRotor Pro H60A 6S / 14S BLDC: The quotation should freeze the exact hardware revision, voltage and current limits, cooling condition, protocol, firmware, pinout, dimensions, weight, protection rating, included cables, warranty and documentation.

Q24: I integrate propulsion systems used at the sugarcane service depot. What technical support should accompany this agricultural drone ESC?

A24: XRotor Pro H60A 6S / 14S BLDC: Require the current manual, CAD drawing, pinout, firmware route, compatible DataLink version, fault-code guide and an escalation path for motor matching or warranty analysis.

Q25: Compared with a 14S industrial ESC rated for 40 amps continuously, when would this commercial drone ESC be the better choice?

A25: XRotor Pro H60A 6S / 14S BLDC: Choose this family when its exact voltage variant and current envelope fit a smaller aircraft; move to the H80A class when verified 14S continuous demand exceeds the H60A margin.
