Description

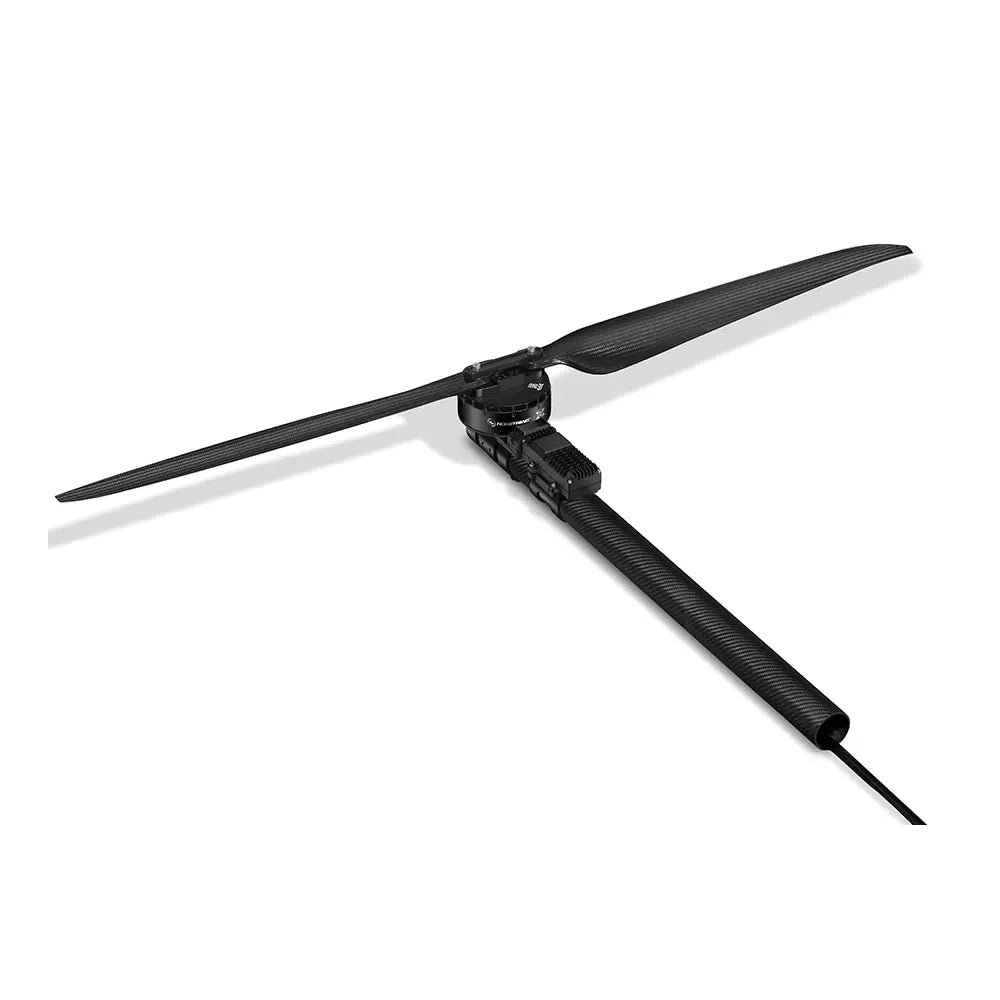

Experience next-level power with the HOBBYWING XRotor X11 MAX drone motor.
Designed for large agricultural and industrial UAVs, it delivers up to 48kg of thrust with 48-inch carbon propellers, providing exceptional efficiency of 7.8g/W at 20kg per rotor.
Featuring dual throttle signal support (CAN + PWM), the X11 MAX ensures precise throttle control and stable flight—even under single GPS without RTK.
Its integrated fault storage enables quick diagnosis via the DATALINK box, while multiple intelligent protections guard against overcurrent, stall, and signal loss.
The fully sealed ESC design (IPX7-rated in key areas) enhances corrosion resistance, making it ideal for agricultural drone applications.
Compared to square wave control, efficiency improves by 10%, and motor temperature drops by 10°C, extending overall battery life.
Perfect for heavy-lift UAVs, the X11 MAX brushless motor for drones offers unmatched reliability, efficiency, and endurance.
Specifications for XRotor X11 MAX
| Item | Details |
|---|---|
| Max Thrust | 44kg/rotor (70V, Sea Level) |
| Recommended Takeoff Weight | 20–22kg/Axis (70V, Sea Level) |
| Recommended Battery | 18S (LiPo) |
| Operating Temperature | -20~50℃ |
| Total Weight | 2800g |
| Ingress Protection | IPX6 |
| Rated Power Input | 2961W |
| Rated Power Output | 2573W |
| Motor | |
| KV Rating | 60rpm/V |
| Stator Size | 111×22mm |
| Powertrain Arm Tube Outer Diameter | 50mm |
| Bearing | Imported from Japan |
| ESC | |
| Recommended LiPo Battery | 18S (LiPo) |
| PWM Input Signal Level | 3.3V/5V |
| Throttle Signal Frequency | 50–500Hz |
| Operating Pulse Width | 1050–1950μs (Fixed or cannot be programmed) |
| Max Input Voltage | 78.3V |
| Max Input Current (Short Duration) | 150A (With good heat dissipation) |
| BEC | No |
| Propeller | |
| Diameter × Pitch | 48×17.5 inch |
