Description

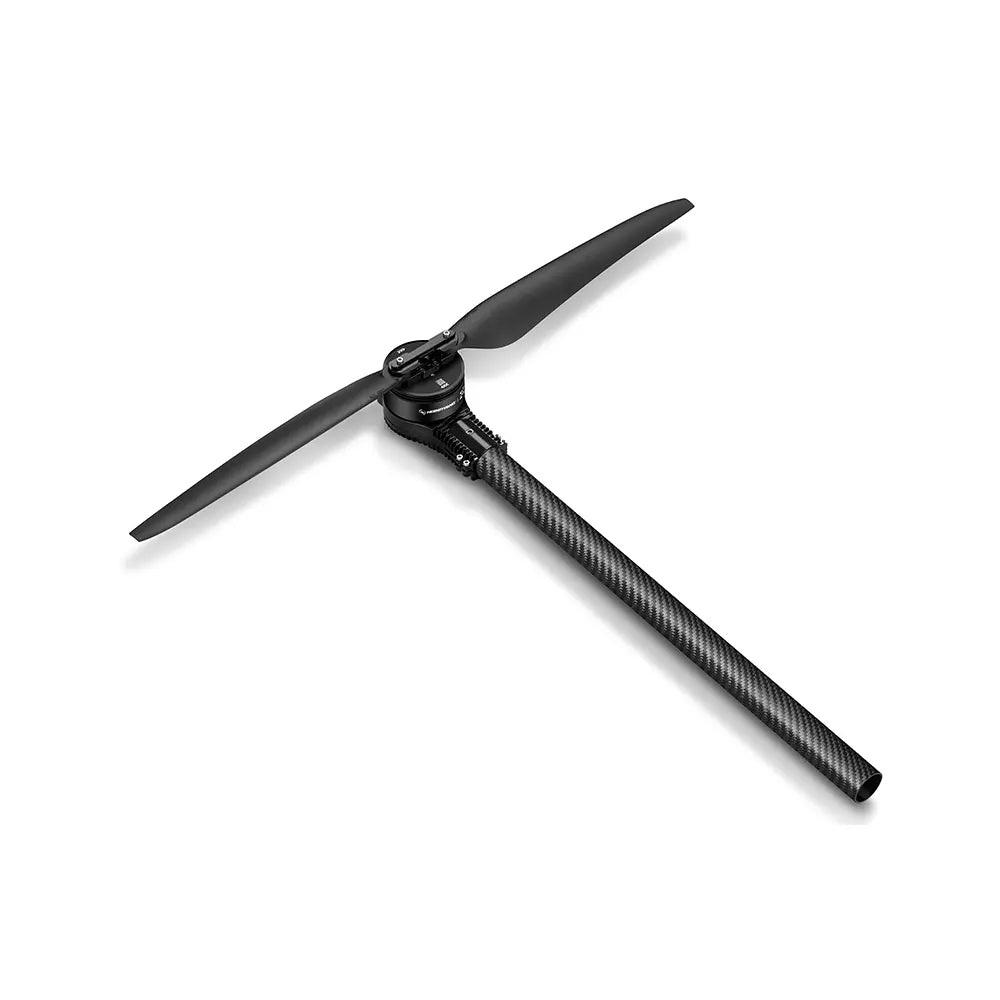

Experience unmatched stability and control with the HOBBYWING XRotor X6 PLUS brushless drone motor.
Designed for heavy lift drones, it integrates dual throttle signals (CAN + PWM) for precise power management and smoother flight control — even under single GPS conditions.
The FOC control technology delivers a 10% boost in efficiency and reduces motor temperature by 10°C, ensuring longer, more reliable operation.
A built-in fault storage system allows easy data download via DATALINK, helping identify and analyze issues quickly.
With IPX6-level waterproof sealing, the motor resists corrosion and rust, providing superior durability in challenging environments.
Equipped with multiple protection features — including signal loss, over-current, stall, and voltage safeguards — it ensures safety and reliability for every flight mission.
Perfect for professional UAVs, agricultural drones, and industrial applications.
Upgrade your aerial projects with the HOBBYWING XRotor X6 PLUS, a premium brushless motor for drone applications. Designed for heavy lift drone motors, it delivers reliable thrust and precise control, making it ideal for professional UAVs. This drone motor ensures stable flight even under demanding conditions.
| XRotor X6 PLUS Specifications – Brushless Drone Motor | |
|---|---|
| Product Name | XRotor X6 PLUS |
| Specifications | |
| Max Thrust | 11.8kg/Axis (46V, Sea Level) |
| Recommended Takeoff Weight | 3.5–5.5kg/Axis (46V, Sea Level) |
| Recommended Battery | 12–14S (LiPo) |
| Operating Temperature | -20~50℃ |
| Total Weight | 790g |
| Ingress Protection | IPX6 |
| Rated Power Input | 700W |
| Rated Power Output | 580W |
| Motor | |
| KV Rating | 150rpm/V |
| Stator Size | 62×18mm |
| Powertrain Arm Tube Outer Diameter | 30mm |
| Bearing | Waterproof |
| ESC | |
| Recommended LiPo Battery | 12–14S (LiPo) |
| PWM Input Signal Level | 3.3V / 5V |
| Throttle Signal Frequency | 50–500Hz |
| Operating Pulse Width | 1050–1950us (Fixed or cannot be Programmed) |
| Max Input Voltage | 61V |
| Max Input Current (Short duration) | 80A (Non-hermetic, Ambient 60℃) |
| BEC | No |
| Propeller | |
| Diameter × Pitch | 24×8.0 |
