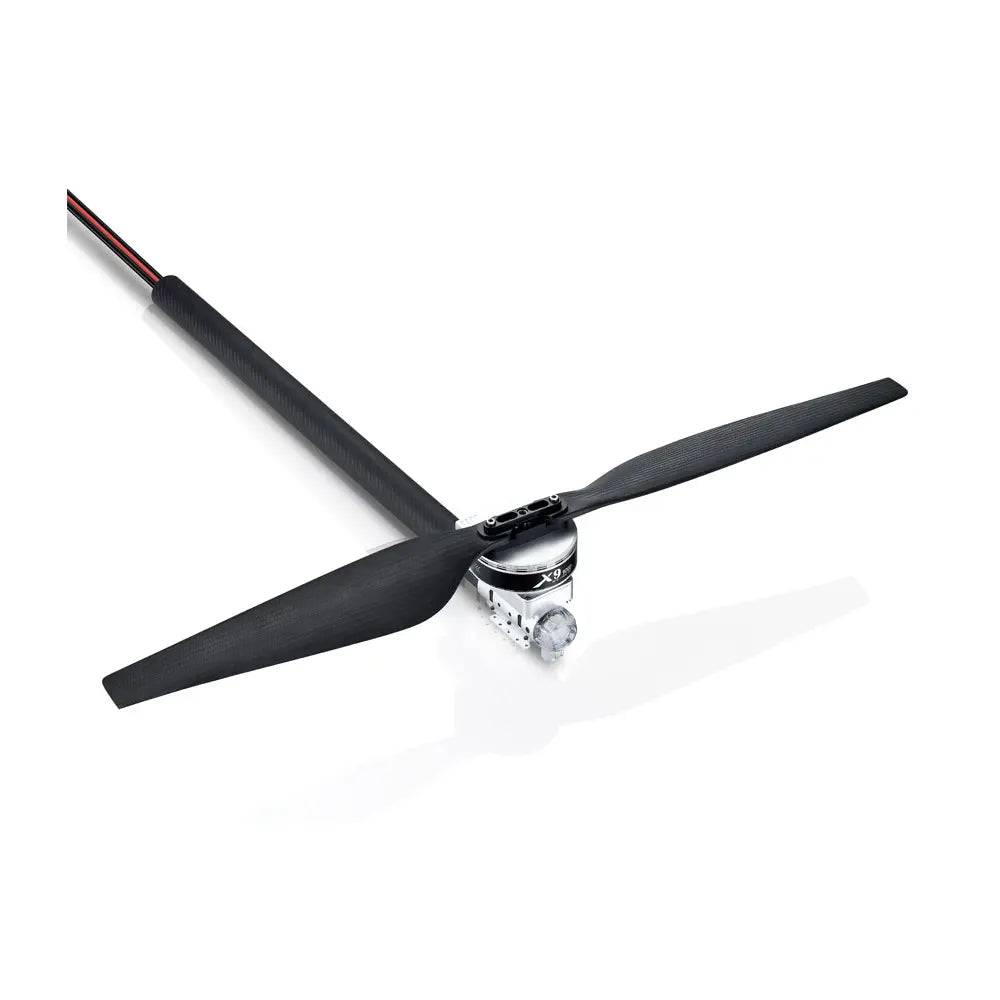

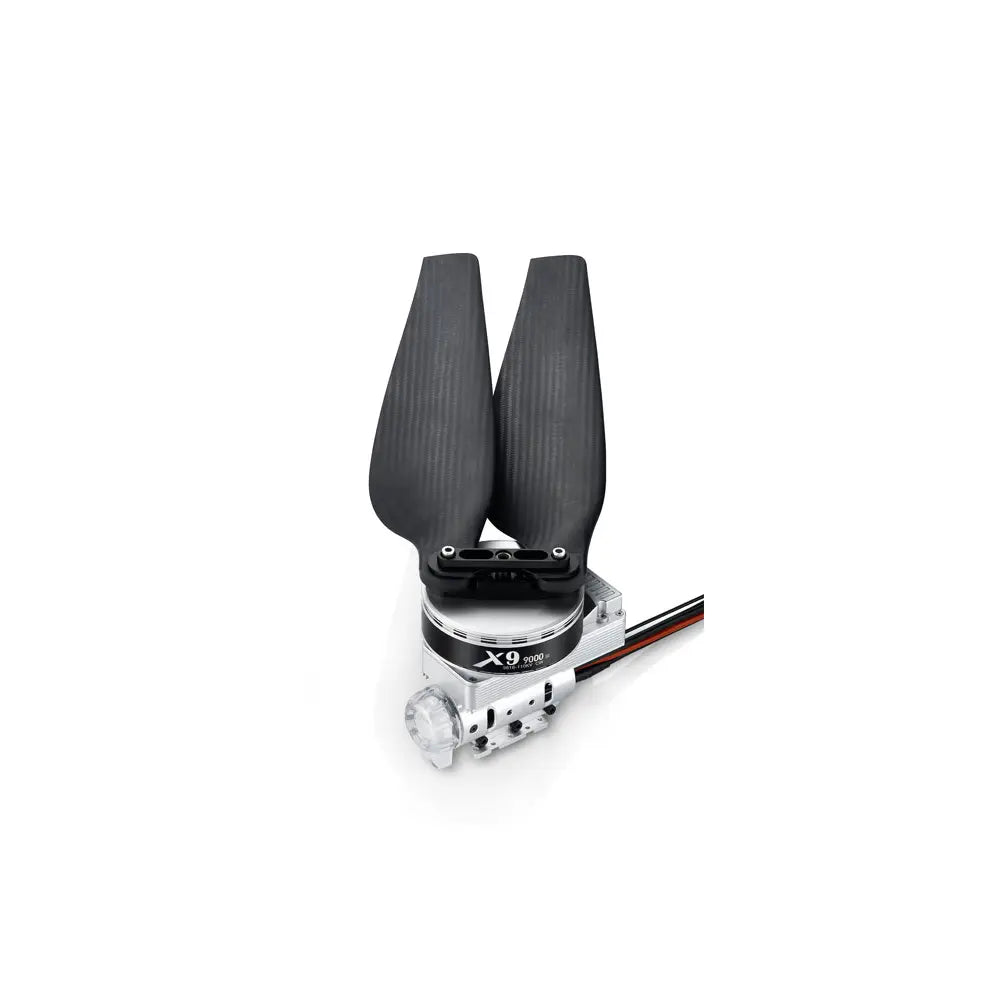

The HOBBYWING XRotor X9 is a high-performance drone electric motor built with a tube-on-one structural design, integrating motor and ESC into a compact, lightweight unit. It supports 40mm carbon fiber arm tubes and can be paired with 34.7, 3411, or 36190 propellers for optimal thrust and efficiency.
Equipped with FOC (Field-Oriented Control) technology, the X9 provides smoother power delivery, precise throttle response, and superior flight stability—ideal for heavy-lift drone and agricultural UAV applications.
The X9 features IPX6 waterproof protection, ensuring reliable operation in rain, dust, and harsh environments. Its intelligent ESC includes built-in fault detection, real-time data output, and multiple protection functions such as voltage, current, and stall protection—enhancing safety and overall system reliability.
LED color adjustment adds visual status indication for better flight control. The X9 is the perfect brushless motor for drone builders seeking professional-grade performance and durability.
The HOBBYWING XRotor 9 Power System Combo is a professional integrated drone motor solution. As a high-efficiency drone electric motor and brushless motor for drone applications, it delivers powerful thrust, IPX6 protection, and real-time telemetry for demanding UAV missions.
| XRotor 9 Power System Combo Specifications – Brushless Drone Motor | |
|---|---|
| Product Name | XRotor 9 Power System Combo |
| Specifications | |
| Max Thrust | 22kg/rotor (54V, Sea Level) |
| Recommended Takeoff Weight | 7–9.5kg/rotor (54V, Sea Level) |
| Recommended Battery | 12–14S (LiPo) |
| Operating Temperature | -20–55℃ |
| Total Weight | 1524g |
| Ingress Protection | IPX6 |
| Rated Power Input | 1750W |
| Rated Power Output | 1450W |
| Motor | |
| KV Rating | 110 rpm/V |
| Stator Size | 96×16mm |
| Tube Diameter | φ40mm |
| Bearing | Imported Waterproof Bearing |
| ESC | |
| Model | XRotor 80A-FOC |
| Recommended LiPo Battery | 12–14S (LiPo) |
| PWM Input Signal Level | 3.3V / 5V (Compatible) |
| Throttle Signal Frequency | 50–500Hz |
| Operating Pulse Width | 1100–1940μs (Fixed) |
| Max Input Voltage | 61V |
| Max Continuous Current | 120A (with good heat dissipation) |
| Max Peak Current (10s) | 150A (with good heat dissipation) |
| BEC | No |
| Mounting Holes for Nozzle | φ28.4mm - 2 × M3 |
| Propeller | |
| Diameter × Pitch | 3411 / 36190 |
