P50M Integrated Propulsion System | 400V Large Drone Motor | Hobbywing High Voltage Heavy Lift Drone Motors for Industrial UAVs

Limited-Time Offer
UnitedUAV Hobbywing | Copy

00 d

:

00 h

:

00 m

Regular price $1,479.00 USD
Shipping calculated at checkout.

Stock Adequate!Ready to ship

Related Products
Option: P50M Motor
Estimated delivery: Dec 10 - Dec 14

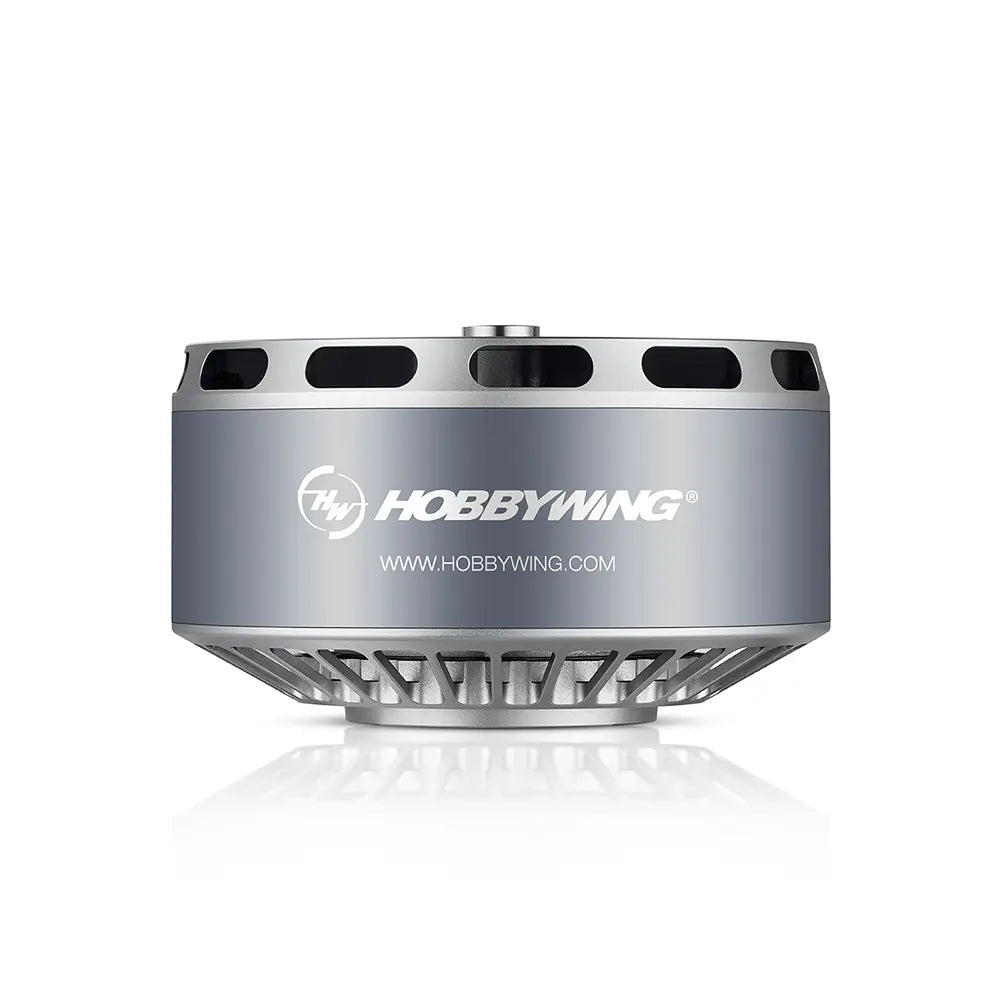

Top view of Hobbywing P50M drone motor showing precision engineering and robust build for heavy lift UAVs.
$1,479.00 USD
P50M Motor
Payment and security

Your payment information is processed securely.

  • Amazon
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

The Hobbywing P50M Integrated Propulsion System is an automotive-grade power solution designed for large industrial and heavy-lift drones. Built with high-temperature resistant materials, a fully isolated circuit design, and dual redundancy sensors, this large drone motor ensures stable operation, reliable data transmission, and superior flight safety.

Its ESC uses 130A automotive components with enhanced thermal durability, while the carbon fiber propeller and high-voltage connectors deliver efficiency and vibration resistance.

The P50M supports CAN and RS485 communication, triple throttle control modes, and is compatible with mainstream flight controllers such as ArduPilot, VK, Byaero, and Jiyi.

With real-time temperature monitoring, black box data recording, and firmware OTA updates via DataLink, this huge drone motor provides the ultimate reliability and control for industrial UAV applications.

Automotive-grade system design of P50M heavy lift drone motor ensuring safety, reliability, and efficient data transmission.



Dual redundancy design of position sensor in Hobbywing P50M large drone motor providing enhanced flight safety and precision control.



Hobbywing P50M huge drone motor verified by over 1000 hours of continuous aging testing for long-term performance stability.



Motors, ESCs, and propellers independently designed in P50M drone motor system ensuring precision and high performance for UAVs.



obbywing P50M heavy lift drone motor supports rapid parameter tuning and firmware OTA updates for advanced UAV control.



P50M large drone motor testing with 54x23 propeller, showcasing power and stability for industrial UAV applications.



Performance test of P50M heavy lift drone motor with 64x20 propeller at 400V high-voltage configuration.



Product Name P50M Integrated Propulsion System
Model P50M
Max Thrust 104kg (5s)
Recommended Takeoff Weight per Axis 50kg
Efficiency of Recommended Takeoff Weight 7.1g/W
Input Voltage 280~450V DC
Rated Voltage 400V
Lithium Compatible 96~107S (LiPo)
Tube Outer Diameter φ60mm
Weight (with cable and props) 6.1~6.3kg
Cable Specification Power cable: 10AWG*400mm, Signal cable: 800mm
Operating Temperature -35~55℃
Ingress Protection IP35
Rated Power Input 7672 W
Rated Power Output 6751 W
ESC Model 80A-FOC
ESC Communication Protocol UAVCAN / RS485
ESC Size 225.6*98*60mm (With connector)
ESC Weight (incl cable) 1200g
ESC Peak Current 80A (3s)
ESC Continuous Current 40A
ESC Rated Power Output 12KW
ESC Ingress Protection IP67
Throttle Signal Combination CAN+RS485 / CAN+PWM / RS485+PWM
Black Box Logging 2~48h
Motor Model 15635
Motor KV 9KV / 11KV
Motor Diameter Φ167.1*H100.5mm
Motor Slot & Pole 36N 42P
Motor Ingress Protection IPX5
Motor Weight (incl cable) 4250±30g
Motor Temp Signal Standard configuration
Motor Position Sensor Signal Standard configuration
Propeller Model 64x20" / 54x23"
Propeller Weight 860g / 707g
Propeller Material Carbon non-folding Props
Mounting Dimensions D60-6*M6, centre hole D20
