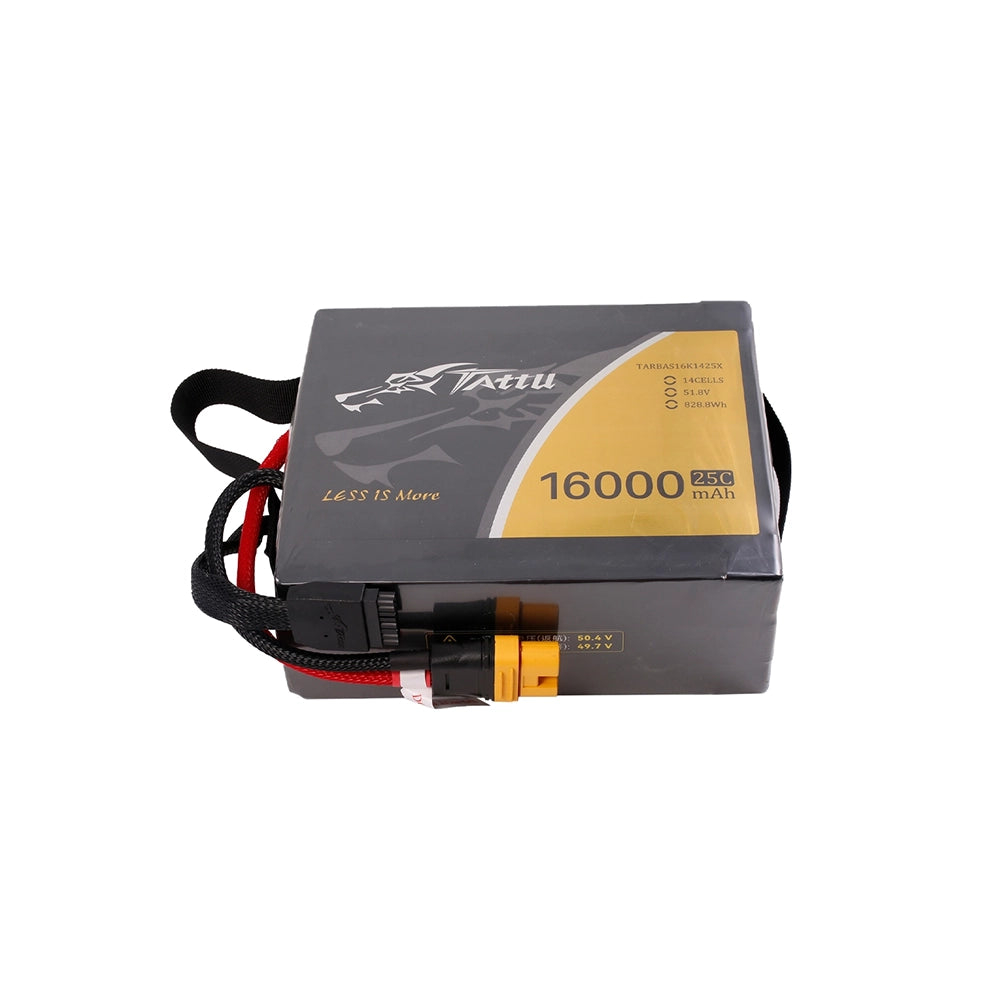

Tattu 14S 16000mAh 25C 51.8V LiPo Battery with AS150U-F Connector

Q1: What are the key specifications of the Tattu 14S 16000mAh LiPo battery?

A1: The Tattu 14S 16000mAh LiPo battery features a rated capacity of 16000mAh, a minimum capacity of 15800mAh (14S1P), a nominal voltage of 51.8V, and a discharge rate of 25C. It comes with an AS150U-F connector.

Q2: What is the recommended charging procedure for this battery?

A2: The recommended charging mode is CC-CV (Constant Current-Constant Voltage) with a charging voltage limit of 58.8V. The standard charging current is 3.2A (0.2C), and a high-speed charging current of 16A (1C) is supported.

Q3: What are the discharge specifications for the Tattu 14S 16000mAh battery?

A3: The discharge mode is DC, with a discharge end voltage of 50.4V (≥0.5C). The standard discharge current is 3.2A (0.2C), the maximum continuous discharge current is 96A, and the maximum instantaneous discharge current is 400A.

Q4: What are the optimal temperature ranges for charging and discharging?

A4: For standard charging, the temperature range is 10-45°C. For high-speed charging, it's 15-45°C. The standard discharging temperature range is -20-60°C, with a maximum discharging temperature of 10-45°C.

Q5: What type of connector does this Tattu battery use?

A5: This battery is equipped with a Molex reverse direction connector. The discharge plug and line are AS150U-F with 8# 200MM silicone wire.

Q6: What are the physical dimensions and weight of the battery?

A6: The battery's dimensions (LxWxH) are approximately 200mm * 162mm * 78mm. It weighs around 4750 ± 250g.

Q7: What is the cycle life of the Tattu 14S 16000mAh battery?

A7: Under a cycle life test of 0.5C CC/CV 58.8V, 90A DC at 50.4V, the battery can achieve over 300 cycles with a capacity retention of ≥80%.

Q8: What are the short-term storage guidelines for this battery?

A8: For short-term storage (≤7 days), the battery should be kept at >52.5V with humidity ≤75%RH.

Q9: What are the long-term storage recommendations for the Tattu 14S 16000mAh battery?

A9: For long-term storage, the battery should be maintained at 52.5-54.6V with humidity ≤75%RH. The ambient temperature for one year storage is -20-25°C, for three months it's -20-35°C, and for one month it's -20-45°C.

Q10: What is included in the package when purchasing this battery?

A10: The package typically includes 1x Tattu 14S 16000mAh 25C 51.8V LiPo Battery Soft Pack with Handle AS150U-F Connector.

Q11: Is this battery suitable for drone applications?

A11: Yes, with its high capacity, voltage, and discharge rate, the Tattu 14S 16000mAh battery is ideally suited for professional drone applications, including industrial, agricultural, and transport UAVs, providing reliable and extended flight times.

Q12: How does the handle on the battery enhance usability?

A12: The integrated handle provides convenience and safety for carrying and installing the battery, especially given its size and weight, making it easier to manage during field operations.

General Care Instructions for Drones and Drone Accessories

1. Battery Care

• Charging: Always use the recommended charger for your drone's battery. Avoid overcharging—once the battery is fully charged, unplug it to avoid damaging the battery.

• Storage: When not in use, store the battery in a cool, dry place. Avoid exposing the battery to extreme temperatures (below 0°C or above 40°C).

• Maintenance: Periodically check the battery’s health and charge cycles. Replace the battery after 300-500 charge cycles depending on its condition.


2. Cleaning

• Exterior Cleaning: Use a soft cloth to clean the drone’s body and propellers. Avoid using any abrasive materials that could scratch or damage the surface.

• Lens & Camera: Clean the camera lens and sensors with a microfiber cloth to remove dust and smudges. Never use chemical cleaners that might damage the lens coating.

• Propellers: Inspect and clean the propellers regularly, especially after use in dusty or dirty environments.


3. Storage

• Safe Storage: When storing your drone, ensure it’s kept in a safe, dry place where it won't be exposed to extreme temperatures, humidity, or direct sunlight.

• Transport: Use a protective case when transporting the drone to prevent damage. Never leave your drone exposed to the elements, especially in hot or humid conditions.


4. Pre-Flight Checks

• Battery: Ensure the battery is fully charged before flying.

• Propellers: Check that the propellers are secure and free from cracks or other damage.

• GPS and Sensors: Ensure the drone's GPS and other sensors are functioning properly before takeoff. Perform a quick calibration if necessary.


5. Post-Flight Care

• Cool Down: Allow the drone to cool down before packing it away. This is particularly important if you’ve been flying for an extended period.

• Post-Flight Cleaning: After each flight, clean the drone and check for any damage or wear. Inspect the propellers and motors for any debris or dirt that might affect performance.


6. Maintenance & Repairs

• Repairs: For any mechanical issues, contact a certified repair center or technician. Avoid attempting complex repairs yourself unless you're trained.

• Firmware Updates: Regularly check for firmware updates for your drone to ensure it has the latest features and safety improvements.


7. Environmental Considerations

• Weather Conditions: Avoid flying your drone in strong winds, heavy rain, or extreme temperatures. Always check the weather conditions before flying.

• Flying Location: Always ensure that you are flying in an open area, free from obstacles like trees, power lines, and buildings. Check local regulations for any restricted airspaces.
