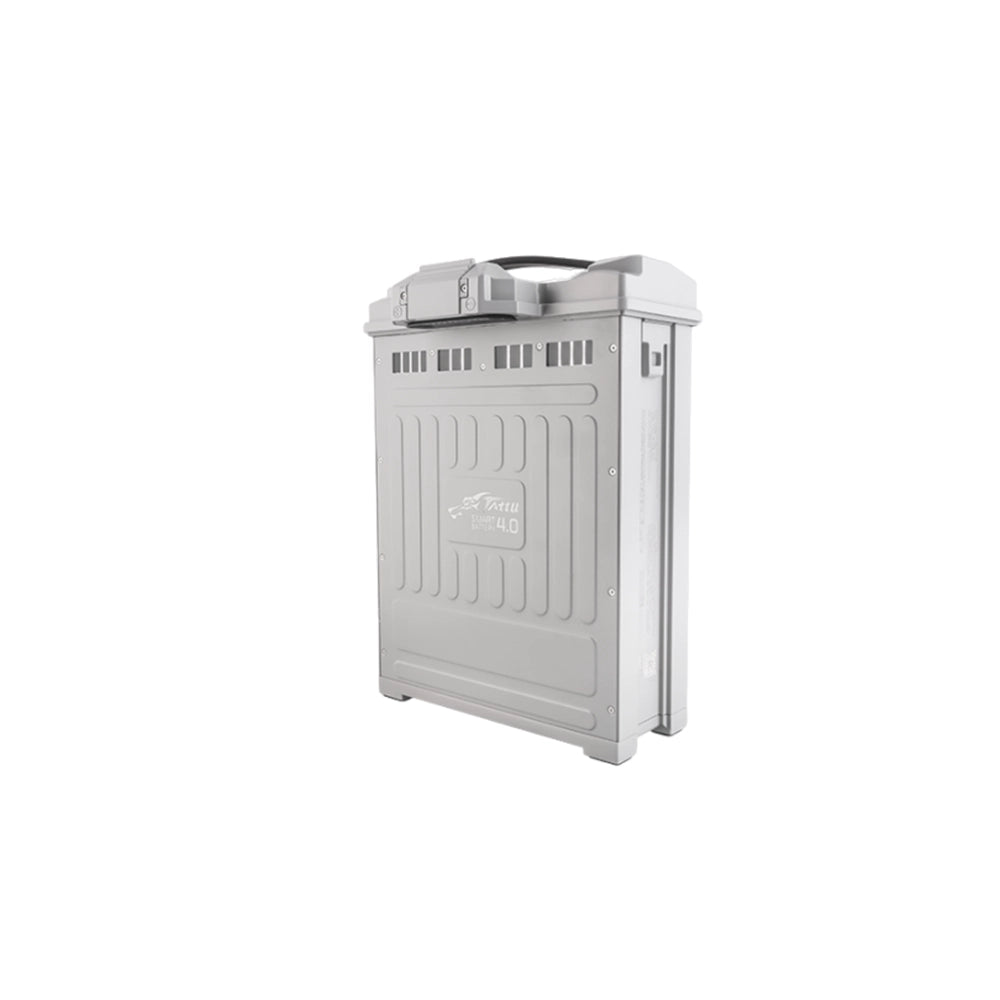

Tattu 4.0/3.5 14S 20000mAh 53.2V HV 25C Smart Drone Battery - Integrated MOSFET / Anti-Spark Modular

Question 1: What are the primary differences between the Tattu 4.0 and Tattu 3.5 series batteries?

Answer 1: The Tattu 4.0 series features a built-in MOSFET for integrated anti-spark protection, simplifying installation. The Tattu 3.5 series requires the drone to be equipped with an external Anti-Spark Modular for connection safety.

Question 2: What is the nominal capacity and voltage of these Tattu smart batteries?

Answer 2: Both series have a nominal capacity of 20000mAh (20Ah) and a nominal voltage of 53.2V, configured as 14S1P.

Question 3: Can these batteries be fast-charged?

Answer 3: Yes, both Tattu 4.0 and 3.5 series support 5C fast charging, allowing a recharge from 30% to 95% in approximately 10 minutes.

Question 4: What is the maximum continuous discharge current?

Answer 4: These batteries support a maximum continuous discharge current of 180A, ensuring robust power for demanding missions.

Question 5: How does the integrated BMS enhance battery safety?

Answer 5: The BMS provides real-time monitoring, fault self-diagnosis, overcurrent protection, automatic balancing, and smart storage protocols.

Question 6: Is it possible to monitor the battery status remotely?

Answer 6: Yes, both series connect to a dedicated mobile app via Bluetooth for real-time status, SOH checking, and historical data.

Question 7: Are these batteries suitable for harsh weather?

Answer 7: Absolutely. Both feature a waterproof and anti-corrosion shell with an improved ventilation system for reliable performance in diverse environments.

Question 8: What is the weight and dimensions of this 20000mAh battery?

Answer 8: The battery weighs approximately 7900g (±100g) and measures 261mm x 237mm x 92.5mm (±5mm).

Question 9: What kind of drones are these batteries designed for?

Answer 9: They are engineered for demanding aerial missions, including agricultural spraying, logistics UAVs, and complex surveying.

Question 10: What is the benefit of the MOSFET in the Tattu 4.0 series?

Answer 10: The MOSFET provides integrated anti-spark functionality, reducing sparking risks and simplifying the overall drone power system setup.

Question 11: Do these batteries offer protection against undervoltage?

Answer 11: Yes, the integrated BMS provides comprehensive undervoltage and overcurrent protection to safeguard both the battery and the drone.

Question 12: How do these batteries improve operational efficiency?

Answer 12: Through 5C fast charging, high energy density for longer flights, and intelligent diagnostic features that minimize maintenance downtime.

General Care Instructions for Drones and Drone Accessories

1. Battery Care

• Charging: Always use the recommended charger for your drone's battery. Avoid overcharging—once the battery is fully charged, unplug it to avoid damaging the battery.

• Storage: When not in use, store the battery in a cool, dry place. Avoid exposing the battery to extreme temperatures (below 0°C or above 40°C).

• Maintenance: Periodically check the battery’s health and charge cycles. Replace the battery after 300-500 charge cycles depending on its condition.


2. Cleaning

• Exterior Cleaning: Use a soft cloth to clean the drone’s body and propellers. Avoid using any abrasive materials that could scratch or damage the surface.

• Lens & Camera: Clean the camera lens and sensors with a microfiber cloth to remove dust and smudges. Never use chemical cleaners that might damage the lens coating.

• Propellers: Inspect and clean the propellers regularly, especially after use in dusty or dirty environments.


3. Storage

• Safe Storage: When storing your drone, ensure it’s kept in a safe, dry place where it won't be exposed to extreme temperatures, humidity, or direct sunlight.

• Transport: Use a protective case when transporting the drone to prevent damage. Never leave your drone exposed to the elements, especially in hot or humid conditions.


4. Pre-Flight Checks

• Battery: Ensure the battery is fully charged before flying.

• Propellers: Check that the propellers are secure and free from cracks or other damage.

• GPS and Sensors: Ensure the drone's GPS and other sensors are functioning properly before takeoff. Perform a quick calibration if necessary.


5. Post-Flight Care

• Cool Down: Allow the drone to cool down before packing it away. This is particularly important if you’ve been flying for an extended period.

• Post-Flight Cleaning: After each flight, clean the drone and check for any damage or wear. Inspect the propellers and motors for any debris or dirt that might affect performance.


6. Maintenance & Repairs

• Repairs: For any mechanical issues, contact a certified repair center or technician. Avoid attempting complex repairs yourself unless you're trained.

• Firmware Updates: Regularly check for firmware updates for your drone to ensure it has the latest features and safety improvements.


7. Environmental Considerations

• Weather Conditions: Avoid flying your drone in strong winds, heavy rain, or extreme temperatures. Always check the weather conditions before flying.

• Flying Location: Always ensure that you are flying in an open area, free from obstacles like trees, power lines, and buildings. Check local regulations for any restricted airspaces.
