Tattu Pro 14S 22000mAh 53.2V 25C LiHV Smart Drone Battery with DroneCAN

Question 1: What makes the 53.2V LiHV chemistry different from standard 14S batteries?

Answer 1: The LiHV (High Voltage) chemistry allows the battery to be charged to a higher voltage per cell, resulting in a nominal voltage of 53.2V. This increases energy density and provides more efficient power for high-demand drone motors.

Question 2: How does the Aluminum hard case benefit industrial users?

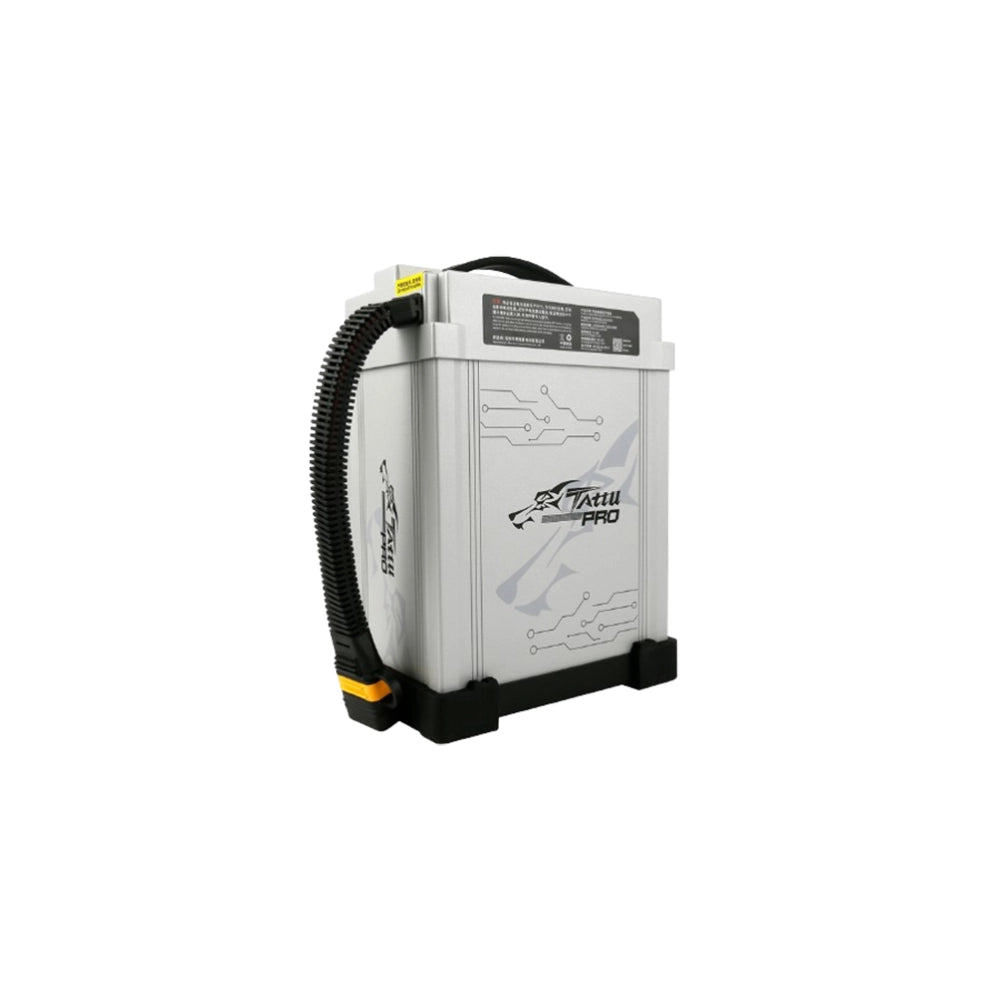

Answer 2: The external Aluminum case provides superior protection compared to soft packs. It shields the internal NMC cells from physical impacts, drops, and corrosion, which is critical for agriculture and construction site operations.

Question 3: Is this battery compatible with the DroneCAN protocol?

Answer 3: Yes, the Tattu Pro HV is fully compatible with DroneCAN. This allows for high-speed, reliable data transmission between the battery's BMS and the drone's flight controller for precise telemetry.

Question 4: What is the maximum continuous discharge current for this 14S battery?

Answer 4: The battery supports a maximum continuous discharge current of 100A, with a peak discharge capability of 150A for high-intensity maneuvers.

Question 5: Can I use this battery in extremely cold or hot environments?

Answer 5: Absolutely. The Tattu Pro 14S 22000mAh HV has a wide operating temperature range from -20°C to 60°C, making it suitable for both winter inspections and summer agricultural spraying.

Question 6: Does the battery feature a fuel gauge or SOC indication?

Answer 6: Yes, the battery includes an integrated SOC (State of Charge) indication system, allowing you to check the remaining power at a glance via the top-mounted LEDs.

Question 7: What type of discharge connector is used?

Answer 7: It uses a high-quality AS150U-F anti-spark connector, which prevents arcing during connection and ensures a secure, high-current power path.

Question 8: How does the "Smart Storage" function work?

Answer 8: The integrated BMS can automatically manage the battery's voltage to reach an optimal storage level when not in use, significantly extending the lifespan of the cells.

Question 9: What is the total energy capacity in Watt-hours?

Answer 9: This battery provides a massive 1170.4Wh of energy, offering the high-capacity power needed for heavy-lift delivery and surveillance missions.

Question 10: Is there a fault self-diagnosis function?

Answer 10: Yes, the smart BMS constantly monitors the battery's health and can perform self-diagnosis to alert the user of any irregularities via the communication port or LED signals.

Question 11: What is the recommended charging temperature for this battery?

Answer 11: For optimal health, charging is recommended between 10-30°C. The BMS also supports automatic charging current adjustment based on the current temperature.

Question 12: Can this battery be used for eVTOL aircraft?

Answer 12: Yes, the high energy density and robust safety features of the Tattu Pro 14S 22000mAh HV make it an ideal choice for eVTOL platforms and professional robotics.

General Care Instructions for Drones and Drone Accessories

1. Battery Care

• Charging: Always use the recommended charger for your drone's battery. Avoid overcharging—once the battery is fully charged, unplug it to avoid damaging the battery.

• Storage: When not in use, store the battery in a cool, dry place. Avoid exposing the battery to extreme temperatures (below 0°C or above 40°C).

• Maintenance: Periodically check the battery’s health and charge cycles. Replace the battery after 300-500 charge cycles depending on its condition.


2. Cleaning

• Exterior Cleaning: Use a soft cloth to clean the drone’s body and propellers. Avoid using any abrasive materials that could scratch or damage the surface.

• Lens & Camera: Clean the camera lens and sensors with a microfiber cloth to remove dust and smudges. Never use chemical cleaners that might damage the lens coating.

• Propellers: Inspect and clean the propellers regularly, especially after use in dusty or dirty environments.


3. Storage

• Safe Storage: When storing your drone, ensure it’s kept in a safe, dry place where it won't be exposed to extreme temperatures, humidity, or direct sunlight.

• Transport: Use a protective case when transporting the drone to prevent damage. Never leave your drone exposed to the elements, especially in hot or humid conditions.


4. Pre-Flight Checks

• Battery: Ensure the battery is fully charged before flying.

• Propellers: Check that the propellers are secure and free from cracks or other damage.

• GPS and Sensors: Ensure the drone's GPS and other sensors are functioning properly before takeoff. Perform a quick calibration if necessary.


5. Post-Flight Care

• Cool Down: Allow the drone to cool down before packing it away. This is particularly important if you’ve been flying for an extended period.

• Post-Flight Cleaning: After each flight, clean the drone and check for any damage or wear. Inspect the propellers and motors for any debris or dirt that might affect performance.


6. Maintenance & Repairs

• Repairs: For any mechanical issues, contact a certified repair center or technician. Avoid attempting complex repairs yourself unless you're trained.

• Firmware Updates: Regularly check for firmware updates for your drone to ensure it has the latest features and safety improvements.


7. Environmental Considerations

• Weather Conditions: Avoid flying your drone in strong winds, heavy rain, or extreme temperatures. Always check the weather conditions before flying.

• Flying Location: Always ensure that you are flying in an open area, free from obstacles like trees, power lines, and buildings. Check local regulations for any restricted airspaces.
