Tattu TA1000 1-7S G-Tech Dual Channel Smart Drone Battery Charger - 1000W Max Power with Auto-Recognition

Limited-Time Offer

UnitedUAV Tattu battery |

Copy

00 d

00 h

00 m

$200.00 USD

Shipping calculated at checkout.

TA1000: US Plug / American Standard

US Plug / American Standard EU Plug / European Standard

Estimated delivery: Jun 08 - Jun 12

Payment and security

Your payment information is processed securely.

View details

Description

Specifications

Questions

Care Instructions

Shipping & Returns

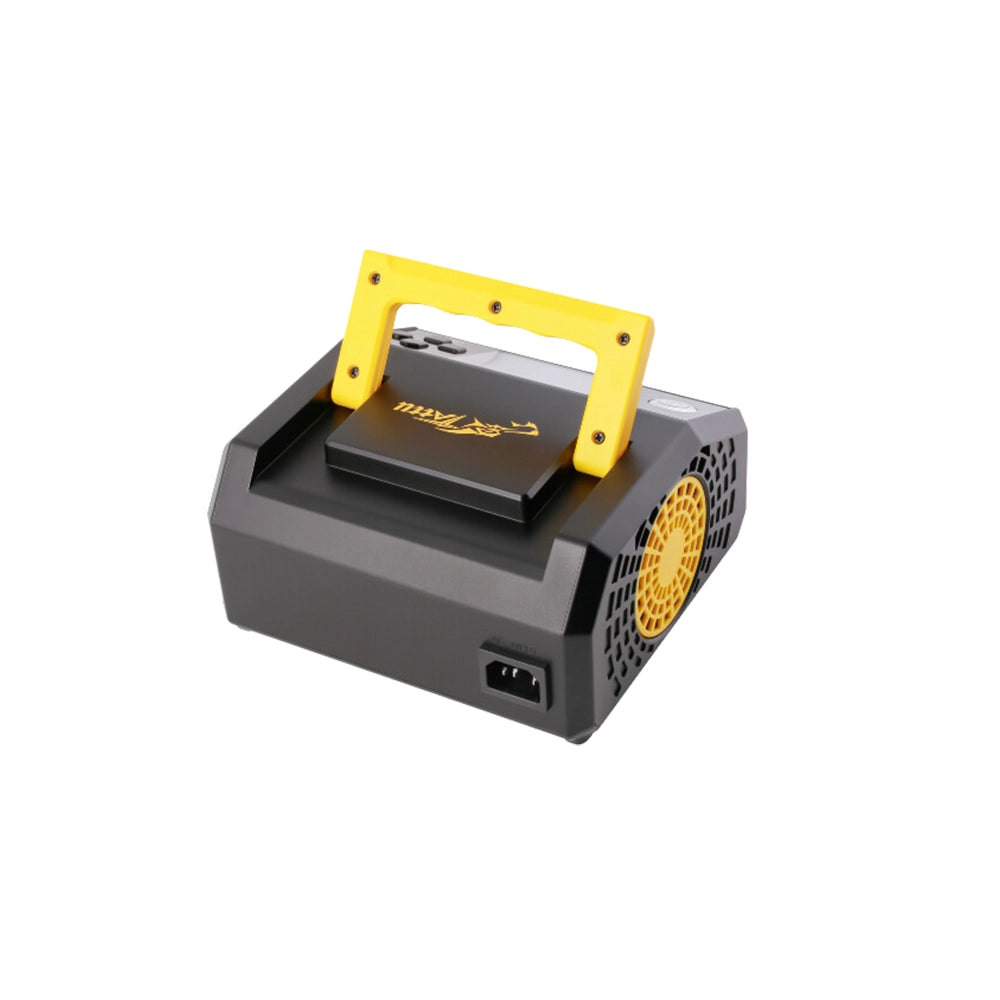

Tattu TA1000: The Field-Ready Dual Channel Smart Charger Built for the G-Tech Ecosystem

The Tattu TA1000 stands as the first dual-channel smart charger in the G-Tech ecosystem to deliver a combined 1000W of charging power. Weighing just 1.7kg and measuring a compact 186 x 174 x 95mm, the TA1000 was purpose-built for professional drone operators who need reliable, high-speed charging in the field. Whether you are managing a fleet of agricultural spraying drones or preparing for an FPV race, this charger eliminates the complexity of traditional charging setups.

What sets the TA1000 apart is its G-Tech intelligent recognition system. When a G-Tech smart battery is connected via the balance plug, the charger instantly identifies the battery type, cell count, and voltage, then automatically applies the manufacturer-recommended 1C charging current. There is no need to manually select parameters, reducing human error and speeding up turnaround between missions. For operators using non-G-Tech batteries, the TA1000 offers full manual control over battery chemistry (LiPo/LiHV), cell count (1-7S), charging current, and working mode through its intuitive button interface and LCD display.

Each of the two channels operates with complete independence, delivering up to 25A and 500W per channel. This means you can charge a 6S racing pack on Channel A while simultaneously topping off a 4S industrial battery on Channel B, with no cross-interference. The charger also features a storage mode with balanced discharge capability (6A per channel), allowing you to safely prepare batteries for long-term storage. Comprehensive protection circuitry guards against over-temperature, over-current, overcharge, disconnection, and reverse polarity, while the real-time LCD interface displays individual cell voltages, internal resistance, and voltage differential for complete transparency during every charge cycle.

Parâmetros do Carregador

Model

TA1000

Input voltage

AC 100-240V 50/60Hz

Output Voltage

DC 0~32V

Charging current

Max 25A * 2

Charging current in storage mode

25A * 2

Discharge current in storage mode

6A * 2

Maximum charging power

500W * 2

Maximum charging power in storage mode

500W * 2

Maximum discharge power in storage mode

70W * 2

Working temperature

0~60 ℃

Storage temperature

-20~60 ℃

Dimensions

186x174x95mm

Weight

about 1.7Kg

Supported battery type and number of cells

LiPo/LiHV 1-7S (can support G-Tech plug)

Q1. What type of drone battery is the Tattu G-Tech 16000mAh?

A: The Tattu G-Tech 16000mAh is a high-performance 6S drone battery (22.2V LiPo) designed for professional UAV training and agricultural drone applications.

Q2. What drones are compatible with this drone battery?

A: This drone battery is compatible with most 6S UAV platforms, including training drones and agricultural spraying drones that support 22.2V power input and XT90S connectors.

Q3. Does this drone battery support fast charging?

A: Yes. The Tattu G-Tech drone battery supports customized 3C fast charging when used with a compatible G-Tech smart charger, such as the TA1000.

Q4. How long is the cycle life of this drone battery?

A: This drone battery delivers 300+ charge cycles, making it a reliable and cost-effective solution for frequent drone operations.

Q5. What makes Tattu G-Tech drone batteries different from standard drone batteries?

A: Tattu G-Tech drone batteries use self-produced cells, Grepow’s patented technology, and a smart battery ecosystem for enhanced safety, consistency, and long-term performance.

Q6. Is this drone battery safe for use in cold or hot environments?

A: Yes. This drone battery operates within a wide temperature range of -30°C to 60°C and supports up to 3C discharge at -30°C.

Q7. Does the battery include a lifting handle?

A: The Tattu G-Tech 16000mAh drone battery is available in two versions: with an integrated lifting handle or without a handle, allowing flexible installation for different drone compartments.

Q8. Is this drone battery certified for international shipping?

A: Yes. The battery is fully certified with CE, MSDS, and UN38.3, making it suitable for safe air transport and global shipping.

Q9. What connector does this drone battery use?

A: This drone battery is equipped with an XT90S connector, ensuring secure and stable power delivery for professional UAV systems.

Q10. Does this drone battery support intelligent charging?

A: Yes. When used with a G-Tech smart charger, the drone battery is automatically recognized and charged using plug-and-play intelligent charging, with no manual settings required.

Q11. Is the battery durable for frequent drone training use?

A: Absolutely. This drone battery features reinforced corner protection, optimized wiring, and a rugged housing, making it highly durable for intensive drone training and field operations.

Q12. Is this an authentic Tattu drone battery?

A: Yes. We guarantee 100% genuine Tattu drone batteries and provide timely shipping and professional after-sales support for every purchase.

General Care Instructions for Drones and Drone Accessories

1. Battery Care

Charging: Always use the recommended charger for your drone's battery. Avoid overcharging—once the battery is fully charged, unplug it to avoid damaging the battery.
Storage: When not in use, store the battery in a cool, dry place. Avoid exposing the battery to extreme temperatures (below 0°C or above 40°C).
Maintenance: Periodically check the battery’s health and charge cycles. Replace the battery after 300-500 charge cycles depending on its condition.

2. Cleaning

Exterior Cleaning: Use a soft cloth to clean the drone’s body and propellers. Avoid using any abrasive materials that could scratch or damage the surface.
Lens & Camera: Clean the camera lens and sensors with a microfiber cloth to remove dust and smudges. Never use chemical cleaners that might damage the lens coating.
Propellers: Inspect and clean the propellers regularly, especially after use in dusty or dirty environments.

3. Storage

Safe Storage: When storing your drone, ensure it’s kept in a safe, dry place where it won't be exposed to extreme temperatures, humidity, or direct sunlight.
Transport: Use a protective case when transporting the drone to prevent damage. Never leave your drone exposed to the elements, especially in hot or humid conditions.

4. Pre-Flight Checks

Battery: Ensure the battery is fully charged before flying.
Propellers: Check that the propellers are secure and free from cracks or other damage.
GPS and Sensors: Ensure the drone's GPS and other sensors are functioning properly before takeoff. Perform a quick calibration if necessary.

5. Post-Flight Care

Cool Down: Allow the drone to cool down before packing it away. This is particularly important if you’ve been flying for an extended period.
Post-Flight Cleaning: After each flight, clean the drone and check for any damage or wear. Inspect the propellers and motors for any debris or dirt that might affect performance.

6. Maintenance & Repairs

Repairs: For any mechanical issues, contact a certified repair center or technician. Avoid attempting complex repairs yourself unless you're trained.
Firmware Updates: Regularly check for firmware updates for your drone to ensure it has the latest features and safety improvements.

7. Environmental Considerations

Weather Conditions: Avoid flying your drone in strong winds, heavy rain, or extreme temperatures. Always check the weather conditions before flying.
Flying Location: Always ensure that you are flying in an open area, free from obstacles like trees, power lines, and buildings. Check local regulations for any restricted airspaces.

Shipping Policy

1. Processing Time

Orders are typically processed within 1-2 business days of receipt. If there are any delays due to high demand or inventory issues, we will notify you as soon as possible.

2. Shipping Methods

We offer several shipping options based on your location. The available methods are:
Standard Shipping (5-7 business days)
Expedited Shipping (2-3 business days)
Express Shipping (Next-day delivery)

Shipping times may vary depending on the destination and availability of the product.

3. Shipping Fees

Shipping fees are calculated at checkout based on your order's weight, size, and destination. You will be provided with a shipping quote before finalizing your purchase.
We offer free standard shipping on orders over a certain amount (e.g., $1000) for specific regions.

4. International Shipping

We ship globally to most countries. For international shipments, please note that customs duties, taxes, and fees are the responsibility of the customer and will be charged by the local authorities upon delivery.
Delivery times may vary based on the destination.

5. Order Tracking

Once your order has shipped, you will receive a tracking number by email. You can track the status of your shipment using the tracking link provided.

6. Delivery Issues

If your package is delayed or lost in transit, please contact our customer service team immediately. We will work with the shipping carrier to resolve any delivery issues.

Return & Refund Policy

1. Returns

We want you to be completely satisfied with your purchase. If you are not satisfied, you can return most new, unused items within 30 days of delivery for a full refund or exchange.
To initiate a return, please contact us at returns@uniteduav.com with your order number and reason for the return. We will guide you through the return process.

2. Return Conditions

Items must be returned in their original condition (unused, undamaged, and in the original packaging) to be eligible for a refund or exchange.
Non-returnable items include:
Customized or personalized items
Opened or used drone batteries
Sale items or items marked as non-returnable

3. Return Shipping Fees

Return shipping is the responsibility of the customer unless the item is defective or was sent in error. We recommend using a trackable shipping service for returns to ensure your items are returned safely.
Free Return Shipping: We offer free return shipping on defective products or if you receive the wrong item.

4. Refund Process

Once your returned item is received and inspected, we will notify you of the approval or rejection of your refund.
Refunds will be processed to your original method of payment within 7-10 business days. Depending on your bank or credit card provider, it may take additional time for the refund to reflect in your account.

5. Exchanges

If you would like to exchange your item for a different size, color, or model, please contact us with your request. If the exchange is approved, we will send out the new item and provide instructions for returning the original product.

6. Damaged or Defective Items

If you receive a damaged or defective item, please contact us within 7 days of receipt. We will arrange for a replacement or refund, including free return shipping for defective items.

For more details, please review our Shipping Policy.

Tattu G-Tech 16000mAh drone battery connected to smart charger for extended lifespan and reliable performance

Charging G-Tech Smart Batteries

For batteries equipped with G-Tech technology, the TA1000 offers a streamlined, automated charging experience. Begin by connecting the battery’s discharge lead to an available XT90 channel on the charger, utilizing an adapter if necessary to ensure a secure fit. Next, link the G-Tech balance connector to the corresponding balance port. A successful handshake is confirmed when the Tattu icon on the primary display illuminates in yellow. Once communication is established, the system bypasses the need for manual parameter entry and initiates the optimized charging cycle automatically after a 6-second countdown. To halt the process at any time, simply press and hold the specific channel button. Please note that both the power and balance connections must be fully engaged for the intelligent charging sequence to activate.

manual-charging-setup-on-tattu-ta1000-charger-for-standard-lipo-lihv-drone-batteries

Charging Standard (Non-G-Tech) Batteries

When charging conventional LiPo or LiHV packs, the TA1000 provides full manual control to ensure precision and safety. First, interface the battery's discharge plug with the charger's XT90 port (or use a compatible adapter cable) and connect the standard balance lead to the adjacent balance port. Unlike the smart series, these batteries require the operator to define the charging parameters manually. Use the navigation buttons to toggle through and select the correct battery chemistry, target current, and desired operational mode based on the manufacturer’s specifications. To begin the charging session, press and hold the CHA or CHB button. The operation can be paused at any moment by holding down the channel button. Ensuring both connectors are properly seated is essential, as the charger will not initiate power delivery if either connection is missing.

tattu-ta1000-smart-charger-automatically-identifying-g-tech-drone-battery-via-yellow-icon-status

Tattu Plus 6S 16000mAh 22.2V 15C Lipo Smart Drone Battery

The Tattu G-Tech 16000mAh 6S series represents a specialized energy solution tailored for the rigorous demands of UAV flight academies and precision agricultural operations. Powered by Grepow’s proprietary smart cell technology, this high-capacity battery pack ensures consistent discharge stability and enhanced safety protocols essential for student pilot training and heavy-duty spraying missions.As a core component of the G-Tech Smart Ecosystem, the 16000mAh 6S battery goes beyond traditional power delivery. It offers an integrated intelligence layer that simplifies fleet management through automated health monitoring and optimized charging cycles. This smart integration significantly reduces operational risks and extends the hardware's service life, making it a cost-effective choice for educational institutions and commercial drone enterprises. To maintain peak system integrity, we advise operators to utilize G-Tech smart recognition to verify product authenticity and unlock the full suite of intelligent safety features.

More details

Tattu G-Tech 22000mAh 6S 22.2V Drone Battery – High-Performance Drones Battery for Training & Agricultural UAVs, XT90 Plug

Tattu Plus 6S 22000mAh 22.2V 25C Lipo Smart Drone Battery

The Tattu Plus is an intelligent battery specifically designed for UAVs, offering enhanced safety and performance. It features a protective casing for secure flights and an extended power lead for easier integration than standard Tattu batteries. LED indicators show charge status, while warning lights alert to abnormal temperatures, charging issues, or cell imbalances. After charging, it activates an intelligent storage mode, self-discharging to optimal voltage for prolonged life. Equipped with an advanced Battery Management System (BMS), Tattu Plus sets a new standard in drone battery technology.
