Q1: I manage security for the prison perimeter beside residential streets. Would a fixed multi-node drone detection system fit our need for tracking small drones around walls and low-altitude blind spots without transmitting?
A1: UF4-mini is a compact four-node passive TDOA detection and tracking system without an included active countermeasure. UF4-mini provides compact passive multi-node detection for urban-scale sites that need TDOA location and trajectory tracking without an included jammer. Site geometry determines whether four nodes cover the required blind spots.
Q2: At the prison perimeter beside residential streets, what signals or behavior can a stationary TDOA drone tracking system actually detect, identify or affect during a security incident?

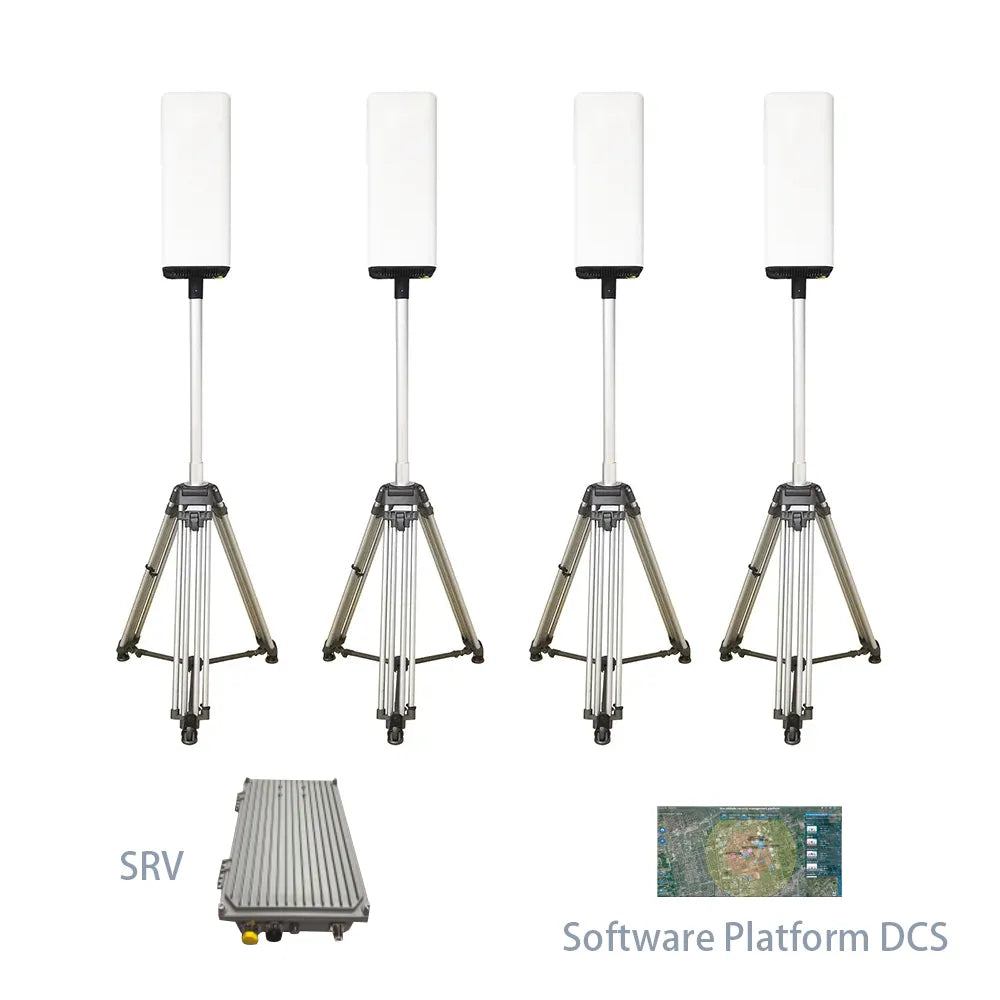

A2: UF4-mini: UF4-mini combines four UFTD1-mini passive sensing units with a DCS control system and SRV server. It monitors 100 MHz–6 GHz and uses TDOA positioning.
Q3: Our perimeter includes high walls, guard towers, courtyards and dense neighborhood buildings. What practical coverage could we expect from a fixed-site passive counter-UAS system there?
A3: UF4-mini: The UF4-mini page does not publish one system-wide guaranteed radius. Each deployment should be modeled from node locations, target RF behavior, wall and building obstruction, interference and required overlap.
Q4: At a municipal prison complex with nearby homes and public roads, where should a fixed RF drone detection network be positioned so buildings and terrain do not create hidden approaches?
A4: UF4-mini needs a site survey rather than a generic placement rule. Use the published technology and range as inputs, then model high walls, guard towers, courtyards and dense neighborhood buildings, target height, node geometry, RF conditions and maintenance access before fixing locations.
Q5: Inside the correctional facility security control room, can a fixed multi-node drone detection system identify a drone or only report that something is present?
A5: UF4-mini: UF4-mini is described as recognizing more than 800 models, including common consumer and custom-built drones, and providing multi-target trajectories. Verify likely contraband platforms in a site test.
Q6: During an incident where several small delivery-style drones approach different sides of the perimeter, can a stationary TDOA drone tracking system keep the separate tracks clear for operators?
A6: UF4-mini: UF4-mini supports simultaneous multi-target tracking, but the system page does not state a validated aggregate count. Define the prison's required load and test it.
Q7: Before deployment around the prison perimeter beside residential streets, does a fixed-site passive counter-UAS system transmit radio energy or only listen for drone signals?
A7: UF4-mini: UF4-mini's detection layer is passive and does not transmit a detection signal. It is not an included jammer, which simplifies but does not eliminate communications and privacy review.
Q8: If a contraband drone flies without a detectable control or video signal, what detection or response gap would remain after installing a fixed RF drone detection network?
A8: UF4-mini: UF4-mini depends on detectable RF links, so a radio-silent or unsupported aircraft may need radar or optical detection. Cameras can also help confirm payload and intent.
Q9: Could a fixed multi-node drone detection system connect with our prison command room and perimeter camera system, or would we need a separate command platform?
A9: UF4-mini: UF4-mini includes DCS and SRV for its four nodes, but external API details are not published. Confirm camera cueing, mapping, incident-system and user-authentication interfaces.
Q10: How would a stationary TDOA drone tracking system alert our correctional facility security team when a drone enters a protected zone?
A10: UF4-mini: UF4-mini should display location and trajectory for supported targets. Configure prison-specific alarm zones, altitude logic, confidence, camera confirmation and escalation steps.
Q11: Our correctional facility security team keeps incident evidence. What track, identity and operator-action records can a fixed-site passive counter-UAS system export?
A11: UF4-mini: UF4-mini's page does not define export or retention. Require track history, classifications, whitelist decisions, node health, alarm acknowledgement and camera references for incident records.
Q12: Around the prison perimeter beside residential streets, can a fixed RF drone detection network ignore approved prison-maintenance and police drones without hiding real threats?
A12: UF4-mini: UF4-mini supports whitelist and blacklist functions. Approved maintenance or public-safety flights should be registered through a controlled process and verified during testing.
Q13: When an alarm from the prison perimeter beside residential streets appears, can a fixed multi-node drone detection system act automatically, or should a trained operator verify the drone first?
A13: UF4-mini: UF4-mini detects and tracks; it does not include the SJ1 countermeasure. Operators should use approved incident procedures and only separately authorized response equipment.
Q14: At the prison perimeter beside residential streets, our installation point is outdoors year-round. What weather limits apply to a stationary TDOA drone tracking system?
A14: UF4-mini: The underlying UFTD1-mini sensor tab lists IP65 and -30°C to 65°C, but the complete UF4-mini system, server, network and connectors require separate environmental design.
Q15: After seasonal weather at the prison perimeter beside residential streets, what routine checks would keep a fixed-site passive counter-UAS system dependable for security work?
A15: UF4-mini: UF4-mini maintenance should check all four nodes, timing, backhaul, DCS, SRV, seals, software, recognition database and whitelist, followed by a controlled detection test.
Q16: In heavy radio traffic around a municipal prison complex with nearby homes and public roads, how should we keep false alarms from a fixed RF drone detection network manageable?
A16: UF4-mini: Use a local RF baseline, node overlap, whitelist, flight schedules and camera confirmation. Prison buildings and neighborhood RF traffic must be represented in acceptance testing.
Q17: The correctional facility security project needs a working package. What hardware, software and licenses come with a fixed multi-node drone detection system?
A17: UF4-mini: UF4-mini lists four UFTD1-mini units, one DCS and one SRV. Confirm mounts, antennas, timing, switches, workstations, licenses, power, cabling, spares, training and commissioning.
Q18: We need continuous coverage at the prison perimeter beside residential streets. What power, network and backup arrangements does a stationary TDOA drone tracking system require?
A18: UF4-mini: UF4-mini total electrical load and backup runtime are not published. Specify power for four outdoor nodes, the server and control system, plus protected networking and safe shutdown.
Q19: As the correctional facility security engineer, what mounting height, spacing and structural details should I plan for a fixed-site passive counter-UAS system?
A19: UF4-mini: The four compact nodes need surveyed coordinates, useful baselines, clear RF exposure and protected cabling. Guard-tower convenience alone does not guarantee good TDOA geometry.
Q20: Because the prison perimeter beside residential streets is near workers, homes or public roads, what legal and privacy checks apply to a fixed RF drone detection network?
A20: UF4-mini: UF4-mini passive monitoring can capture drone and possibly operator-related information. Apply aviation, communications, privacy, retention and evidence rules; no active jamming authority is implied.
Q21: For a state network of correctional facilities with shared monitoring, how could we scale a fixed multi-node drone detection system into one operating picture without losing local control?
A21: UF4-mini: UF4-mini is a four-node network by design. Connecting several prisons requires confirmed central-server limits, tenant separation, timing, bandwidth, failover and role-based access.
Q22: Our correctional facility security procurement group wants measurable criteria. How should we test a stationary TDOA drone tracking system before final payment?
A22: UF4-mini acceptance should define target types, routes, heights, weather, RF conditions, simultaneous targets, detection and location thresholds, alert latency, data export, failure behavior and a signed test result.
Q23: If the correctional facility security team says a fixed-site passive counter-UAS system missed a drone, what information should we collect before requesting support?
A23: UF4-mini: For UF4-mini support, retain node maps, synchronization state, spectrum captures, track examples, camera confirmation, versions, whitelist status and network-health logs.
Q24: For the prison perimeter beside residential streets, we're comparing a fixed RF drone detection network with radar and cameras. What is its real operational advantage?
A24: UF4-mini: UF4-mini is the compact detection-only bundle; UF5-MINI adds an active SJ1 subsystem. Choose UF4-mini when awareness and lawful external response are the actual requirement.
Q25: What should our correctional facility security team send so the supplier can size a fixed multi-node drone detection system for the actual site?
A25: UF4-mini: A UF4-mini proposal needs prison maps, node candidates, RF baseline, target scenarios, alarm zones, camera integration, records policy, server and network design, and witnessed multi-target tests.
