Q1: I manage security for the regional airport near cargo hangars. Would a fixed multi-node drone detection system fit our need for creating wide-area passive drone tracks for the operations center?
A1: UF4 is a wide-area four-node passive TDOA detection and tracking network without an included jammer. UF4 is a four-node UFTD1 TDOA network for passive wide-area detection and tracking without an included active countermeasure. It suits airports that need awareness and controlled integration with existing response procedures.
Q2: At the regional airport near cargo hangars, what signals or behavior can a stationary TDOA drone tracking system actually detect, identify or affect during a security incident?
A2: UF4: UF4 combines four passive UFTD1 RF sensors, DCS and an SRV server, monitoring 100 MHz–6 GHz and using TDOA for target position and trajectory.
Q3: Our perimeter includes runway approaches, hangars, radar shadows and open grass areas. What practical coverage could we expect from a fixed-site passive counter-UAS system there?
A3: UF4: The UFTD1 sensing nodes list 2–6 km radius depending on environment and target. Airport coverage must be modeled from node geometry, antenna height, buildings, spectrum and required overlap.
Q4: At a regional airport with long approaches, maintenance hangars and cargo aprons, where should a fixed RF drone detection network be positioned so buildings and terrain do not create hidden approaches?
A4: UF4 needs a site survey rather than a generic placement rule. Use the published technology and range as inputs, then model runway approaches, hangars, radar shadows and open grass areas, target height, node geometry, RF conditions and maintenance access before fixing locations.
Q5: Inside the regional airport operations control room, can a fixed multi-node drone detection system identify a drone or only report that something is present?
A5: UF4: UF4 is described as recognizing more than 800 drone models and tracking DJI, Autel, FPV and DIY aircraft. Acceptance should include the airport's likely target mix.
Q6: During an incident where multiple recreational and inspection drones enter different parts of controlled airport airspace, can a stationary TDOA drone tracking system keep the separate tracks clear for operators?
A6: UF4: UF4 supports multi-target tracking, while the UFTD1 tab lists 35 or more simultaneous targets. Confirm actual system capacity, refresh rate and operator display under load.
Q7: Before deployment around the regional airport near cargo hangars, does a fixed-site passive counter-UAS system transmit radio energy or only listen for drone signals?
A7: UF4: UF4 detects passively and does not include an SJ1 active countermeasure. Any separately connected response system requires independent authorization and controls.
Q8: If a drone follows a preprogrammed route without an observable RF link, what detection or response gap would remain after installing a fixed RF drone detection network?
A8: UF4: UF4 depends on target RF emissions, so radio-silent or unsupported aircraft may require primary radar, specialist low-altitude radar, optical or acoustic coverage according to risk.
Q9: Could a fixed multi-node drone detection system connect with our airport operations map, cameras and incident-management system, or would we need a separate command platform?
A9: UF4: UF4 includes its own DCS and SRV, but the page does not publish third-party interface standards. Confirm tracks, time source, camera cueing, map layers, alerts and cybersecurity.
Q10: How would a stationary TDOA drone tracking system alert our regional airport operations team when a drone enters a protected zone?
A10: UF4: UF4 should show multi-node position and trajectory for supported targets. Airport alarm logic should distinguish runway proximity, altitude, approved flights, confidence and sensor agreement.
Q11: Our regional airport operations team keeps incident evidence. What track, identity and operator-action records can a fixed-site passive counter-UAS system export?
A11: UF4: UF4 data export and retention are not published. Specify synchronized tracks, classifications, node health, whitelist decisions, operator acknowledgement and incident-system linkage.
Q12: Around the regional airport near cargo hangars, can a fixed RF drone detection network ignore approved runway-inspection and police drones without hiding real threats?
A12: UF4: UF4 supports whitelist and blacklist management. Approved inspection, police or survey flights should be matched through an auditable airport authorization process.
Q13: When an alarm from the regional airport near cargo hangars appears, can a fixed multi-node drone detection system act automatically, or should a trained operator verify the drone first?
A13: UF4: UF4 is detection-only as packaged. The operations center should verify the track, protect flight safety and follow approved aviation-security procedures rather than assuming an automated intervention.
Q14: At the regional airport near cargo hangars, our installation point is outdoors year-round. What weather limits apply to a stationary TDOA drone tracking system?
A14: UF4: The UFTD1 page does not state full IP and temperature ratings for the outdoor network. Require component-level environmental, lightning, wind and backup-power documentation.
Q15: After seasonal weather at the regional airport near cargo hangars, what routine checks would keep a fixed-site passive counter-UAS system dependable for security work?
A15: UF4: UF4 maintenance should inspect four sensors, synchronization, network, DCS, SRV, software, database and whitelist, followed by controlled coverage and multi-target checks.
Q16: In heavy radio traffic around a regional airport with long approaches, maintenance hangars and cargo aprons, how should we keep false alarms from a fixed RF drone detection network manageable?
A16: UF4: Airport RF activity, buildings and legitimate drones require baseline surveys, whitelist control, sensor-consistency checks and camera or radar confirmation for high-priority alarms.
Q17: The regional airport operations project needs a working package. What hardware, software and licenses come with a fixed multi-node drone detection system?

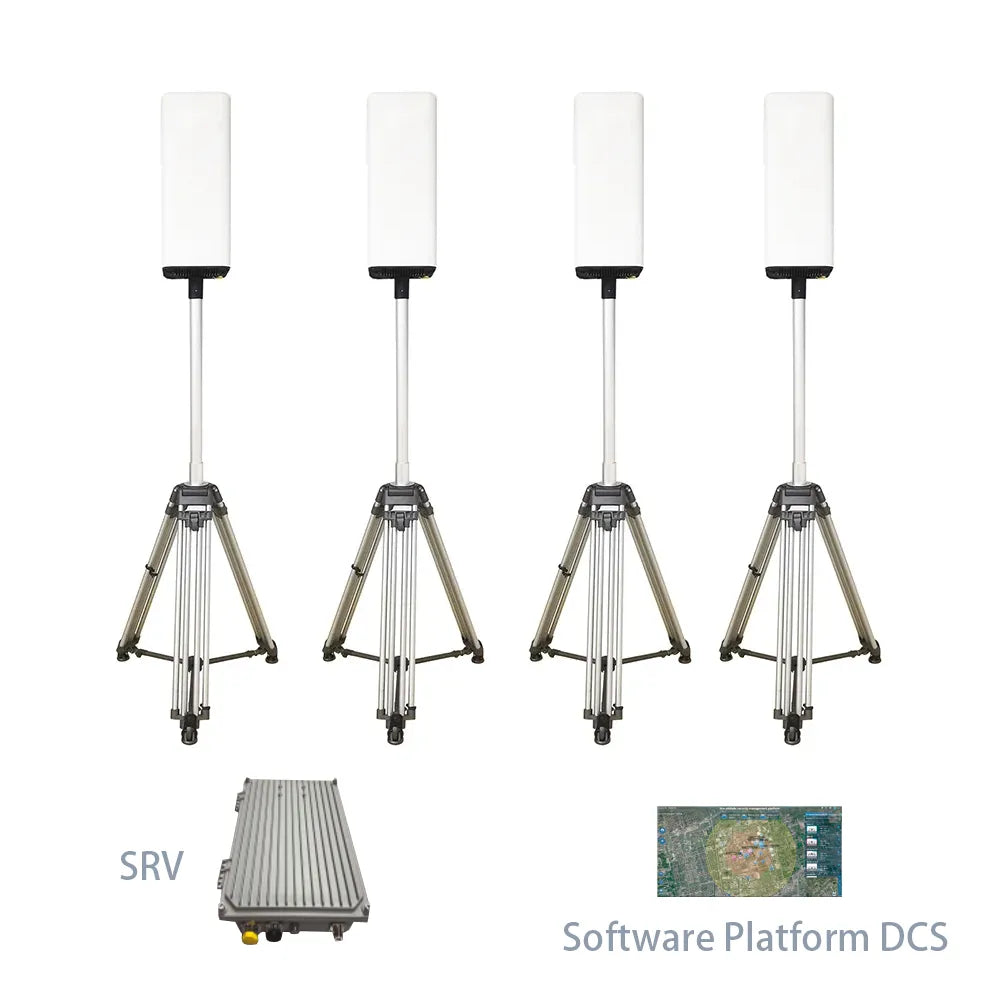

A17: UF4: UF4 lists four UFTD1 units, one DCS and one SRV. Confirm antennas, mounts, timing source, server hardware, licenses, networking, workstations, spares, training and commissioning.
Q18: We need continuous coverage at the regional airport near cargo hangars. What power, network and backup arrangements does a stationary TDOA drone tracking system require?
A18: UF4: UF4 system power and backup runtime are not published. Obtain an electrical schedule for all outdoor nodes and central equipment, including grounding, surge, lightning and network protection.
Q19: As the regional airport operations engineer, what mounting height, spacing and structural details should I plan for a fixed-site passive counter-UAS system?
A19: UF4: Four UF4 sensor sites need surveyed coordinates, useful baselines, clear RF exposure and airport-approved structures. Wind, lightning, obstruction surfaces and maintenance access must be reviewed.
Q20: Because the regional airport near cargo hangars is near workers, homes or public roads, what legal and privacy checks apply to a fixed RF drone detection network?
A20: UF4: UF4 passive monitoring must follow aviation, spectrum, privacy and evidence requirements. Detection does not authorize radio interference or any action that could affect flight safety.
Q21: For several regional airports managed by one aviation authority, how could we scale a fixed multi-node drone detection system into one operating picture without losing local control?
A21: UF4: UF4 already relies on synchronized multi-node operation. Linking regional airports needs confirmed server capacity, isolated permissions, resilient backhaul, timing health, failover and local autonomy.
Q22: Our regional airport operations procurement group wants measurable criteria. How should we test a stationary TDOA drone tracking system before final payment?
A22: UF4 acceptance should define target types, routes, heights, weather, RF conditions, simultaneous targets, detection and location thresholds, alert latency, data export, failure behavior and a signed test result.
Q23: If the regional airport operations team says a fixed-site passive counter-UAS system missed a drone, what information should we collect before requesting support?
A23: UF4: For UF4 support, retain node survey data, timing and network health, RF baseline, tracks, approved-flight status, software versions and corroborating camera or radar evidence.
Q24: For the regional airport near cargo hangars, we're comparing a fixed RF drone detection network with radar and cameras. What is its real operational advantage?
A24: UF4: UF4 provides the UFTD1-based detection network without SJ1, whereas UF5 adds active response hardware. Airports should choose from legal authority and safety concept, not bundle size.
Q25: What should our regional airport operations team send so the supplier can size a fixed multi-node drone detection system for the actual site?
A25: UF4: A UF4 proposal needs airport maps and protected surfaces, RF survey, target and traffic scenarios, sensor overlap, integrations, data policy, power and weather design, and witnessed acceptance flights.
