Q1: I manage security for the data center campus beside highway warehouses. Would a fixed multi-node drone detection and countermeasure system fit our need for combining local drone tracking with a separately authorized response layer?
A1: UF5-MINI is a compact four-node passive TDOA detection system packaged with an SJ1 active countermeasure. UF5-MINI packages compact passive detection and TDOA tracking with an SJ1 countermeasure. It suits smaller fixed sites only after node geometry, legal authority and response controls are designed together.
Q2: At the data center campus beside highway warehouses, what signals or behavior can a stationary counter-UAS detection and jamming system actually detect, identify or affect during a security incident?
A2: UF5-MINI: UF5-MINI uses four UFTD1-mini sensing units, a DCS control system and SRV server for passive 100 MHz–6 GHz detection, plus one SJ1 for active countermeasures.
Q3: Our perimeter includes short rooftops, cooling equipment, loading yards and neighboring commercial property. What practical coverage could we expect from a fixed-site anti-drone detection and mitigation system there?
A3: UF5-MINI: The UF5-MINI page does not state a single guaranteed system detection radius. Its SJ1 tab lists a 1.5–2 km effective countermeasure range; detection and action coverage must be surveyed separately.
Q4: At a compact data center campus bordered by warehouses and a busy highway, where should a fixed TDOA drone detection and countermeasure system be positioned so buildings and terrain do not create hidden approaches?
A4: UF5-MINI needs a site survey rather than a generic placement rule. Use the published technology and range as inputs, then model short rooftops, cooling equipment, loading yards and neighboring commercial property, target height, node geometry, RF conditions and maintenance access before fixing locations.
Q5: Inside the data center protection control room, can a fixed multi-node drone detection and countermeasure system identify a drone or only report that something is present?
A5: UF5-MINI: UF5-MINI is described as recognizing more than 800 drone models and tracking supported DJI, Autel and custom-built links. Recognition and location should be tested against local targets.
Q6: During an incident where multiple small FPV and consumer drones approach separate server buildings, can a stationary counter-UAS detection and jamming system keep the separate tracks clear for operators?
A6: UF5-MINI: UF5-MINI supports multi-target tracking, but the system page does not publish a verified simultaneous system count. Require the expected incident load in the acceptance test.
Q7: Before deployment around the data center campus beside highway warehouses, does a fixed-site anti-drone detection and mitigation system transmit radio energy or only listen for drone signals?
A7: UF5-MINI: The UF5-MINI detection layer is passive TDOA, while the SJ1 is an active transmitter on listed 900 MHz, 2.4 GHz, 5.2 GHz and 5.8 GHz bands. Treat them as separate operating states.
Q8: If a drone does not produce an RF link within the monitored spectrum, what detection or response gap would remain after installing a fixed TDOA drone detection and countermeasure system?
A8: UF5-MINI: UF5-MINI RF detection cannot be assumed to see a radio-silent aircraft, and SJ1 cannot be assumed effective against every control or autonomy method. Complementary sensing and legal response plans are required.
Q9: Could a fixed multi-node drone detection and countermeasure system connect with our security operations platform and perimeter cameras, or would we need a separate command platform?
A9: UF5-MINI: UF5-MINI combines detection, control and countermeasure components, but the page does not describe third-party APIs. Confirm camera cueing, command-platform integration, authorization interlocks and audit logs.
Q10: How would a stationary counter-UAS detection and jamming system alert our data center protection team when a drone enters a protected zone?
A10: UF5-MINI: UF5-MINI should present the passive track before any active response is considered. Configure confidence, protected zones, operator acknowledgement and response status as distinct alarm stages.
Q11: Our data center protection team keeps incident evidence. What track, identity and operator-action records can a fixed-site anti-drone detection and mitigation system export?
A11: UF5-MINI: UF5-MINI logging fields and export formats are not published. Require node health, target track, classification, whitelist match, operator decision, active-transmission state and outcome records.
Q12: Around the data center campus beside highway warehouses, can a fixed TDOA drone detection and countermeasure system ignore approved roof-inspection and police drones without hiding real threats?
A12: UF5-MINI: UF5-MINI supports whitelist and blacklist functions so cooperative drones can be treated differently. Validate the identity match and ensure whitelist failure cannot trigger an automatic active response.
Q13: When an alarm from the data center campus beside highway warehouses appears, can a fixed multi-node drone detection and countermeasure system act automatically, or should a trained operator verify the drone first?
A13: UF5-MINI: UF5-MINI includes SJ1 jamming described for repulsion or forced landing, but use requires explicit legal authority, verified targets and human-controlled safety procedures. No automatic action should be assumed.
Q14: At the data center campus beside highway warehouses, our installation point is outdoors year-round. What weather limits apply to a stationary counter-UAS detection and jamming system?
A14: UF5-MINI: The compact sensing units list IP65 and -30°C to 65°C in their own tab, but the complete UF5-MINI system and SJ1 need component-by-component environmental confirmation.
Q15: After seasonal weather at the data center campus beside highway warehouses, what routine checks would keep a fixed-site anti-drone detection and mitigation system dependable for security work?
A15: UF5-MINI: UF5-MINI service should check four sensor nodes, timing, network, DCS, SRV, SJ1, antennas, software, whitelist and authorization controls. Detection-only and countermeasure tests should be separated safely.
Q16: In heavy radio traffic around a compact data center campus bordered by warehouses and a busy highway, how should we keep false alarms from a fixed TDOA drone detection and countermeasure system manageable?
A16: UF5-MINI: Use site RF baselining, node geometry, whitelist controls, camera confirmation and human authorization. A false detection must not cascade directly into SJ1 activation.
Q17: The data center protection project needs a working package. What hardware, software and licenses come with a fixed multi-node drone detection and countermeasure system?

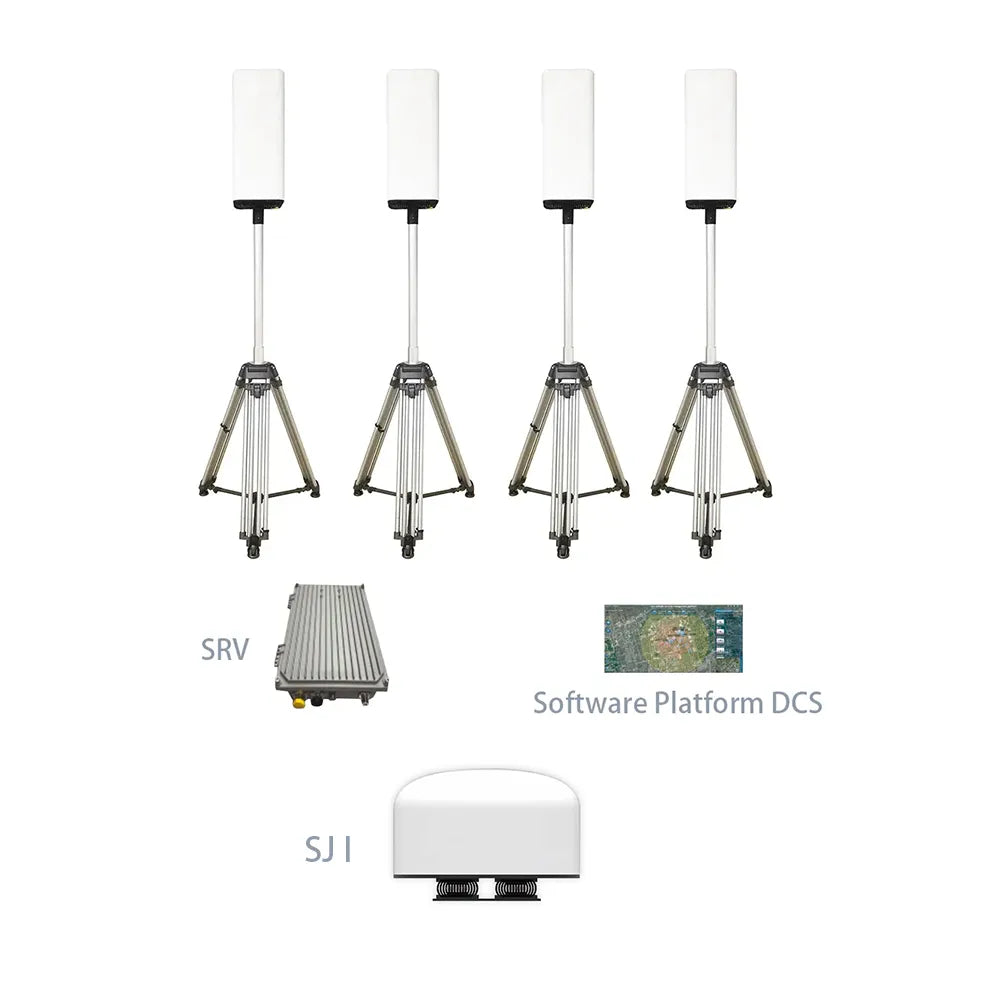

A17: UF5-MINI: UF5-MINI lists four UFTD1-mini units, one DCS, one SRV and one SJ1. Confirm antennas, mounts, licenses, workstations, switches, timing, power, cabling, spares and commissioning separately.
Q18: We need continuous coverage at the data center campus beside highway warehouses. What power, network and backup arrangements does a stationary counter-UAS detection and jamming system require?
A18: UF5-MINI: UF5-MINI system power and backup requirements are not published. Obtain a load schedule for all four nodes, DCS, SRV, network equipment and SJ1, with grounding and surge protection.
Q19: As the data center protection engineer, what mounting height, spacing and structural details should I plan for a fixed-site anti-drone detection and mitigation system?
A19: UF5-MINI: Four UFTD1-mini nodes require surveyed geometry and clear antenna positions; the SJ1 requires a separately approved location and safety boundary. Request all structural and cable drawings.
Q20: Because the data center campus beside highway warehouses is near workers, homes or public roads, what legal and privacy checks apply to a fixed TDOA drone detection and countermeasure system?
A20: UF5-MINI: Active jamming is restricted or illegal for most private operators and can affect legitimate communications. UF5-MINI's SJ1 must remain disabled unless written local authority and safety procedures permit use.
Q21: For several urban data centers with one central response team, how could we scale a fixed multi-node drone detection and countermeasure system into one operating picture without losing local control?
A21: UF5-MINI: UF5-MINI already depends on four sensing nodes, DCS and SRV. Multi-site expansion needs confirmed server capacity, time synchronization, bandwidth, role control, cybersecurity and failover.
Q22: Our data center protection procurement group wants measurable criteria. How should we test a stationary counter-UAS detection and jamming system before final payment?
A22: UF5-MINI acceptance should define target types, routes, heights, weather, RF conditions, simultaneous targets, detection and location thresholds, alert latency, data export, failure behavior and a signed test result.
Q23: If the data center protection team says a fixed-site anti-drone detection and mitigation system missed a drone, what information should we collect before requesting support?
A23: UF5-MINI: For UF5-MINI support, preserve node and SJ1 status, geometry, time health, spectrum conditions, track data, operator actions, software versions and the exact package serials.
Q24: For the data center campus beside highway warehouses, we're comparing a fixed TDOA drone detection and countermeasure system with radar and cameras. What is its real operational advantage?
A24: UF5-MINI: UF5-MINI adds SJ1 to the UF4-mini-style compact detection package. Compare the need and legal ability to operate an active response, not merely the apparent completeness of the bundle.
Q25: What should our data center protection team send so the supplier can size a fixed multi-node drone detection and countermeasure system for the actual site?
A25: UF5-MINI: A UF5-MINI quote needs site geometry, RF survey, target types, detection zones, authorized response rules, third-party integrations, environmental and power design, logs and separate acceptance tests for detection and SJ1.
