Q1: I manage security for the port terminals under quayside cranes. Would a fixed multi-node drone detection and countermeasure system fit our need for tracking wide-area drone intrusions with an authorized response option?
A1: UF5 is a wide-area four-node passive TDOA detection system supplied with an SJ1 active countermeasure. UF5 combines a four-node UFTD1 passive TDOA network with DCS, SRV and an SJ1 countermeasure. It fits wide-area sites only when detection geometry and lawful active response are engineered separately.
Q2: At the port terminals under quayside cranes, what signals or behavior can a stationary counter-UAS detection and jamming system actually detect, identify or affect during a security incident?
A2: UF5: UF5 monitors 100 MHz–6 GHz through its UFTD1 detection network and uses TDOA for passive positioning. The included SJ1 actively transmits on listed control-link bands.
Q3: Our perimeter includes tall cranes, container canyons, open water and long fence lines. What practical coverage could we expect from a fixed-site anti-drone detection and mitigation system there?
A3: UF5: UFTD1 nodes list a 2–6 km detection radius depending on environment and drone type, while the UF5 SJ1 lists 1.5–2 km effective range. These are separate coverage layers, not one guaranteed radius.
Q4: At a large international port with container stacks, cranes and restricted waterside airspace, where should a fixed TDOA drone detection and countermeasure system be positioned so buildings and terrain do not create hidden approaches?
A4: UF5 needs a site survey rather than a generic placement rule. Use the published technology and range as inputs, then model tall cranes, container canyons, open water and long fence lines, target height, node geometry, RF conditions and maintenance access before fixing locations.
Q5: Inside the maritime port security control room, can a fixed multi-node drone detection and countermeasure system identify a drone or only report that something is present?
A5: UF5: UF5 is described as recognizing more than 800 common models and tracking multiple DJI, Autel and custom-built aircraft. Confirm port-specific target links and classification results in testing.
Q6: During an incident where several consumer and custom-built drones approach separate cargo terminals at once, can a stationary counter-UAS detection and jamming system keep the separate tracks clear for operators?
A6: UF5: UF5 supports multi-target tracking; the underlying UFTD1 tab lists 35 or more simultaneous targets. Verify delivered system capacity, update rate and operator workload under the acceptance scenario.
Q7: Before deployment around the port terminals under quayside cranes, does a fixed-site anti-drone detection and mitigation system transmit radio energy or only listen for drone signals?
A7: UF5: UF5 passive detection and active SJ1 response are different modes. Detection does not emit a signal, while SJ1 operation requires intentional transmission and separate control.
Q8: If an aircraft does not emit a supported control or video-transmission link, what detection or response gap would remain after installing a fixed TDOA drone detection and countermeasure system?
A8: UF5: UF5 RF sensors may not see a radio-silent target, and SJ1 may not affect every autonomous navigation method. Layered sensing and authorized non-RF response planning remain necessary.
Q9: Could a fixed multi-node drone detection and countermeasure system connect with our port command center, vessel tracking display and PTZ cameras, or would we need a separate command platform?
A9: UF5: UF5 includes DCS and SRV, but external protocols are not published. Confirm interfaces to port maps, cameras, incident systems, access control and any authorized response console.
Q10: How would a stationary counter-UAS detection and jamming system alert our maritime port security team when a drone enters a protected zone?
A10: UF5: UF5 alarms should show the passive track, classification and confidence before an operator can access SJ1 controls. Protected zones, authorization and outcome must be logged separately.
Q11: Our maritime port security team keeps incident evidence. What track, identity and operator-action records can a fixed-site anti-drone detection and mitigation system export?
A11: UF5: UF5 export details are not published. Require synchronized node health, target track, classification, whitelist, operator decision, SJ1 state and incident evidence records.
Q12: Around the port terminals under quayside cranes, can a fixed TDOA drone detection and countermeasure system ignore approved harbor-survey and customs drones without hiding real threats?
A12: UF5: UF5 supports whitelist and blacklist management for cooperative drones. Link approved port flights to a controlled authorization record and prevent whitelist uncertainty from triggering active action.
Q13: When an alarm from the port terminals under quayside cranes appears, can a fixed multi-node drone detection and countermeasure system act automatically, or should a trained operator verify the drone first?
A13: UF5: UF5 includes SJ1 for repulsion or forced landing as described, but active use is lawful only for authorized organizations under local spectrum and aviation rules with human verification.
Q14: At the port terminals under quayside cranes, our installation point is outdoors year-round. What weather limits apply to a stationary counter-UAS detection and jamming system?
A14: UF5: The UFTD1 page does not publish a complete outdoor IP or temperature specification, and UF5 includes server and SJ1 components. Require environmental ratings for every installed component.
Q15: After seasonal weather at the port terminals under quayside cranes, what routine checks would keep a fixed-site anti-drone detection and mitigation system dependable for security work?
A15: UF5: UF5 maintenance should separately test four UFTD1 nodes, synchronization, network, DCS, SRV and SJ1, while controlling software, whitelist, authorization and antenna configuration.
Q16: In heavy radio traffic around a large international port with container stacks, cranes and restricted waterside airspace, how should we keep false alarms from a fixed TDOA drone detection and countermeasure system manageable?
A16: UF5: Port cranes, ships, radios and metal structures create complex RF conditions. Use baselining, TDOA consistency, whitelist, camera confirmation and human authorization before any active response.
Q17: The maritime port security project needs a working package. What hardware, software and licenses come with a fixed multi-node drone detection and countermeasure system?

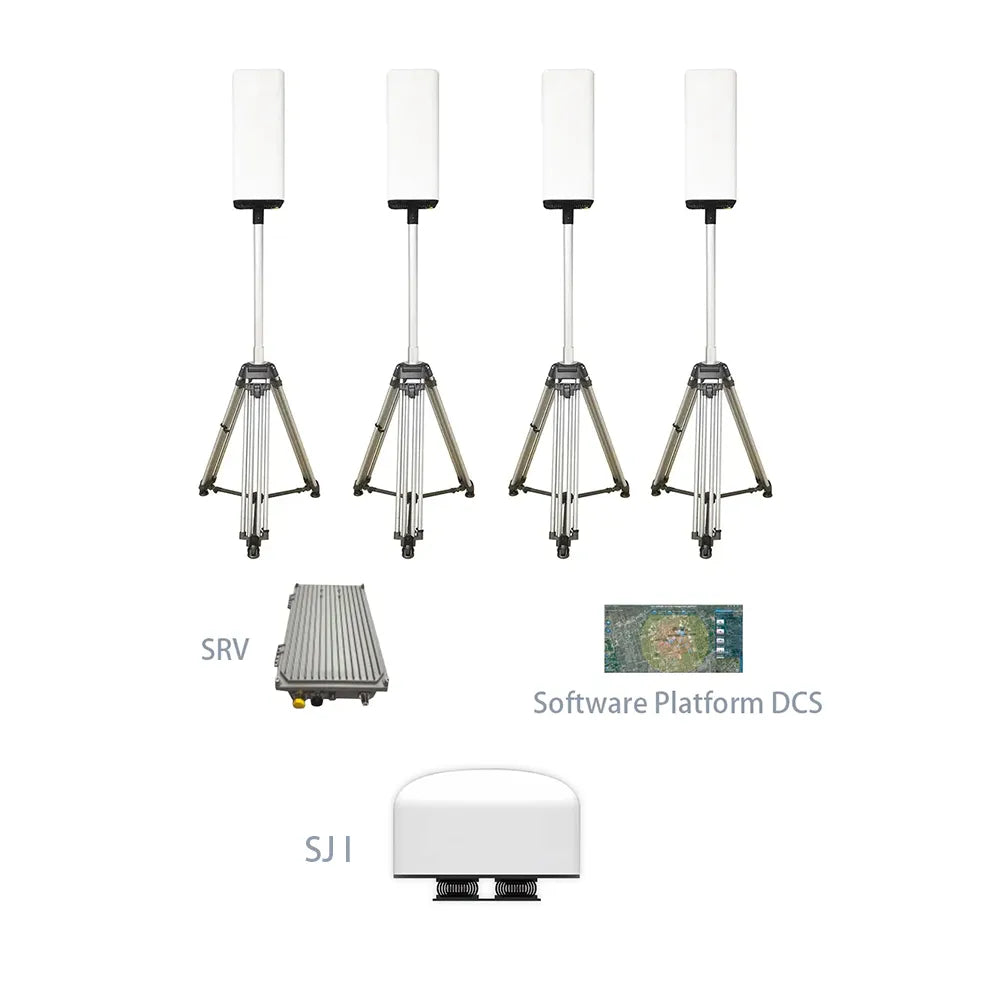

A17: UF5: UF5 lists four UFTD1 units, one DCS, one SRV and one SJ1. Confirm antennas, mounts, server hardware, software, timing, switches, workstations, cabling, spares, training and commissioning.
Q18: We need continuous coverage at the port terminals under quayside cranes. What power, network and backup arrangements does a stationary counter-UAS detection and jamming system require?
A18: UF5: UF5 total consumption and backup requirements are not published. Obtain electrical loads and protected power design for four outdoor nodes, control and server hardware, networking and SJ1.
Q19: As the maritime port security engineer, what mounting height, spacing and structural details should I plan for a fixed-site anti-drone detection and mitigation system?
A19: UF5: UF5 needs four surveyed detection-node positions with good TDOA geometry plus a separately approved SJ1 site. Port wind, salt, lightning, crane obstruction and cable routes need engineering review.
Q20: Because the port terminals under quayside cranes is near workers, homes or public roads, what legal and privacy checks apply to a fixed TDOA drone detection and countermeasure system?
A20: UF5: Active jamming is generally restricted and can affect legitimate port, aviation or public communications. Keep SJ1 disabled unless written authority, safety analysis and operating procedures permit activation.
Q21: For a national group of ports reporting to one maritime security center, how could we scale a fixed multi-node drone detection and countermeasure system into one operating picture without losing local control?
A21: UF5: UF5 is multi-node by design. A national port rollout needs verified server scale, timing, bandwidth, cybersecurity, tenant separation, failover and local control if the central link is lost.
Q22: Our maritime port security procurement group wants measurable criteria. How should we test a stationary counter-UAS detection and jamming system before final payment?
A22: UF5 acceptance should define target types, routes, heights, weather, RF conditions, simultaneous targets, detection and location thresholds, alert latency, data export, failure behavior and a signed test result.
Q23: If the maritime port security team says a fixed-site anti-drone detection and mitigation system missed a drone, what information should we collect before requesting support?
A23: UF5: For UF5 support, retain geometry, timing, node and SJ1 health, RF baseline, track examples, camera evidence, operator actions, software versions and package serial numbers.
Q24: For the port terminals under quayside cranes, we're comparing a fixed TDOA drone detection and countermeasure system with radar and cameras. What is its real operational advantage?
A24: UF5: UF5 combines wide-area UFTD1 detection with SJ1; UF4 provides the same detection-package concept without included active response. Legal authority and operating concept should drive the choice.
Q25: What should our maritime port security team send so the supplier can size a fixed multi-node drone detection and countermeasure system for the actual site?
A25: UF5: A UF5 quotation needs port maps and heights, RF survey, maritime and aviation interfaces, target scenarios, authorized response boundaries, server design, weather protection and separate witnessed tests for detection and SJ1.
