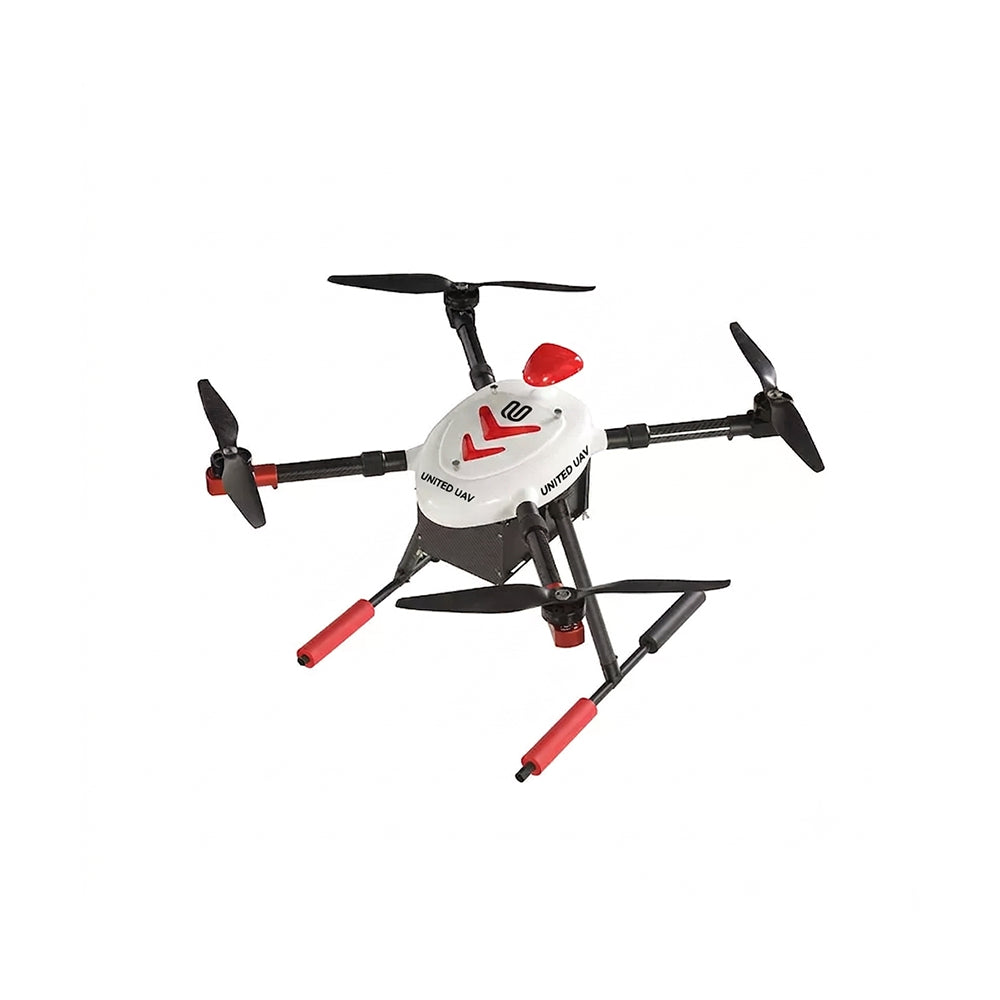

UG4830 Carbon Fiber Drone Frame for Payload-Ready Industrial UAV Builds

Q1: Our company wants to build an aircraft for campus mapping and perimeter monitoring. Would this kind of compact industrial drone frame be a sensible starting point?

A1: UG4830 is a compact payload-ready carbon-fiber quadcopter frame for 3kg industrial sensor and light-delivery builds. It is the compact option in this collection for medium-size inspection, mapping, monitoring, and research integrations. Mission suitability still depends on a complete thrust, payload, endurance, center-of-gravity, environment, and regulatory review.

Q2: For our campus research platform, we're choosing between an adjustable medium four-rotor layout and a larger 1200mm quadcopter frame. What changes when we select the carbon fiber quadcopter frame?

A2: UG4830 uses a four-rotor quadcopter. That affects motor count, wiring, lift distribution, failure analysis, maintenance workload, and control tuning; the frame alone does not guarantee safe continued flight after a motor or ESC fault.

Q3: The aircraft must fit through a laboratory doorway and a small field vehicle. How do we judge whether a 830-to-960mm adjustable payload-ready UAV frame is too large?

A3: UG4830 is listed at 830mm in the Specifications tab and an adjustable 830-to-960mm range in the description. The current sources report height as 500mm and frame weight as 1900g. Confirm the CAD drawing, transport dimensions, landing gear, propeller envelope, and service clearances before freezing the packaging design.

Q4: We need to carry a 3kg camera, compute module, and radio package on our campus research platform. Which payload figure should we use when sizing the medium drone airframe?

A4: UG4830: The current listing states about 3kg payload for 30 minutes under the stated configuration. Treat that as a published configuration point, not a universal working limit; installed equipment, reserve, wind, altitude, temperature, propulsion choice, and structural integration change the result.

Q5: For campus mapping and perimeter monitoring, how should our pilots interpret the advertised endurance of this custom drone frame kit after payload and reserve are included?

A5: UG4830: The listed no-load figure is 60 minutes with two 25000mAh batteries. No-load endurance is not mission endurance. Plan from the complete aircraft mass, measured loaded power, battery condition, route, reserve policy, wind, temperature, and landing margin.

Q6: I'm comparing frame-only and PNP options for our campus research platform. What exactly comes with each compact industrial drone frame configuration?

A6: UG4830 currently offers two selectable options: Carbon Fiber Frame Only and PNP Frame Kit with Propulsion System. “PNP” does not define one universal package, so the written quotation must itemize motors, ESCs, propellers, wiring, power distribution, landing gear, fasteners, batteries, controller, and every excluded component.

Q7: Our propulsion engineer is matching motors and ESCs for campus research platform. What must be checked before ordering this carbon fiber quadcopter frame?

A7: UG4830: the Specifications tab lists Series 6 motors. Match the complete motor, ESC, propeller, voltage, battery current, wiring, cooling, thrust margin, mounting pattern, and control system; do not select propulsion from wheelbase or payload alone.

Q8: Could a 21-inch propeller work safely on the payload-ready UAV frame for campus mapping and perimeter monitoring, or should we stay below the published maximum?

A8: UG4830: up to 21-inch propellers. That is a stated upper size, not automatic approval for every blade and motor. Check diameter clearance, pitch, hub, torque, current, vibration, tip clearance, folding path, and the exact propulsion test data.

Q9: We plan to install two 25000mAh batteries for campus research platform. How do we check battery space and center of gravity on the medium drone airframe?

A9: UG4830: two 25000mAh batteries are named for the no-load endurance figure. Confirm battery dimensions, mass, voltage, connector, restraint, cooling, removal path, structural support, and center-of-gravity range for the selected configuration before purchasing packs.

Q10: The aircraft for our campus research platform needs flight control, GPS, radios, and power distribution. How much layout freedom does this custom drone frame kit provide?

A10: UG4830 provides an integration airframe, not a guaranteed avionics layout. Obtain CAD drawings and map the flight controller, GNSS separation, power distribution, receiver antennas, telemetry, wiring, cooling, electromagnetic compatibility, and service access before drilling or bonding anything.

Q11: Our payload—mapping camera and onboard-compute module—needs low vibration during campus mapping and perimeter monitoring. Where should it mount on the compact industrial drone frame without upsetting balance?

A11: UG4830 can support mission payload integration within the verified aircraft limits, but the mount must carry flight and landing loads while controlling vibration. Keep the combined center of gravity inside the approved range and validate isolation, power, data, field of view, and emergency release where applicable.

Q12: We need a compact gimbal and downward sensor at a university UAV laboratory. Does this carbon fiber quadcopter frame leave enough ground clearance below the aircraft?

A12: UG4830's current page lists an overall height of 500mm, but that is not the same as usable payload clearance. The order-specific drawing must confirm landing-gear geometry, propeller plane, ground attitude, payload envelope, cable movement, and clearance on uneven terrain.

Q13: A field crew will move the aircraft to campus roofs and research fields. How practical is this payload-ready UAV frame to pack, protect, and transport?

A13: UG4830 has a listed bare-frame weight of 1900g and wheelbase of 830mm in the Specifications tab and an adjustable 830-to-960mm range in the description. Transport planning must include the assembled envelope, whether arms or landing gear are removable, lifting points, restraints, protective cases, battery handling, crew count, and site access.

Q14: This is our first campus research platform multirotor build. How much assembly and commissioning work does the medium drone airframe still require?

A14: UG4830 is not ready to fly. Even the PNP option requires the final contents to be confirmed, followed by mechanical inspection, wiring verification, flight-controller installation, firmware setup, propulsion checks, center-of-gravity measurement, vibration review, failsafe testing, restrained tests, and conservative flight commissioning.

Q15: If the mapping camera and onboard-compute module bracket doesn't line up, can we drill into the custom drone frame kit, or would that weaken the airframe?

A15: UG4830 uses Toray 3K carbon fiber, molded internal-pressure construction, and a listed 0.6mm shell. Do not drill, cut, sand, heat, or bond the load-bearing carbon structure without an approved drawing and process because local damage, delamination, conductive dust, stress concentration, or lost warranty may result.

Q16: We're building mapping, patrol, and agricultural observation for campus security and research teams. Would this compact industrial drone frame be a sensible base for the sensor package?

A16: UG4830 is positioned for mapping, patrol, and agricultural observation. Suitability depends on payload mass, dimensions, vibration sensitivity, field of view, data link, power demand, center of gravity, target endurance, wind, altitude, and the accuracy required by the final mission.

Q17: Our logistics team wants to move light samples and small field supplies on the campus research platform. Is this carbon fiber quadcopter frame appropriate for that cargo mission?

A17: UG4830 may support light samples and small field supplies, but only inside its verified payload and center-of-gravity envelope. The completed aircraft needs a secure mount or release system, load restraint, landing clearance, route and reserve analysis, emergency procedures, and local authorization for the operation.

Q18: The aircraft for our campus research platform may work in urban turbulence, laboratory dust, and summer field heat. What limits should we establish for the payload-ready UAV frame before trials?

A18: UG4830 has no published universal wind, rain, salt, dust, temperature, or altitude approval for the completed aircraft. Qualify the assembled UAV to the lowest limit of the frame, propulsion, avionics, batteries, connectors, payload, and control link before operating in urban turbulence, laboratory dust, and summer field heat.

Q19: After a hard landing during campus research platform, what damage checks should we perform on this medium drone airframe before flying again?

A19: UG4830 should be grounded after a hard landing until the team inspects carbon surfaces and joints, arm alignment, hidden delamination, fasteners, mounts, landing gear, wiring, propulsion, payload brackets, and center of gravity. Use nondestructive inspection or manufacturer review when damage is uncertain.

Q20: For a fleet based at a university field station, which spare parts should we order with the custom drone frame kit to avoid a long grounding?

A20: UG4830 fleet spares should be chosen from the final bill of materials: matched arms or structural assemblies, landing gear, fasteners, vibration mounts, payload plates, wiring, connectors, propulsion parts, and any proprietary hardware. Confirm interchangeability by production revision before stocking parts.

Q21: We're an OEM planning repeat builds for campus security and research teams. Can this compact industrial drone frame become the standard base for our campus research platform?

A21: UG4830 can be a repeat-build platform only after the OEM freezes the exact frame revision, CAD, bill of materials, propulsion, battery, avionics, payload mounts, fastener torques, assembly work instructions, inspection criteria, firmware, test records, and supplier change-control process.

Q22: Our procurement team is comparing quotes for campus research platform. What details must be written into the carbon fiber quadcopter frame quotation?

A22: UG4830 quotations should state the selected option—Carbon Fiber Frame Only or PNP Frame Kit with Propulsion System—plus the exact frame revision, material and process, wheelbase, height, weight, payload and endurance test conditions, motor and propeller limits, drawings, included hardware, lead time, packaging, warranty, spares, and customization responsibility. The Specifications tab lists 830mm while the description gives an adjustable 830-to-960mm range; the delivered drawing must confirm the selected geometry.

Q23: A government customer wants approval for an aircraft built for campus research platform. Does buying this payload-ready UAV frame provide certification by itself?

A23: UG4830 is a component platform, so buying the frame does not certify the completed UAV. The integrator remains responsible for airworthiness evidence, radio and aviation rules, operating approvals, payload safety, pilot requirements, insurance, and any jurisdiction-specific testing or documentation.

Q24: We're comparing this medium drone airframe with a 1200mm quadcopter frame rated around 5kg. What would make the medium drone airframe a better fit for our campus research platform?

A24: UG4830 should be chosen over a 1200mm quadcopter frame rated around 5kg only when its four-rotor quadcopter layout fits the mission better. Compare the stated wheelbase (830mm in the Specifications tab and an adjustable 830-to-960mm range in the description), bare-frame mass (1900g), published payload points, propulsion envelope, transport burden, and failure analysis; a larger or higher-rotor-count frame is not automatically safer or more efficient.

Q25: Before paying for a custom drone frame kit for campus research platform, which drawings, test data, and configuration details should the seller confirm?

A25: UG4830 should not be ordered for integration until the seller confirms the current CAD and mounting drawings, exact delivered geometry, frame revision, material process, weight tolerance, propulsion limits, payload and endurance test setup, PNP bill of materials, assembly manual, spare-part list, warranty, and every source conflict. The Specifications tab lists 830mm while the description gives an adjustable 830-to-960mm range; the delivered drawing must confirm the selected geometry.

General Care Instructions for Drones and Drone Accessories

1. Battery Care

• Charging: Always use the recommended charger for your drone's battery. Avoid overcharging—once the battery is fully charged, unplug it to avoid damaging the battery.

• Storage: When not in use, store the battery in a cool, dry place. Avoid exposing the battery to extreme temperatures (below 0°C or above 40°C).

• Maintenance: Periodically check the battery’s health and charge cycles. Replace the battery after 300-500 charge cycles depending on its condition.


2. Cleaning

• Exterior Cleaning: Use a soft cloth to clean the drone’s body and propellers. Avoid using any abrasive materials that could scratch or damage the surface.

• Lens & Camera: Clean the camera lens and sensors with a microfiber cloth to remove dust and smudges. Never use chemical cleaners that might damage the lens coating.

• Propellers: Inspect and clean the propellers regularly, especially after use in dusty or dirty environments.


3. Storage

• Safe Storage: When storing your drone, ensure it’s kept in a safe, dry place where it won't be exposed to extreme temperatures, humidity, or direct sunlight.

• Transport: Use a protective case when transporting the drone to prevent damage. Never leave your drone exposed to the elements, especially in hot or humid conditions.


4. Pre-Flight Checks

• Battery: Ensure the battery is fully charged before flying.

• Propellers: Check that the propellers are secure and free from cracks or other damage.

• GPS and Sensors: Ensure the drone's GPS and other sensors are functioning properly before takeoff. Perform a quick calibration if necessary.


5. Post-Flight Care

• Cool Down: Allow the drone to cool down before packing it away. This is particularly important if you’ve been flying for an extended period.

• Post-Flight Cleaning: After each flight, clean the drone and check for any damage or wear. Inspect the propellers and motors for any debris or dirt that might affect performance.


6. Maintenance & Repairs

• Repairs: For any mechanical issues, contact a certified repair center or technician. Avoid attempting complex repairs yourself unless you're trained.

• Firmware Updates: Regularly check for firmware updates for your drone to ensure it has the latest features and safety improvements.


7. Environmental Considerations

• Weather Conditions: Avoid flying your drone in strong winds, heavy rain, or extreme temperatures. Always check the weather conditions before flying.

• Flying Location: Always ensure that you are flying in an open area, free from obstacles like trees, power lines, and buildings. Check local regulations for any restricted airspaces.

8. Safety Guidelines

This section provides additional safety information to help improve drone operation reliability and reduce flight risks.

• Pre-Flight Awareness: Always review weather, terrain, airspace, battery condition, payload status, and communication link before each flight.
• Safe Operation: Avoid aggressive maneuvers, unnecessary hovering, and long operation in crosswind conditions.
• Emergency Response: If abnormal vibration, power loss, GPS loss, low voltage, strong wind, or sensor error occurs, return or land the drone as soon as possible.
• Operator Responsibility: Operators should follow local aviation regulations and manufacturer instructions at all times.

9. General Weather Considerations

Weather conditions can strongly affect drone flight safety, especially for VTOL fixed wing drones operating over long routes or complex terrain.

• Heavy Rain: Strong rainfall may come with lightning, hail, wind shear, and turbulence. These conditions can reduce aerodynamic performance, increase motor load, and may damage the propulsion system.
• Icing: Aircraft icing may occur as clear ice, rime ice, or frost. Light icing can reduce performance and flight time. If moderate or severe icing occurs, change route or land immediately.
• Low Visibility: Do not fly when effective visibility at the operation site is too poor.
• Obstructed Visual Range: If visual range becomes restricted during flight, change route or land as soon as possible to avoid unnecessary risk.
• Mountain Airflow: Mountain airflow can create turbulence and unstable air. Increase route safety altitude when operating in mountainous areas.
• Wind Shear: Wind direction may change quickly in mountains, valleys, and highland areas. Pay close attention to wind conditions during take-off, route flight, and landing.

10. Battery Energy Saving Procedure

Proper flight planning and battery management can help improve endurance and reduce unnecessary power consumption.

• Firmware Check: Make sure the flight controller software is updated to the latest recommended version.
• Parameter Adjustment: Before take-off, adjust aircraft parameters according to take-off weight and follow the manufacturer’s recommended route speed.
• Reduce Aggressive Maneuvers: Avoid rapid turns, sharp climbs, unnecessary hovering, and extended crosswind operation.
• Limit High-Altitude Operation: Reduce operating time at high altitude whenever possible.
• Cold Region Operation: Use a battery temperature management system when operating in cold or high-altitude regions.

11. High-Altitude Operation

High-altitude operation generally refers to flight at 8,000 ft / 2,438 m or above. At high altitude, the propulsion system works under greater load, which may increase the risk of motor or ESC overload.

• Operating Recommendation: Keep the aircraft within the safe altitude range recommended by the manufacturer.
• Payload Reduction: If high-altitude operation is required, reduce payload weight and operating time.
• Flight Control: Reduce climb and descent rates, increase turn radius, and avoid aggressive maneuvers.
• Power Loss: Both electric and fuel-powered systems can experience power loss due to thinner air and reduced air density. This may reduce maximum take-off weight and standard endurance.
• Propeller Selection: Use the appropriate propeller model for the operating altitude. Contact the drone manufacturer for specific technical parameters.
• Electronic Equipment: Some electronic components may be more likely to experience corona discharge or abnormal electrical behavior at high altitude. Inspect electronic systems carefully before flight.
• Airspeed Calibration: True airspeed and indicated airspeed can differ significantly at high altitude. At 2,000 m, the difference may be about 10%; at 4,000 m, about 20%; and at 5,000 m, about 30%. Use calibrated airspeed settings for high-altitude operation.
• Weather and Terrain: Highland areas often have strong winds, turbulence, wind shear, temperature differences, and rapidly changing local weather. Pay special attention during take-off and landing.
• Communication Link: Mountainous terrain, valleys, and cliffs may cause multipath interference and reduce communication distance or link quality.
• Low Temperature: High-altitude regions often have lower temperatures. Use a heating system when required. Do not fly in extremely low-temperature conditions.
• Operator Condition: Operators may experience slower reaction speed due to lower oxygen and cold weather. Arrange personnel properly during high-altitude missions.

12. Cold Weather Operation

Cold weather mainly affects drone endurance and battery discharge performance. When the operating temperature is below 10°C, flight time may decrease significantly, and battery voltage may drop suddenly without clear warning.

• Flight Limitation: Reduce or avoid flight operations in low-temperature conditions when battery performance is not stable.
• Battery Insulation: Adding sponge or foam between the battery and aircraft body can help improve battery discharge performance in cold conditions.
• Battery Transport: Use an insulated explosion-proof battery box when transporting batteries in cold weather.
• Sensor Check: During airspeed calibration, check whether the pressure sensor and altitude sensor are operating normally.
• Battery Heating Option: Use the battery heating module provided or recommended by the manufacturer when required.
• Extreme Cold Warning: Do not operate the aircraft in extremely low-temperature conditions.

13. Solid-State Battery Operation Notes

Solid-state batteries may increase aircraft endurance, but operators must understand the operational limitations before use.

• Power Configuration: The power configuration may be different from the standard setup and may not be compatible with standard flight batteries. Contact the manufacturer before use.
• Altitude Limit: Operate below 1,500 m unless otherwise confirmed by the manufacturer.
• Payload Limit: Payload should not exceed 1 kg unless otherwise confirmed.
• Test Environment: Manual endurance data is usually tested in an environment above 15°C.
• Wind Limit: Take-off and landing should be performed when wind speed is below Level 3.

14. Terms and Definitions

The following terms and definitions apply to drone operation, maintenance, and safety guidance.

• Drone / UAV: A powered, unmanned, reusable aircraft that can be controlled remotely, semi-autonomously, or autonomously.
• Safety: The condition of being free from accidents, hazards, and threats.
• GPS Signal Loss: Loss of GPS positioning caused by interference, magnetic disturbance, signal blockage, or weak satellite reception.
• In-Flight Motor Stop: A condition where the motor or engine stops operating during flight.
• Flight Controller: The control system of the drone, often considered the “brain” of the aircraft. It includes gyroscopes, accelerometers, compass sensors, GPS modules, and control circuits to maintain flight attitude and stability.
• Channel: A common remote controller term. Each channel corresponds to one control signal used to command a specific aircraft action.
• 2S / 3S / 4S Battery: “S” refers to the number of battery cells connected in series. A standard lithium battery cell has a nominal voltage of 3.7V and full charge voltage of 4.2V. A high-voltage lithium battery cell usually has a nominal voltage of 3.8V and full charge voltage of 4.35V.
• Battery C Rating: The C rating represents battery discharge capability. For example, if a 10Ah battery is rated at 5C, its maximum discharge current is 5 × 10A = 50A.
