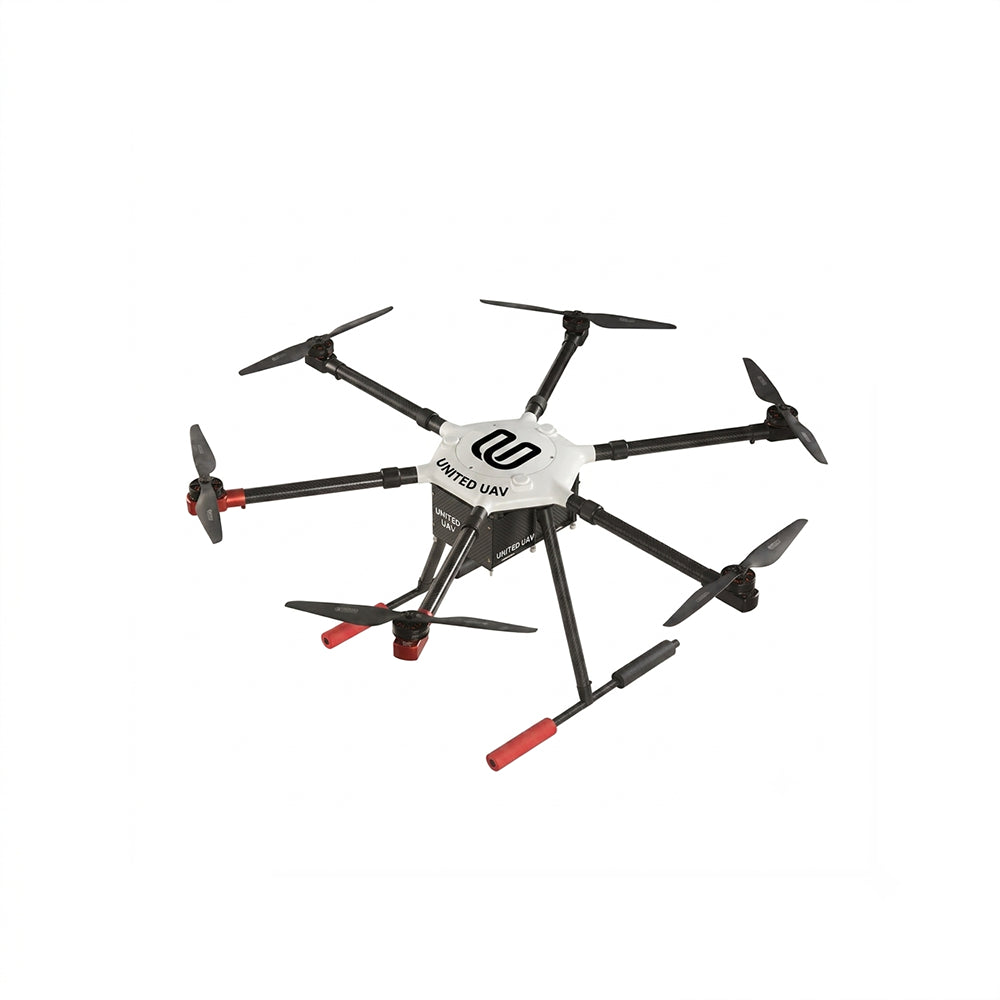

UG6113 Carbon Fiber UAV Frame Kit for Heavy-Payload Hexacopter Builds

Q1: Our company wants to build an aircraft for flood assessment and portable radio support. Would this kind of hexacopter UAV frame kit be a sensible starting point?

A1: UG6113 is a hexacopter carbon-fiber frame listing whose current model geometry and performance fields require written clarification before engineering release. It should remain on technical hold until the seller supplies one order-specific drawing and specification sheet. Mission suitability still depends on a complete thrust, payload, endurance, center-of-gravity, environment, and regulatory review.

Q2: For our flood-response mission, we're choosing between a six-rotor medium industrial layout and a documented 1200mm quadcopter platform. What changes when we select the carbon fiber drone airframe?

A2: UG6113 uses a six-rotor hexacopter. That affects motor count, wiring, lift distribution, failure analysis, maintenance workload, and control tuning; the frame alone does not guarantee safe continued flight after a motor or ESC fault.

Q3: The aircraft must fit through a rescue trailer and temporary field shelter. How do we judge whether a roughly 1130-to-1200mm-class industrial drone frame is too large?

A3: UG6113 is listed at 1130-to-1200mm depending on which current page field is used. The current sources report height as 600mm in the description versus 500mm in the Specifications tab and frame weight as about 2200g in the description versus 1700g in the Specifications tab. Confirm the CAD drawing, transport dimensions, landing gear, propeller envelope, and service clearances before freezing the packaging design.

Q4: We need to carry a 5kg thermal camera and radio repeater on our flood-response mission. Which payload figure should we use when sizing the six-rotor frame kit?

A4: UG6113: The description states 5kg for about 30 minutes, while the Specifications tab states 5kg for 35 minutes. Treat that as a published configuration point, not a universal working limit; installed equipment, reserve, wind, altitude, temperature, propulsion choice, and structural integration change the result.

Q5: For flood assessment and portable radio support, how should our pilots interpret the advertised endurance of this custom multirotor frame after payload and reserve are included?

A5: UG6113: The description states about 70 minutes no-load, while the Specifications tab states 85 minutes; both refer to two 25000mAh batteries. No-load endurance is not mission endurance. Plan from the complete aircraft mass, measured loaded power, battery condition, route, reserve policy, wind, temperature, and landing margin.

Q6: I'm comparing frame-only and PNP options for our flood-response mission. What exactly comes with each hexacopter UAV frame kit configuration?

A6: UG6113 currently offers two selectable options: Carbon Fiber Frame Only and PNP Frame Kit with Propulsion System. “PNP” does not define one universal package, so the written quotation must itemize motors, ESCs, propellers, wiring, power distribution, landing gear, fasteners, batteries, controller, and every excluded component.

Q7: Our propulsion engineer is matching motors and ESCs for flood-response mission. What must be checked before ordering this carbon fiber drone airframe?

A7: UG6113: the description says Series 6 motors while the Specifications tab says Series 8. Match the complete motor, ESC, propeller, voltage, battery current, wiring, cooling, thrust margin, mounting pattern, and control system; do not select propulsion from wheelbase or payload alone.

Q8: Could a 21-to-29-inch propeller work safely on the industrial drone frame for flood assessment and portable radio support, or should we stay below the published maximum?

A8: UG6113: the description says up to 21 inches while the Specifications tab says up to 29 inches. That is a stated upper size, not automatic approval for every blade and motor. Check diameter clearance, pitch, hub, torque, current, vibration, tip clearance, folding path, and the exact propulsion test data.

Q9: We plan to install two 25000mAh batteries for flood-response mission. How do we check battery space and center of gravity on the six-rotor frame kit?

A9: UG6113: two 25000mAh batteries are referenced, but the conflicting endurance figures must be resolved. Confirm battery dimensions, mass, voltage, connector, restraint, cooling, removal path, structural support, and center-of-gravity range for the selected configuration before purchasing packs.

Q10: The aircraft for our flood-response mission needs flight control, GPS, radios, and power distribution. How much layout freedom does this custom multirotor frame provide?

A10: UG6113 provides an integration airframe, not a guaranteed avionics layout. Obtain CAD drawings and map the flight controller, GNSS separation, power distribution, receiver antennas, telemetry, wiring, cooling, electromagnetic compatibility, and service access before drilling or bonding anything.

Q11: Our payload—thermal camera, speaker, and portable radio repeater—needs low vibration during flood assessment and portable radio support. Where should it mount on the hexacopter UAV frame kit without upsetting balance?

A11: UG6113 can support mission payload integration within the verified aircraft limits, but the mount must carry flight and landing loads while controlling vibration. Keep the combined center of gravity inside the approved range and validate isolation, power, data, field of view, and emergency release where applicable.

Q12: We need an emergency sensor pod and release pouch at a rural emergency-services workshop. Does this carbon fiber drone airframe leave enough ground clearance below the aircraft?

A12: UG6113's current page lists an overall height of 600mm in the description versus 500mm in the Specifications tab, but that is not the same as usable payload clearance. The order-specific drawing must confirm landing-gear geometry, propeller plane, ground attitude, payload envelope, cable movement, and clearance on uneven terrain.

Q13: A field crew will move the aircraft to flooded rural districts. How practical is this industrial drone frame to pack, protect, and transport?

A13: UG6113 has a listed bare-frame weight of about 2200g in the description versus 1700g in the Specifications tab and wheelbase of 1130-to-1200mm depending on which current page field is used. Transport planning must include the assembled envelope, whether arms or landing gear are removable, lifting points, restraints, protective cases, battery handling, crew count, and site access.

Q14: This is our first flood-response mission multirotor build. How much assembly and commissioning work does the six-rotor frame kit still require?

A14: UG6113 is not ready to fly. Even the PNP option requires the final contents to be confirmed, followed by mechanical inspection, wiring verification, flight-controller installation, firmware setup, propulsion checks, center-of-gravity measurement, vibration review, failsafe testing, restrained tests, and conservative flight commissioning.

Q15: If the thermal camera, speaker, and portable radio repeater bracket doesn't line up, can we drill into the custom multirotor frame, or would that weaken the airframe?

A15: UG6113 uses Toray 3K carbon fiber and molded internal-pressure construction with a listed 0.6mm shell. Do not drill, cut, sand, heat, or bond the load-bearing carbon structure without an approved drawing and process because local damage, delamination, conductive dust, stress concentration, or lost warranty may result.

Q16: We're building thermal search support and temporary communications for rural emergency-response integrators. Would this hexacopter UAV frame kit be a sensible base for the sensor package?

A16: UG6113 is positioned for thermal search support and temporary communications. Suitability depends on payload mass, dimensions, vibration sensitivity, field of view, data link, power demand, center of gravity, target endurance, wind, altitude, and the accuracy required by the final mission.

Q17: Our logistics team wants to move small rescue supplies and radio repeaters on the flood-response mission. Is this carbon fiber drone airframe appropriate for that cargo mission?

A17: UG6113 may support small rescue supplies and radio repeaters, but only inside its verified payload and center-of-gravity envelope. The completed aircraft needs a secure mount or release system, load restraint, landing clearance, route and reserve analysis, emergency procedures, and local authorization for the operation.

Q18: The aircraft for our flood-response mission may work in rain-prone rural staging areas and uneven ground. What limits should we establish for the industrial drone frame before trials?

A18: UG6113 has no published universal wind, rain, salt, dust, temperature, or altitude approval for the completed aircraft. Qualify the assembled UAV to the lowest limit of the frame, propulsion, avionics, batteries, connectors, payload, and control link before operating in rain-prone rural staging areas and uneven ground.

Q19: After a hard landing during flood-response mission, what damage checks should we perform on this six-rotor frame kit before flying again?

A19: UG6113 should be grounded after a hard landing until the team inspects carbon surfaces and joints, arm alignment, hidden delamination, fasteners, mounts, landing gear, wiring, propulsion, payload brackets, and center of gravity. Use nondestructive inspection or manufacturer review when damage is uncertain.

Q20: For a fleet based at a provincial emergency warehouse, which spare parts should we order with the custom multirotor frame to avoid a long grounding?

A20: UG6113 fleet spares should be chosen from the final bill of materials: matched arms or structural assemblies, landing gear, fasteners, vibration mounts, payload plates, wiring, connectors, propulsion parts, and any proprietary hardware. Confirm interchangeability by production revision before stocking parts.

Q21: We're an OEM planning repeat builds for rural emergency-response integrators. Can this hexacopter UAV frame kit become the standard base for our flood-response mission?

A21: UG6113 can be a repeat-build platform only after the OEM freezes the exact frame revision, CAD, bill of materials, propulsion, battery, avionics, payload mounts, fastener torques, assembly work instructions, inspection criteria, firmware, test records, and supplier change-control process.

Q22: Our procurement team is comparing quotes for flood-response mission. What details must be written into the carbon fiber drone airframe quotation?

A22: UG6113 quotations should state the selected option—Carbon Fiber Frame Only or PNP Frame Kit with Propulsion System—plus the exact frame revision, material and process, wheelbase, height, weight, payload and endurance test conditions, motor and propeller limits, drawings, included hardware, lead time, packaging, warranty, spares, and customization responsibility. The current page conflicts on model naming, wheelbase, height, frame weight, endurance, payload duration, motor series, and propeller size; no exact build should be released from the page alone.

Q23: A government customer wants approval for an aircraft built for flood-response mission. Does buying this industrial drone frame provide certification by itself?

A23: UG6113 is a component platform, so buying the frame does not certify the completed UAV. The integrator remains responsible for airworthiness evidence, radio and aviation rules, operating approvals, payload safety, pilot requirements, insurance, and any jurisdiction-specific testing or documentation.

Q24: We're comparing this six-rotor frame kit with a 1200mm frame whose dimensions and endurance are internally consistent. What would make the six-rotor frame kit a better fit for our flood-response mission?

A24: UG6113 should be chosen over a 1200mm frame whose dimensions and endurance are internally consistent only when its six-rotor hexacopter layout fits the mission better. Compare the stated wheelbase (1130-to-1200mm depending on which current page field is used), bare-frame mass (about 2200g in the description versus 1700g in the Specifications tab), published payload points, propulsion envelope, transport burden, and failure analysis; a larger or higher-rotor-count frame is not automatically safer or more efficient.

Q25: Before paying for a custom multirotor frame for flood-response mission, which drawings, test data, and configuration details should the seller confirm?

A25: UG6113 should not be ordered for integration until the seller confirms the current CAD and mounting drawings, exact delivered geometry, frame revision, material process, weight tolerance, propulsion limits, payload and endurance test setup, PNP bill of materials, assembly manual, spare-part list, warranty, and every source conflict. The current page conflicts on model naming, wheelbase, height, frame weight, endurance, payload duration, motor series, and propeller size; no exact build should be released from the page alone.

General Care Instructions for Drones and Drone Accessories

1. Battery Care

• Charging: Always use the recommended charger for your drone's battery. Avoid overcharging—once the battery is fully charged, unplug it to avoid damaging the battery.

• Storage: When not in use, store the battery in a cool, dry place. Avoid exposing the battery to extreme temperatures (below 0°C or above 40°C).

• Maintenance: Periodically check the battery’s health and charge cycles. Replace the battery after 300-500 charge cycles depending on its condition.


2. Cleaning

• Exterior Cleaning: Use a soft cloth to clean the drone’s body and propellers. Avoid using any abrasive materials that could scratch or damage the surface.

• Lens & Camera: Clean the camera lens and sensors with a microfiber cloth to remove dust and smudges. Never use chemical cleaners that might damage the lens coating.

• Propellers: Inspect and clean the propellers regularly, especially after use in dusty or dirty environments.


3. Storage

• Safe Storage: When storing your drone, ensure it’s kept in a safe, dry place where it won't be exposed to extreme temperatures, humidity, or direct sunlight.

• Transport: Use a protective case when transporting the drone to prevent damage. Never leave your drone exposed to the elements, especially in hot or humid conditions.


4. Pre-Flight Checks

• Battery: Ensure the battery is fully charged before flying.

• Propellers: Check that the propellers are secure and free from cracks or other damage.

• GPS and Sensors: Ensure the drone's GPS and other sensors are functioning properly before takeoff. Perform a quick calibration if necessary.


5. Post-Flight Care

• Cool Down: Allow the drone to cool down before packing it away. This is particularly important if you’ve been flying for an extended period.

• Post-Flight Cleaning: After each flight, clean the drone and check for any damage or wear. Inspect the propellers and motors for any debris or dirt that might affect performance.


6. Maintenance & Repairs

• Repairs: For any mechanical issues, contact a certified repair center or technician. Avoid attempting complex repairs yourself unless you're trained.

• Firmware Updates: Regularly check for firmware updates for your drone to ensure it has the latest features and safety improvements.


7. Environmental Considerations

• Weather Conditions: Avoid flying your drone in strong winds, heavy rain, or extreme temperatures. Always check the weather conditions before flying.

• Flying Location: Always ensure that you are flying in an open area, free from obstacles like trees, power lines, and buildings. Check local regulations for any restricted airspaces.

8. Safety Guidelines

This section provides additional safety information to help improve drone operation reliability and reduce flight risks.

• Pre-Flight Awareness: Always review weather, terrain, airspace, battery condition, payload status, and communication link before each flight.
• Safe Operation: Avoid aggressive maneuvers, unnecessary hovering, and long operation in crosswind conditions.
• Emergency Response: If abnormal vibration, power loss, GPS loss, low voltage, strong wind, or sensor error occurs, return or land the drone as soon as possible.
• Operator Responsibility: Operators should follow local aviation regulations and manufacturer instructions at all times.

9. General Weather Considerations

Weather conditions can strongly affect drone flight safety, especially for VTOL fixed wing drones operating over long routes or complex terrain.

• Heavy Rain: Strong rainfall may come with lightning, hail, wind shear, and turbulence. These conditions can reduce aerodynamic performance, increase motor load, and may damage the propulsion system.
• Icing: Aircraft icing may occur as clear ice, rime ice, or frost. Light icing can reduce performance and flight time. If moderate or severe icing occurs, change route or land immediately.
• Low Visibility: Do not fly when effective visibility at the operation site is too poor.
• Obstructed Visual Range: If visual range becomes restricted during flight, change route or land as soon as possible to avoid unnecessary risk.
• Mountain Airflow: Mountain airflow can create turbulence and unstable air. Increase route safety altitude when operating in mountainous areas.
• Wind Shear: Wind direction may change quickly in mountains, valleys, and highland areas. Pay close attention to wind conditions during take-off, route flight, and landing.

10. Battery Energy Saving Procedure

Proper flight planning and battery management can help improve endurance and reduce unnecessary power consumption.

• Firmware Check: Make sure the flight controller software is updated to the latest recommended version.
• Parameter Adjustment: Before take-off, adjust aircraft parameters according to take-off weight and follow the manufacturer’s recommended route speed.
• Reduce Aggressive Maneuvers: Avoid rapid turns, sharp climbs, unnecessary hovering, and extended crosswind operation.
• Limit High-Altitude Operation: Reduce operating time at high altitude whenever possible.
• Cold Region Operation: Use a battery temperature management system when operating in cold or high-altitude regions.

11. High-Altitude Operation

High-altitude operation generally refers to flight at 8,000 ft / 2,438 m or above. At high altitude, the propulsion system works under greater load, which may increase the risk of motor or ESC overload.

• Operating Recommendation: Keep the aircraft within the safe altitude range recommended by the manufacturer.
• Payload Reduction: If high-altitude operation is required, reduce payload weight and operating time.
• Flight Control: Reduce climb and descent rates, increase turn radius, and avoid aggressive maneuvers.
• Power Loss: Both electric and fuel-powered systems can experience power loss due to thinner air and reduced air density. This may reduce maximum take-off weight and standard endurance.
• Propeller Selection: Use the appropriate propeller model for the operating altitude. Contact the drone manufacturer for specific technical parameters.
• Electronic Equipment: Some electronic components may be more likely to experience corona discharge or abnormal electrical behavior at high altitude. Inspect electronic systems carefully before flight.
• Airspeed Calibration: True airspeed and indicated airspeed can differ significantly at high altitude. At 2,000 m, the difference may be about 10%; at 4,000 m, about 20%; and at 5,000 m, about 30%. Use calibrated airspeed settings for high-altitude operation.
• Weather and Terrain: Highland areas often have strong winds, turbulence, wind shear, temperature differences, and rapidly changing local weather. Pay special attention during take-off and landing.
• Communication Link: Mountainous terrain, valleys, and cliffs may cause multipath interference and reduce communication distance or link quality.
• Low Temperature: High-altitude regions often have lower temperatures. Use a heating system when required. Do not fly in extremely low-temperature conditions.
• Operator Condition: Operators may experience slower reaction speed due to lower oxygen and cold weather. Arrange personnel properly during high-altitude missions.

12. Cold Weather Operation

Cold weather mainly affects drone endurance and battery discharge performance. When the operating temperature is below 10°C, flight time may decrease significantly, and battery voltage may drop suddenly without clear warning.

• Flight Limitation: Reduce or avoid flight operations in low-temperature conditions when battery performance is not stable.
• Battery Insulation: Adding sponge or foam between the battery and aircraft body can help improve battery discharge performance in cold conditions.
• Battery Transport: Use an insulated explosion-proof battery box when transporting batteries in cold weather.
• Sensor Check: During airspeed calibration, check whether the pressure sensor and altitude sensor are operating normally.
• Battery Heating Option: Use the battery heating module provided or recommended by the manufacturer when required.
• Extreme Cold Warning: Do not operate the aircraft in extremely low-temperature conditions.

13. Solid-State Battery Operation Notes

Solid-state batteries may increase aircraft endurance, but operators must understand the operational limitations before use.

• Power Configuration: The power configuration may be different from the standard setup and may not be compatible with standard flight batteries. Contact the manufacturer before use.
• Altitude Limit: Operate below 1,500 m unless otherwise confirmed by the manufacturer.
• Payload Limit: Payload should not exceed 1 kg unless otherwise confirmed.
• Test Environment: Manual endurance data is usually tested in an environment above 15°C.
• Wind Limit: Take-off and landing should be performed when wind speed is below Level 3.

14. Terms and Definitions

The following terms and definitions apply to drone operation, maintenance, and safety guidance.

• Drone / UAV: A powered, unmanned, reusable aircraft that can be controlled remotely, semi-autonomously, or autonomously.
• Safety: The condition of being free from accidents, hazards, and threats.
• GPS Signal Loss: Loss of GPS positioning caused by interference, magnetic disturbance, signal blockage, or weak satellite reception.
• In-Flight Motor Stop: A condition where the motor or engine stops operating during flight.
• Flight Controller: The control system of the drone, often considered the “brain” of the aircraft. It includes gyroscopes, accelerometers, compass sensors, GPS modules, and control circuits to maintain flight attitude and stability.
• Channel: A common remote controller term. Each channel corresponds to one control signal used to command a specific aircraft action.
• 2S / 3S / 4S Battery: “S” refers to the number of battery cells connected in series. A standard lithium battery cell has a nominal voltage of 3.7V and full charge voltage of 4.2V. A high-voltage lithium battery cell usually has a nominal voltage of 3.8V and full charge voltage of 4.35V.
• Battery C Rating: The C rating represents battery discharge capability. For example, if a 10Ah battery is rated at 5C, its maximum discharge current is 5 × 10A = 50A.
