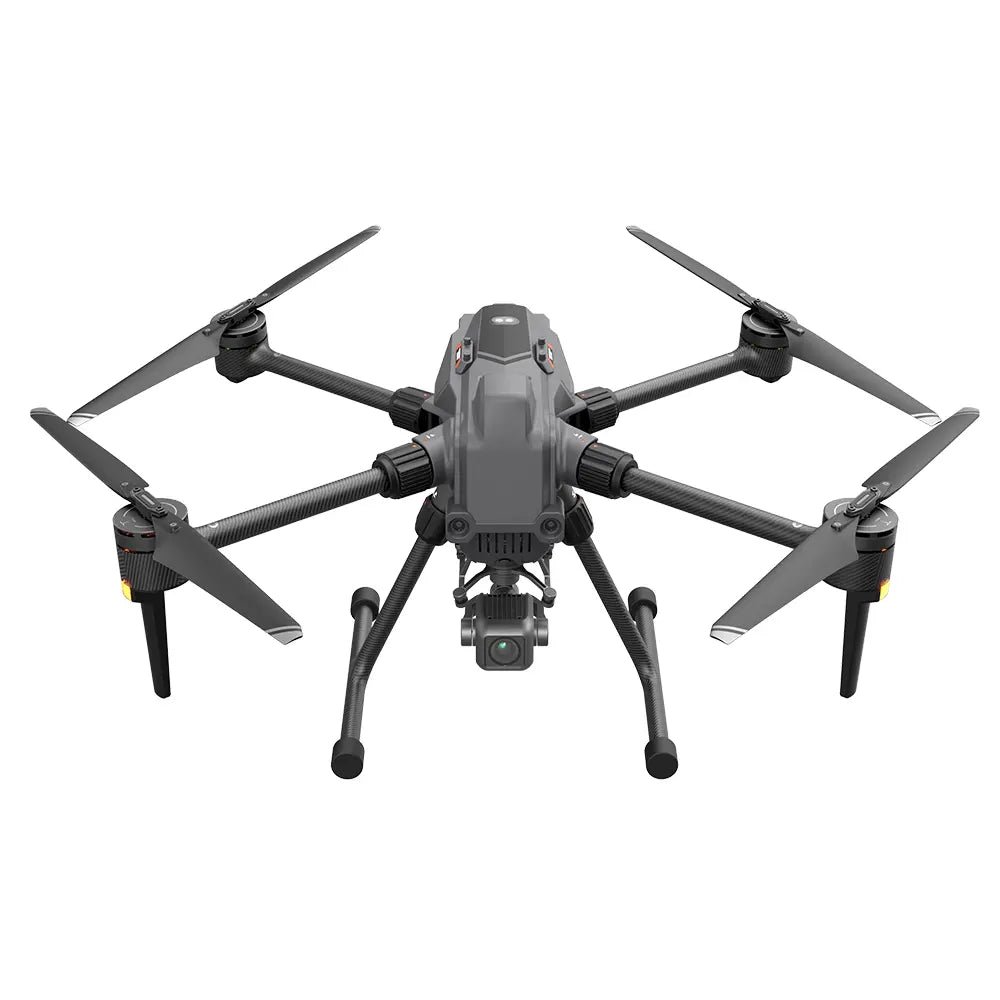

UIS400 Drone Utility Inspection | UNITED UAV Industrial Inspection Drone

Q1: I inspect power lines and need one inspection drone for visual, thermal and distance data. Which type of platform fits that job?

A1: The UIS400 is positioned for utility inspection and supports a quad-sensor payload combining wide, telephoto, thermal and laser-ranging functions. It also provides a 3 kg payload capacity and omnidirectional sensing, but the exact camera package and reporting software must be specified.

Q2: Our inspection drone must carry a LiDAR scanner and another small sensor. How much installed payload can the aircraft support?

A2: The UIS400 lists a maximum payload of 3 kg and maximum takeoff weight of 7 kg. Count the LiDAR, second sensor, dual mount, cables and power modules together, and note that the page limits maximum safe speed to 15 m/s at maximum payload.

Q3: When comparing inspection drones, I see three different flight-time numbers on this product page. Which one should procurement trust?

A3: The current UIS400 page is inconsistent: the specifications list 60 minutes with no load, another module says 63 minutes, and existing icon or FAQ copy says 45 minutes. Procurement should request the current approved data sheet and a payload-versus-endurance acceptance test before using any figure.

Q4: For solar-panel fault checks, can the inspection drone capture thermal images and detailed visible photos without changing cameras between flights?

A4: The UIS400 UPQL02 quad-sensor option combines 50 MP wide, 48 MP telephoto, 640 × 512 thermal and laser-ranging sensors in one gimbal. Confirm radiometric file output, calibration, analysis software and the exact 13 mm or 25 mm thermal configuration.

Q5: A transmission tower defect is far from the safe flight path. What optical zoom can the inspection drone use for close detail?

A5: The UIS400 quad-sensor telephoto specification lists 10× optical and up to 160× hybrid zoom. The useful defect size still depends on distance, vibration, atmosphere, lighting and sensor settings, so validate the required pixels on target during acceptance.

Q6: We need precise clearance measurements near a bridge. What laser-ranging distance is published for the inspection drone camera?

A6: The UIS400 UPQL02 rangefinder is listed for 10–1,500 m under defined reflector conditions. Accuracy varies with distance, reflectivity, incidence angle and weather, so it should support the inspection workflow rather than replace a certified survey instrument without validation.

Q7: Around substations there are wires in every direction. Does the inspection drone sense obstacles above, below and behind as well as ahead?

A7: The UIS400 product page describes omnidirectional visual sensing and millimeter-wave radar for day and night obstacle detection. The specification gives different ranges by direction and requires suitable conditions, so thin wires, reflective surfaces and blind zones still demand conservative routes and pilot oversight.

Q8: At night our utility inspection drone may approach thin cables. Can obstacle avoidance guarantee that it will never strike one?

A8: No. The UIS400 page says its visual and radar system is designed to detect thin cables day or night, but no sensing system guarantees every cable in all light, weather, angle or background conditions. Maintain stand-off distance and a planned abort path.

Q9: For repeatable tower photos, how precise is the inspection drone when RTK is fixed and the correction link is healthy?

A9: The UIS400 specification lists RTK position accuracy of about 1 cm + 1 ppm horizontally and 1.5 cm + 1 ppm vertically, while hover accuracy is listed around ±0.1 m. Repeatable framing also depends on gimbal angle, route, wind and correction quality.

Q10: Our pipeline crosses open land and valleys. How far can the inspection drone send HD video under different regional radio rules?

A10: The UIS400 lists up to 15 km under FCC and 8 km under CE, SRRC or MIC when unobstructed and free of interference. Valley terrain, antennas, battery reserve and VLOS or BVLOS approvals can reduce the practical mission distance substantially.

Q11: Mountains block our radio path. Can several inspection drones relay the control signal through a valley?

A11: The UIS400 page describes networking multiple aircraft to relay signals across barriers. That capability needs compatible radios, mission design, frequency approval, terrain analysis and loss-of-link testing; it should not be assumed from buying multiple aircraft alone.

Q12: Two specialists need to share one inspection drone, while another project wants one controller managing two aircraft. Are both control modes supported?

A12: The UIS400 page states that one remote controller can manage two aircraft or two controllers can share one aircraft. Confirm firmware, role handoff, payload control, regulatory staffing and emergency authority for the exact mode before using it operationally.

Q13: We want scheduled inspections without a crew driving to every site. Can this inspection drone operate from an automated dock?

A13: The UIS400 is presented as compatible with the UK01 docking station and UVER management platform for remote missions, charging, weather monitoring and data upload. The dock, installation, network, permissions, platform licenses and site acceptance are separate project items.

Q14: During emergency work, can the inspection drone carry a camera and loudspeaker or floodlight at the same time?

A14: The UIS400 supports the UAMM01 dual payload mount for combinations such as a camera with a loudspeaker or spotlight. Verify total mass under 3 kg, power under the mount limits, balance, software control and the endurance impact of the exact combination.

Q15: For continuous security observation, can the inspection drone use a tethered power system instead of landing for battery changes?

A15: The UIS400 product page lists the UPTP01 tether system with a 100 m cable and a 2,500 W airborne output unit. Tether operations require the exact compatible configuration, ground power, cable management, weather limits, emergency descent procedure and local tethered-flight approval.

Q16: Our safety case asks for a parachute on the inspection drone. What system is listed, and does that automatically satisfy regulations?

A16: The UIS400 page lists the UPPC01 parachute with a 0.5-second response and under-10 kg load rating. Compatibility does not automatically satisfy a jurisdiction's parachute standard or operations-over-people rules; obtain certification evidence, deployment limits and maintenance requirements.

Q17: Our coastal transmission sites get strong gusts. What wind resistance is stated for the utility inspection drone during takeoff and landing?

A17: The UIS400 specification lists maximum wind resistance of 12 m/s, including takeoff and landing. Use a lower company limit after considering gusts, turbulence around towers, payload area, wet surfaces and return reserve; the maximum is not a routine target.

Q18: The inspection drone page mentions both IP45 and IP54. Which protection rating applies to the aircraft we are buying?

A18: The UIS400 aircraft specification currently lists IP45, while a marketing module says IP54 and the remote controller specification lists IP54. Because these references conflict, obtain written confirmation for the exact aircraft, controller and payload rather than treating IP54 as a system-wide rating.

Q19: What is included with the inspection drone before we add a quad-sensor camera, dock or other mission equipment?

A19: The UIS400 page lists the complete aircraft, one remote controller, one standard battery and one carrying case by default. Cameras, docking station, loudspeaker, floodlights, delivery kit, parachute, tether, mounts and communication or RTK modules are selectable items that must appear in the quotation.

Q20: If one inspection drone battery takes nearly two hours to charge, how many packs should a field team rotate?

A20: The UIS400 specification lists about 110 minutes for a full charge with the standard charger. Battery quantity should be calculated from loaded sortie time, landing reserve, cooling, charger power, travel schedule and desired utilization; one standard battery is listed by default.

Q21: In bright sun, can the inspection drone controller provide a full shift of monitoring without an external screen?

A21: The UIS400 controller lists a 7.02-inch 1,000-nit display, about three hours on the internal battery and up to six hours with the optional external battery. Brightness, radio use and video workload affect runtime, so plan charging or a second controller for longer shifts.

Q22: We will connect the inspection drone and automated dock to a corporate network. What cybersecurity evidence should procurement request?

A22: For a UIS400 and UK01 deployment, request network architecture, encryption, account roles, credential handling, software-update policy, logging, API controls, data location, vulnerability response and offline recovery procedures. The product page does not provide a complete security assurance package.

Q23: After dusty power-line patrols, what should a service center inspect on this multi-payload inspection drone?

A23: For the UIS400, check folding propellers, motors, obstacle sensors, radar and camera windows, gimbal mount, dual-payload interface, battery contacts, airframe seals and controller ports. Follow official calibration and maintenance intervals, especially after rain, impact or parachute deployment.

Q24: A national utility tender needs an inspection drone fleet with thermal imaging and remote docks. Which acceptance tests should be mandatory?

A24: For the UIS400, require loaded endurance, image and thermal output, laser ranging, RTK repeatability, obstacle-sensing limits, link and relay behavior, payload switching, UK01 dock recovery, data transfer and fail-safes. Contract training, cybersecurity, spares, maintenance and service levels separately.

Q25: The bank is financing an inspection drone network. Which costs and downtime risks belong in the business model?

A25: A UIS400 model should include aircraft, sensors, mounts, batteries, chargers, controllers, docks, installation, connectivity, software, permits, training, insurance, maintenance, spares, calibration and outage response. Published range or autonomy does not guarantee utilization, savings or repayment.

General Care Instructions for Drones and Drone Accessories

1. Battery Care

• Charging: Always use the recommended charger for your drone's battery. Avoid overcharging—once the battery is fully charged, unplug it to avoid damaging the battery.

• Storage: When not in use, store the battery in a cool, dry place. Avoid exposing the battery to extreme temperatures (below 0°C or above 40°C).

• Maintenance: Periodically check the battery’s health and charge cycles. Replace the battery after 300-500 charge cycles depending on its condition.


2. Cleaning

• Exterior Cleaning: Use a soft cloth to clean the drone’s body and propellers. Avoid using any abrasive materials that could scratch or damage the surface.

• Lens & Camera: Clean the camera lens and sensors with a microfiber cloth to remove dust and smudges. Never use chemical cleaners that might damage the lens coating.

• Propellers: Inspect and clean the propellers regularly, especially after use in dusty or dirty environments.


3. Storage

• Safe Storage: When storing your drone, ensure it’s kept in a safe, dry place where it won't be exposed to extreme temperatures, humidity, or direct sunlight.

• Transport: Use a protective case when transporting the drone to prevent damage. Never leave your drone exposed to the elements, especially in hot or humid conditions.


4. Pre-Flight Checks

• Battery: Ensure the battery is fully charged before flying.

• Propellers: Check that the propellers are secure and free from cracks or other damage.

• GPS and Sensors: Ensure the drone's GPS and other sensors are functioning properly before takeoff. Perform a quick calibration if necessary.


5. Post-Flight Care

• Cool Down: Allow the drone to cool down before packing it away. This is particularly important if you’ve been flying for an extended period.

• Post-Flight Cleaning: After each flight, clean the drone and check for any damage or wear. Inspect the propellers and motors for any debris or dirt that might affect performance.


6. Maintenance & Repairs

• Repairs: For any mechanical issues, contact a certified repair center or technician. Avoid attempting complex repairs yourself unless you're trained.

• Firmware Updates: Regularly check for firmware updates for your drone to ensure it has the latest features and safety improvements.


7. Environmental Considerations

• Weather Conditions: Avoid flying your drone in strong winds, heavy rain, or extreme temperatures. Always check the weather conditions before flying.

• Flying Location: Always ensure that you are flying in an open area, free from obstacles like trees, power lines, and buildings. Check local regulations for any restricted airspaces.
