Q1: I’m planning a pipeline inspection drone that may travel beyond a ten-kilometer work zone. Would a 15-kilometer fiber optic drone cable spool be a sensible starting point?

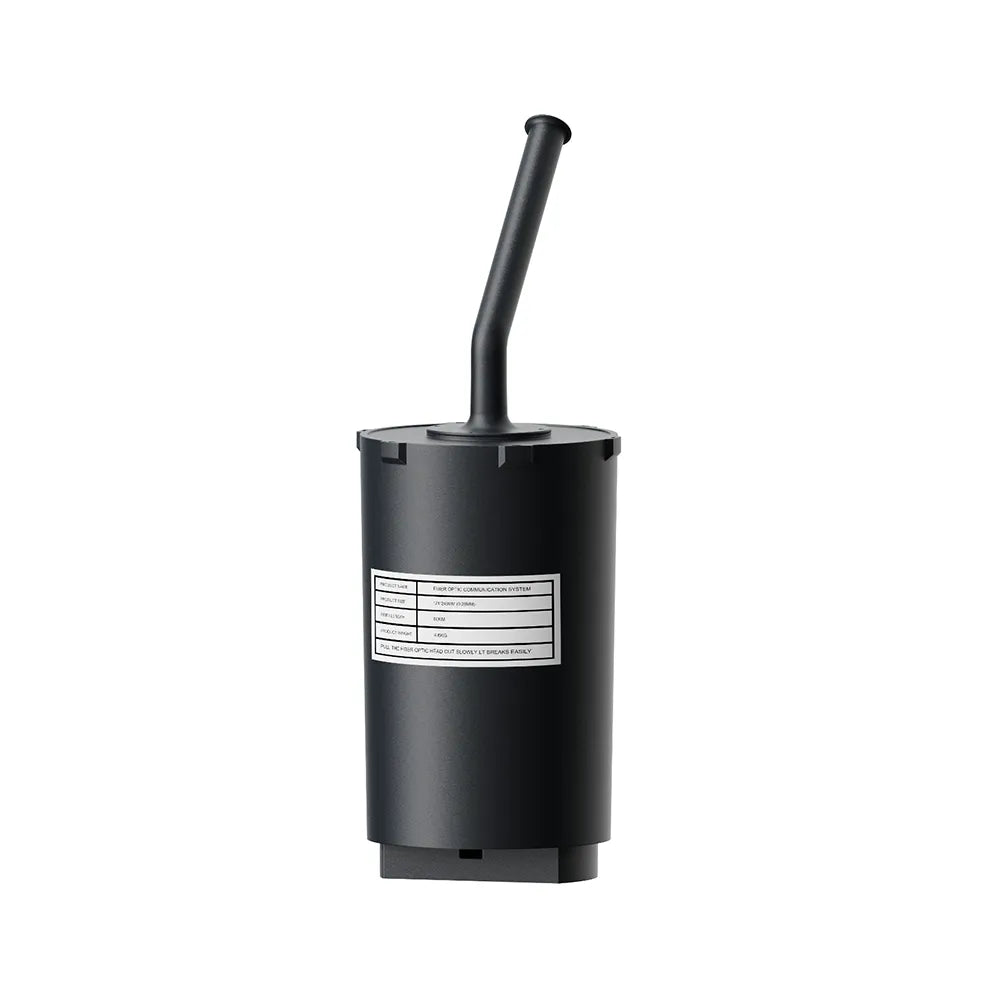

A1: UOF15 is positioned as 15,000 m intermediate spool for longer inspection routes, with a source conflict that requires written confirmation of usable link distance. It is a sensible candidate only if the platform can carry the complete spool assembly, air-ground electronics and safe route reserve; the length label alone does not establish mission fit.
Q2: Our missions involve a fifteen-kilometer pipeline section with access roads at both ends. How much distance reserve should we keep when sizing an optical fiber spool for drones?
A2: UOF15: The Specifications tab lists 15,000 meters, while the description says stable transmission up to 10 km. Treat 15 km as spool quantity until usable link distance is confirmed in writing. Map the physical cable path rather than straight-line distance, then reserve length for bends, altitude, obstacles, launch position and controlled termination.
Q3: During a fifteen-kilometer pipeline section with access roads at both ends, how should we account for the changing payload from a drone fiber optic cable spool?
A3: UOF15 lists fiber at 80 g/km, so the fiber itself is approximately 1.20 kg for 15 km. The page does not state total loaded spool mass, enclosure mass or air-unit mass, so obtain a measured complete-system weight before flight.
Q4: For a field prototype that sits between our short and long cable systems, what diameter and fiber construction should I expect from a fiber optic spool for FPV drones?
A4: UOF15 lists G657A2 fiber, a resin sheath and a cable diameter of 0.28 mm ±0.1. Confirm minimum bend radius, tensile limit, connector protection and the actual spool dimensions because those mechanical values are not published.
Q5: At an industrial corridor with pumps, radio towers and buried power lines, will a fiber optic cable spool for a drone avoid the same interference problems as a wireless video link?
A5: UOF15 is described as resistant to electromagnetic interference with ESD protection because the link uses optical fiber rather than RF. That does not remove risks from damaged fiber, connectors, power noise, software or the separate aircraft control architecture.
Q6: Our project involves a pipeline crew choosing between high-definition and lower-cost analog video. Should we order the digital HD or analog version of a fiber optic drone cable spool?
A6: UOF15 is sold as spool-only, with an HD air-ground system, or with an analog air-ground system. The page describes stable high-definition transmission and lists HD and analog variants, but it does not publish a complete video-interface specification. Select the camera interface and complete electronics package in the written quotation.
Q7: For a pipeline inspection drone that may travel beyond a ten-kilometer work zone, if we order only the 15-kilometer optical fiber spool for drones, are any air-ground electronics included?
A7: UOF15 has a spool-only variant plus HD and analog system variants. Do not assume the spool-only option contains transmitters, receivers, power leads, camera adapters or every FC cable; require an itemized package list before payment.
Q8: Our team already has an air-ground video set whose connector drawing is incomplete. What must match before adding a drone fiber optic cable spool?
A8: UOF15 compatibility depends on the air unit, ground unit, optical wavelengths, FC interface, pinout, camera signal, data protocol and power rails. The product page does not certify universal compatibility with an existing system, so bench-test the exact hardware revisions.
Q9: The integration is for a pipeline-drone avionics harness. Which connector and pin layout should we confirm on a fiber optic spool for FPV drones?
A9: UOF15 names an FC connector, but the Specifications tab says “1*9 Pin” while some descriptions say “11×9 pin.” Treat that as a source conflict and request a dimensioned connector and pinout drawing before building the harness.
Q10: If the listing mentions 3.3V and 5V, does a fiber optic cable spool for a drone itself need power in a ground vehicle and an aircraft with separate DC supplies?
A10: UOF15 lists a single 3.3V/5V power supply, but the page does not clearly assign it to the passive spool or the optional air-ground electronics. Confirm which module is powered, polarity, current, connector and isolation before connection.
Q11: For pipeline imaging where the crew needs stable detail over a long segment, what image quality and latency should we verify from a fiber optic drone cable spool?
A11: UOF15: The page describes stable high-definition transmission and lists HD and analog variants, but it does not publish a complete video-interface specification. Real quality also depends on the selected camera, converter, air-ground modules, recording path, display and fiber handling, so run an end-to-end test instead of relying on the spool specification alone.
Q12: We need a drone sending video, status and operator commands over one fiber. Can an optical fiber spool for drones carry two-way video and control data over one fiber?
A12: UOF15 is described with bi-directional transmission over a single fiber. Confirm supported protocols, bandwidth, control-channel behavior, loss handling and failsafe design with the ordered electronics because the passive fiber does not define the application protocol.
Q13: Along valve stations, trees and changes in ground elevation, how should crews route a drone fiber optic cable spool without snagging, crushing or exceeding its bend limit?
A13: UOF15 does not publish minimum bend radius, pulling strength, crush resistance or a deployment guide. Plan a controlled payout path, protect the connector, avoid sharp edges and moving machinery, and obtain mechanical limits before approving the route.
Q14: We plan to use a fiber optic spool for FPV drones in an exposed pipeline route with wet grass and dust. Does that mean the complete system is waterproof?
A14: UOF15 is marketed for indoor inspection and robot communication, including underwater-robot applications, but the page does not publish an IP rating or submersion rating for the spool, connectors or electronics. Do not treat the complete system as waterproof without written evidence.
Q15: On workdays spanning winter mornings and sun-heated equipment cases, which temperature limit should we apply to a fiber optic cable spool for a drone?
A15: UOF15 lists -40°C to +85°C for the optical spool specification. The camera, air-ground modules, battery, connectors and enclosure may have narrower limits, so apply the narrowest confirmed rating and test the complete installed system.
Q16: Our safety review covers a corporate inspection program with a formal laser register. What laser class and wavelength are listed for a fiber optic drone cable spool?
A16: UOF15 lists a Class 1 laser product using 1310 nm and 1550 nm wavelengths. Follow the supplied optical-safety instructions, keep connectors capped and clean, and require the final assembled system’s safety documentation rather than relying only on the component row.
Q17: After one pipeline segment, can an optical fiber spool for drones be rewound and reused, or should we plan it as mission consumable?
A17: UOF15 does not state whether deployed fiber is recoverable, rewound, reusable or single-mission. Reuse can depend on payout hardware, contamination, bends, tension and connector condition, so define the operating concept and acceptance criteria with the supplier.
Q18: Before accepting the system for a fifteen-kilometer contract, what bench and short-route tests should we run on a drone fiber optic cable spool?
A18: UOF15 should be checked for package identity, connector cleanliness, pinout, regulated power, optical continuity, video and data in both directions, failsafe behavior, controlled payout and a staged short-route run before the planned distance is attempted.
Q19: Our project covers cross-county infrastructure inspection. What permits and site controls apply to deploying a fiber optic spool for FPV drones there?
A19: UOF15 does not grant operational approval. Verify the exact jurisdiction’s aviation rules, site permission, line deployment hazards, road or public-area controls, optical-safety requirements, privacy rules and any restrictions on the intended monitoring activity.
Q20: When equipment stays in a vibration-prone utility truck between jobs, how should we inspect and store a fiber optic cable spool for a drone and its connectors?
A20: UOF15 should be stored dry, capped and protected from crushing, sharp bends, dust and connector contamination. Record continuity checks, visible sheath damage, payout history and electronics revision; use only cleaning methods approved for the FC interface.
Q21: We operate several pipeline crews ordering the same configuration. Which batch, configuration and packaging records should accompany each fiber optic drone cable spool?
A21: UOF15 fleet orders should record spool length, production lot, complete-system weight, fiber and connector specification, air-ground package, camera interface, pinout, firmware, test result, packaging, warranty and replacement compatibility for every unit.
Q22: As an infrastructure UAV reseller preparing a written system quote, what drawings, samples and acceptance data should we request for an optical fiber spool for drones?
A22: UOF15 integration should start with mechanical drawings, spool dimensions, total mass, center of gravity, payout direction, bend and tensile limits, FC and pinout drawings, power requirements, protocol documentation, sample test data and an itemized package quotation.
Q23: In our pipeline integrity institute, students will study a field prototype that sits between our short and long cable systems. Which limits of a drone fiber optic cable spool should the course demonstrate?
A23: UOF15 can illustrate optical communication, EMI resistance and air-ground integration, but students must distinguish spool length from mission range, fiber mass from total payload, component temperature from system limits, and listed applications from verified environmental certification.
Q24: If the measured link stops near ten kilometers despite the spool label, which spares and diagnostic records should we keep for a fiber optic spool for FPV drones?
A24: UOF15 support planning should include the exact spool revision, matching air and ground units, FC protection and cleaning items, approved patch leads, power harnesses, connector drawings, continuity-test method and a written replacement process. Do not order substitutes from appearance alone.
Q25: Besides advertised distance, how do we decide the required length of a drone fiber optic cable spool for routes that may be too long for ten kilometers but do not justify twenty?
A25: UOF15 should be compared on a 15,000 m quantity, an estimated 1.20 kg of fiber and an unresolved 10 km versus 15 km source conflict. Also compare route reserve, complete loaded mass, aircraft endurance, payout mechanics, recovery method, video package, connector and power compatibility, environmental evidence, compliance, lead time and support. The current description does not state RoHS compliance for this exact listing.
