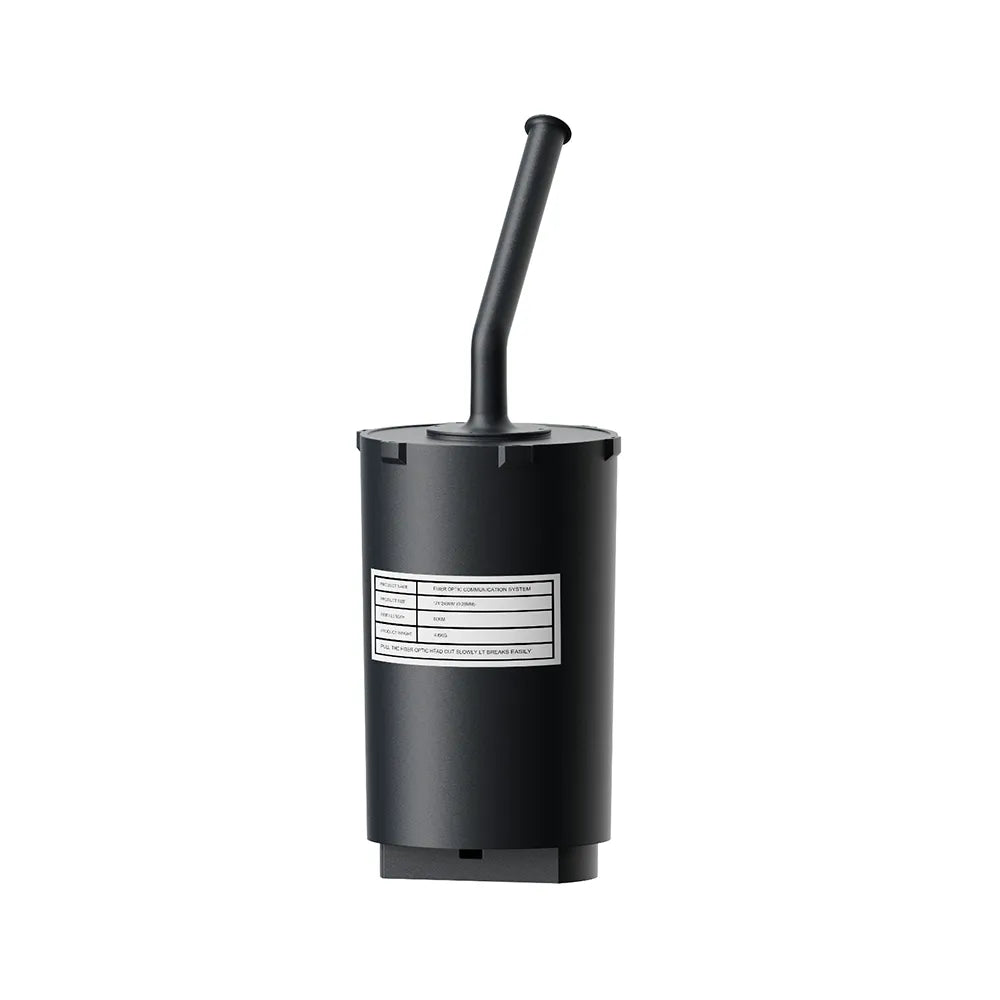

Q1: I’m planning a remote utility inspection program covering long access roads and pumping sites. Would a 20-kilometer fiber optic drone cable spool be a sensible starting point?
A1: UOF20 is positioned as 20 km professional spool for infrastructure, pipe-crawler, underwater-robot and remote-monitoring projects with documented digital and analog choices. It is a sensible candidate only if the platform can carry the complete spool assembly, air-ground electronics and safe route reserve; the length label alone does not establish mission fit.
Q2: Our missions involve a twenty-kilometer infrastructure corridor with planned recovery points. How much distance reserve should we keep when sizing an optical fiber spool for drones?
A2: UOF20: The Specifications tab lists 20,000 meters and the description says up to 20 km. Plan operational reserve and do not equate fiber quantity with guaranteed vehicle range. Map the physical cable path rather than straight-line distance, then reserve length for bends, altitude, obstacles, launch position and controlled termination.
Q3: During a twenty-kilometer infrastructure corridor with planned recovery points, how should we account for the changing payload from a drone fiber optic cable spool?
A3: UOF20 lists fiber at 80 g/km, so the fiber itself is approximately 1.60 kg for 20 km. The page does not state total loaded spool mass, enclosure mass or air-unit mass, so obtain a measured complete-system weight before flight.
Q4: For a professional air-ground system for repeatable client work, what diameter and fiber construction should I expect from a fiber optic spool for FPV drones?
A4: UOF20 lists G657A2 fiber, a resin sheath and a cable diameter of 0.28 mm ±0.1. Confirm minimum bend radius, tensile limit, connector protection and the actual spool dimensions because those mechanical values are not published.
Q5: At a pumping station crowded with high-current equipment and radio links, will a fiber optic cable spool for a drone avoid the same interference problems as a wireless video link?
A5: UOF20 is described as resistant to electromagnetic interference with ESD protection because the link uses optical fiber rather than RF. That does not remove risks from damaged fiber, connectors, power noise, software or the separate aircraft control architecture.
Q6: Our project involves an engineering team standardizing on 1080p digital video while retaining analog fallback units. Should we order the digital HD or analog version of a fiber optic drone cable spool?
A6: UOF20 is sold as spool-only, with an HD air-ground system, or with an analog air-ground system. The description lists 1080p stable digital video with no flicker or motion blur, plus an analog mode with lower image quality. Select the camera interface and complete electronics package in the written quotation.
Q7: For a remote utility inspection program covering long access roads and pumping sites, if we order only the 20-kilometer optical fiber spool for drones, are any air-ground electronics included?
A7: UOF20 has a spool-only variant plus HD and analog system variants. Do not assume the spool-only option contains transmitters, receivers, power leads, camera adapters or every FC cable; require an itemized package list before payment.
Q8: Our team already has an FC-based air-ground system used on both a drone and pipe crawler. What must match before adding a drone fiber optic cable spool?
A8: UOF20 compatibility depends on the air unit, ground unit, optical wavelengths, FC interface, pinout, camera signal, data protocol and power rails. The product page does not certify universal compatibility with an existing system, so bench-test the exact hardware revisions.
Q9: The integration is for a mixed aerial and ground-robot interface panel. Which connector and pin layout should we confirm on a fiber optic spool for FPV drones?
A9: UOF20 names an FC connector, but the Specifications tab says “1*9 Pin” while some descriptions say “11×9 pin.” Treat that as a source conflict and request a dimensioned connector and pinout drawing before building the harness.
Q10: If the listing mentions 3.3V and 5V, does a fiber optic cable spool for a drone itself need power in an 18-volt vehicle bus with regulated electronics outputs?
A10: UOF20 lists a single 3.3V/5V power supply, but the page does not clearly assign it to the passive spool or the optional air-ground electronics. Confirm which module is powered, polarity, current, connector and isolation before connection.
Q11: For asset inspection where the digital feed must avoid flicker and motion blur, what image quality and latency should we verify from a fiber optic drone cable spool?
A11: UOF20: The description lists 1080p stable digital video with no flicker or motion blur, plus an analog mode with lower image quality. Real quality also depends on the selected camera, converter, air-ground modules, recording path, display and fiber handling, so run an end-to-end test instead of relying on the spool specification alone.
Q12: We need a shared platform carrying video and control information in both directions. Can an optical fiber spool for drones carry two-way video and control data over one fiber?
A12: UOF20 is described with bi-directional transmission over a single fiber. Confirm supported protocols, bandwidth, control-channel behavior, loss handling and failsafe design with the ordered electronics because the passive fiber does not define the application protocol.
Q13: Along pipeline supports, culverts and service-road crossings, how should crews route a drone fiber optic cable spool without snagging, crushing or exceeding its bend limit?
A13: UOF20 does not publish minimum bend radius, pulling strength, crush resistance or a deployment guide. Plan a controlled payout path, protect the connector, avoid sharp edges and moving machinery, and obtain mechanical limits before approving the route.
Q14: We plan to use a fiber optic spool for FPV drones in a wet culvert and a splash-prone crawler deployment. Does that mean the complete system is waterproof?
A14: UOF20 is marketed for indoor inspection and robot communication, including underwater-robot applications, but the page does not publish an IP rating or submersion rating for the spool, connectors or electronics. Do not treat the complete system as waterproof without written evidence.
Q15: On workdays spanning subzero storage followed by operation beside hot machinery, which temperature limit should we apply to a fiber optic cable spool for a drone?
A15: UOF20 lists -40°C to +85°C for the optical spool specification. The camera, air-ground modules, battery, connectors and enclosure may have narrower limits, so apply the narrowest confirmed rating and test the complete installed system.
Q16: Our safety review covers an infrastructure company with controlled optical-equipment procedures. What laser class and wavelength are listed for a fiber optic drone cable spool?
A16: UOF20 lists a Class 1 laser product using 1310 nm and 1550 nm wavelengths. Follow the supplied optical-safety instructions, keep connectors capped and clean, and require the final assembled system’s safety documentation rather than relying only on the component row.
Q17: After a crawler or drone inspection run, can an optical fiber spool for drones be rewound and reused, or should we plan it as mission consumable?
A17: UOF20 does not state whether deployed fiber is recoverable, rewound, reusable or single-mission. Reuse can depend on payout hardware, contamination, bends, tension and connector condition, so define the operating concept and acceptance criteria with the supplier.
Q18: Before switching the spool between aerial and ground platforms, what bench and short-route tests should we run on a drone fiber optic cable spool?
A18: UOF20 should be checked for package identity, connector cleanliness, pinout, regulated power, optical continuity, video and data in both directions, failsafe behavior, controlled payout and a staged short-route run before the planned distance is attempted.
Q19: Our project covers public-utility inspection and remote monitoring. What permits and site controls apply to deploying a fiber optic spool for FPV drones there?
A19: UOF20 does not grant operational approval. Verify the exact jurisdiction’s aviation rules, site permission, line deployment hazards, road or public-area controls, optical-safety requirements, privacy rules and any restrictions on the intended monitoring activity.
Q20: When equipment stays in a sealed equipment locker at a pumping station between jobs, how should we inspect and store a fiber optic cable spool for a drone and its connectors?
A20: UOF20 should be stored dry, capped and protected from crushing, sharp bends, dust and connector contamination. Record continuity checks, visible sheath damage, payout history and electronics revision; use only cleaning methods approved for the FC interface.
Q21: We operate a utility fleet that needs traceable spools and matched electronics. Which batch, configuration and packaging records should accompany each fiber optic drone cable spool?
A21: UOF20 fleet orders should record spool length, production lot, complete-system weight, fiber and connector specification, air-ground package, camera interface, pinout, firmware, test result, packaging, warranty and replacement compatibility for every unit.
Q22: As a robotics and UAV integrator bidding on public infrastructure work, what drawings, samples and acceptance data should we request for an optical fiber spool for drones?
A22: UOF20 integration should start with mechanical drawings, spool dimensions, total mass, center of gravity, payout direction, bend and tensile limits, FC and pinout drawings, power requirements, protocol documentation, sample test data and an itemized package quotation.
Q23: In our civil-infrastructure research center, students will study a professional air-ground system for repeatable client work. Which limits of a drone fiber optic cable spool should the course demonstrate?
A23: UOF20 can illustrate optical communication, EMI resistance and air-ground integration, but students must distinguish spool length from mission range, fiber mass from total payload, component temperature from system limits, and listed applications from verified environmental certification.
Q24: If a client needs replacement air-ground units without changing the whole spool system, which spares and diagnostic records should we keep for a fiber optic spool for FPV drones?
A24: UOF20 support planning should include the exact spool revision, matching air and ground units, FC protection and cleaning items, approved patch leads, power harnesses, connector drawings, continuity-test method and a written replacement process. Do not order substitutes from appearance alone.
Q25: Besides advertised distance, how do we decide the required length of a drone fiber optic cable spool for combined drone, crawler and remote-monitoring operations?
A25: UOF20 should be compared on a 20 km quantity, an estimated 1.60 kg of fiber and explicit digital-versus-analog performance wording. Also compare route reserve, complete loaded mass, aircraft endurance, payout mechanics, recovery method, video package, connector and power compatibility, environmental evidence, compliance, lead time and support. The public description states Class 1 laser safety and RoHS compliance.
