Q1: I’m planning my first fiber-linked inspection drone for a warehouse and nearby service yard. Would a 5-kilometer fiber optic drone cable spool be a sensible starting point?

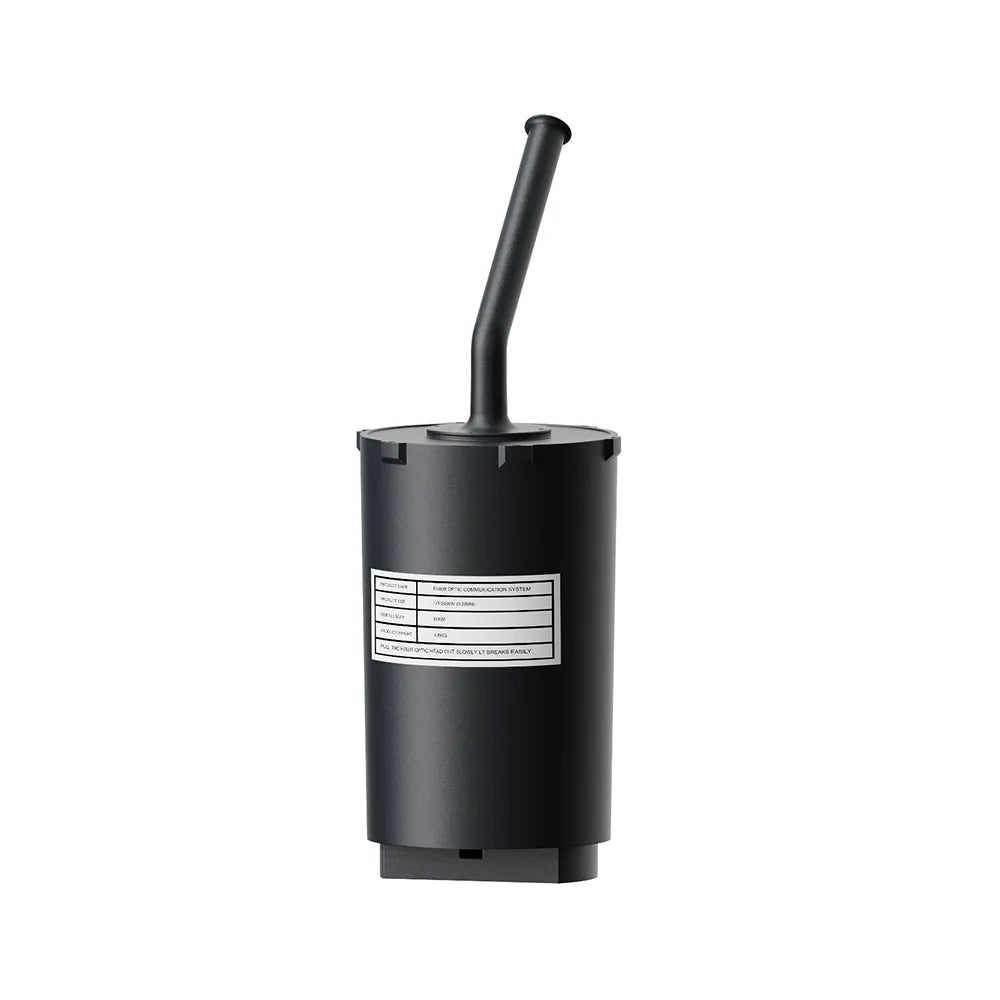

A1: UOF5 is positioned as Shortest 5 km spool in the range for prototypes, training, local FPV work and compact indoor or facility-inspection routes. It is a sensible candidate only if the platform can carry the complete spool assembly, air-ground electronics and safe route reserve; the length label alone does not establish mission fit.
Q2: Our missions involve short flights between factory buildings with several return points. How much distance reserve should we keep when sizing an optical fiber spool for drones?
A2: UOF5: The Specifications tab lists 5,000 meters and the description presents a 0–5 km optical link. That is a published maximum, not a route guarantee. Map the physical cable path rather than straight-line distance, then reserve length for bends, altitude, obstacles, launch position and controlled termination.
Q3: During short flights between factory buildings with several return points, how should we account for the changing payload from a drone fiber optic cable spool?
A3: UOF5 lists fiber at 80 g/km, so the fiber itself is approximately 0.40 kg for 5 km. The page does not state total loaded spool mass, enclosure mass or air-unit mass, so obtain a measured complete-system weight before flight.
Q4: For a lightweight prototype that must fit inside a small payload bay, what diameter and fiber construction should I expect from a fiber optic spool for FPV drones?
A4: UOF5 lists G657A2 fiber, a resin sheath and a cable diameter of 0.28 mm ±0.1. Confirm minimum bend radius, tensile limit, connector protection and the actual spool dimensions because those mechanical values are not published.
Q5: At a factory full of motors, welders and busy Wi-Fi, will a fiber optic cable spool for a drone avoid the same interference problems as a wireless video link?
A5: UOF5 is described as resistant to electromagnetic interference with ESD protection because the link uses optical fiber rather than RF. That does not remove risks from damaged fiber, connectors, power noise, software or the separate aircraft control architecture.
Q6: Our project involves a training fleet that needs simple digital video for repeatable short missions. Should we order the digital HD or analog version of a fiber optic drone cable spool?
A6: UOF5 is sold as spool-only, with an HD air-ground system, or with an analog air-ground system. The page describes lossless 1080p digital HD transmission for the HD package; the analog package has lower image quality. Select the camera interface and complete electronics package in the written quotation.
Q7: For my first fiber-linked inspection drone for a warehouse and nearby service yard, if we order only the 5-kilometer optical fiber spool for drones, are any air-ground electronics included?
A7: UOF5 has a spool-only variant plus HD and analog system variants. Do not assume the spool-only option contains transmitters, receivers, power leads, camera adapters or every FC cable; require an itemized package list before payment.
Q8: Our team already has a small FPV camera and controller but no fiber air-ground electronics. What must match before adding a drone fiber optic cable spool?
A8: UOF5 compatibility depends on the air unit, ground unit, optical wavelengths, FC interface, pinout, camera signal, data protocol and power rails. The product page does not certify universal compatibility with an existing system, so bench-test the exact hardware revisions.
Q9: The integration is for our university lab harness. Which connector and pin layout should we confirm on a fiber optic spool for FPV drones?
A9: UOF5 names an FC connector, but the Specifications tab says “1*9 Pin” while some descriptions say “11×9 pin.” Treat that as a source conflict and request a dimensioned connector and pinout drawing before building the harness.
Q10: If the listing mentions 3.3V and 5V, does a fiber optic cable spool for a drone itself need power in a battery-powered bench prototype?
A10: UOF5 lists a single 3.3V/5V power supply, but the page does not clearly assign it to the passive spool or the optional air-ground electronics. Confirm which module is powered, polarity, current, connector and isolation before connection.
Q11: For indoor inspection where operators need a clear 1080p view, what image quality and latency should we verify from a fiber optic drone cable spool?
A11: UOF5: The page describes lossless 1080p digital HD transmission for the HD package; the analog package has lower image quality. Real quality also depends on the selected camera, converter, air-ground modules, recording path, display and fiber handling, so run an end-to-end test instead of relying on the spool specification alone.
Q12: We need a training drone that sends video down and control data back. Can an optical fiber spool for drones carry two-way video and control data over one fiber?
A12: UOF5 is described with bi-directional transmission over a single fiber. Confirm supported protocols, bandwidth, control-channel behavior, loss handling and failsafe design with the ordered electronics because the passive fiber does not define the application protocol.
Q13: Along warehouse aisles, doorways and low machinery, how should crews route a drone fiber optic cable spool without snagging, crushing or exceeding its bend limit?
A13: UOF5 does not publish minimum bend radius, pulling strength, crush resistance or a deployment guide. Plan a controlled payout path, protect the connector, avoid sharp edges and moving machinery, and obtain mechanical limits before approving the route.
Q14: We plan to use a fiber optic spool for FPV drones in a damp basement and an indoor utility tunnel. Does that mean the complete system is waterproof?
A14: UOF5 is marketed for indoor inspection and robot communication, including underwater-robot applications, but the page does not publish an IP rating or submersion rating for the spool, connectors or electronics. Do not treat the complete system as waterproof without written evidence.
Q15: On workdays spanning a heated workshop and a cold outdoor loading yard, which temperature limit should we apply to a fiber optic cable spool for a drone?
A15: UOF5 lists -40°C to +85°C for the optical spool specification. The camera, air-ground modules, battery, connectors and enclosure may have narrower limits, so apply the narrowest confirmed rating and test the complete installed system.
Q16: Our safety review covers a student lab with supervised setup. What laser class and wavelength are listed for a fiber optic drone cable spool?
A16: UOF5 lists a Class 1 laser product using 1310 nm and 1550 nm wavelengths. Follow the supplied optical-safety instructions, keep connectors capped and clean, and require the final assembled system’s safety documentation rather than relying only on the component row.
Q17: After each short training flight, can an optical fiber spool for drones be rewound and reused, or should we plan it as mission consumable?
A17: UOF5 does not state whether deployed fiber is recoverable, rewound, reusable or single-mission. Reuse can depend on payout hardware, contamination, bends, tension and connector condition, so define the operating concept and acceptance criteria with the supplier.
Q18: Before letting students fly the system, what bench and short-route tests should we run on a drone fiber optic cable spool?
A18: UOF5 should be checked for package identity, connector cleanliness, pinout, regulated power, optical continuity, video and data in both directions, failsafe behavior, controlled payout and a staged short-route run before the planned distance is attempted.
Q19: Our project covers commercial indoor work and short outdoor flights. What permits and site controls apply to deploying a fiber optic spool for FPV drones there?
A19: UOF5 does not grant operational approval. Verify the exact jurisdiction’s aviation rules, site permission, line deployment hazards, road or public-area controls, optical-safety requirements, privacy rules and any restrictions on the intended monitoring activity.
Q20: When equipment stays in a mobile training case between jobs, how should we inspect and store a fiber optic cable spool for a drone and its connectors?
A20: UOF5 should be stored dry, capped and protected from crushing, sharp bends, dust and connector contamination. Record continuity checks, visible sheath damage, payout history and electronics revision; use only cleaning methods approved for the FC interface.
Q21: We operate ten identical training drones across several classrooms. Which batch, configuration and packaging records should accompany each fiber optic drone cable spool?
A21: UOF5 fleet orders should record spool length, production lot, complete-system weight, fiber and connector specification, air-ground package, camera interface, pinout, firmware, test result, packaging, warranty and replacement compatibility for every unit.
Q22: As a regional FPV equipment dealer serving schools and small contractors, what drawings, samples and acceptance data should we request for an optical fiber spool for drones?
A22: UOF5 integration should start with mechanical drawings, spool dimensions, total mass, center of gravity, payout direction, bend and tensile limits, FC and pinout drawings, power requirements, protocol documentation, sample test data and an itemized package quotation.
Q23: In our robotics laboratory, students will study a lightweight prototype that must fit inside a small payload bay. Which limits of a drone fiber optic cable spool should the course demonstrate?
A23: UOF5 can illustrate optical communication, EMI resistance and air-ground integration, but students must distinguish spool length from mission range, fiber mass from total payload, component temperature from system limits, and listed applications from verified environmental certification.
Q24: If a student damages the fiber or a connector during setup, which spares and diagnostic records should we keep for a fiber optic spool for FPV drones?
A24: UOF5 support planning should include the exact spool revision, matching air and ground units, FC protection and cleaning items, approved patch leads, power harnesses, connector drawings, continuity-test method and a written replacement process. Do not order substitutes from appearance alone.
Q25: Besides advertised distance, how do we decide the required length of a drone fiber optic cable spool for indoor training, prototype work and nearby facility inspection?
A25: UOF5 should be compared on minimum listed length and an estimated 0.40 kg of fiber before the spool body and electronics. Also compare route reserve, complete loaded mass, aircraft endurance, payout mechanics, recovery method, video package, connector and power compatibility, environmental evidence, compliance, lead time and support. The current description does not state RoHS compliance for this exact listing.
