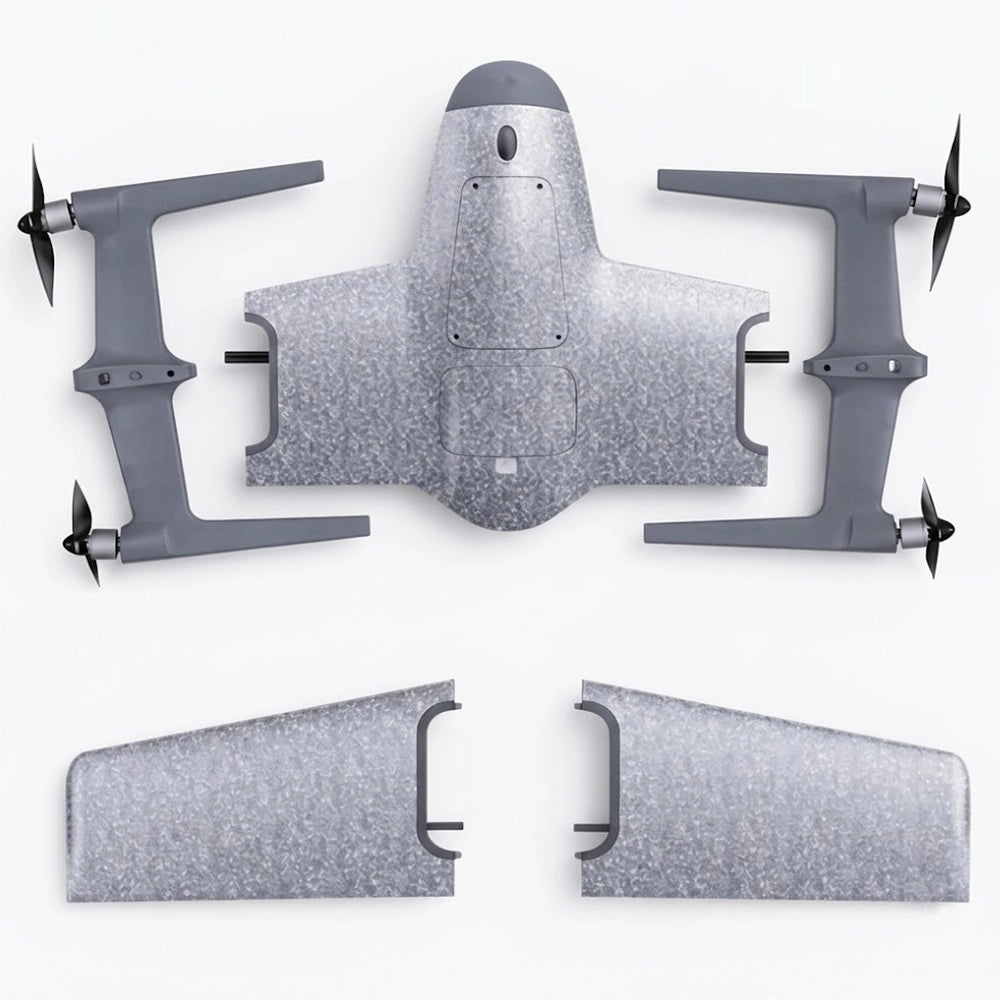

UVH PNP DIY Fixed Wing VTOL Drone Platform for Custom FPV, Survey Drone Builds and Modular Flight Systems

Q1: I already own a radio and FPV gear. Is a plug-and-play fixed-wing VTOL drone the sensible version for my custom build?

A1: The UVH PNP is intended for builders who want the core aircraft but will integrate their own radio, receiver, battery, charger, video link and optional FPV equipment. It is a better fit than a complete ready-to-fly package only if you are comfortable with wiring, configuration, balance and flight testing.

Q2: Before I order this DIY fixed-wing VTOL drone, what exactly is included and what must I supply myself?

A2: The UVH PNP page describes the core fuselage with flight controller, ESC, airspeed sensor, GPS and Wi-Fi module plus the modular airframe parts and propellers. The default box only says complete UVH PNP platform, so require a written list separating included components from your radio, receiver, battery, charger, video link, camera and cables.

Q3: Our engineering lab uses SBUS receivers. Will this fixed-wing VTOL drone accept that protocol without replacing the flight controller?

A3: The UVH PNP specification lists SBUS support and recommends a transmitter with at least seven channels. Confirm the receiver voltage, connector pinout, channel mapping, failsafe values and firmware version before installation rather than assuming every SBUS receiver is wired identically.

Q4: Can I tune this fixed-wing VTOL drone from my phone, or do I need a separate programming computer in the field?

A4: The UVH PNP includes a Wi-Fi module and the page describes parameter adjustment through QGroundControl on a phone or computer. Use the current setup guide for the network and connection settings, back up the original parameters and do not change flight-critical values without an approved test plan.

Q5: We build around PX4 software. Is this DIY VTOL drone genuinely compatible, and who supports problems after we change the configuration?

A5: The UVH PNP page describes PX4 compatibility, making it suitable for a configurable research or integration project. Compatibility does not mean every custom firmware, parameter or peripheral is supported; document the baseline version and agree in writing which faults remain the seller's responsibility after modification.

Q6: I want analog video now and digital FPV later. Can one fixed-wing VTOL drone platform support both build paths?

A6: The UVH PNP page lists both analog and digital image-transmission support and describes separate wiring paths. The buyer supplies the video equipment, so verify voltage, connector, antenna placement, MAVLink or OSD path, cooling and radio-frequency compatibility for the chosen system.

Q7: My 4S battery is slightly larger than usual. What compartment and takeoff limits apply to this fixed-wing VTOL drone?

A7: The UVH PNP lists a 7.5 x 3.5 x 6.5 cm battery compartment, a 4S 5500 mAh reference battery and 2.2 kg maximum takeoff weight. Check physical fit, connector, 16.8 V supply, discharge capability, cooling, centre of gravity and final all-up weight before flight.

Q8: For a lightweight survey experiment, how much equipment can this DIY fixed-wing VTOL drone carry once the battery and video link are installed?

A8: The UVH PNP page gives 1.1 kg empty weight and 2.2 kg maximum takeoff weight, but it does not publish a separate guaranteed payload figure. Weigh the complete aircraft with battery, receiver, link and sensor, then validate balance, endurance and structural limits before calling the remaining margin usable payload.

Q9: Could a fixed-wing VTOL drone like this collect professional mapping data if I add my own camera and GPS?

A9: The UVH PNP can serve as a custom aerial-data platform, but the standard page does not include RTK, a calibrated mapping camera or an accuracy claim. Professional output depends on time synchronization, positioning, camera geometry, vibration, route design, ground control, processing and an acceptance test for the required accuracy.

Q10: We have no launch rail at our test site. Does this DIY VTOL drone still take off vertically after custom equipment is added?

A10: The UVH PNP is designed for vertical takeoff and landing without a runway or rail. That capability must be revalidated after integration because added weight, poor balance, electrical noise or altered thrust margin can make a previously acceptable VTOL transition unsafe.

Q11: How much flight time should I expect from this plug-and-play fixed-wing VTOL drone with a normal FPV setup?

A11: The UVH PNP specification lists 50-60 minutes using a 4S 5500 mAh battery. An FPV transmitter, camera, custom antenna, payload, wind and tuning all change power demand, so establish usable endurance with progressive test flights and a conservative landing reserve.

Q12: The page mentions a thirty-to-forty-kilometre range. Does this fixed-wing VTOL drone include a radio link that reaches that distance?

A12: No included long-range radio is identified for the UVH PNP, and its 30-40 km number is a flight-range reference rather than a guaranteed control link. The integrator must select and legally operate a suitable command and video system, considering terrain, antennas, interference and failsafe behaviour.

Q13: Our robotics course wants students to study transition logic. Can this fixed-wing VTOL drone switch between rotor and wing modes through assigned channels?

A13: The UVH PNP guide describes configurable rotary-wing and fixed-wing mode switching through the remote controller. Use at least seven channels as recommended, document every switch position and perform restrained ground and hover checks before students attempt an airborne transition.

Q14: What built-in protections remain available on this DIY VTOL drone after I install my own receiver and video system?

A14: The UVH PNP page lists low-voltage protection, smart return, dangerous-attitude protection, stall protection, loss-of-control protection and geofencing. Their actual behaviour depends on correct receiver failsafe, battery sensing, GPS, parameters and firmware, so each protection must be deliberately tested in the configured system.

Q15: Our test field regularly gets gusty. What wind rating should we use for this lightweight fixed-wing VTOL drone build?

A15: The UVH PNP specification lists Level 5 wind resistance for the reference aircraft. Custom antennas, cameras, batteries and changed centre of gravity can alter that performance, so set a lower development limit until the finished configuration has passed documented flight tests.

Q16: Can I mount a GoPro on this plug-and-play VTOL drone, or is that compatibility only for the ready-to-fly version?

A16: The UVH PNP specification lists GoPro 5, 6, 7 and 8 plus DJI Action 1 and 2 as compatible action cameras. The builder must still provide the correct mount and include the camera in the 2.2 kg maximum takeoff weight and balance calculation.

Q17: We plan to carry the aircraft on hiking surveys. How portable is this modular fixed-wing VTOL drone after disassembly?

A17: The UVH PNP has a 1.1 m wingspan and modular airframe, but the storefront does not publish packed-case dimensions or a complete carry weight. Request the current case specification and test whether batteries, radio, FPV equipment, tools and spares fit the intended field load.

Q18: If I change the propellers on this DIY fixed-wing VTOL drone, can I use any similar nine-inch set?

A18: The UVH PNP specification identifies 9060 propellers. Do not substitute a visually similar set without confirming diameter, pitch, rotation, hub, strength, motor current and flight-control tuning, because propulsion changes affect lift, vibration, transition and fail-safe margins.

Q19: What pre-flight checks matter most after wiring a new receiver into this fixed-wing VTOL drone platform?

A19: For the UVH PNP, verify connector polarity, channel mapping, motor direction, control response, battery sensing, GPS, compass, airspeed, home point, mode switches and receiver-loss failsafe. Then complete restrained and low-risk tests before attempting a full transition or long route.

Q20: Our lab may change firmware repeatedly. How do we preserve a recoverable baseline for this PX4-compatible VTOL drone?

A20: For the UVH PNP, record the delivered firmware, export all parameters, photograph wiring and label the hardware revision before any change. Keep a controlled change log and a rollback copy, because unsupported firmware or parameters can affect transition, stall protection and seller support.

Q21: Does the built-in Wi-Fi on this DIY fixed-wing VTOL drone provide the long-range flight-control link during a mission?

A21: No. The UVH PNP page describes built-in Wi-Fi for local parameter adjustment through QGroundControl, not as the operational long-range command link. The builder must install and validate a separate receiver and any required telemetry or video system.

Q22: If our custom payload causes vibration, what should we check before flying this fixed-wing VTOL drone beyond the test area?

A22: On the UVH PNP, inspect the mount, fasteners, propeller balance, motor condition, wiring restraint and sensor logs, then test at incremental speeds. Vibration can corrupt the IMU, airspeed data and imagery, so do not expand the route until logs and footage remain stable.

Q23: Which spare parts should a university keep for a semester of student work with this modular VTOL drone?

A23: The UVH PNP storefront does not define a lab spares bundle. Plan approved 9060 propellers, arm and wing connectors, fasteners, wiring, power leads and repairable structural parts, plus backups for the student-supplied receiver and video system; confirm warranty boundaries before stocking internal electronics.

Q24: Would an overseas integrator receive setup help for this plug-and-play fixed-wing VTOL drone after installing third-party electronics?

A24: The UVH PNP is sold as an integration platform, but the storefront does not define an international support service level. Before purchase, agree on documentation, remote setup help, supported firmware, response times, spare-parts channels and what troubleshooting remains billable after third-party changes.

Q25: Before accepting this DIY VTOL drone, what tests prove that the supplied airframe and our electronics work together safely?

A25: For the UVH PNP, acceptance should cover the exact bill of materials, weight and balance, power draw, radio and video links, sensor health, hover, transition, return-to-home, receiver-loss failsafe, low-voltage action, loaded endurance and recovery. Record the tested firmware and configuration as the project baseline.
