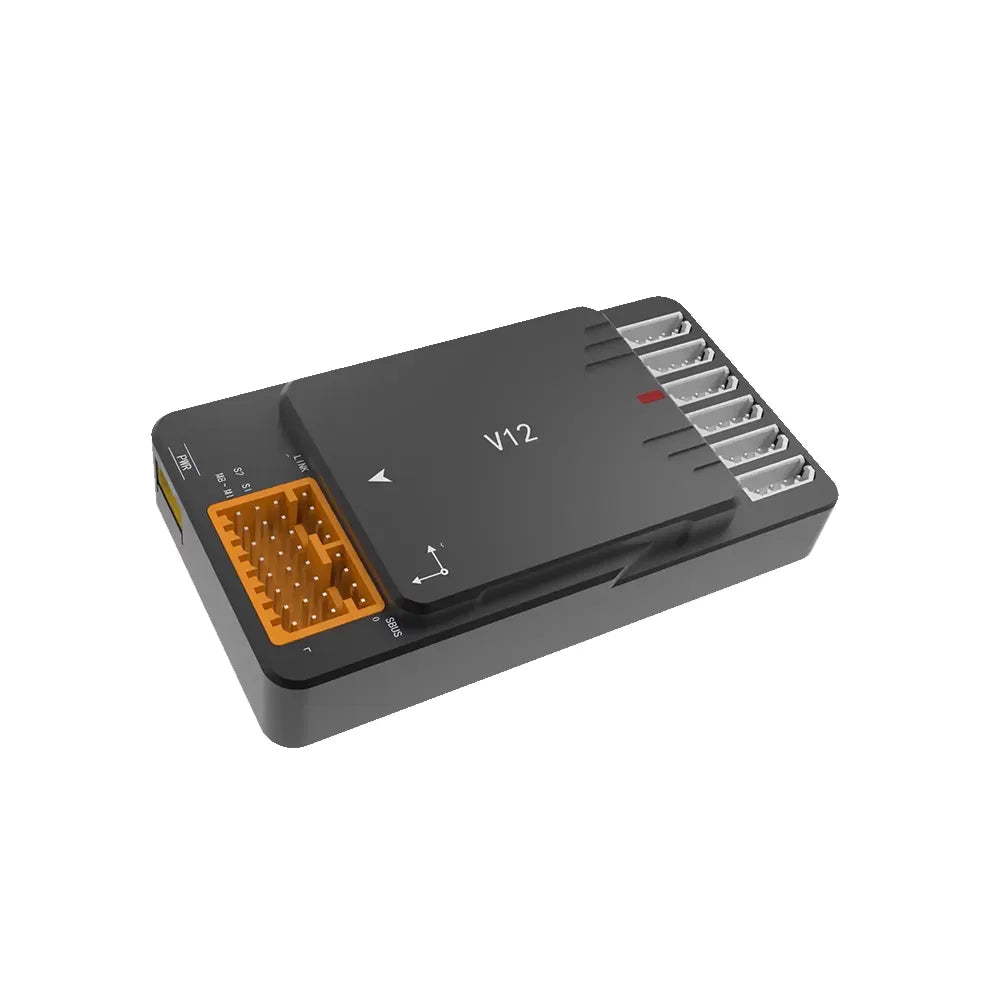

V12 Industrial Drone Flight Controller | Compact Flight Controller for Drone with Dual CAN & 6 Payload Channels

Q1: We're building a compact aircraft for roof inspections. Would an industrial drone flight controller designed for small and medium multirotors be the right starting point?

A1: V12 is positioned for medium and small industrial multirotors used in inspection, security, lighting, loudspeaker and logistics work. It is a reasonable candidate when its interfaces, rotor support and mission functions match the complete aircraft design; the finished drone still requires propulsion, power, payload, failsafe and flight-test validation.

Q2: The electronics bay in our security drone is very tight. How much space should we reserve for this compact drone flight controller and its connectors?

A2: V12 is listed at 113mm × 53mm × 26mm. Reserve more than the enclosure dimensions for connectors, cable bend radius, vibration isolation, cooling, fastening and service access, and confirm an installation drawing before freezing the airframe.

Q3: Our inspection aircraft has eight rotors. Can this industrial drone flight controller manage that layout, and what still needs to be configured?

A3: V12 is described as supporting multirotor platforms with up to eight rotors. The integrator must still confirm motor-output mapping, ESC protocol, mixer, rotation directions, thrust margin, power distribution, failsafes and the exact supported airframe configuration before flight.

Q4: We're choosing the battery architecture for a small logistics drone. How do we check whether the industrial drone flight controller can accept our pack voltage?

A4: V12 lists a 15V to 90V operating input. Use the battery's fully charged voltage, not only its nominal voltage, and verify transient protection, power-module wiring, connector ratings, grounding and the selected ESC and smart-battery architecture before connection.

Q5: Our delivery prototype uses CAN ESCs and smart batteries. Will this industrial drone flight controller connect directly, or do we need extra interface hardware?

A5: V12 is described as automatically adapting to CAN ESCs and smart batteries, but that does not prove compatibility with every vendor or protocol revision. Confirm the exact CAN protocol, firmware, termination, connector pinout, telemetry fields and any required hub or adapter in writing.

Q6: We want propulsion and payload devices on separate networks. What does dual CAN actually let us do with this UAV flight controller?

A6: V12 lists dual CAN buses and rich peripheral interfaces. The project team should obtain the interface map and confirm whether the two buses can be assigned independently, their bitrate and termination requirements, supported device messages, loading limits and fault behavior.

Q7: Our public-safety drone needs a light, speaker and several release devices. Are six payload channels on this industrial drone flight controller enough for that build?

A7: V12 is described as supporting up to six independent payload-release channels. Count each required command and verify voltage, current, signal type, isolation, simultaneous operation, interlocks and whether lights or speakers need separate interfaces rather than assuming every accessory uses a release channel.

Q8: The product page lists the controller, RTK, radars and radio as separate options. What comes with the industrial drone flight controller itself?

A8: V12 is sold through separate selectable variants for the flight controller, RTK air unit, front radar, rear radar, terrain-follow radar, data-link radio and RTK base station. Do not treat the option list as one bundle; the final quotation must identify the exact selected item and every included cable, antenna, module and accessory.

Q9: We need repeatable flight paths over solar panels. Does this industrial drone flight controller include RTK, or are the air unit and base station separate?

A9: V12 lists RTK (D3-H) and the RTK base station as separate selectable variants. The Specifications tab publishes RTK accuracy of 0.1m horizontally and vertically, but only an ordered, compatible and correctly commissioned RTK configuration can use that figure.

Q10: Our drone will inspect warehouse roofs near walls and vents. Are obstacle and terrain radars built into this industrial drone flight controller?

A10: V12 supports front obstacle radar, rear obstacle radar and terrain-follow radar expansion, but those devices are separate selectable variants rather than items to assume are inside the base controller. Confirm radar model, field of view, mounting, wiring, firmware and operating limits for the actual site.

Q11: We need manual flying, an A-to-B route and multipoint missions. Does this industrial drone flight controller support all three ways of operating?

A11: V12's current product material lists manual mode, A-B waypoint mode and multi-point missions. Confirm the exact ground-control software, map source, route limits, licensing, firmware version and pilot override behavior before basing an operating procedure on those modes.

Q12: If the control link drops behind a building, can this industrial drone flight controller return directly or retrace the route it flew?

A12: V12 is described as supporting straight-line return and original-path return. The team must still configure the trigger, altitude, obstacle strategy, GNSS requirements, battery reserve and loss-of-link behavior, then test each return mode conservatively at a safe site.

Q13: Our utility route is long and narrow. Can this UAV flight controller plan corridor missions as well as rectangular inspection areas?

A13: V12 is described as supporting free waypoint routes, belt-shaped monitoring areas and block-shaped inspection zones. Verify waypoint count, map formats, terrain data, boundary handling, camera triggering and how the selected software turns each planned area into a flyable route.

Q14: A security customer wants target lock, tracking and evidence photos. Which of those jobs can this industrial drone flight controller actually coordinate?

A14: V12 product material lists target lock, automatic tracking, precision scanning, aerial photography and evidence collection. Those functions still depend on a compatible camera or vision payload, supported software, data link, calibration and the exact integration package; the base controller alone is not a complete surveillance system.

Q15: We deliver laboratory samples across a large site. What payload-release modes does this industrial drone flight controller support for that kind of mission?

A15: V12 is described with high-altitude drop, low-altitude precision drop and cross-site transport delivery modes. Payload mass, release hardware, target clearance, route, local rules, reserve and emergency procedures must be validated for the completed aircraft; the controller does not guarantee safe delivery by itself.

Q16: Our aircraft may work in winter mornings and hot factory yards. What temperature range is published for this industrial drone flight controller?

A16: V12 lists an operating temperature of -20°C to 60°C. That is a component specification, not automatic approval for the complete drone; batteries, ESCs, sensors, radars, connectors, payloads and enclosure ventilation may impose a narrower operating range.

Q17: For inspection close to structures, how should we interpret the positioning accuracy listed for this industrial drone flight controller?

A17: V12 lists horizontal accuracy of 0.1m with RTK and 2m with single positioning, plus vertical accuracy of 0.1m with RTK and 3m with single positioning. Treat these as published conditions, not guaranteed clearance from obstacles, and validate the complete GNSS, RTK and sensor installation.

Q18: The aircraft needs to cover a large industrial site quickly. Are the speed figures on this UAV flight controller safe working speeds?

A18: V12 lists maximum horizontal speed of 20m/s and maximum climb speed of 5m/s. They are controller-side published maxima, not a recommended mission speed; airframe strength, propulsion, payload, wind, braking distance, sensing, regulations and test results determine the safe operating envelope.

Q19: We want to power a small payload computer from the aircraft. Can the industrial drone flight controller provide a protected 12-volt output?

A19: V12 is described with a stable 12V external output and short-circuit protection. Confirm the available current, connector pinout, transient behavior, grounding and payload startup load; use a separate rated converter if the payload exceeds the documented output capability.

Q20: Our field team needs telemetry beyond visual range at a private test site. Is a data-link radio included with this industrial drone flight controller?

A20: V12 lists the R2-T900 data-link radio as a separate selectable variant, so it should not be assumed to accompany the base controller. Confirm radio frequency, regional legality, range test conditions, antennas, encryption, connectors and compatibility with the chosen ground station.

Q21: I'm installing my first custom multirotor. How much setup remains after mounting the industrial drone flight controller in the airframe?

A21: V12 is not a plug-and-fly aircraft. Integration still includes mechanical mounting, wiring, power checks, firmware and software setup, sensor orientation, radio and GNSS installation, airframe configuration, calibration, failsafes, payload mapping, restrained tests and a staged flight-test program.

Q22: Our customer uses different laptops and languages. Which ground software and language options should we confirm for this industrial drone flight controller?

A22: V12 product material claims multi-language and multi-system support but does not identify every supported operating system, application version or language in the Specifications tab. Require the quotation to name the exact ground-control software, device requirements, licenses, language pack and update policy.

Q23: A repair center will support these drones in another country. Which spares should we order with the industrial drone flight controller?

A23: V12 spares should be based on the exact bill of materials and may include matched controller hardware, power and CAN cables, connectors, antennas, vibration mounts and any ordered RTK, radar or data-link modules. Confirm revision compatibility, diagnostic tools, firmware access and replacement procedures.

Q24: Our procurement team is comparing several compact UAV flight controllers. What details must be written into the supplier quotation?

A24: V12 quotations should identify the exact selected variant, controller revision, firmware, included harnesses and modules, connector drawings, voltage and output limits, supported airframes and protocols, software and licenses, ordered RTK or radar hardware, warranty, lead time, documentation, training and after-sales responsibility.

Q25: How should an OEM choose between a compact industrial drone flight controller and a heavy-lift controller if the aircraft may grow later?

A25: V12 is the compact option for medium and small industrial multirotors, with up to eight-rotor support and six payload channels. Choose it only if the planned and future aircraft remain inside its verified interfaces and operating envelope; otherwise compare the larger controller's motor capacity, voltage, redundancy, payload and fleet functions before freezing the platform.
