Q1: We're building our first spraying aircraft for orchards. Is an agricultural drone flight controller with dedicated pump and flow interfaces the right place to start?
A1: V9-AG is designed specifically for agricultural spraying, seeding, misting and related multirotor operations. It is a suitable candidate when the aircraft needs its agricultural interfaces and supported power architecture, but the final frame, propulsion, tank, pumps, sensors, navigation and safety system still require complete integration and testing.
Q2: Our service company sprays, spreads seed and occasionally carries small farm supplies. Which jobs can this agricultural drone flight controller support?
A2: V9-AG lists spraying, spreading, cleaning and delivering as operation modes, while the description emphasizes spraying, misting, seeding and payload delivery. Confirm the software, payload hardware and licensing for each planned job; selecting the controller does not supply the pump, spreader, cleaning or cargo equipment.
Q3: We're designing a spray drone with four pumps. Does this agricultural drone flight controller provide enough pump outputs for that system?
A3: V9-AG's Specifications tab lists four pump outputs. Confirm output signal, voltage and current, supported pump or ESC type, independent versus paired control, calibration method, emergency shutoff and the exact harness before selecting pumps.
Q4: Our boom has two liquid circuits and two tank sensors. Can this spraying drone flight controller monitor both flow meters and both liquid levels?
A4: V9-AG lists dual flow-meter monitoring and dual liquid-level detection. The integrator must confirm compatible sensor types, pulse or CAN interface, calibration range, connector pinout, filtering, alarm logic and how readings are recorded in the chosen software.
Q5: We're choosing between single GPS, dual GPS and RTK. Which agricultural drone flight controller kit should a spraying contractor order?
A5: V9-AG is sold as separate single-GPS, dual-GPS and RTK kit variants, along with individual modules. A spraying contractor should choose from required accuracy, redundancy, terrain, field boundaries, correction coverage and budget, then require the quotation to list every included module, antenna and cable.
Q6: Our farms have mixed satellite visibility near trees and hills. Which navigation constellations can this agricultural drone flight controller use?
A6: V9-AG's description lists GPS, GLONASS and BEIDOU support with multi-frequency GNSS positioning. Confirm the exact receiver variant, enabled constellations and frequencies, antenna placement, firmware, regional correction service and performance under the farm's actual canopy and terrain.
Q7: We need repeatable spray lines beside field boundaries. What positioning accuracy is published for the RTK agricultural drone flight controller kit?
A7: V9-AG's Specifications tab lists RTK hover accuracy of ±0.1m horizontally and vertically, compared with dual-GNSS figures of ±1m horizontally and ±0.5m vertically. Treat those as published conditions, not a crop-clearance guarantee, and validate the ordered RTK kit and correction link.
Q8: Our existing agricultural aircraft uses PWM ESCs, but the next version may use CAN. Can this agricultural drone flight controller handle both?
A8: V9-AG's description lists both PWM and CAN motor control. Confirm supported ESC protocols, motor count, update rate, telemetry, CAN termination, connector pinout, firmware and whether the selected controller kit includes the required hub or harness.
Q9: We're selecting a high-voltage battery for a large spray drone. What input limit should we use for this agricultural drone flight controller?
A9: V9-AG's Specifications tab lists 16V to 90V, while the description says support up to 100V and the parenthetical cell-count text appears malformed. Use neither upper value without written approval of the exact battery's fully charged voltage, PMU, connectors and transient limits.
Q10: Our spraying season includes frosty mornings and very hot afternoons. Which temperature range should we trust for this agricultural drone flight controller?
A10: V9-AG's Specifications tab lists -25°C to 55°C, while the description states -25°C to 60°C. Plan conservatively to the narrower -25°C to 55°C component range unless the supplier confirms the ordered revision in writing; the complete drone may have stricter battery, pump and sensor limits.
Q11: The specification labels the controller modules differently in the size table. Which dimensions should we use for this agricultural drone flight controller installation?
A11: V9-AG's size row labels one unit 'PUM' at 73mm × 46mm × 18.5mm and the PMU at 88mm × 44mm × 15.5mm, while other page text refers to FMU and PMU modules. Obtain a current labeled drawing for every ordered module before designing mounts or cable lengths.
Q12: We need accurate weight and balance before ordering the frame. What do the listed module weights mean for this agricultural drone flight controller?
A12: V9-AG's Specifications tab lists FMU at 659g and PMU at 80g, but the unusually large FMU figure and inconsistent module labels require written confirmation. Do not freeze center of gravity or payload calculations until the supplier provides measured weights for the exact kit and harnesses.
Q13: After a spray complaint, we need to review the aircraft history. How many missions can this agricultural drone flight controller record?
A13: V9-AG's description states that it can store data for up to 50 flight missions. Confirm what parameters are logged, retention and overwrite behavior, timestamps, export format, software access and whether application-rate, pump and flow data are included before relying on the logs for investigations.
Q14: Our large spray frame has strong pump and motor vibration. What vibration protection does this agricultural drone flight controller provide?
A14: V9-AG is described with a redesigned vibration-isolation system and filtering algorithm. That does not make every mounting location acceptable; follow the approved mounting orientation, isolation hardware and cable support, then review vibration logs and flight behavior across empty and full tank conditions.
Q15: We often spray in open fields with gusts. How should pilots interpret the wind rating shown for this agricultural drone flight controller?
A15: V9-AG's Specifications tab says wind resistance is 'Less than 6 Level' without defining the standard or exact speed. Do not convert that phrase into an operating limit; establish the finished aircraft's wind envelope through supplier clarification, airframe testing, payload state, droplet-drift rules and local conditions.
Q16: Our spray routes need quick turns at the field edge. Are the speed and attitude limits on this agricultural drone flight controller operating recommendations?
A16: V9-AG lists maximum horizontal speed of 10m/s, maximum vertical speed of 3m/s and maximum attitude angle of 20 degrees. These are published controller limits, not recommended spraying settings; droplet placement, tank motion, payload, wind, obstacle clearance and tested stopping distance should set working values.
Q17: We worry about sparks and reversed battery connections during field swaps. What electrical protection is listed for this agricultural drone flight controller?
A17: V9-AG's description lists reverse-polarity, spark-ignition, overvoltage and overcurrent protection. Protection is not a substitute for correct connectors, pre-charge practice, rated wiring, fusing, inspection and lockout procedures; require the PMU diagram and test conditions for the ordered hardware.
Q18: Our fields have trees and uneven terrain. Are obstacle and terrain radars included with this agricultural drone flight controller kit?
A18: V9-AG lists front obstacle radar, rear obstacle radar and terrain-follow radar as separate selectable variants. Confirm which sensors are included, their mounting and field of view, supported surfaces and crops, altitude range, wiring, firmware and failure response for the actual aircraft.

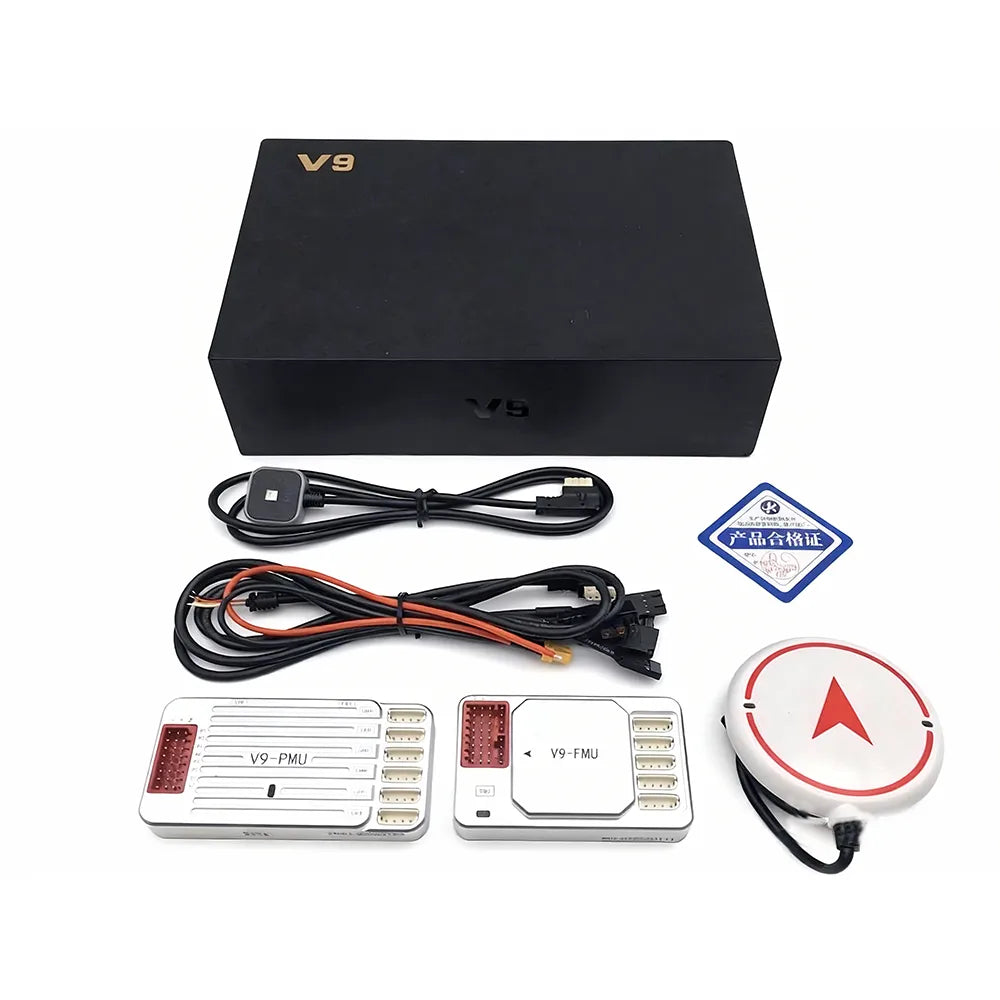

Q19: The selector includes complete kits, an FMU, a PMU and individual GPS units. How do we avoid ordering only part of the agricultural drone flight controller?
A19: V9-AG has separate single-GPS, dual-GPS and RTK kit variants plus individual FMU, PMU, RTK air unit, GPS, radar and accessory variants. Select by the exact variant name and require a bill of materials; a low-priced module option should never be assumed to be a complete flight-control kit.
Q20: One option is called Flow Water, but the page does not explain it clearly. What should we confirm for this spraying drone flight controller accessory?
A20: V9-AG lists a 'Flow Water' variant without a clear technical definition in the current product material. Before ordering, require the part number, function, compatible flow-meter type, range, connectors, included harness, calibration procedure and confirmation of whether one or two units are needed.
Q21: I'm retrofitting an older spraying aircraft. What must match before replacing its current agricultural drone flight controller?
A21: V9-AG retrofit suitability depends on airframe type, motor count, PWM or CAN ESC protocol, battery and PMU voltage, pumps, flow meters, level sensors, GNSS or RTK, radars, remote controller, ground software, connectors, mounting, payload logic and available configuration support. A physical fit alone is not enough.
Q22: A rural service center cannot wait weeks for parts. Which spares should it stock for this agricultural drone flight controller?
A22: V9-AG spares should match the ordered kit revision and may include FMU or PMU modules, GPS units, RTK hardware, hub, flow-sensing parts, harnesses, connectors, vibration mounts, LED and any installed radars. Confirm interchangeability, firmware pairing, diagnostic tools and replacement calibration before stocking.
Q23: Our training school is building a spraying-drone course. What commissioning steps should students learn for this agricultural drone flight controller?
A23: V9-AG training should cover safe power wiring, module and sensor mounting, firmware and ground software, airframe and ESC configuration, GNSS or RTK setup, pump and flow calibration, liquid-level sensing, failsafes, dry tests, restrained propulsion checks and staged empty-to-loaded flight testing.
Q24: A cooperative is requesting quotations for several spray aircraft. What details must be written into the agricultural drone flight controller offer?
A24: V9-AG quotations should state the exact kit or component variant, controller revision and firmware, included FMU, PMU, GPS or RTK, hub, harnesses and sensors, supported voltage and ESC protocols, pump and flow interfaces, software, radars, documentation, warranty, training, spares, lead time and every known specification conflict.
Q25: We're comparing an agricultural drone flight controller with a general industrial controller. What would justify choosing the agriculture-specific system?
A25: V9-AG is the stronger fit when the aircraft genuinely needs agricultural pump outputs, dual flow and liquid-level monitoring, spraying or spreading modes and farm-oriented integration. A general industrial controller may suit inspection or logistics better; choose from the complete mission, interfaces, power system, navigation, support and verified software rather than category labels alone.
