A commissioned survey surface should identify where its estimates are supported by the supplied observations and how predictions beyond that footprint are handled. For a UG21 mapping inquiry, request the source-point footprint, the chosen interpolation method and an explicit boundary-review deliverable. A continuous-looking map does not settle those questions. Have the responsible geospatial specialist define what may be used for the intended decision before accepting the finished surface.

Bring the edge of the site into the discussion

Imagine an irregular project area with a narrow extension along one side. The supplier presents a smooth surface covering a convenient rectangle. The central area looks convincing, but the buyer's important decision concerns the extension. Was that part supported by observations, estimated from nearby information, deliberately excluded, or displayed using a fallback? The review should answer that question explicitly. This is a hypothetical purchasing example, not a reported survey or a statement about UG21 performance.

The practical distinction is between the area requested by the customer and the area for which the delivered analysis has an agreed evidential basis. Those areas may coincide, but the contract should not assume that they do. A boundary record gives the reviewer something concrete to inspect and gives the supplier a way to explain limitations without hiding them inside a software default.

What the software documentation establishes

The official SciPy griddata documentation describes a fill value for requested locations outside the convex hull of the input points. It also states that this option does not affect the nearest method. This is a bounded example of method-dependent behavior: the same request for an output grid need not produce the same treatment at its perimeter. It is not a universal rule for every survey application, and it does not establish which software or processing capability is supplied with UG21.

The procurement implication is an editorial recommendation: ask the provider to name the actual method and demonstrate its boundary behavior on the proposed workflow. Do not require a particular library merely because its documentation illustrates the issue. Equally, do not accept a familiar software name as a substitute for the provider's explanation of the delivered result.

Specify three review locations

A useful acceptance sample can include a well-supported interior location, a location near the edge of the source footprint and a requested location beyond that footprint. Ask the specialist to choose representative examples and explain why they matter. The buyer is commissioning an explanation, not prescribing a numerical interpolation procedure. The example locations should remain linked to the source release and the delivered surface so another reviewer can revisit the same evidence.

For each location, request the output status, the relevant input context and the intended use limitation. A result may be suitable for a preliminary illustration but require further work before a design or quantity decision. Those uses should be named separately. Avoid a single approved label that conceals the difference between an attractive display and an analytical deliverable accepted for a particular purpose.

The review should also include a deliberately difficult boundary segment. A neat central sample can show that the workflow runs while revealing little about the question that prompted the purchase. In the hypothetical irregular site, the narrow extension is the useful test. If the supplier cannot yet explain it, record an unresolved requirement and its owner rather than quietly reducing the requested area.

Keep the boundary record separate from the map artwork

A map intended for discussion may have a title, legend, background and carefully chosen colors. The support-boundary record has a different job: it explains the status of the estimates. Ask whether the recipient will receive that information as a companion layer, a report section or another agreed artifact. The format should fit the receiving workflow, and the quotation should identify who prepares it.

Do not make the record dependent on a particular person remembering what happened during processing. Include a release identifier, a reference to the input evidence and a concise account of any deliberate exclusions or fallback handling. These are proposed handover requirements, not claims that a certain field name or file format is mandatory in every project. The appropriate specialist should tailor the record to the actual deliverable.

Preserve the difference between an agreed exclusion and an unexplained absence. The former has a reason, a responsible reviewer and a stated effect on the intended use. The latter is an open question. A purchasing team can track that administrative distinction without attempting to decide whether a particular estimator is scientifically appropriate.

Compare proposals on the same scope

One proposal may include only a rendered surface. Another may include the underlying analytical output and a perimeter review. Their prices describe different packages. Before comparing totals, list the requested artifacts, the intended recipient and the review activity associated with each. Ask bidders to identify inclusions, exclusions and work that requires another provider. Do not award an implicit quality advantage simply because one proposal contains more technical terminology.

A practical comparison table can use columns for requested output, boundary evidence, reviewer responsibility, unresolved assumptions and commercial treatment. Keep the entries descriptive rather than inventing a universal scoring system. An unresolved method question belongs with the geospatial reviewer; an unpriced review activity belongs with the commercial discussion. Separating those questions helps avoid accepting a scope gap as a technical disagreement.

Changes to the requested footprint should be handled visibly. If the buyer extends the site after the sample review, ask which evidence and acceptance activities must be reconsidered. The earlier sample should not silently become approval for an expanded area. Record the revised request and let the provider explain the consequences before the commercial team treats the change as included work.

Field lesson: review where the decision is difficult

The editorial lesson is simple: an acceptance demonstration should include the part of the job most likely to expose a misunderstanding. This is not advice attributed to an unnamed operator or a claim drawn from personal field experience. It is a purchasing discipline that follows from the distinction between requested coverage and supported estimates. Ask the reviewer to identify that difficult part before the demonstration is prepared.

During the meeting, record the explanation and the remaining question, not only a pass or fail. A supplier might explain that the requested edge needs additional evidence, a different output or a narrower use statement. The buyer then has a decision to make. Concealing that choice behind a smooth map would make the quotation less useful, even if the image looked more complete.

The final sign-off should state what was reviewed and what was not. It need not pretend that every uncertainty has disappeared. A clearly bounded acceptance can be more useful than a broad declaration that no recipient can interpret consistently. Any professional certification or engineering approval remains a separately defined responsibility.

Connect the requirement to a UG21 inquiry

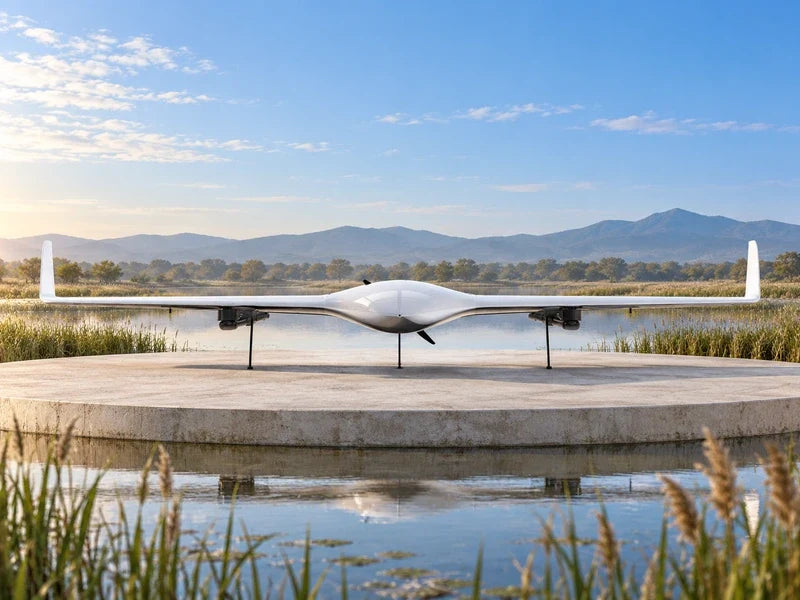

The UG21 VTOL fixed-wing drone is a product starting point for a configuration discussion. Its listing does not establish that a particular interpolation method, sensor, processing license or survey service is included. Ask UNITED UAV to confirm the offered configuration and distinguish aircraft supply from any separately proposed data workflow. Unknown facts should remain open questions; contact us for configuration details.

For United States and United Arab Emirates buyers, the same evidence-oriented brief can support a conversation without assuming common local permissions, professional requirements or operating conditions. Name the actual project, receiving team and responsible specialist. This article provides no flight procedure, local authorization or guarantee that a given aircraft configuration meets the proposed mapping requirement.

Two related handover questions deserve separate review: how a GIS grouping key defines a summary and whether raster type conversion preserves analytical values. Neither replaces the support-boundary discussion. Together they help the buyer describe what the final data must mean after it leaves the processing team.

A question to settle before signing

What happens if the requested perimeter cannot support the intended decision? Ask the provider to describe the available next steps without promising an outcome in advance. The answer might require a revised deliverable, further evidence or a specialist decision to limit use. Purchasing should record which option is being proposed, who can authorize it and whether its cost is included. An explicit unresolved boundary is preferable to an undocumented assumption of complete coverage.

Request an edge-case sample

Start with a non-sensitive sketch of the requested area and mark the edge where the intended decision is most demanding. Add the expected recipient, the proposed use and any known source constraints. Browse the VTOL and fixed-wing collection for product options, then ask for a quotation that separates the aircraft configuration from the boundary-review work.

Use the UNITED UAV inquiry page to request a small review package containing the surface sample, its input footprint and a written explanation of the difficult edge. Ask who would supply each item and what remains subject to specialist confirmation. The useful next step is a shared understanding of the deliverable, not a promise inferred from a continuous color surface. Source documentation was checked on 16 October 2026; the examples and purchasing checklist are editorial analysis.
