A raster export should be checked for preserved numerical values, not accepted solely because its map display looks unchanged. For a UG73 survey-data inquiry, identify the source and output data types and ask the processing owner to demonstrate the effect of any conversion on representative values. Keep negative, fractional and boundary cases in the review where relevant. A familiar file extension or color scheme does not establish that the analytical content survived.

When the picture survives but the question changes

Imagine a hypothetical project in which one team uses a surface for visualization and another imports it into a numerical report. Both teams receive an export with the same visible colors. The first reviewer sees no obvious difference, while the second needs to know whether the stored values changed. Their acceptance questions are different. A visual review may be useful, but it cannot replace the value comparison required by the analytical recipient.

This article concerns the representation of delivered numbers. It does not establish the accuracy of the original observations, the suitability of a sensor or the correctness of a survey method. Those remain separate reviews. The purchasing goal is narrower: ensure that the proposed handover does not silently change the information that the receiving workflow expects to use.

What a data-type change can mean

GDAL's raster API documentation distinguishes signed and unsigned integer types from floating-point types. Its raster set-type documentation warns that forcing a smaller output type may truncate or round values. These facts identify a possible conversion issue; they do not say that every conversion causes loss or that a particular output type is always the right choice.

The appropriate geospatial specialist should explain the actual transformation in the proposed workflow. The buyer can ask which values must remain meaningful, how that requirement will be tested and what exceptions will be reported. Do not infer preservation from the fact that the receiving application opens the file. Successful opening and faithful analytical interpretation are different acceptance events.

Likewise, do not treat a larger storage type as proof of better survey quality. Representation and observation quality answer different questions. The specification should state what information the export must preserve while leaving the specialist responsible for selecting and validating the implementation. No GDAL capability is asserted to be part of the UG73 equipment package.

Build a sample around the values that matter

A useful review sample should reflect the intended analysis rather than contain only convenient positive whole numbers. Ask the specialist whether negative values, fractional values, extrema or designated missing-data values are relevant to the actual deliverable. The sample should include the cases that could expose an unacceptable conversion. This is a proposed acceptance approach, not a universal test suite or a claim that every raster contains all these cases.

For each selected location, request the source value, the delivered value and the interpretation expected by the recipient. Link the comparison to the exact source and output releases. If an intentional transformation changes the numerical representation, ask for its explanation and the agreed acceptance criterion. The review should not confuse a documented, approved transformation with an unexplained difference.

Keep the test evidence small enough to discuss. A focused comparison table, with the associated files available to the reviewer, can resolve more than a long screenshot presentation. The buyer should be able to point to a disputed result and ask which operation produced it. The technical owner should be able to answer without reconstructing the entire job from memory.

Do not let display settings become the acceptance test

A map presentation is designed to help people see patterns. A numerical comparison is designed to establish what happened to the values. Ask for both when both are needed, but do not let one stand in for the other. The receiving analyst may need a reproducible comparison record even when the project manager prefers a concise visual summary.

The reporting brief should identify which artifact is authoritative for each question. A map can communicate the area under discussion; a release-linked comparison can document the reviewed transformation. A summary note can explain the commercial status of the issue. Clear roles for these artifacts prevent a presentation file from becoming accidental evidence for a technical conclusion it was never designed to support.

Where the receiving team uses different software, include that environment in the handover discussion. Ask who will perform the recipient-side check and how a disagreement will be recorded. Do not assume compatibility from a generic format label, and do not promise that a test in one application establishes correct behavior everywhere.

Agree what happens when a value changes

Before the full delivery, distinguish acceptable intended changes from changes that require investigation. The criteria should come from the intended use and the responsible specialist, not from an arbitrary tolerance invented in a purchasing meeting. Record who can approve an exception and what supporting evidence is needed. A supplier should not have to guess whether a discrepancy is commercially important.

If the review identifies an unexpected difference, preserve the source and the questioned output. Ask for a corrected release or a technical explanation through the agreed process. Avoid editing the received values informally to make a comparison table agree. That would obscure the issue and make the eventual acceptance harder to explain.

A revised export should be identified as a revision. The recipient needs to know which file supersedes which earlier delivery and whether any downstream work must be repeated. The quotation can state who prepares that notice and who confirms receipt. These administrative details are useful even when the numerical investigation itself belongs entirely to a technical provider.

Price the handover, not just the file

A proposal that includes an export is not necessarily a proposal that includes a value-preservation review. Ask what evidence will accompany the file and which recipient checks are included. If a separate processing partner is involved, identify the handoff between that partner and the equipment supplier. Do not assume that every supporting activity is included because the overall project is described as a mapping solution.

For bid comparison, list the requested source record, output description, conversion explanation, sample comparison, exception process and review responsibility. Providers can then distinguish confirmed inclusions from optional services. The buyer can compare equivalent scopes without pretending that a general assurance of high quality answers every data-handling question.

It is also worth identifying the boundary between demonstration and production acceptance. A sample can establish that the parties understand the requested evidence. It does not automatically approve every future export. State which checks remain necessary for the full delivery and which person has authority to close them.

Field lesson: inspect the numbers behind the decision

The editorial buyer lesson is to test the values that could change the recipient's decision, not only the appearance that makes the deliverable easy to present. This is not a reported incident or an attributed operator quotation. It is a practical way to focus a procurement review on the information the customer actually intends to use.

A useful meeting begins with a question such as which delivered values will feed the report and which transformation steps could affect them. It ends with an evidence request, an owner and an acceptance condition. That is more actionable than a broad instruction to make the map accurate, which mixes observation quality, processing choices and delivery behavior into one unclear demand.

Make the UG73 scope explicit

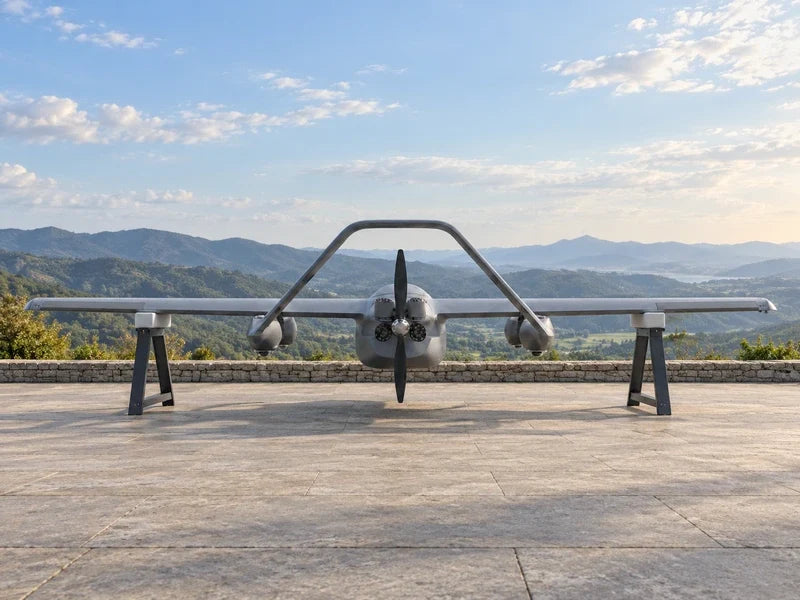

The UG73 fixed-wing VTOL drone provides a product reference for a configuration inquiry. It does not establish a specific raster-processing workflow, software license, sensor package or professional survey service. Ask UNITED UAV to confirm the offered equipment and identify any separately scoped support. For details not yet established, contact us for configuration details rather than filling the gap from a generic technical document.

United States and United Arab Emirates procurement teams should name their actual receiving application and technical reviewer. This common English-language checklist does not imply common local authorization, professional requirements or operating conditions. The article addresses delivered-data review, not aircraft operation or a guarantee of mapping suitability.

Related specifications include the boundary of interpolation support and group membership in a dissolved GIS layer. Those issues remain distinct from numeric type conversion. Treat them as separate questions with their own evidence rather than assuming that one successful file check settles the whole data workflow.

Which copy should the recipient retain?

Ask the technical owner to identify the source, the accepted export and any review-only intermediate files. The receiving team should know which artifact is intended for analysis and which exists only to explain a conversion. Agree the release references before files are distributed more widely. This simple administrative distinction can keep an unaccepted trial export from becoming the working input for a later report.

Request a before-and-after example

Prepare a short description of the analytical use and the values that must remain interpretable. Compare equipment options through the VTOL and fixed-wing collection, then use the UNITED UAV contact page to request confirmed UG73 configuration information and a clearly separated processing scope. Ask for one before-and-after sample, its release references and the person responsible for explaining exceptions. The GDAL documentation was checked on 16 October 2026; the scenarios and acceptance suggestions are editorial analysis.
