A dissolved GIS layer represents a chosen reporting unit, not merely a cleaner version of the original map. Before accepting one for a UG32-related project, agree which attributes define each group and how the remaining fields will be summarized. Review a sample group's membership and calculated results together. A visually tidy polygon cannot establish that a maintenance total, asset count or responsibility label still means what the buyer intended.

Begin with the question the grouped layer must answer

Consider a hypothetical maintenance manager who wants a map of work zones and a table of outstanding actions. The supplier combines small mapped areas into larger shapes, and the result looks easier to read. Yet a shared display color is not necessarily the same thing as a shared maintenance responsibility. If the grouping rule was never agreed, the manager may receive an attractive layer that cannot support the planned work allocation.

The first purchasing question should therefore be about the reporting unit. Is the buyer asking for a zone, a contract package, a condition category or another defined group? Write that answer in ordinary language before discussing the processing tool. Then ask the GIS specialist to show which source attributes represent the agreed definition. This keeps the business question visible when the technical specification is prepared.

Grouping and summarizing are separate choices

The official Esri Dissolve documentation describes aggregation by specified attributes and the calculation of summary statistics for selected fields. It also explains that null values are excluded from those statistical calculations. These are tool-specific facts, not proof that a particular project should use ArcGIS or that such software is included with UG32. The buyer still needs a qualified specialist to define the appropriate workflow.

As an editorial procurement recommendation, put the grouping rule and the field-summary rules on separate lines. The grouping key answers which source records belong together. The statistic answers what should be reported about a particular attribute within that group. Approving one does not automatically approve the other. A shared zone name might be appropriate for geometry aggregation while a condition field needs a more carefully defined reporting treatment.

Not every field deserves a summary value. Some may need to remain in a linked source table, some may require an exception note, and others may be irrelevant to the agreed output. Ask the provider to propose that treatment explicitly. Do not instruct the team to keep whichever value happens to appear first merely to make the final table look complete.

Use a small source table as the acceptance example

Prepare a non-sensitive example containing a normal group and one that exposes a potential misunderstanding. For instance, a group could contain records from two reporting periods or records whose responsibility labels do not agree. These are hypothetical test conditions, not observations about a real customer dataset. The receiving team should state the expected treatment, and the GIS owner should explain whether the proposed workflow implements it.

Ask to see the source records beside the grouped result. A reviewer should be able to identify why each record joined the group, which fields contributed to each reported value and which records were excluded. This need not become a large software project. A modest traceable example can be enough to resolve a scope question before a full production deliverable is commissioned.

Record unresolved cases instead of quietly cleaning them away. If the same visible label refers to different underlying identifiers, the provider should explain the consequence for grouping. If a field contains an absence rather than a meaningful value, the reporting owner should decide what evidence the recipient needs. Those decisions should remain reviewable after the presentation is over.

Keep the source-to-summary relationship available

A grouped result should have a clear connection to the source release used to produce it. Ask how the recipient will locate that release and identify the records behind a selected group. The appropriate mechanism depends on the project, so this article does not prescribe a universal schema. The purchasing requirement is the ability to explain the result without relying on someone's memory of an earlier processing session.

That relationship also helps when a source record is corrected. The receiving team can ask which summary is affected and whether the correction requires a replacement release. Avoid a workflow in which a new map is emailed without any indication that its group totals changed. The quotation should identify who prepares the change note and who accepts the revised result.

Separate this traceability question from legal ownership or contractual responsibility. A GIS grouping may be useful for planning without establishing who owns an asset or has authority to approve work. Any such determination needs its own evidence and appropriate review. Do not turn a convenient data field into a conclusion that the underlying records cannot support.

Compare the proposed reporting products

Two suppliers may offer different outputs under the label summary map. One provides a static image; another supplies editable groups with a supporting table and a membership record. Neither description alone establishes which is appropriate. Start with the recipient's task, then compare whether each proposal includes the artifacts and review activities needed for that task. Keep optional work visibly separate from the base equipment quotation.

A useful request can name the source release, intended reporting unit, grouping fields, summarized attributes, exception treatment and acceptance owner. Ask each provider to mark confirmed, proposed and unresolved items. This is more informative than a broad assurance that all attributes will be preserved, because aggregation can change the meaning of a row even when many familiar field names remain visible.

The commercial discussion should also address changes to the grouping definition. If the buyer later changes from maintenance zones to contract packages, the provider may need to revisit the processing and review work. Do not treat that change as a cosmetic relabeling without asking. A clear change request protects both parties from different assumptions about what the original deliverable included.

Field lesson: approve membership and meaning together

The buyer lesson here is editorial analysis, not a story attributed to an unnamed surveyor. Approve a group's membership and its reported meaning in the same review. If those decisions happen in separate meetings with different assumptions, a team can agree on a map shape while remaining confused about the total beside it. A small worked example makes the disagreement visible early.

Invite the eventual recipient to that review. A GIS specialist may understand the processing options, while the maintenance manager knows how the output will be used. Both perspectives matter, but their responsibilities differ. The specialist explains the transformation; the reporting owner confirms whether the result answers the requested question. Purchasing records the agreed scope and the remaining dependencies.

Keep acceptance language bounded. A successful sample does not certify every source record or establish that the original observations were correct. It demonstrates the agreed treatment of the selected cases. The final delivery review still needs whatever completeness and technical checks the project requires, assigned to the appropriate people rather than implied by the sample alone.

Where UG32 fits into the discussion

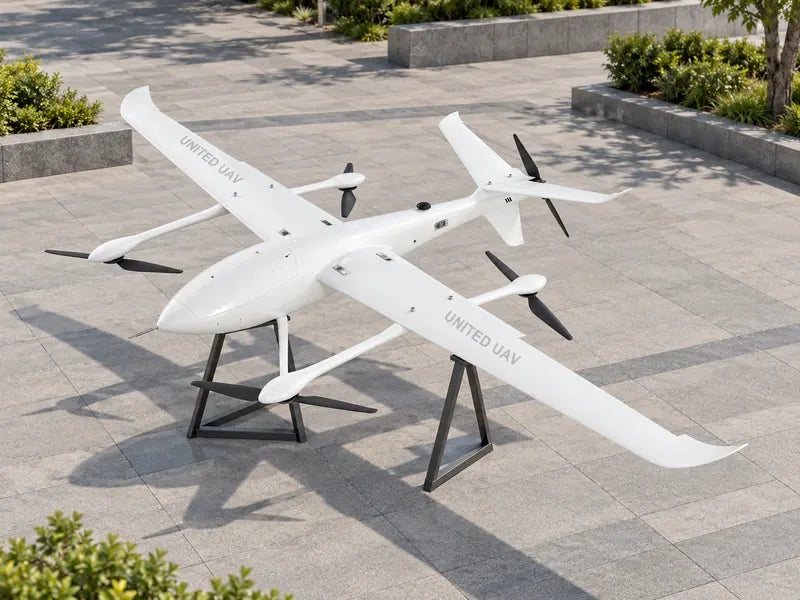

The UG32 fixed-wing VTOL UAV can be the starting point for an equipment inquiry associated with mapping or inspection. The product identity does not establish a particular GIS package, data-processing service or professional sign-off. Ask UNITED UAV which configuration is offered and identify any supporting work that would require a separate scope. For unknown interfaces or services, contact us for configuration details.

United States and United Arab Emirates teams can use this evidence structure while defining their own actual project requirements. Geographic context does not establish common permissions, professional obligations or data-sharing rules. Name the receiving organization and its reviewer rather than assuming that a generic international workflow settles those questions.

For adjacent data decisions, review the support boundary of an interpolated surface and value preservation during raster type conversion. These address different transformations and should not be collapsed into one all-purpose data-quality checkbox. Each needs evidence linked to the decision it supports.

What should remain ungrouped?

Ask the receiving team whether any source records must remain separately inspectable even when a grouped layer is delivered. A summary may be useful for planning while a detailed record is still needed for follow-up. Specify that companion requirement explicitly and identify the authorized audience. The provider can then explain the proposed delivery structure instead of guessing that a single consolidated layer will satisfy every recipient.

Bring an expected result to the quotation meeting

Before comparing aircraft options in the VTOL and fixed-wing collection, outline one group the recipient needs to understand. Include a short source table, an expected grouped result and the questions that remain open. Remove sensitive operational or personal information. The goal is to make the reporting requirement concrete without distributing a production dataset unnecessarily.

Send that bounded example through the UNITED UAV contact page and ask which equipment details can be confirmed, who would own the grouping specification and what review activity is separately quoted. A useful response should distinguish the aircraft proposal from the data deliverable. Esri documentation was checked on 16 October 2026; the proposed checklist and scenarios are original editorial guidance, not evidence of a completed UG32 project.
